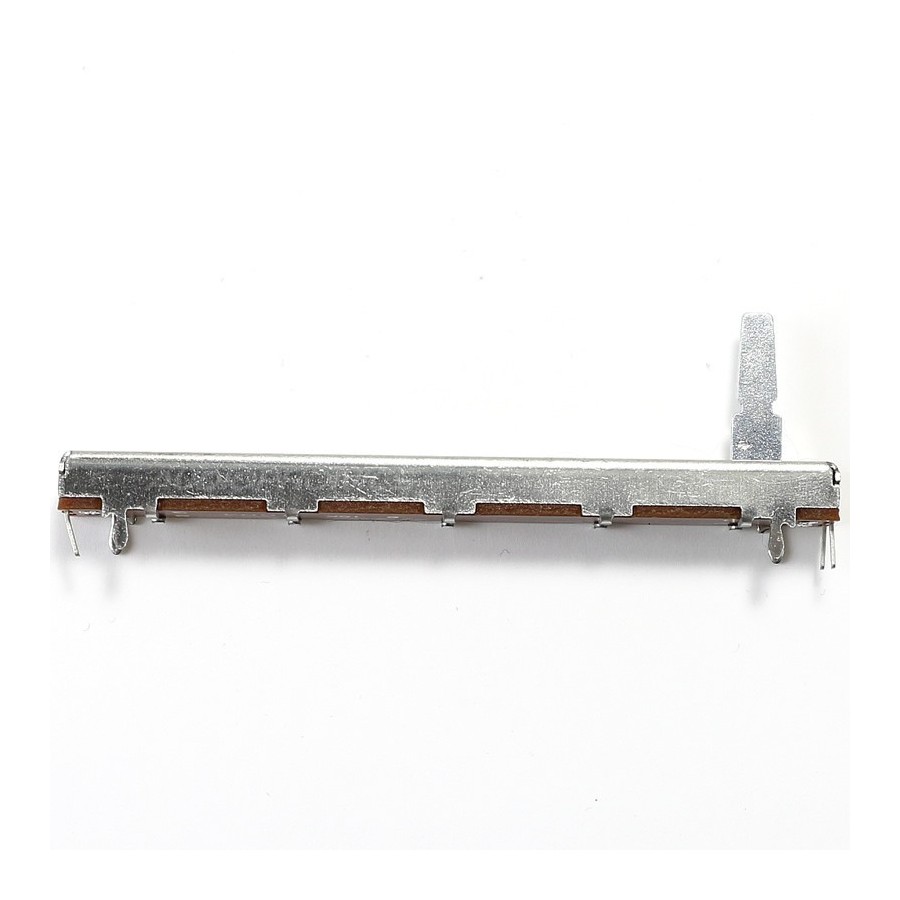

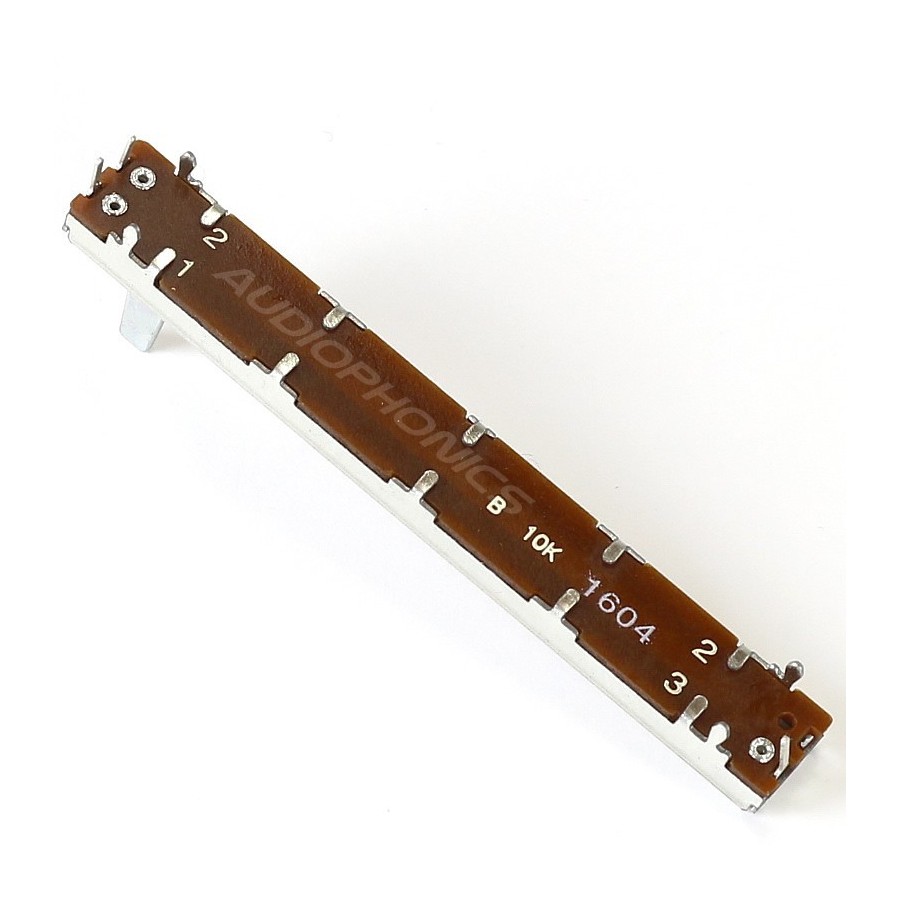

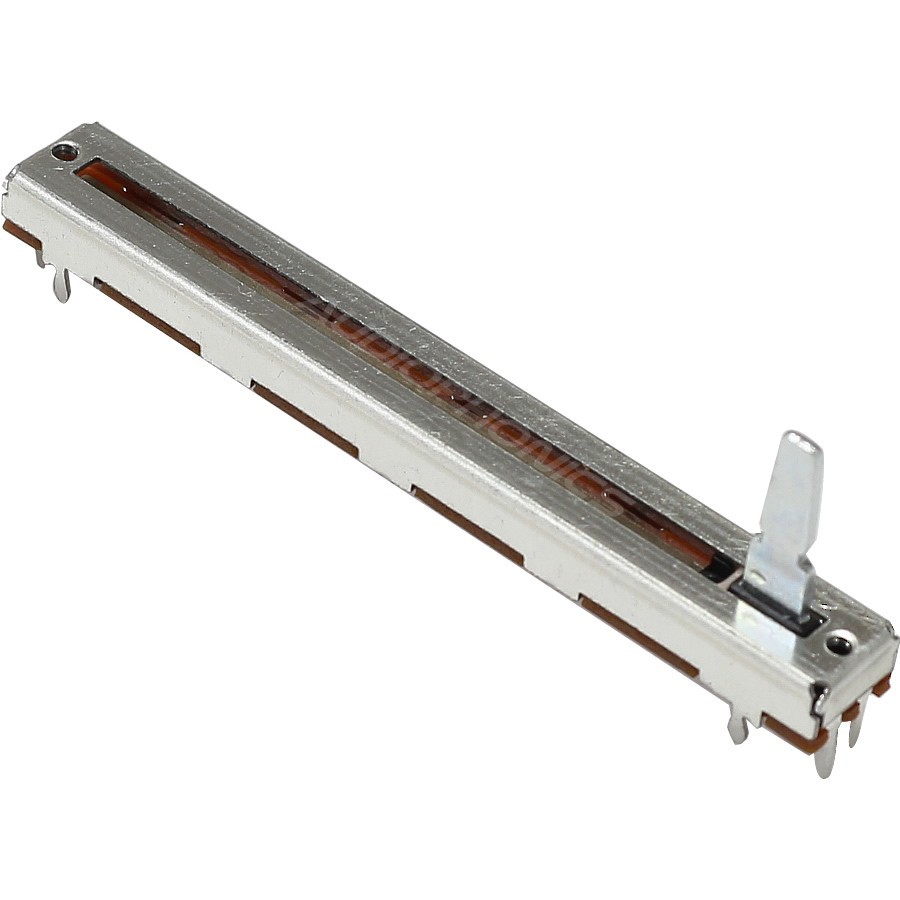

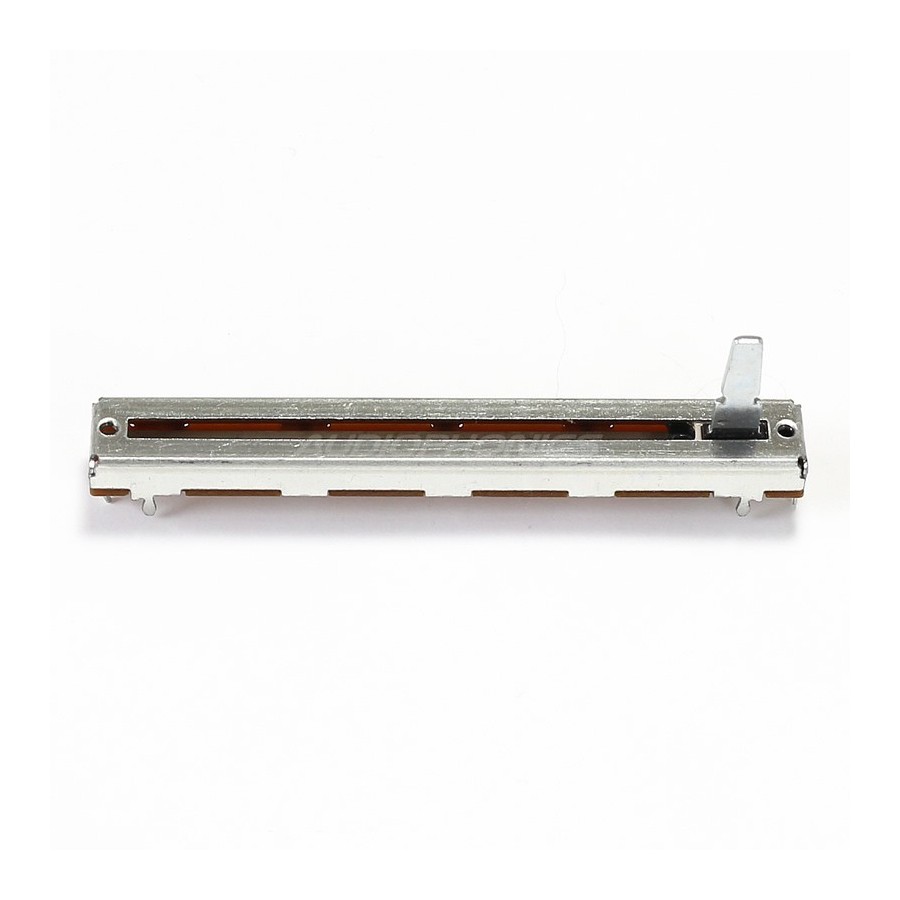

Bourns PTA6043 mono Potentiometer 10kohm 250mW

Bourns PTA mono Potentiometer 10kohm 250mW

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 11820
New product

3,20 €tax incl.

2,67 € tax excl.

- +

Shipping date: 28-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This carbon track slide potentiometer is an original way to vary the audio volume over a 60mm stroke. This slide-type potentiometer "FADER" will lend itself to the design of amplifiers, audiobox, DIY audio dock. The applications range from car audio to the design of mixing tables and drum machines.

Technical characteristics :

  • Resistance: 10 kΩ
  • Load capacity: 250mW +/- 20%
  • Insulation resistance: <100 MΩ direct current
  • Test voltage: 250 VDC
  • Potentiometer travel: 60mm
  • Double cage
  • Track Type: Linear Mono
  • Metal body
  • Number of movements: 15000 cycles
  • Track linearity error: 3dB from -40dB to 0dB

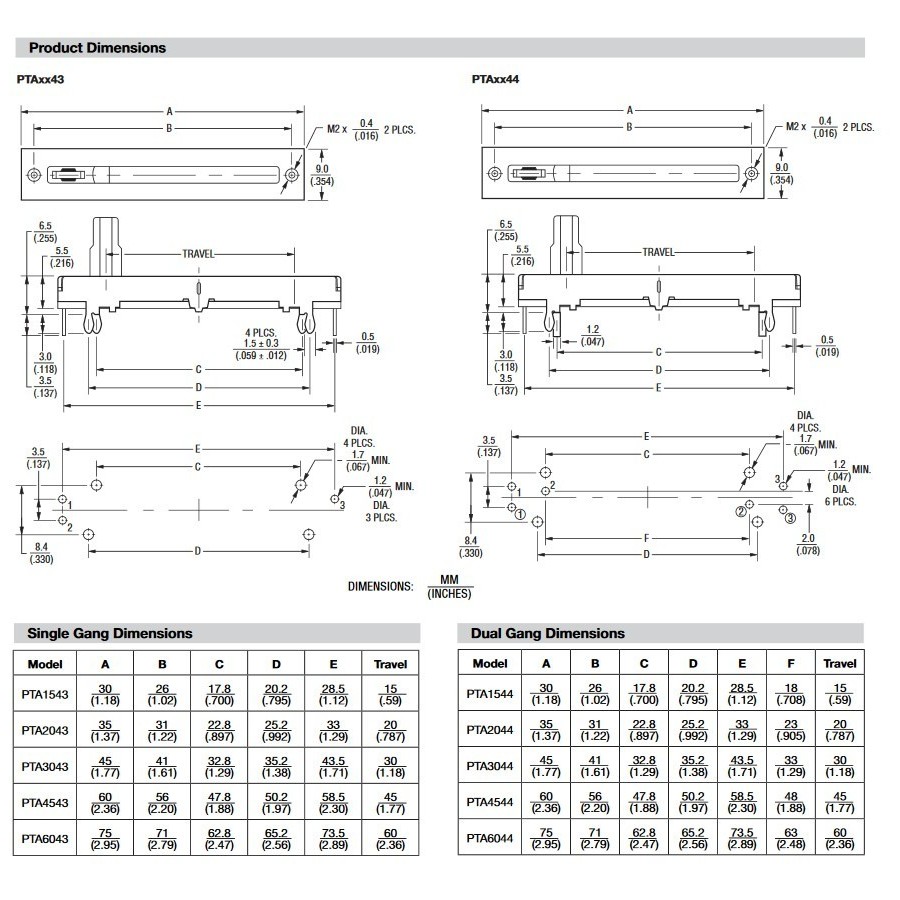

Data sheet
ShaftFader
Channel1 (Mono)
Resistance (Ohm)10000.0
Tolerance (%)20.0
