ELECAUDIO CS-331TPE Power cable IN WALL TPE OFC Copper 3x3.5mm² Ø 12mm

ELECAUDIO CS-331TPE Power cable Double shilded OFC Copper 3x3.5mm² Ø 12mm

Average votes for this product
4.0 / 5

No loyalty points for this product.


Reference : 12203
New product

9,90 €tax incl.

8,25 € tax excl.
Including 0,01 € for green tax
Available

- +

Shipping date: 14-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

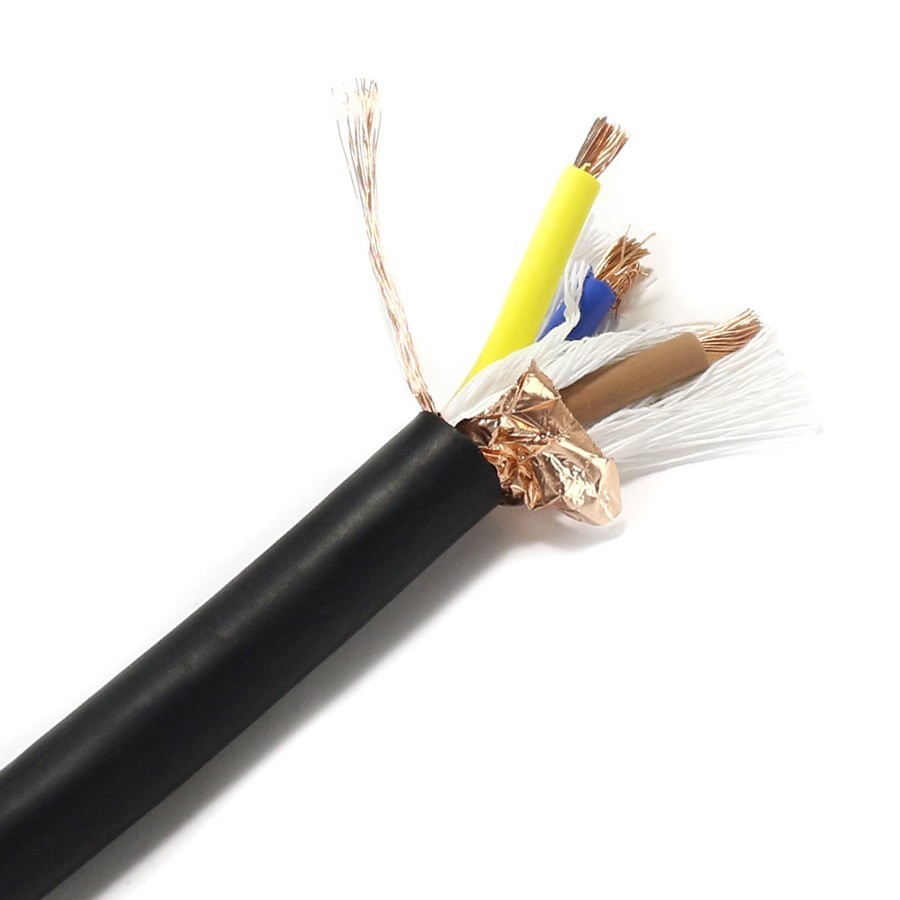

With its expertise in custom audio / video cables and the success of its CS-331B mains cable, ELECAUDIOimagined a mains cable "IN WALL"specially adapted for walls. Indeed, you can pass this CS-331TPE cable through your walls thanks to its relatively small diameter (Ø12mm) and especially its sheath made of resistant TPE at high temperatures, while maintaining electrical and sound properties and performance.

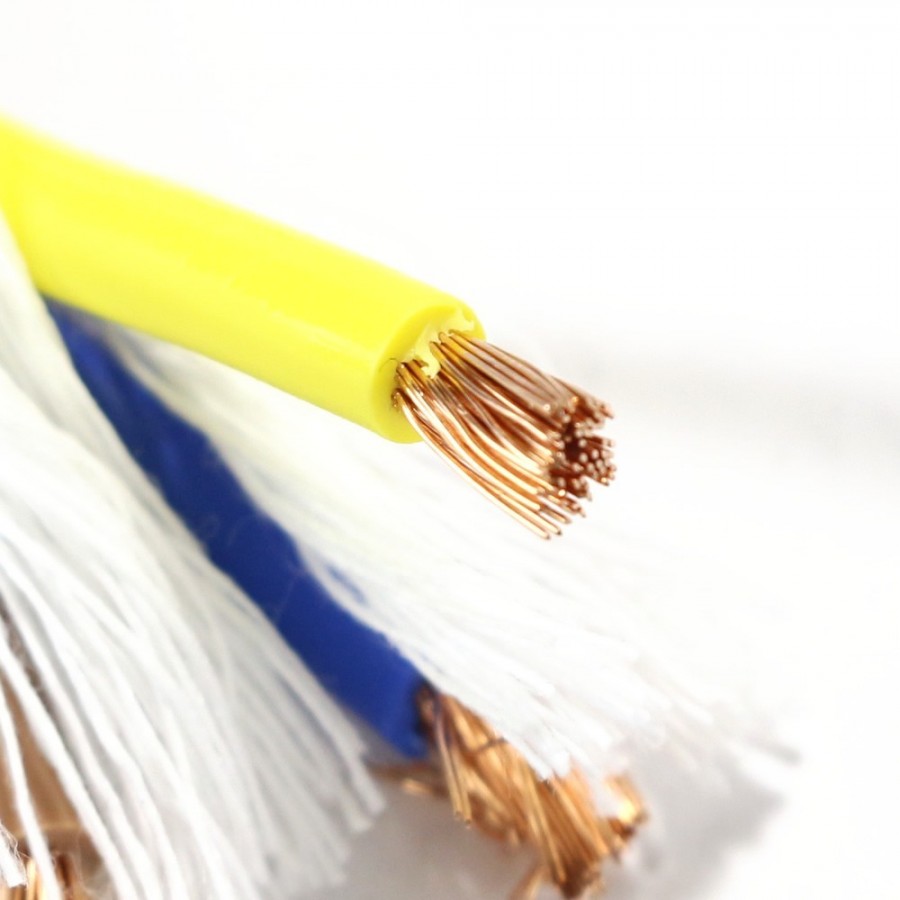

Thus each driver of the CS-331TPE consists of 7 strands of 10 strands of deoxygenated copper OFC of each 0.25mm in diameter, ie a section of 3.5mm² per conductor .

These 3 conductors with the highly studied structure are encapsulated individually in PVC sheaths marked with acolor code Yellow / Blue / Brown. The three beams thus formed are themselves isolated from each other and held in a distant order by means of a cotton garniturewhich provides both flexibility and firmness to the whole.

Then there is a shielding made from a aluminum strip. Alongside this line of defense slips an OFC copper drain wirethe cable from one end to the other to ensure a linear earthing , synonymous with enhanced protection against radio interference(RFI) andelectromagnetic (EMI).

A protective sheath in TPE of 1mm thickness completes this work, and finishes making the CS-331TPE particularly resistant to the harshness that can be found in walls and extreme temperatures.
This cable which uses a TPE sheath meets the standards for fixed installations, in case of fire this material is flame retardant, low smoke emission and halogen-free.

Features:

  • Special wall cable: IN WALL
  • 3 OFC Copper Conductorsof each one3.50mm² of Section
  • Double Shielding and Protection:OFC Aluminum Sheet + Copper Drain
  • Outer TPE Tubing (1mm): high temperature resistance
  • Trim inCotton
  • High-End Finish

Specifications:

  • Individual Driver Composition:7 x 10 0.25mm OFC Copper Wire of Diameter
  • Composition of the Shielding Sheath:24 x 9 Copper Wires 0.12mm Diameter Braid
  • Diameter of Conductors + Single PVC Sheath:4.30mm
  • Total Cable Diametere: Ø 12 mm
  • Color Black

Cable schematics

Schéma câblage câble secteur



Data sheet
ColorBlack
Diameter (mm)12
MaterialCopper
Number of conductors3
Insulation materialTPE
ShieldingYes
Section (mm²)3.50

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent câble
J'avais besoin de puissance. Les 3x3,5mm² font merveille.
Je l'ai habillé d'une gaine nylon pour faire joli.
D'un cote, j'ai mis une prise Schuko PS-24GB, faite pour les grosse puissance- et de l'autre un presse étoupe RA-01B qui se met en lieu et place d'une prise IEC (même entraxe de fixation). Ca donne une ligne d'alimentation avec une capacité en courant énorme. Pas de problème pour les gros appels de courant.
 (0)
 (0)
This review has been posted for ELECAUDIO CS-331TPE Power cable IN WALL TPE OFC Copper 3x3.5mm² Ø 12mm
Note :
 3/5
Date :
Puissant et mélodique
Points forts : grave ample et puissant, caractère enjoué et mélodique, réelle présence des instruments (ressemble beaucoup à la musicalité Nad). Points faibles : manque d'ouverture, finesse et de subtilité (bande passante écourtée et très descendante). A réserver aux électroniques au caractère très montant (Atoll, Rotel, Yamaha, etc).

Sur
 (3)
 (0)
This review has been posted for ELECAUDIO CS-331TPE Power cable IN WALL TPE OFC Copper 3x3.5mm² Ø 12mm
