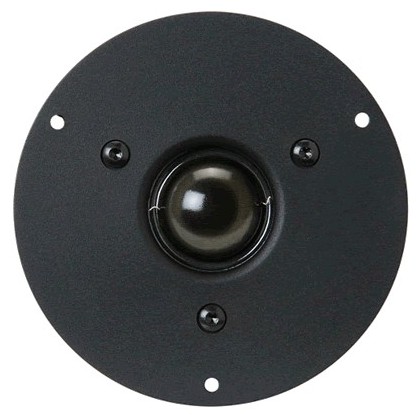

DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm

Ce tweeter à dôme en soie reprend le design des conceptions nordique avec une charge arrière, une bobine de 29mm dans un bain ferrofluide qui autorise une fréquence de résonance basse permettant la conception facilitée d'enceintes 2 voies.
Moyenne des votes pour ce produit
4.9 / 5

En achetant ce produit vous obtenez 2 points de fidélité


Référence : 6773
Nouveau produit

27,90 €TTC

23,25 € HT
dont 0,30 € d'éco-participation

- +


Date d'expédition : 15-07-2025.

Les commandes passées avant 12h (GMT + 1) sont généralement expédiées le jour même.

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

Grantie 5 ans

Informations

Le tweeter à dôme DC28F-8 se présente comme le bon rapport qualité prix pour tout projet d'enceintes DIY.

Son dôme soie et son puissant moteur magnétique en font un excellent compétiteur inattaquable dans cette gamme de prix.

Caractéristiques :

  • Tweeter à Dôme 29mm en soie
  • Puissant Moteur Magnétique
  • Matériaux de construction haute qualité pour une longévité accrue


Spécifications :

  • Impédance : 8 ohms
  • Re : 5.5 ohms
  • Le : 0.09 mH @ 10khz
  • Fs : 637.2 Hz
  • Qms : 0.82
  • Qes : 0.9
  • Qts : 0.43
  • Bobine : 29mm
  • SPL : 89 dB @ 1W/1M
  • Puissance acceptable : 50W rms

Télécharger le DataSheet du DC28F-8


https://www.audiophonics.fr/images2/6773/6773_DAYTONAUDIODC28F8_1.jpg

https://www.audiophonics.fr/images2/6773/6773_DAYTONAUDIODC28F8_2.jpg

https://www.audiophonics.fr/images2/6773/6773_DAYTONAUDIODC28F8_3.jpg










Caractéristiques
Puissance haut-parleur (W RMS)50.0
Type Haut ParleurTweeter à dôme
Impédance (Ω)8
Diamètre Haut Parleur (mm)28.0
Type de membraneTissu
Rendement / Sensibilité (dB)89.0
Excursion Linéaire Max (Xmax) (mm)NC
Fréquence la plus basse (Hz)1300
Fréquence la plus haute (Hz)20000

Livraison

Nous livrons la France entière, et à l'international.
Pour découvrir le montant des frais de port, il vous suffit d'aller dans votre panier une fois les produits désirés ajoutés.
Pour découvrir nos différents services et options de livraison, cliquez sur les logos suivants :

Seuls les utilisateurs enregistrés peuvent poster un avis. Connectez-vous ou créez un compte .
Note moyenne
4.9 / 5
8 avis
Pourquoi donner votre avis les produits ?
Vous pouvez partager votre expérience tout en informant d'autres clients

Note :
 5/5
Date :
Excellent tweeter!
I have installed this tweeter in a pair of PA speakers (Skytec MAX15) that had a piezo tweeter and midrange horn and replaced them with this tweeter (intended use is the living room). The sound is now completely different, everything has vastly improved! To be able to use this tweeter with those speakers I also had to install a crossover because they had none. So I have installed the Monacor DN-1218 PAX crossover to use with this tweeter. I was at first a bit skeptical because of the "dip" you can see in the frequency response graph of the crossover. But I measured (UMIK-1 and REW) the frequency response after the upgrade and it is pretty much linear, especially in the crossover region, absolutely no "dip" and it sounds fantastic! It really allowed the 15 inch woofer to go all the way down in the lows, with remarkable clarity. The switch from piezo to silk dome was also a significant change, but I don't think I have ever heard a more accurate tweeter, I think it is more revealing than the tweeter of the Alesis M1 Active MK2! Overall the upgrade was excellent! So good in fact, that I am now considering using the MAX15 for production purposes as well. In conclusion, this tweeter is highly recommended and it works very well with the Monacor crossover (12dB LP/18dB HP at 2.5kHz), don't be fooled by the "dip" in the graph, it blends beautifully with the tweeter!
 (0)
 (0)
Cet avis a été posté pour DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm
Note :
 5/5
Date :
Bon remplaçant pour Dynaudio D-28 AF
Très bon rapport qualité prix, installer en remplacement de Dynaudio fait bien le travail.
 (0)
 (0)
Cet avis a été posté pour DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm
Note :
 5/5
Date :
Tweeter DC28F8
Excellent tweeter, très détaillé, pas trop directif, vraiment un très bon rapport qualité prix
 (0)
 (0)
Cet avis a été posté pour DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm
Note :
 5/5
Date :
Tweeter à l'excellent rapport qualité / prix
A son prix, ce tweeter est imbattable ! Le son est propre et clair, la tenue en puissance est bonne, l'esthétique est sobre et fonctionnelle. Un modèle vraiment très recommandable !
 (1)
 (0)
Cet avis a été posté pour DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm
Note :
 5/5
Date :
Parfait
Fonctionne très bien
 (0)
 (0)
Cet avis a été posté pour DAYTON AUDIO DC28F-8 Haut-Parleur Tweeter à Dôme Soie 50W 8 Ohm 89dB 1300Hz - 20kHz Ø2.8cm
