SHANLING M3 PLUS Digital Audio Player DAP Copper
By buying this product you get 46 loyalty points
![[GRADE B] AUDIOPHONICS MOS-120 Amplifier Class AB 2x120W 4 Ohm Black](https://www.audiophonics.fr/59637-thumb_default/audiophonics-mos-120-amplifier.jpg)
Shanling M3 Plus Digital Audio Player DAP Bluetooth 5.0 WiFi 32bit 768kHz DSD512 Copper
With the M3 Plus, Shanling presents a high-definition digital audio player, the direct successor to the M3 Ultra, featuring an improved analogue/digital conversion stage, greater output power and an operating system updated to Android 13.

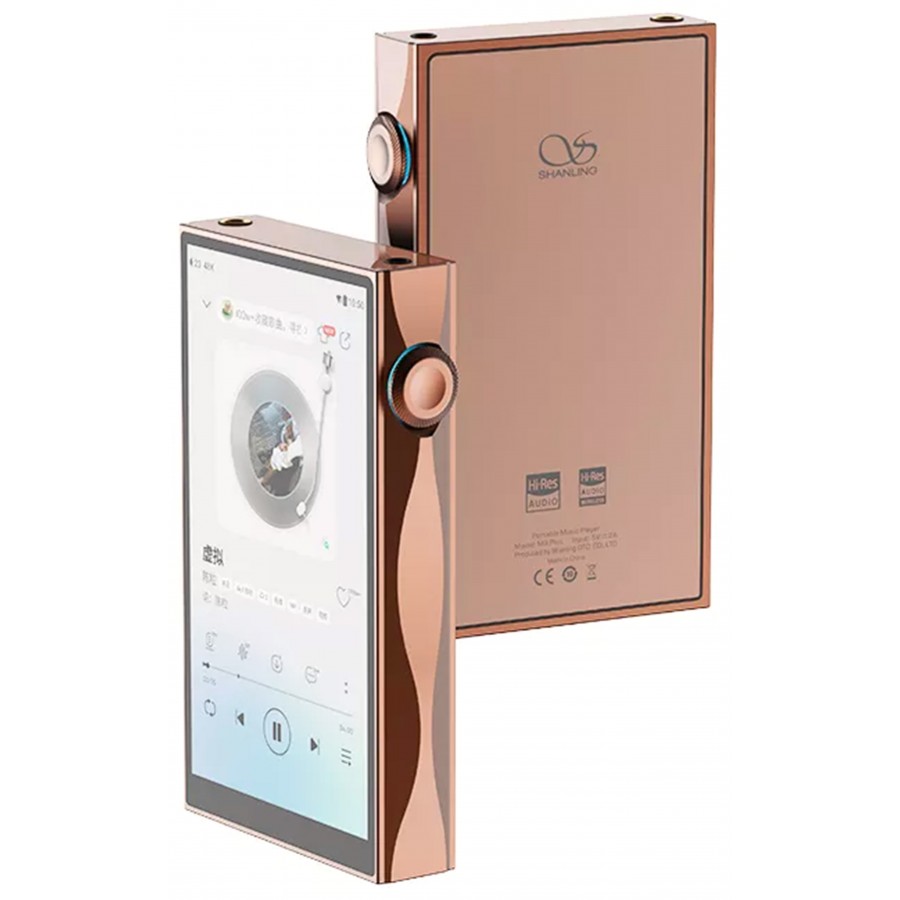

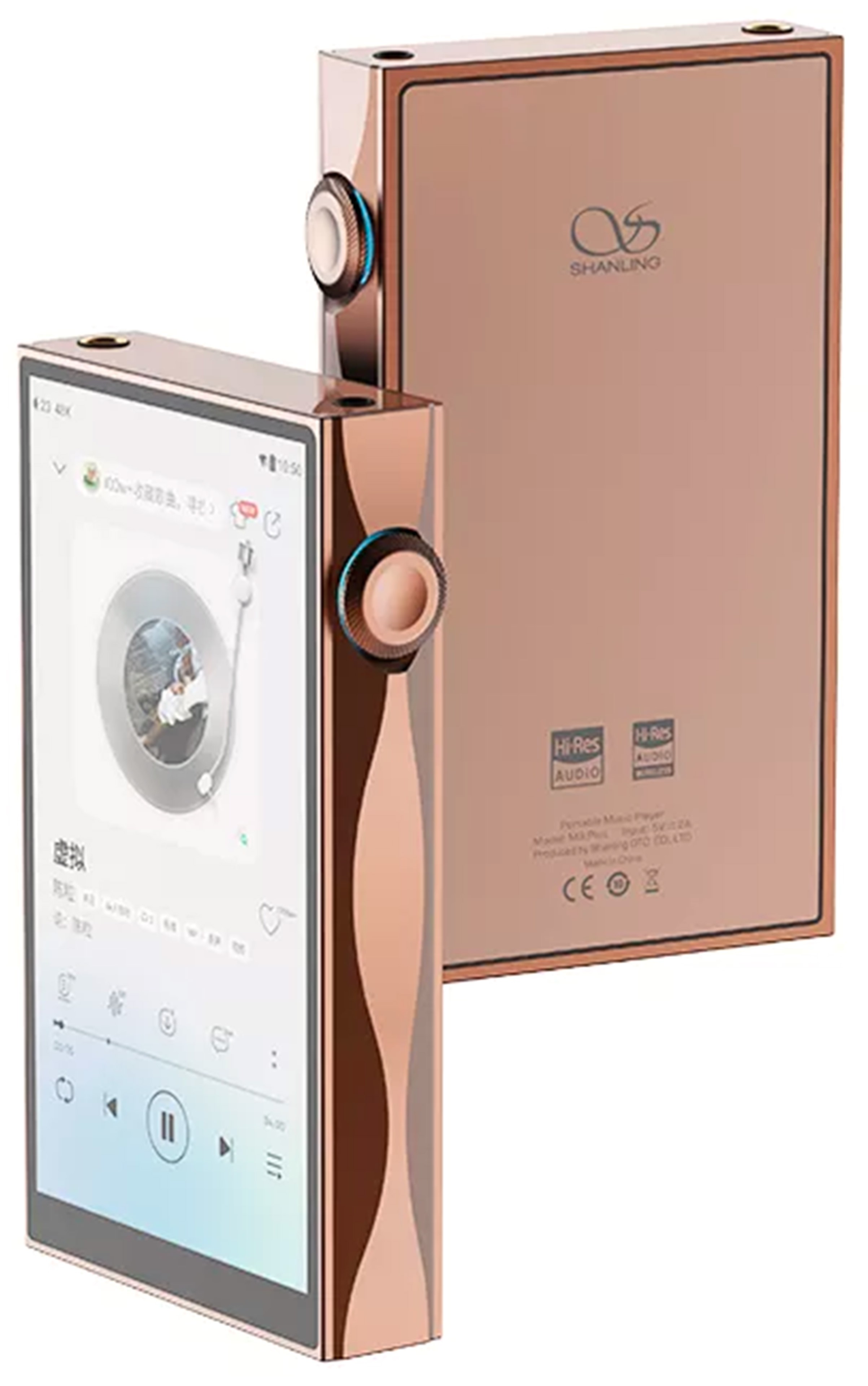

Shanling M3 Plus: Revamped aesthetics
The M3 Plus has a new look compared to its predecessor, with a gracefully curved CNC-machined aluminium chassis and a magnificent 4.7-inch screen, slightly larger than its predecessor but still small enough to fit comfortably in the palm of your hand.
Shanling M3 Plus: Quad DAC CS43198
For its digital/analogue conversion stage, the M3 Plus takes a giant leap forward compared to its predecessor and lines up 4 Cirrus Logic CS43198 DAC chips working in parallel to deliver a result of rare cleanliness. As a result, the M3 Plus is capable of supporting a signal up to 32bit 768kHz PCM and native DSD512.
Shanling M3 Plus: 800mW amplification
The amplification stage of the M3 Plus is based on a combo of OPA1612 to reduce output distortion to a minimum and a dual SGM8262 chip, providing amplification of up to 800mW at 32Ω, more than enough power to drive the majority of headphones and earphones on the market.
Shanling M3 Plus: FPGA signal processing
The digital signal processing part of the M3 Plus is no slouch either, using an FPGA coupled to KDS crystal oscillators to reduce jitter, delivering an exceptionally accurate signal to its DAC array.
Shanling M3 Plus: 3500mAh battery
To keep up with you wherever you go, the M3 Plus is equipped with a 3500mAh battery capable of providing 14 hours of uninterrupted wired listening, and up to 61 hours when connected via Bluetooth.
Shanling M3 Plus: Snapdragon 665 processor
As well as offering excellent sound reproduction, the M3 Plus is also pleasant and fluid to use. It's powered by a Qualcomm Snapdragon 665 octa-core processor and 4GB of RAM, so you can be sure of smooth operation.
Shanling M3 Plus: Excellent connectivity
For maximum flexibility of use, the M3 Plus is equipped with two-way Bluetooth connectivity compatible with LDAC, aptX HD, LHDC and SBC codecs. What's more, it's also compatible with DLNA, Airplay and SyncLink network protocols, allowing you to access files on your local network and play a music library on a NAS, for example.
Shanling M3 Plus: Android 13
Another notable difference with its predecessor is that the M3 Plus is running an operating system that has been updated to Android 13, ensuring stability and compatibility with the majority of applications for many years to come. In addition, as an open Android system, this new version still includes Shanling's AGLO (Android Global Lossless Output) data processing system.
Shanling M3 Plus: LED indicator
To check playback status at a glance, the M3 Plus is equipped with an LED around the volume control, the colour of which indicates the sampling rate in use, or the codec in the case of a Bluetooth connection.
- Blue : 44.1-48kHz / ACC SBC
- Yellow : 88.2-196kHz / LDAC
- Purple : 352.4-768kHz
- Green : DSD / aptX
- Red : MQA
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAP |
| Outputs | 1x Jack 3.5mm 1x Jack 4.4mm Bluetooth |
| OS | Android 13 |
| Screen | SHARP 720x1280 4.7" |
| Supported sampling rates | PCM 32bit 768kHz DSD512 |
| Supported audio formats | DSD (".iso", ".dsf", ".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / OPUS |
| Storage | 64Gb ROM MicroSD slot up to 2TB |
| DAC chips | 4x Cirrus Logic CS43198 |
| Amplification chips | 2x SGM8262 |
| Bluetooth version | 5.0 |
| Supported codecs | Emission: LDAC / aptX HD / aptX / AAC / SBC Reception: LDAC / SBC |
| 3.5mm jack output | |
|---|---|
| Output power | Low gain : 12.5mW @32Ω Medium gain : 50mW @32Ω High gain : 200mW @32Ω |
| Frequency response | 20Hz - 40kHz (±0.2dB) |
| Total harmonic distortion more noise (THD+N) | 0.0007% |
| Channel separation | 75dB @32Ω |
| Dynamic range | 127dB |
| Signal-to-noise ratio (SNR) | 127dB |
| Noise | <1.1μV |
| Output impedance | >1Ω |
| Output level lineout mode | 2.58Vrms |
| 4.4mm jack output | |
|---|---|
| Output power | Low gain : 50mW @32Ω Medium gain : 200mW @32Ω High gain : 800mW @32Ω |
| Frequency response | 20Hz - 40kHz (±0.2dB) |
| Total harmonic distortion more noise (THD+N) | 0.0007% |
| Channel separation | 110dB @32Ω |
| Dynamic range | 130dB |
| Signal-to-noise ratio (SNR) | 130dB |
| Noise | <1.6μV |
| Output impedance | >1.5Ω |
| Output level lineout mode | 5.16Vrms |
| General | |
|---|---|
| Dimensions | 115 x 70.5 x 18mm |
| Weight | 205g |
| Color | Copper |
| Package | 1x Shanling M3 Plus 1x USB-A to USB-C cable |
| Input | NC |
| Output | Jack 4.4mm |
| Output | Jack 3.5mm |
| Output | Bluetooth |
| DAC / ADC Chip | CS43198 |
| Max sampling rate | DSD512 |
| Max sampling rate | 768kHz |
| Color | Copper |
