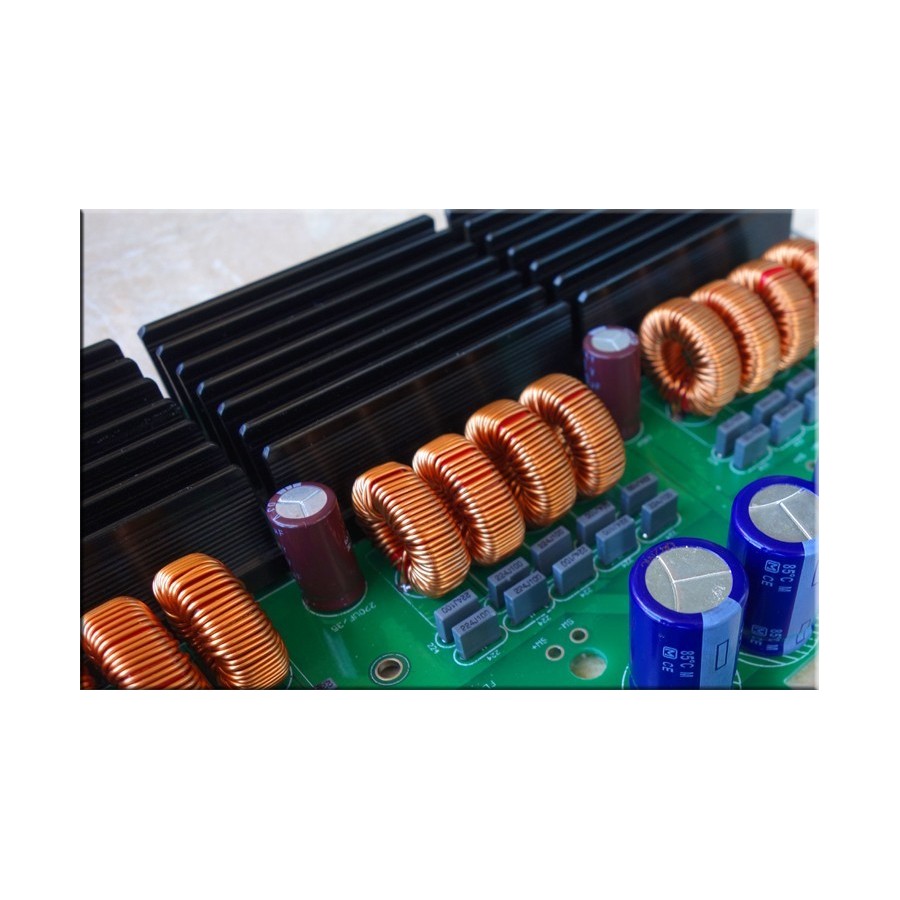

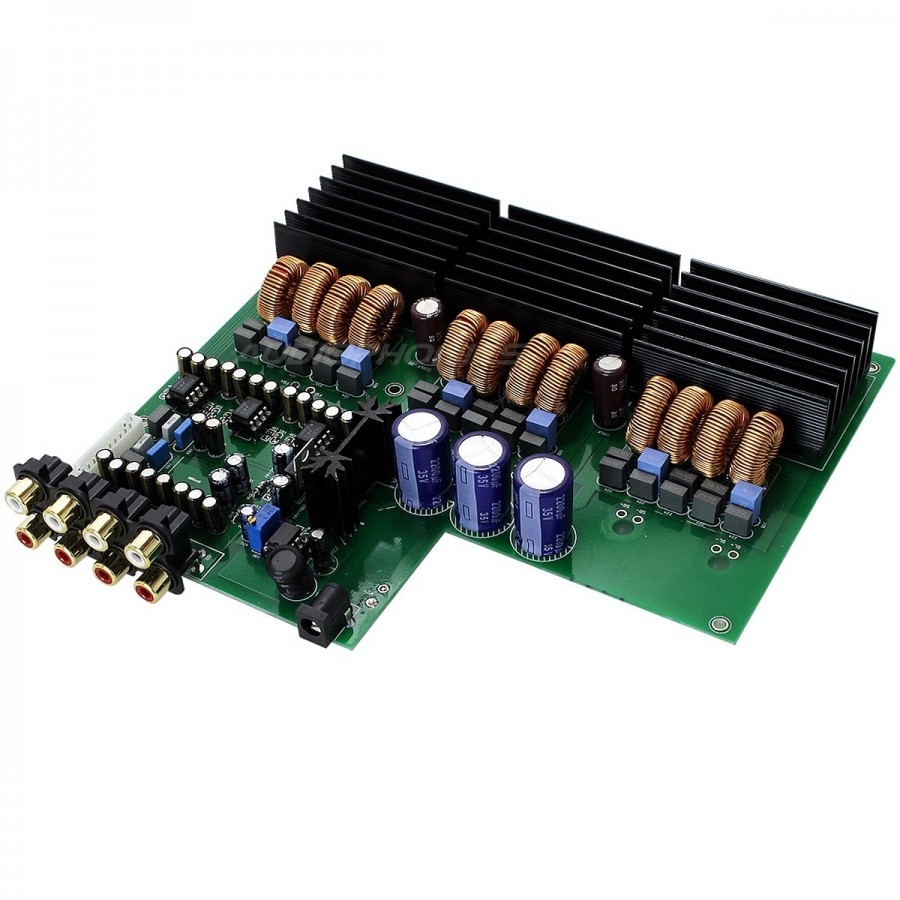

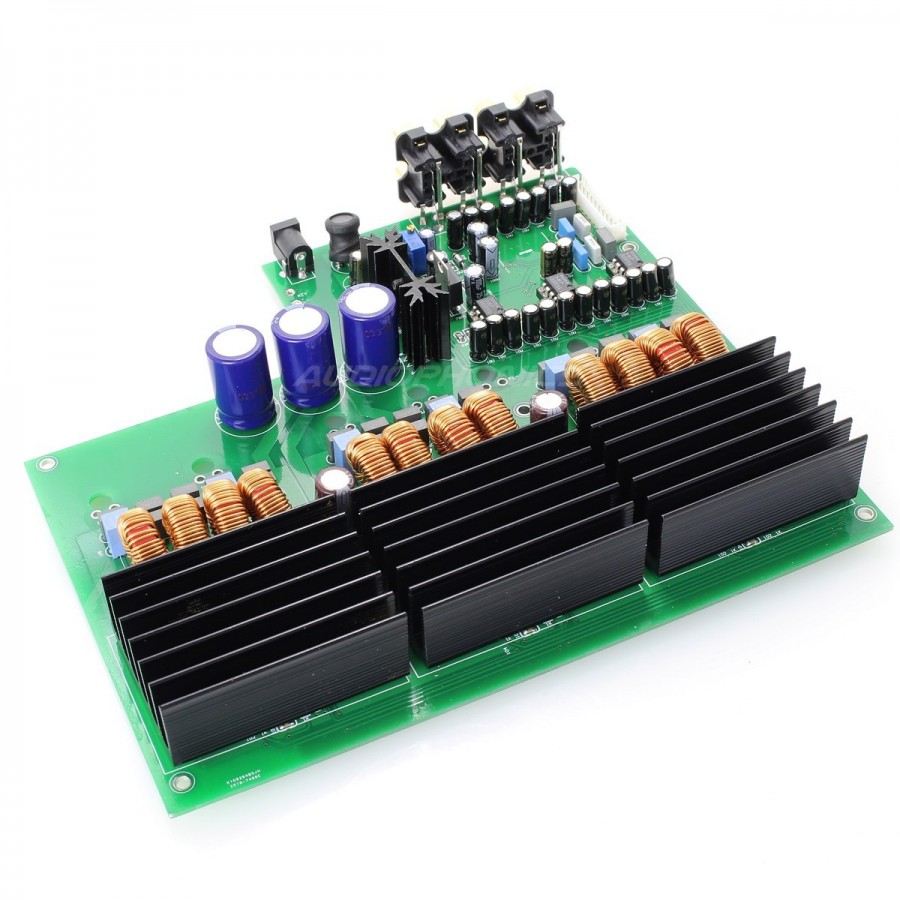

6 channels TDA 7498 class D Amplifier Module 6x100W 4 Ohm

The amplification module6 way TDA74986x100W allows the design of a "5.1 Home Cinema Amplifiers . It may also advantageously be used for a control system, 3 way active speakersaccompany a dedicated active filter as our model:

The DMS Nano Digi 2x8 mini digital active filter which requires DAC.

The Mini DSP Open DRC DA8 for a complete solution .

The active filter module MINI DSP 2X4HD will also be relevant for a 2-channel version.

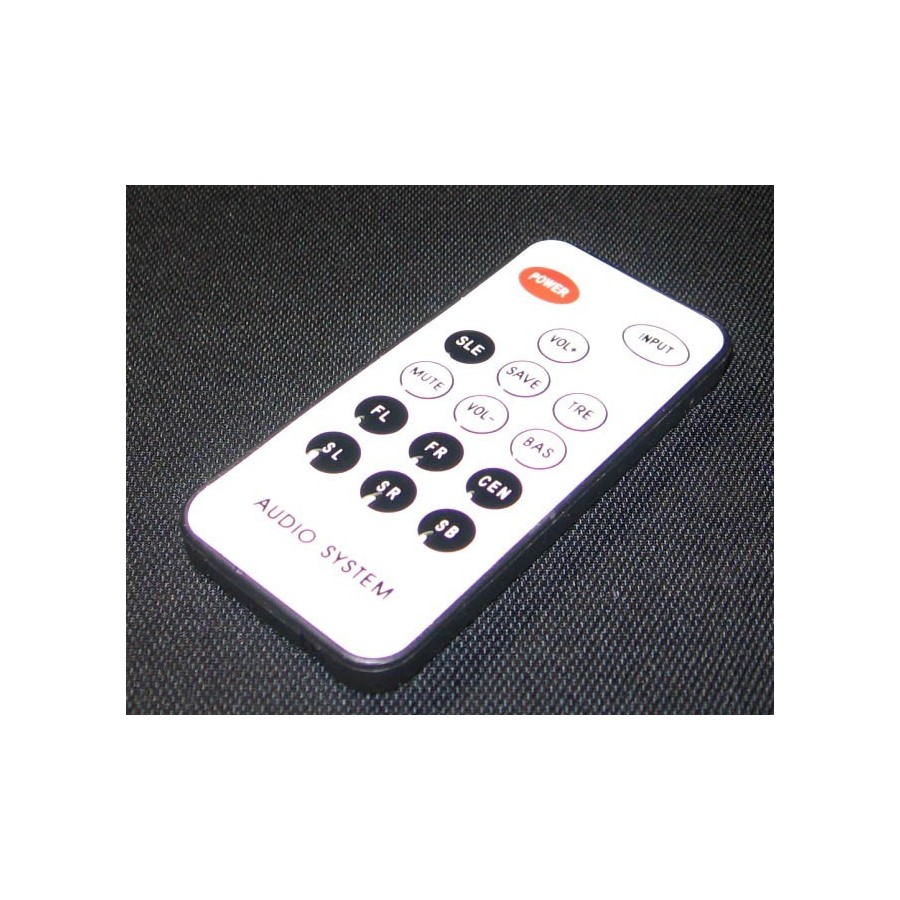

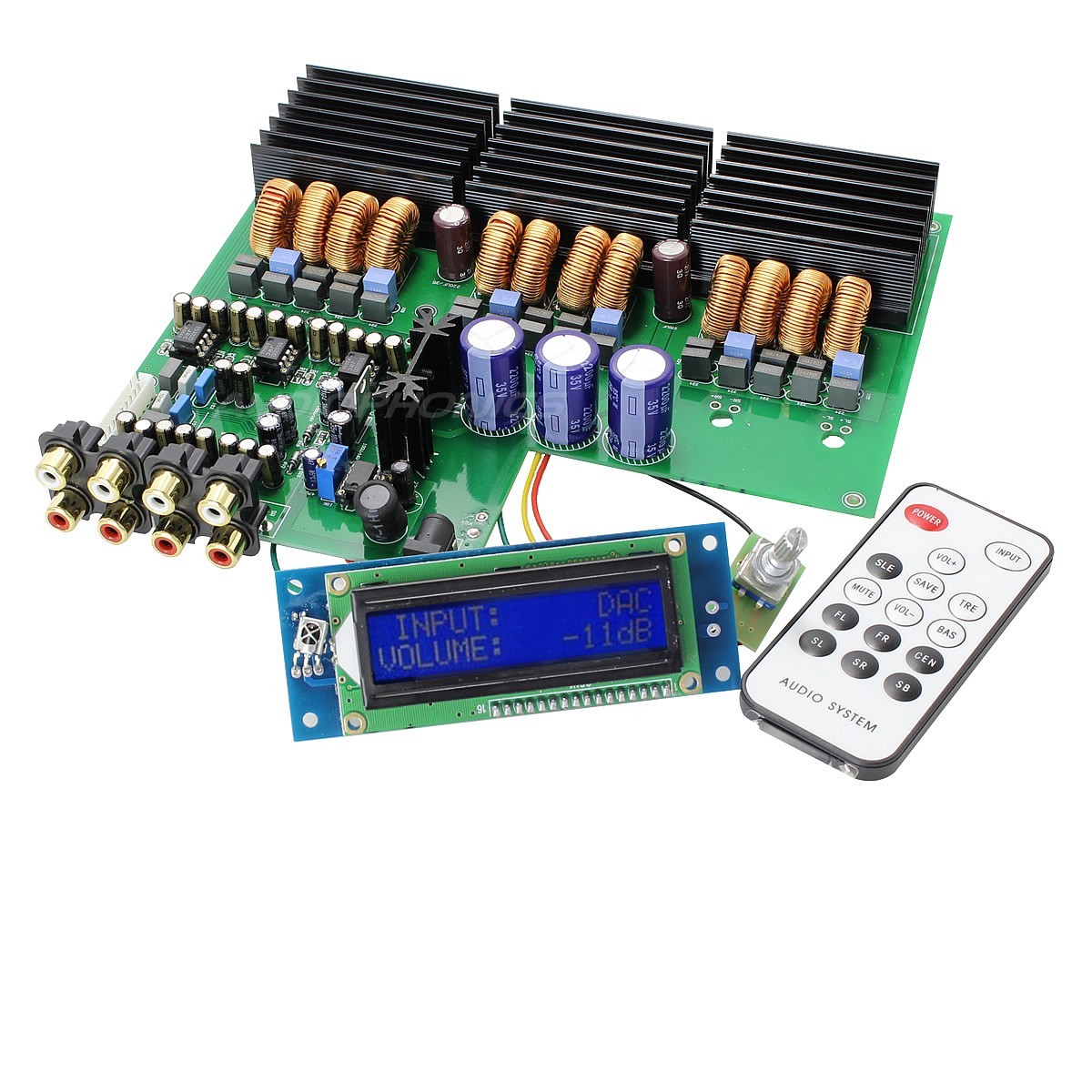

HisLCD displaywill allow an easy and comfortable use accompanied by a remote control that can adjust the level of treble and bass on 12dB. You can also set a single channel by pressing the dedicated button, for example: FR front right or CEN for center channel. This volume management is managed by the original chips Mitsubishi M62446.

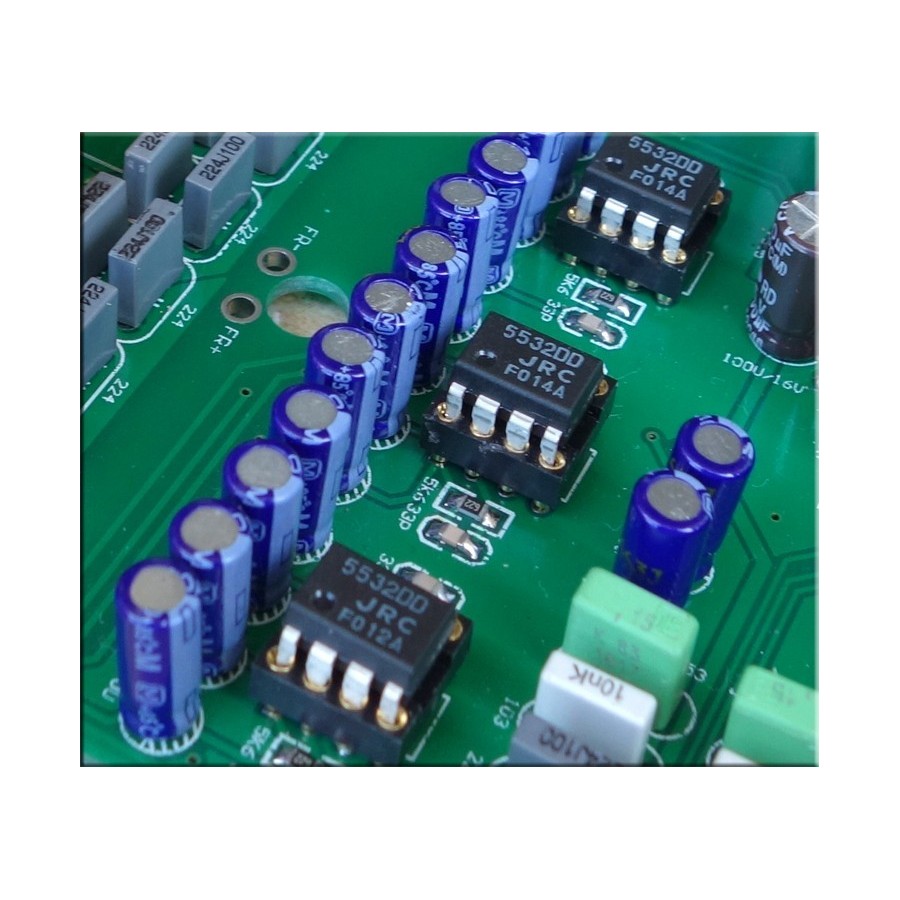

It hasthree slots on DIP support 8perequiring the sound to be adjusted as desired by changing the JRC5532D ampsbackgrounds. They can be changed by OPA2134 or OPA2604, LM4562 for example. (AMP-OP suggested not provided).

Specifications:

• Amplifier TDA7498E 6x100W 4Ohm.
• LCD display controls the volume on 6 channels.
• Requires power supply not supplied (see accessory) usable from 16 V DC to 32V DC on 5A.
• Remote control and volume button provided.

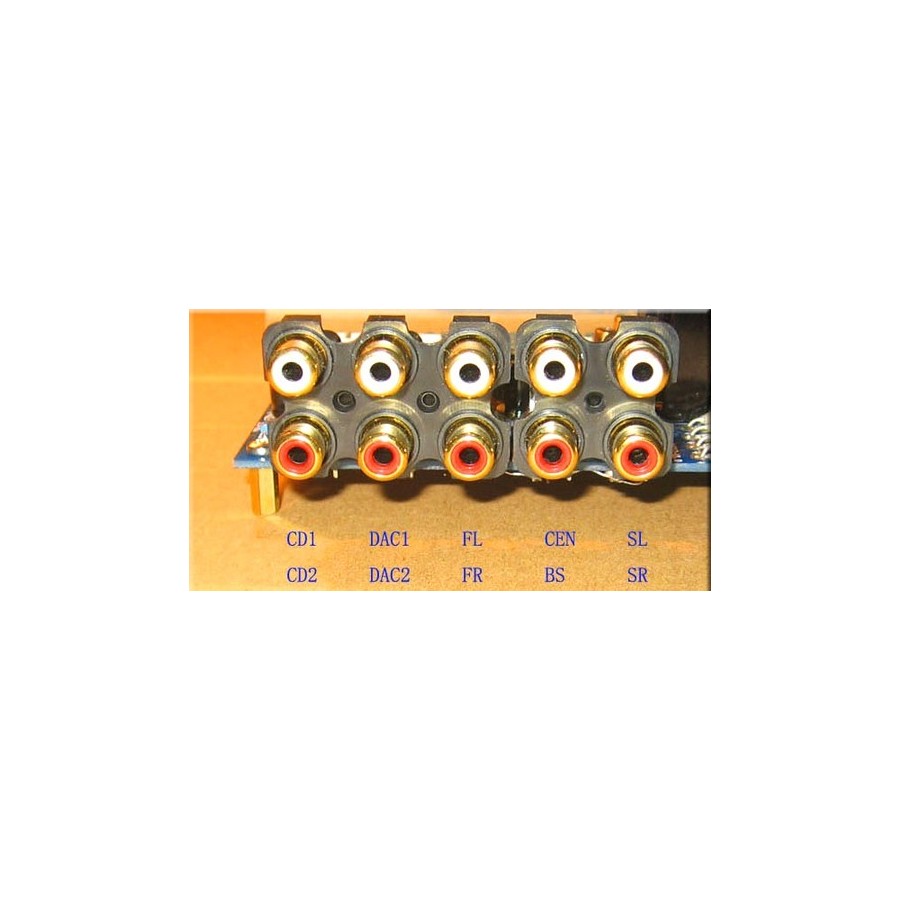

Entries:

• An analog input CD 1 / CD2.
• An analog input DAC1 / DAC2.

Exits :

• A variable output Left channel (FL).
• One channel output Right (FR).
• One central channel output (CEN).
• One subwoofer output (BS).
• A left surround output (SL).
• A right surround output (SR).

Dimensions and weight:

• Dimensions: 198X175mm.
• Weight: 665g.
