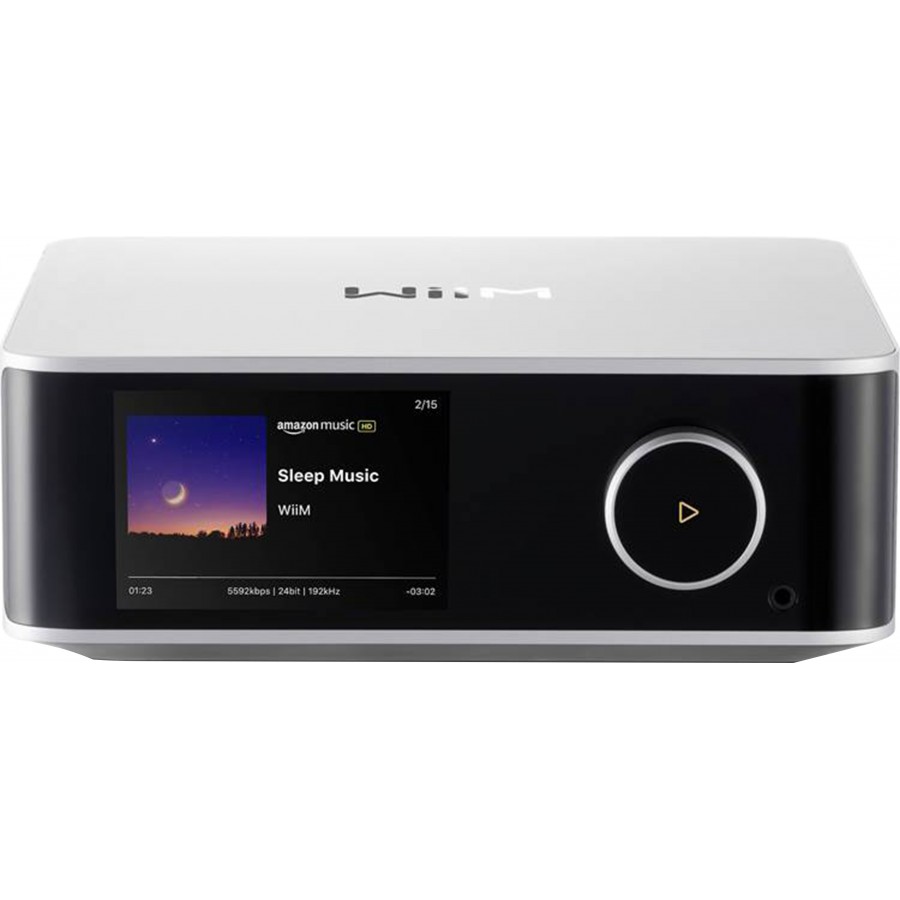

The WiiM Ultra sets a new benchmark in the world of audio streamers, thanks to a design conceived to deliver an unrivalled audio experience. It lets you enjoy your music library and favorite streaming services in a perfectly intuitive way, thanks in particular to a 3.5" color touchscreen and physical navigation button. With its extensive connectivity including WiFi and Bluetooth, you can access your music quickly and easily, whether it's stored on a NAS, computer, smartphone or via a streaming service. What's more, the WiiM Ultra boasts a rich selection of audio inputs and outputs to integrate easily into the vast majority of audio setups.
Key features:
Incorporating a digital-to-analog conversion stage based on an ESS ES9038Q2M DAC chip, the WiiM Ultra is capable of supporting high-resolution PCM streams up to 32bit 384kHz, while offering rich, precise and transparent sound reproduction. The device also features a headphone amplifier, using a TPA6120A2 chip, opening up the possibility of headphone listening.
With support for WiFi 6E and Bluetooth 5.3, the WiiM Ultra opens the door to foolproof audio streaming. What's more, this streamer is compatible with numerous transmission protocols: Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa, DLNA, Roon (currently being certified) and Squeezelite. What's more, you'll enjoy bit-perfect, gapless audio streaming.
The WiiM Ultra's built-in room correction technology actively takes precise acoustic measurements of your room, creating customized corrections perfectly matched to your audio system and environment.
1 | Screen |
2 | Multifunction knob |
3 | Jack 3.5mm headphone output |
4 | Stereo RCA input |
5 | Phono RCA input |
6 | Optical Toslink input |
7 | HDMI ARC port |
8 | USB-A port |
9 | Stereo RCA output |
10 | Subwoofer output |
11 | Coaxial output |
12 | 12V Trigger output |
13 | Optical Toslink output |
14 | Ethernet RJ45 port |
15 | Power connector |
"The WiiM Ultra is a high-performance streaming device, thanks to its excellent codec implementation. The wealth of features is another plus, as is the application. However, the headphone and phono outputs offer average performance, and the Bluetooth doesn't support LDAC. Nevertheless, I'm going to recommend the WiiM Ultra. There are so many incredible possibilities that, combined with an excellent codec and reasonable cost, it's hard to pass on it."
Technical characteristics
Specifications | |
---|---|
Product type | Audio streamer |
Inputs | 1x Stereo RCA 1x Phono input (RCA) 1x Optical Toslink 1x HDMI ARC 1x USB-A 1x Ethernet RJ45 |
Outputs | 1x Stereo RCA 1x Coaxial 1x Optical Toslink 1x Subwoofer output (RCA) 1x Jack 3.5mm headphone output |
Connectivity | WiFi 6E 802.11 g/b/n/ax 2.4GHz, 5GHz, 6GHz Ethernet 10M/100Mbps Bluetooth 5.3 |
DAC chip | ES9038Q2M |
Bluetooth version | Bluetooth 5.3 BLE / BT LE Audio A2DP, AVRCP, HID receiver and transmitter support Works with WiiM voice control |
Supported sampling rates | Input: PCM up to 32bit 384kHz Output: PCM up to 24bit 192kHz |
Supported Bluetooth codecs | SBC, AAC |
Max output level (line out) | 2.1Vrms |
SNR (line out) | 121dB(A) |
THD+N (line out) (1kHz) | 0.00018% (-115dqB) from 44.1kHz to 192kHz |
FR curve | ±0.05dB |
USB transmission mode | Asynchronous |
USB compatibility | Windows 7 / 8 / 8.1 / 10 / 11 (driver required) Mac OSX10.6+ Linux |
EQ | Graphic 10 bands Parametric 10 bands Independent for each source |
Subwoofer output | Bass management Adjustable latency, phase, level and filter |
Trigger | Output (12V) |
Touchscreen | 3.5" |
Supported streaming services | Deezer Qobuz Amazon Music Tidal Pandora Napster Apple Music TuneIn iHeartRadio LinkPlay Radio Spotify Connect |
General | |
---|---|
Supply voltage | 100-240VAC |
Dimensions | 205 x 205 x 73mm |
Housing material | Aluminum |
Color | Silver |
Package | 1x Wiim ULTRA 1x Power cable C7 1x Télécommande |
Input | RCA |
Input | Bluetooth |
Input | Phono |
Input | HDMI ARC |
Input | USB |
Input | Optical |
Input | RJ45 |
Input | WiFi |
Output | Optical Toslink |
Output | Jack 3.5mm |
Output | Subwoofer |
Output | RCA |
Output | Coaxial SPDIF |
DAC / ADC Chip | ES9038Q2M |
Max sampling rate | 192kHz |
Max sampling rate | 384kHz |
Color | Silver |
Remote Control | Yes |
Streaming services & Network protocols | Spotify Connect |
Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
Streaming services & Network protocols | DLNA |
Streaming services & Network protocols | Tidal Connect |
Streaming services & Network protocols | Chromecast |
