INTERTECHNIK LU32/26-AG Copper / Silver Air Self 0.8mm 0.39mH

INTERTECHNIK LU32/26-AG Self à Air Cuivre/Argent 0.80mm 0.39mH

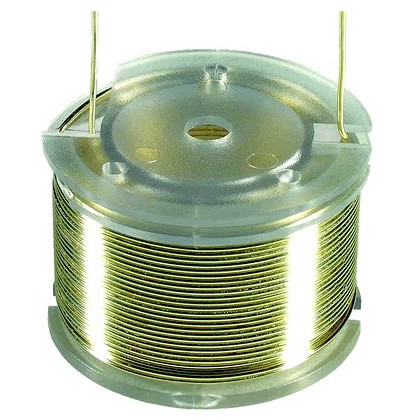

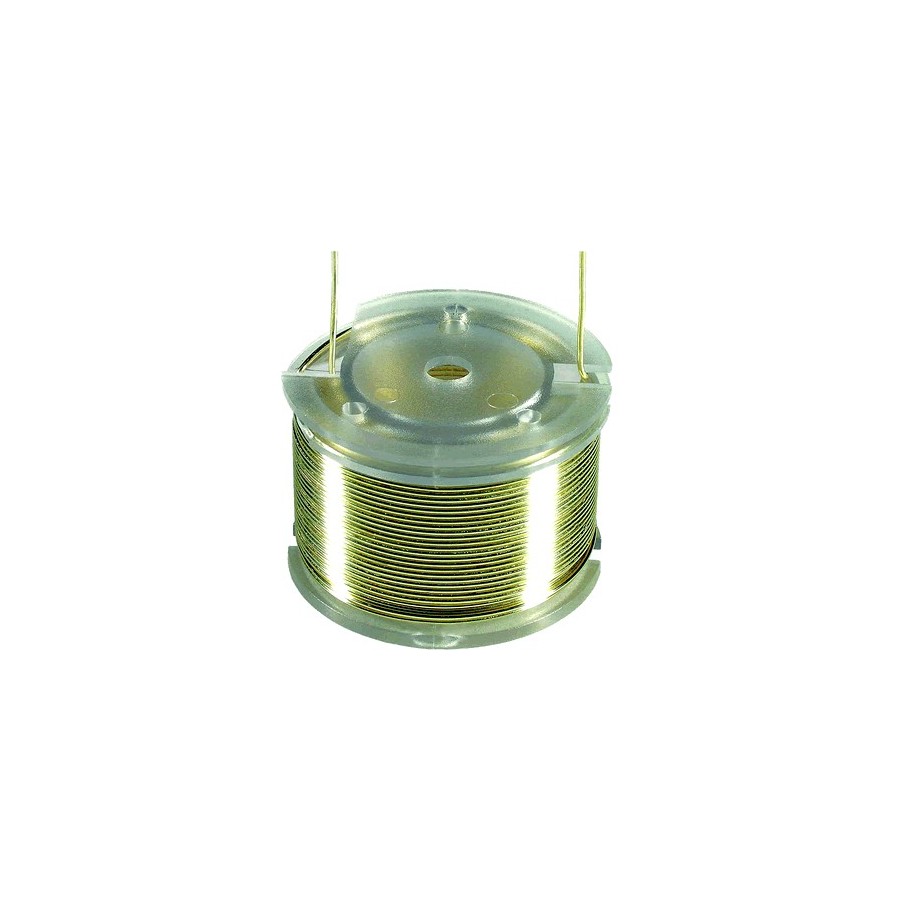

Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses.
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 4589
New product

6,58 €tax excl.

- +

Last items in stock !
Shipping date: 21-09-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

INTERTECHNIK LU32/26-AG

Copper / Silver Air Self 0.8mm 0.39mH

INTERTECHNIK LU32/26-AG Self à Air Cuivre / Argent 0.8mm 0.05mH

Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of precision on the restitution of the impulses. Their design exempts them from any form of distortion, unlike ferrite coils.

Technical characteristics

Specifications
Product typeAir self
Inductance0.39mH
Resistance0.43Ω
Tolerance3%
MaterialSilver plated Copper 0.8mm
InsulationAnti-vibration thermoplastic
SupportPolycarbonate
Operating temperature25°C @ 1kHz
Contacts length10mm
Dimensions
Diameter D32mm
Diameter d112mm
Diameter d25.3mm
Diameter d315mm
Height H26mm
Height h120mm
INTERTECHNIK LU32/26-AG Self à Air Cuivre / Argent 0.8mm 0.05mH

Data sheet
Inductance (mh)0.39
