Ce câble haut-parleur est conçu pour correspondre au diamètre des serre-câble des connecteurs XLR.

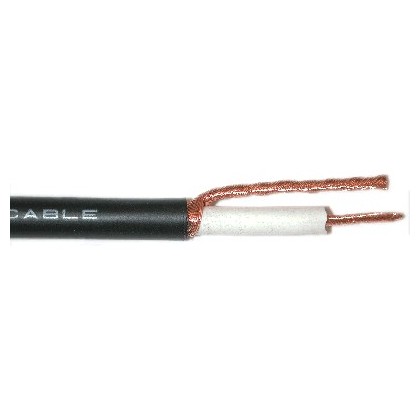

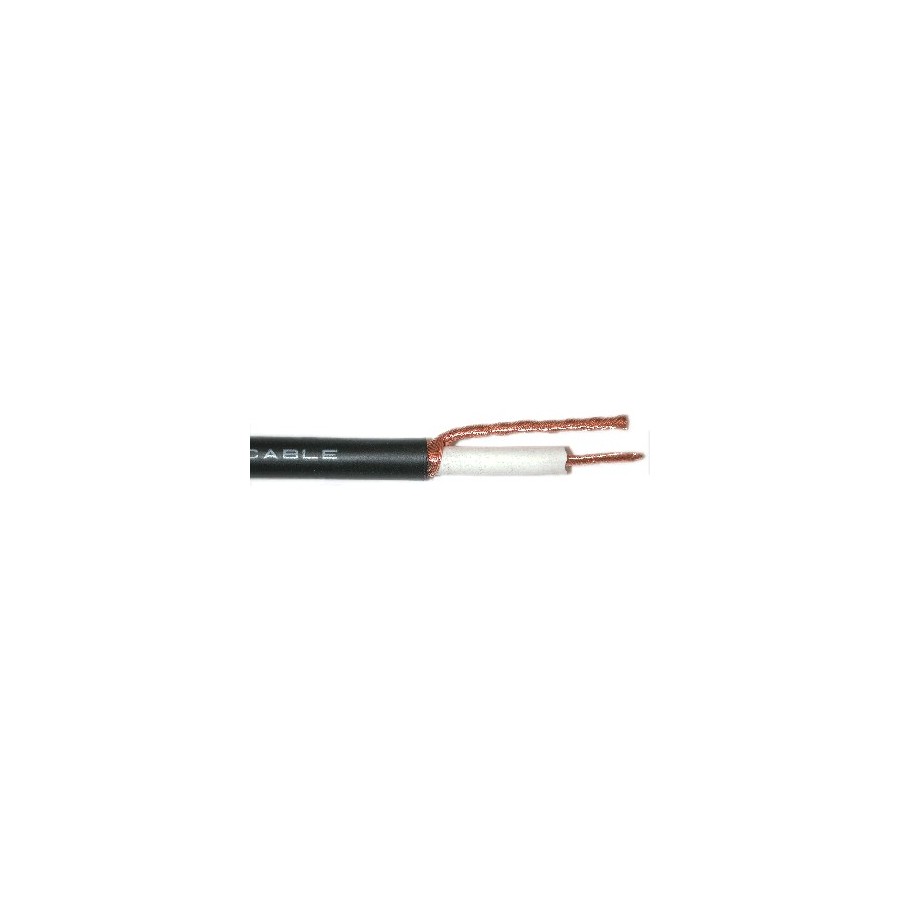

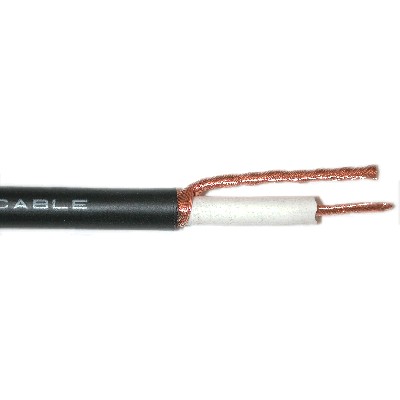

Sa conception coaxial est utilisée pour pouvoir fournir un conducteur de grosse section.
Grande taille des conducteurs de 2.0mm (près de 14 AWG).
SPECIFICATIONS
Configuration | ||
Part No. | W3082 | |
Conductor | Details | 80/0.18 OFC (80×33AWG) |
Size(mm²) | 2.03mm² (Approx. #14AWG) | |
Insulation | Ov. Dia.(mm) | 4.6Ø (0.181") |
Material | PVC | |
Colors | White | |
Served Shield | Details | 80/0.18 OFC (80×33AWG) |
Size(mm²) | 2.03mm² (Approx. #14AWG) | |
Jacket | Ov. Dia.(mm) | 6.5±0.5ì (0.256±0.0197"ì) |
Material | Flexible PVC | |
Color | Black | |
Roll Size | 100m (328Ft) / 200m (656Ft) / 153m (500Ft) | |
Weight per 100m Roll | 7.5kg |
ELECTRICAL & MECHANICAL CHARACTERISTICS
Part No. | W3082 | |
DC Resistance at 20°C | Inner Conductor | 0.009W/m(0.0027W/Ft) Same value for both internal and outernal/shield conductor) |
Shield Conductor | ||
Capacitance at 1kHz, 20°C | 253pF/m(77pF/Ft) | |
Inductance | 0.4µH/m(0.12µH/Ft) | |
Electrostatic Noise | 0.2mV Max. | |
Electromagnetic Noise at 10kHz | 0.2mV Max. | |
Voltage Breakdown | Must withstand at DC 500V/15sec. | |
Insulation Resistance | 100000 MW × m Min. at DC 500V, 20°C | |
Flex Life | 15,000 cycles | |
Tensile Strength | More than 980N | |
Emigration | Non-emigrant to ABS resin | |
Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158°F) | |
Standard | UL13 CL2 75°C |
Diameter (mm) | 6.5 |
Length (m) | Sold by length |
Number of conductors | 2 |
Insulation material | PVC |
Shielding | No |
Section (mm²) | 2.00 |
Conductors material (Cable) | Copper |
Conductors Plating (Cable) | None |
Ground / Shielding | Yes |
