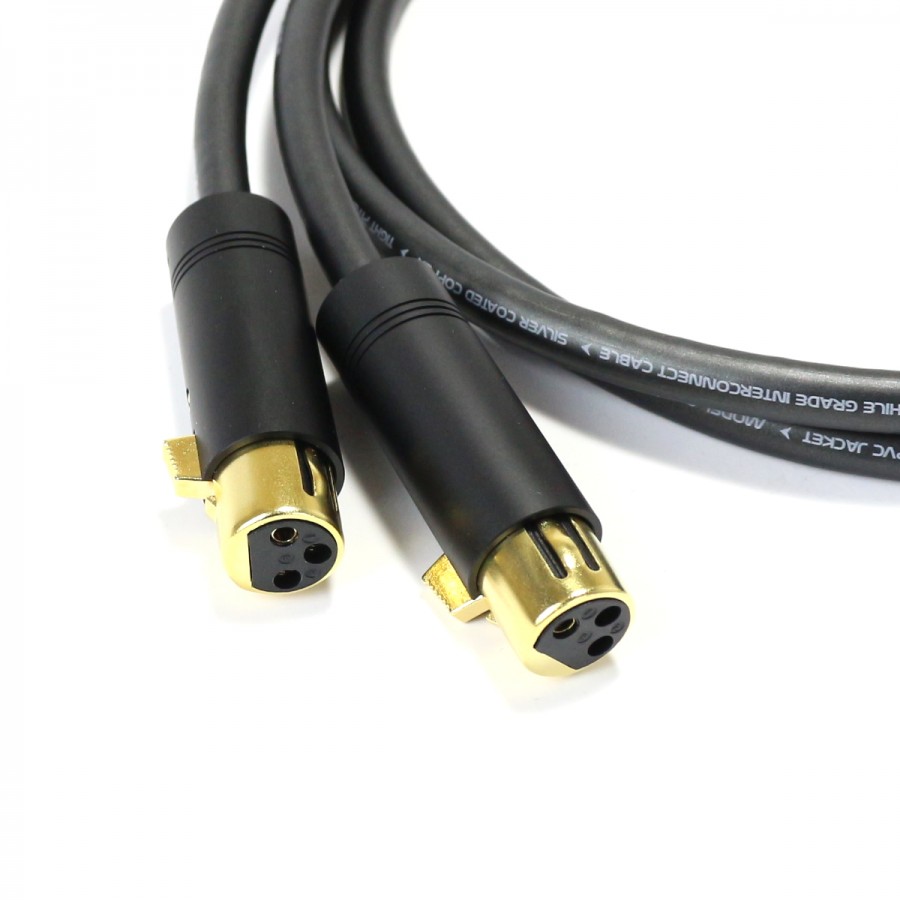

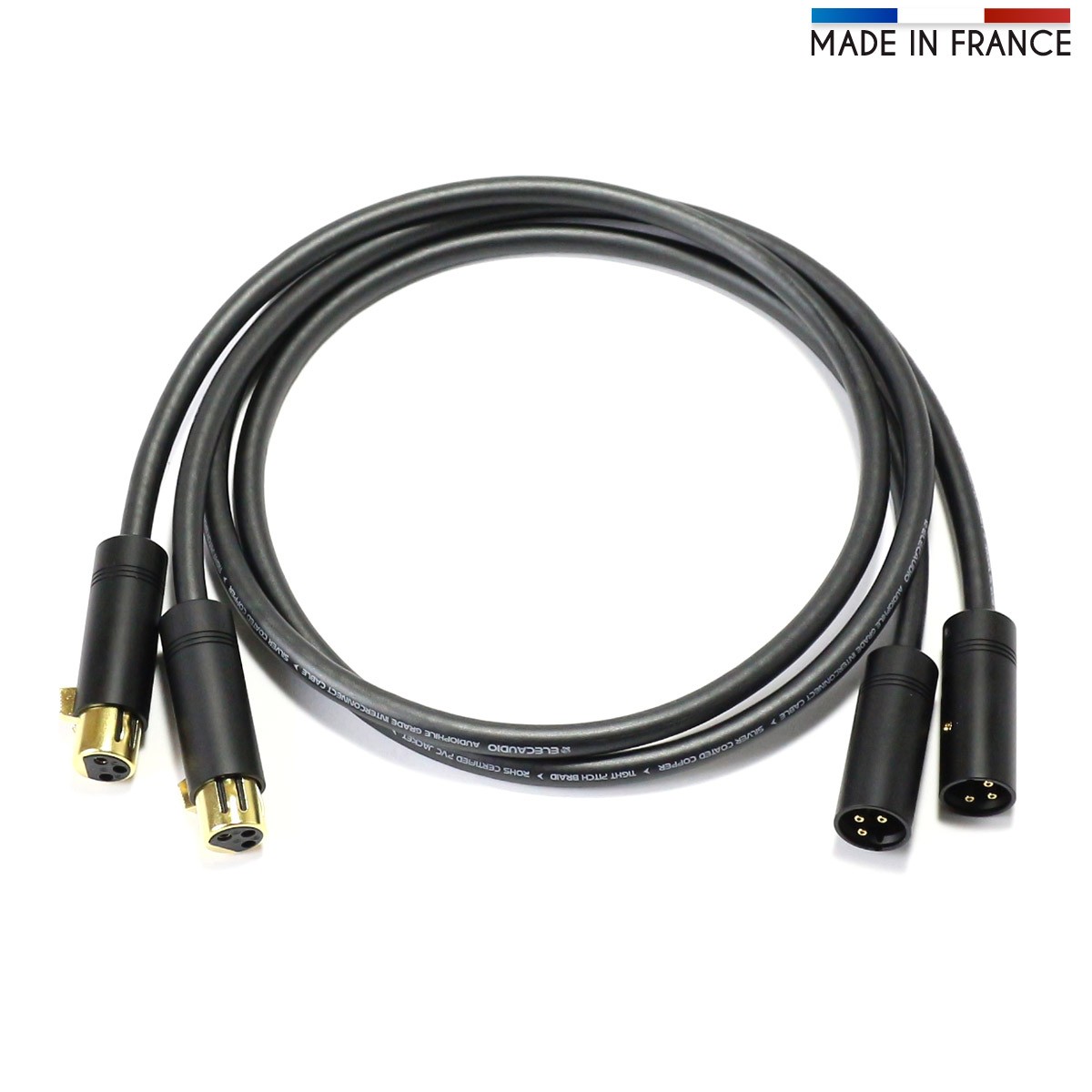

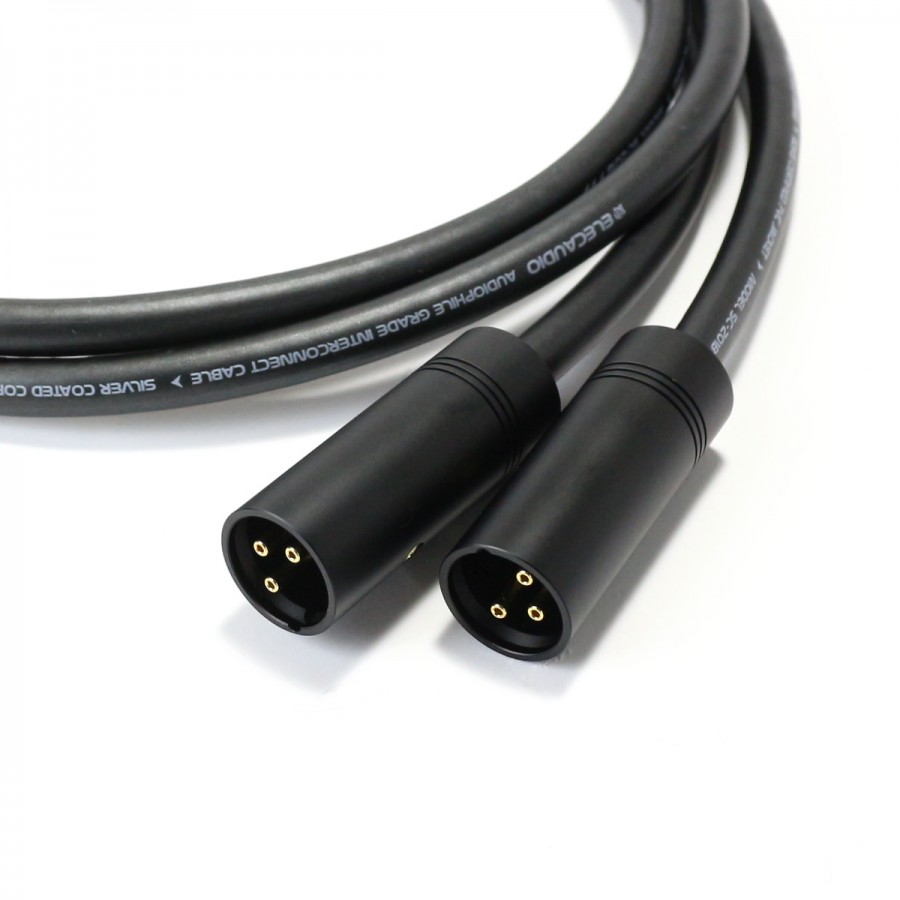

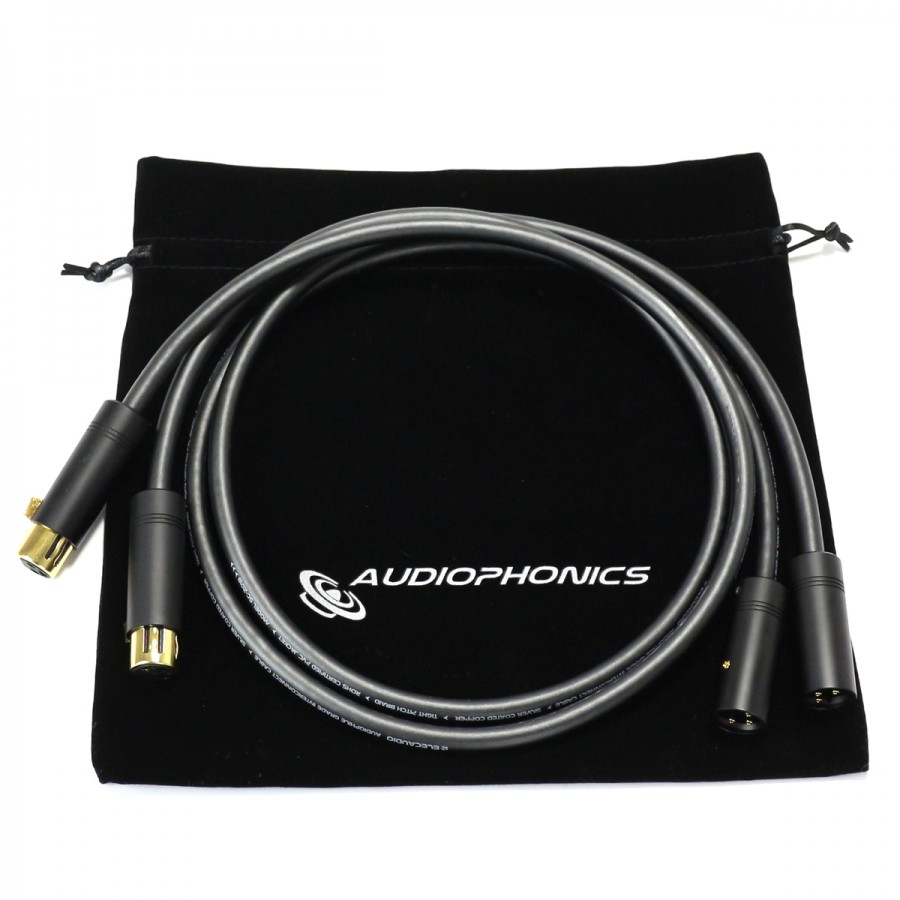

XLR stereo odulation Cable 1.5m
This XLR modulation cable was assembled by us in the Audiophonics workshops. The choice of materials has been carefully studied and every detail or finish is checked to offer you a top-of-the-range cable. The modulation cable used is an ELECAUDIO SC-201B 2x 1.31mm² cross section with double shielding and PE insulation. The XLR connectors used are ELECAUDIO CX-101 and CX-102 Gold Plated Copper connectors.
Elecaudio SC-201B Cable | |
---|---|
Conductors | OFC copper silver plated - 2 conductors of 1.31mm² each |
Compositon of conductors | 41x 0.12mm silver plated OFC copper wire, 0.12mm diameter each |
Insulation of conductors | PE |
Double shielding | Braided copper braid + Aluminium foil |
External sheath | High thickness PVC |
External diameter | Ø 7,8mm |
Elecaudio CX-101 - XLR Male Connector | |
---|---|
Conductor | Tellurium Copper |
Plating | Gold plated 24k |
Body | Machined metal |
Max. connector diameter | 19mm |
Overall body length | 50mm |
Elecaudio CX-102 - XLR Female connector | |
---|---|
Conductor | Copper alloy |
Plating | Gold plated 24k |
Body | Machined metal |
Locking system | By holding pin |
Max. connector diameter | 23mm |
Overall body length | 63mm |
