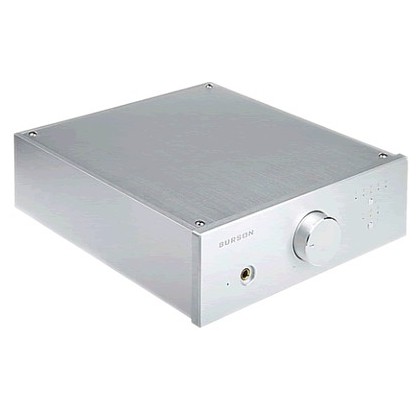

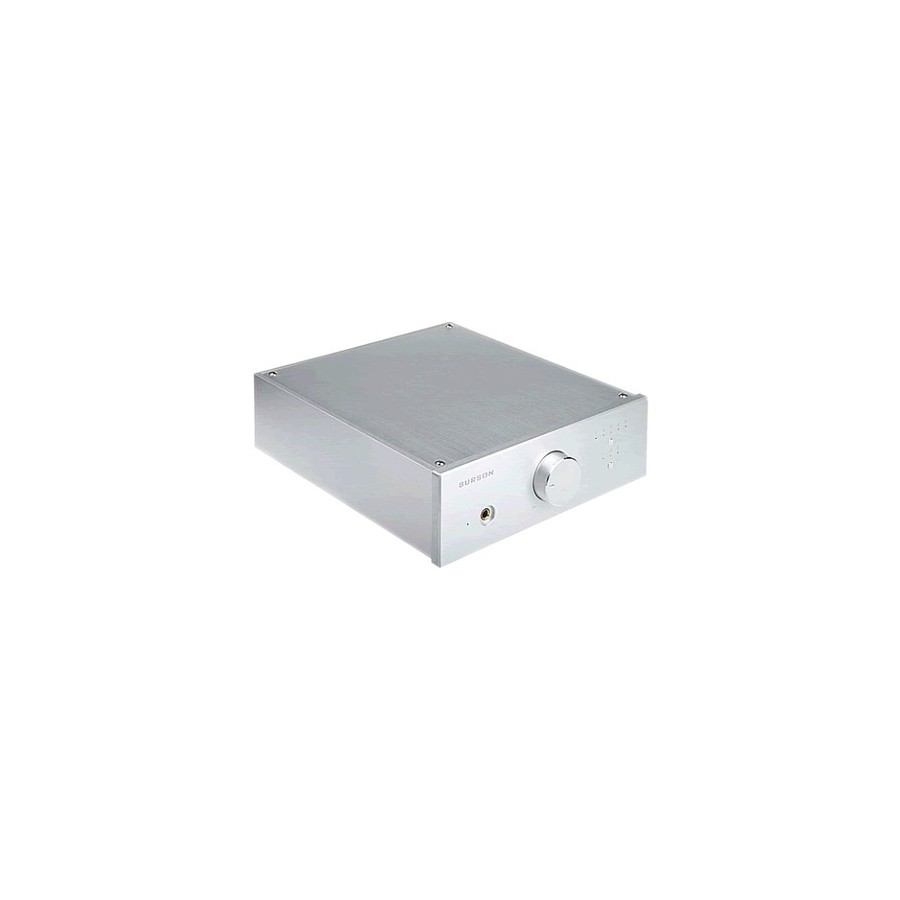

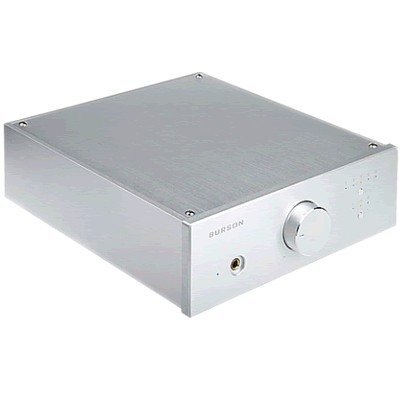

BURSON AUDIO Conductor DAC / Headphone amplifier / preamp 24bit / 192khz

BURSON AUDIO Conductor DAC / Amplifier Headphone / Preamp 24 / 192khz

This true Swiss Audiophile knife is the synthesis of the know-how Burson.

It brings together all the technologies that are dear to the brand and have made their reputation (switched potentiometer, VOS, output stage to FET, etc ...)

Including a modern USB DAC, a source selector, a front-end headphone amplifier and a preamplifier section it will prove comfortable in all situations.

Characteristics :

• USB Interface: TE8802
• DAC: ESS SABRE 32
• Dimensions: 265 x 255 x 80 mm
• Weight 6 KG

Measures :

• Input impedance: 36.5 KOhms
• Frequency response: ± 1 dB 0 - 50Khz
• Signal Noise Ratio:> 96dB
• THD: <0.03% @ 30ohm
• Channel separation:> 73dB
• Output Power: 4W @ 16 Ohms
• Input impedance:> 8K Ohm @ 30 Ohm, 1W
• Output Impedance: <1 Ohm @ 30 Ohm, 1W


Specifications DAC (SPDIF DIRECT):

• Channel separation: 140 dB @ 1KHz, 130 dB @ 20KHz
• THD + N: 0.0005% @ 1KHz, 0dBFS
• COAX & Toslink / SPDIF: 32-bit / 44.1K, 48K, 88.2K, 96K, 176.4K, 192KHz

USB specifications:

• Supported systems: Windows XP, Windows Vista, Windows 7, Mac OS X
• USB: 24-bit / 44.1K, 48K, 88.2K, 96K, 176.4K, 192KHz
• Support up to 24bit @192Khz with 10ppm low jitter clock
• Mode: Asynchronous Transfer Mode

Inputs / Outputs:

• Inputs: USB, Coaxial, Toslink, line level stereo RCA
• Outputs: 6.35 jack, RCA stereo (preamp), RCA (DAC output)

Accessories :

• Power cable
• Stereo RCA Modulation
• RCA mono coaxial digital.
• USB cable

PDF Manufacturer

Asynchronous Drivers Windows 7 and 8 (click to download)
