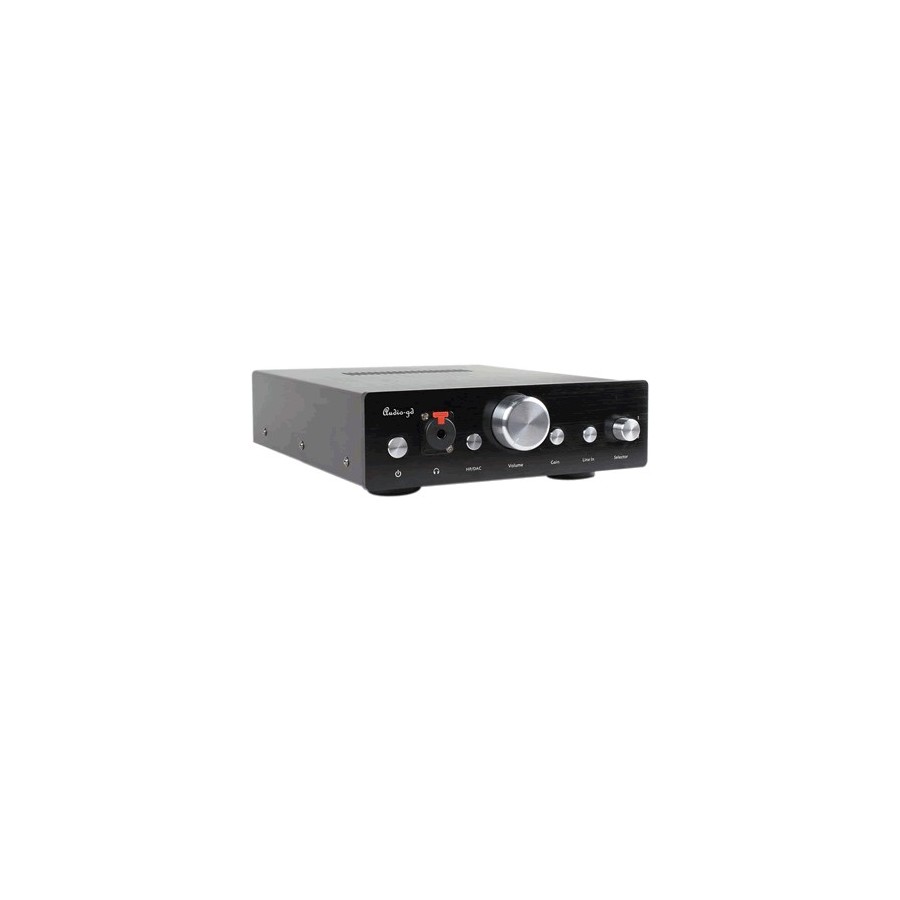

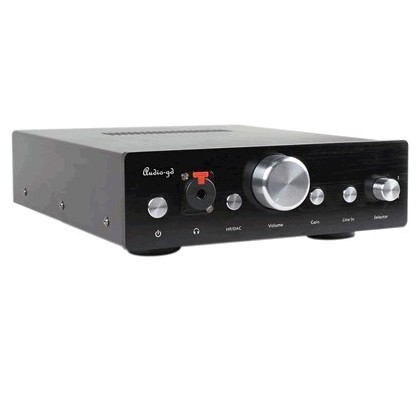

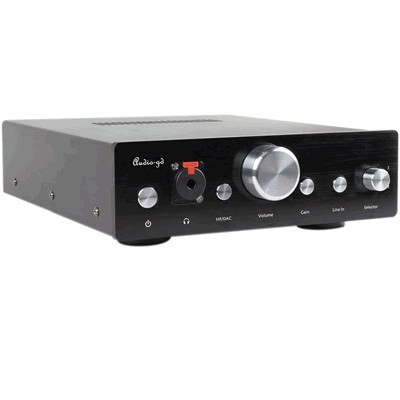

Audio-GD Compass 2 2014 DAC / Headphone Amplifier / Preamp 32bit / 384KHz WM8741DSD

No customer reviews yet, login to write a review.

No loyalty points for this product.


Yes, notify me when available !
Reference : 8318
New product

429,00 €tax incl.

357,50 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Audio-GD Compass 2 2014 DAC / Headphone Amplifier / Preamp 32bit / 384KHz WM8741 X2

This reissue of the Compass comes back in a version featuring the new USB interface of the brand (USB32) and two converter WM8741.

This very versatile device (DAC, Headphone Amplifier and Preamplifier), has many inputs (USB, Coax, Toslink and Line in) to be comfortable in all configurations.

The brand's engineers have designed this device to ensure its scalability (it is possible to change at will the USB interface, the converter or discrete Aop).

Its ultra-modern DAC allows you to manage 32 bit 384Khz sources directly via USB and SPDIF inputs.

The 100% discreet design of this amplifier is backed by a high power power supply.

24k Gold Plated RCAs and Nover (UK) capacitors have been specially manufactured on Audio-Gd specifications.


Features:/ Strong>

  • USB interface: USB 32 (VIA VT 1731)
  • SPDIF Receiver: WM8805
  • DAC: 2 x WM8741
  • DSD / DXD

Signal / noise ratio


115dB

Output Level


Headphone output: 11V RMS
Variable output: 5V Max
Fixed output: 2.5V RMS

Output Power (Headphones).


3600mW / 25 ohm (150mW class A)
2000mW / 50 ohm (300mW class A)
1100mW / 100 ohm (600mW class A)
400mW / 300 ohm (Full class A)
200mW / 600 ohm (Full class A)

Gain

12DB at H gain
0 DB at L gain

Output impedance

2ohm / Headphone output
10 ohm / DAC output

Input sensitivity



0.5 Vp-p (75 Ohms, Coaxial)
19 dBm (Optical)
USB1.1 / 2.0 (High Speed ​​/ Full Speed)

Frequency Response


20Hz - 20KHz (-0.2DB, DAC + amp)
3Hz - 350KHz (Amp parts)
3Hz - 200KHz (Line In)

USB Compatibility Windows: 44.1kHz to 192kHz music files
OSX: 44.1kHz to 384KHz music files
Linux: 44.1kHz to 192kHz music files
Supported sampling rates USB mode1: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Optical model: 44.1kHz, 48kHz, 88.2kHz, 96kHz (176.4KHz and 192KHz available if the source support)
Consumption220-240V AC 50/60 Hz 20W
Weight
5KG
Accessories
AC power cord X1
USB cable X1
Optical cable X1

Manufacturer:

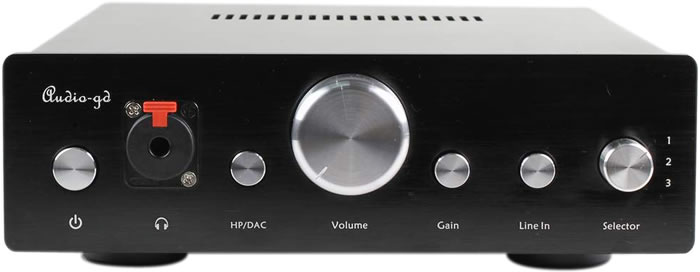

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_2.jpg

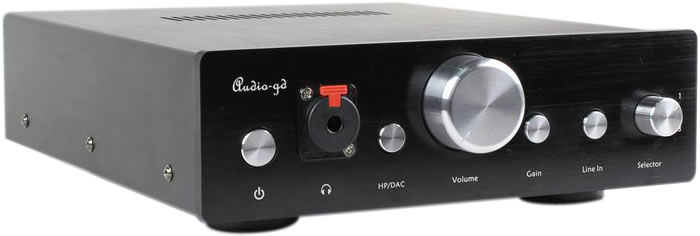

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_3.jpg

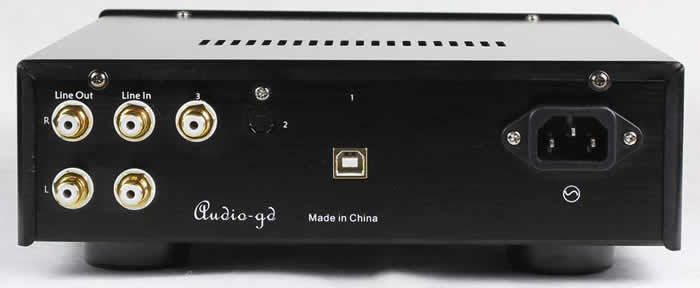

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_1.jpg

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_4.jpg
