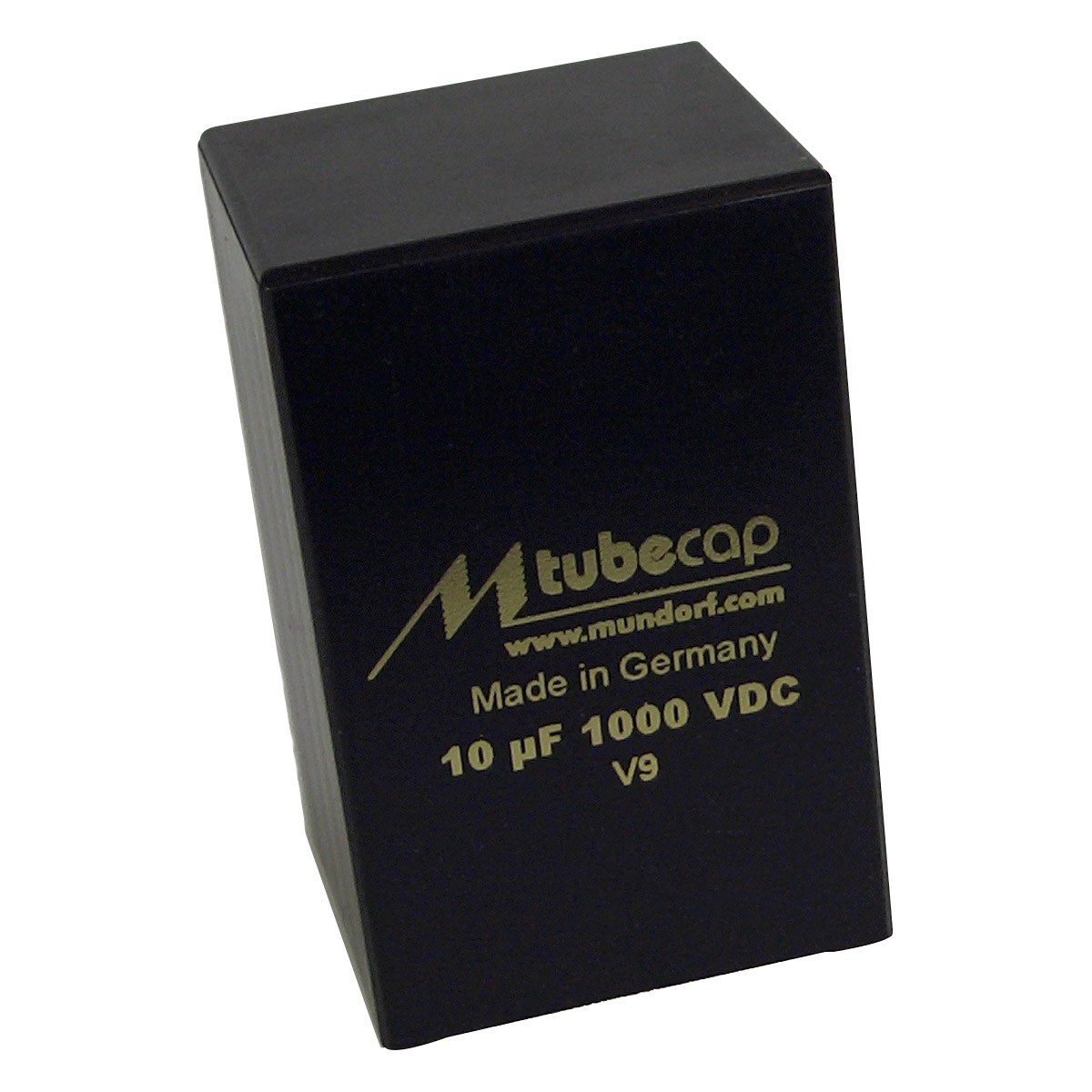

MUNDORF TUBECAP Capacitor 1000V 10µF

Mundorf Condensateur TubeCap 1000V 10µF
These capacitors combine high dielectric strength with low residual inductance. They have been developed to offer a high quality alternative to high voltage electrochemical capacitors and are therefore ideal for use in tube amplifiers.
No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 2035
New product

21,90 €tax incl.

18,25 € tax excl.

- +

Shipping date: 19-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Mundorf TubeCap

Capacitor 1000V 10µF

Mundorf TubeCap Condensateur 600V 30µF

Mundorf TubeCap capacitors are made from a Polypropylene film with special features. It is particularly thin and self-healing. This allows TubeCap capacitors to achieve a higher maximum operating voltage with rather compact dimensions.

These capacitors combine high dielectric strength with low residual inductance. They have been developed to offer a high quality alternative to high voltage electrochemical capacitors and are therefore ideal for use in tube amplifiers.

Mundorf TubeCap Condensateur 600V 30µF

Technical characteristics

Specifications
Product typeCapacitor
Capacity10µF
Voltage1000VDC
Tolerance±5
ESR @ 10Hz13mΩ
ESL @ 500kHz17nH
DielectricPolypropylene (PP)
Loss factortan ∂ < 0.005 @ 1kHz
Failure rate1 fit
Sealing compoundPU UL 94-V0
Useful life100000h @ hot spot 60°C
Cover0.5 x Un ; 40°
Max ambient temperature85°C (185°F)
General
Dimensions55 x 35 x 30mm
Wires diameter1mm
Wires spacing30mm

Data sheet
Tolerance (%)5.0
Capacitor capacitance10
Rated voltage (V)1000.0
Capacitor typeFilm capacitor
Capacitor formatRadial
