[GRADE A] FX-AUDIO FX1002A TDA7498E Class D Amplifier 2x100W 4 Ohm Black

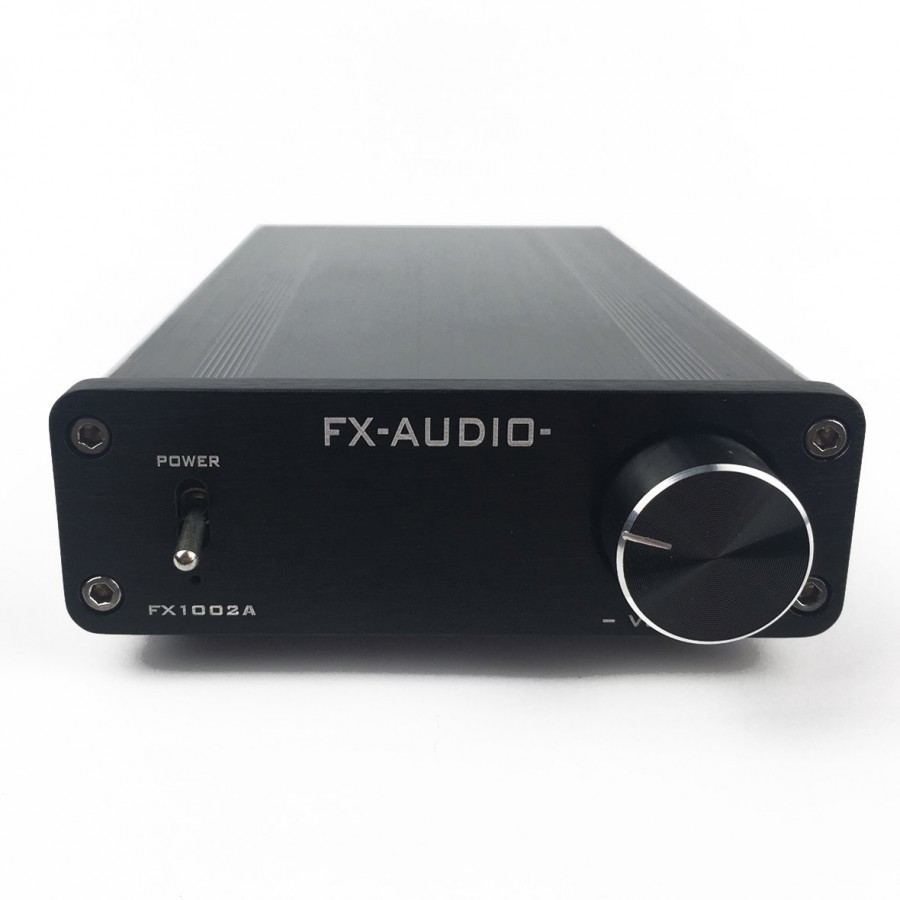

The FXAUDIO FX1002A 2x100W on 4 Ohm is the perfect high power integrated amplifier in a small aluminum housing. Powerful thanks to the latest generation Texas TDA7498E chip, it brings a real solution of great simplicity of use with a stereo input, a power button and a front volume. It thus provides the ability to drive even the most difficult bookshelf or column speakers for a reduced budget.
By buying this product you get 8 loyalty points
Refurbished product - Grade A
Cardboard box damaged.
FX-Audio FX1002A
Amplifier Class D 2x100W 4 Ohm
High Fidelity and power
The FXAUDIO FX1002A 2x100W on 4 Ohm is the perfect high power integrated amplifier in a small aluminum housing. Powerful thanks to the latest generation Texas TDA7498E chip, it brings a real solution of great simplicity of use with a stereo input, a power button and a front volume. It thus provides the ability to drive even the most difficult bookshelf or column speakers for a reduced budget.
An audiophile quality design

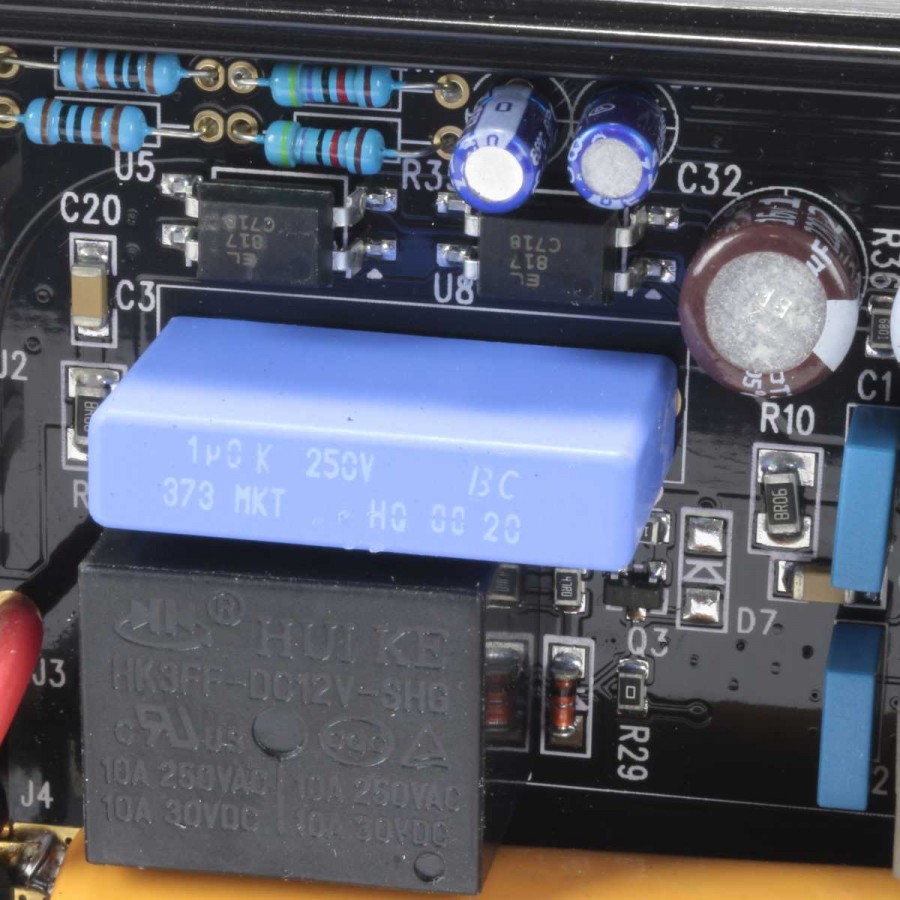

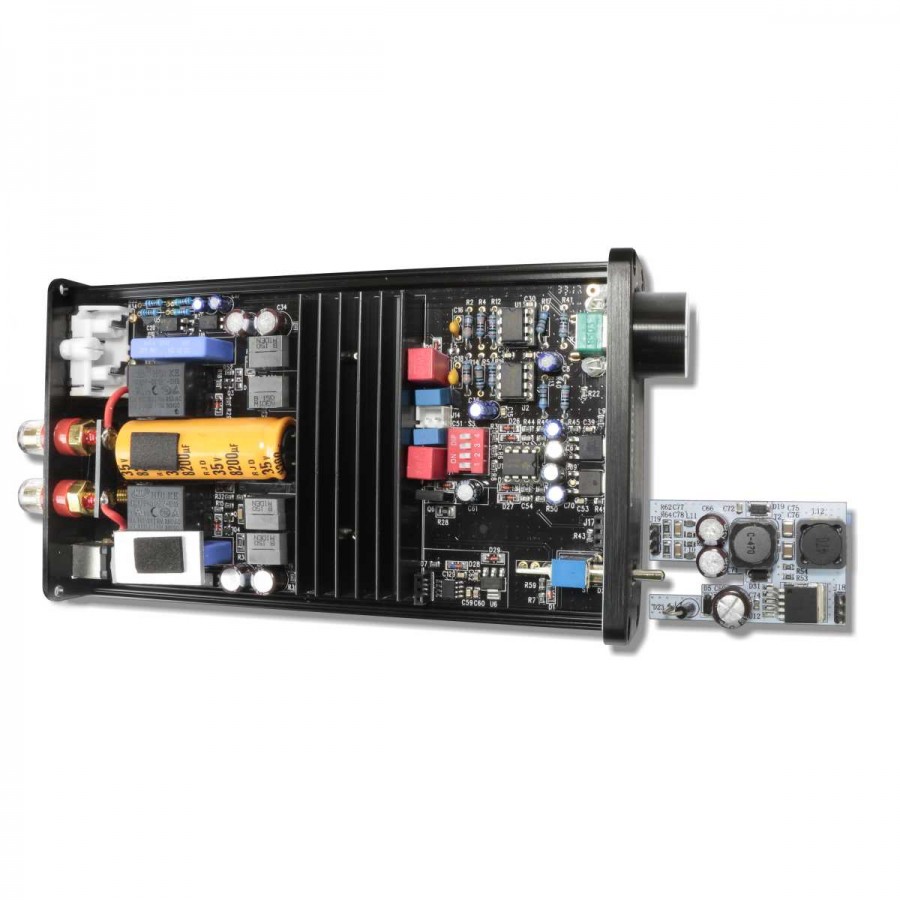

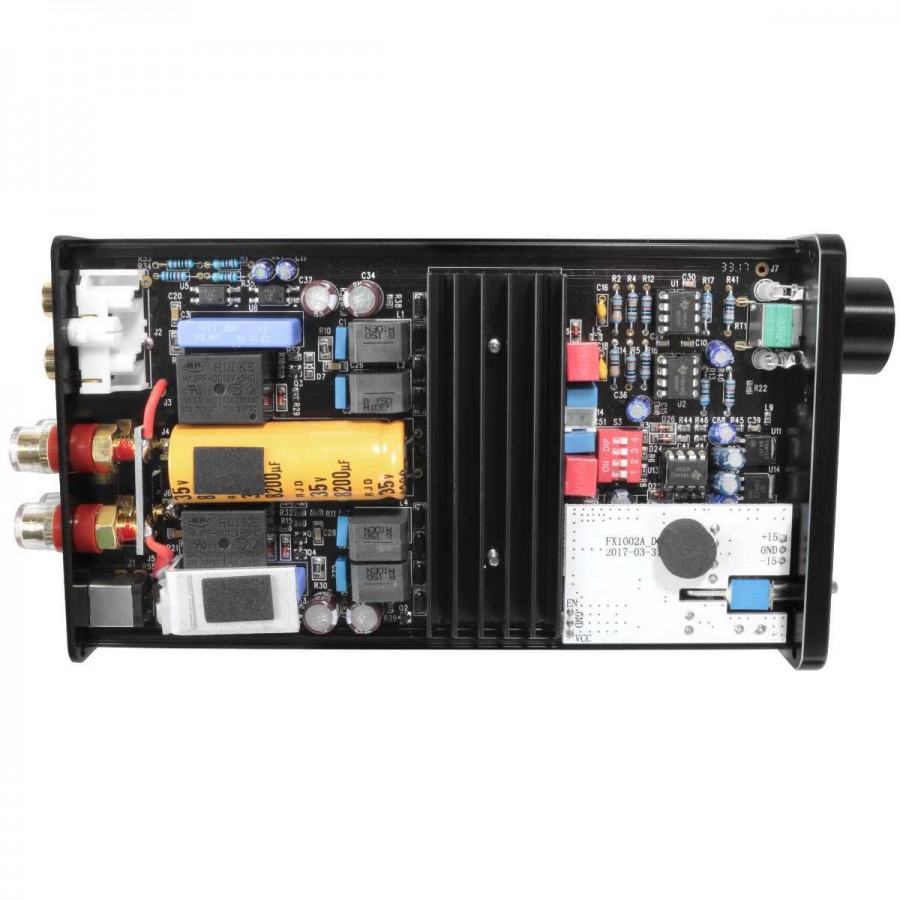

The FX AUDIO FX1002A features audiophile level refinements and components including Epcos film capacitors. The double mono preamplifier part has three high quality interchangeable DIP 8 AOPs. The TL082CP DUAL JFET AOPs with fast and high bandwidth ensure transparency and dynamics.

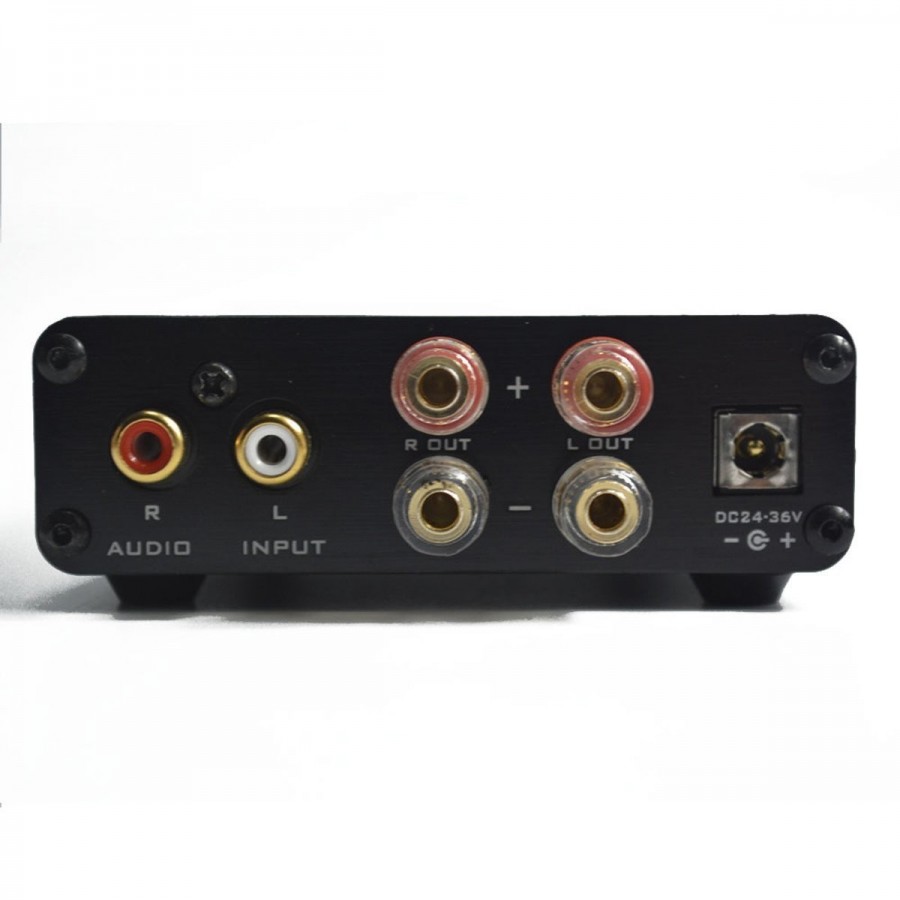

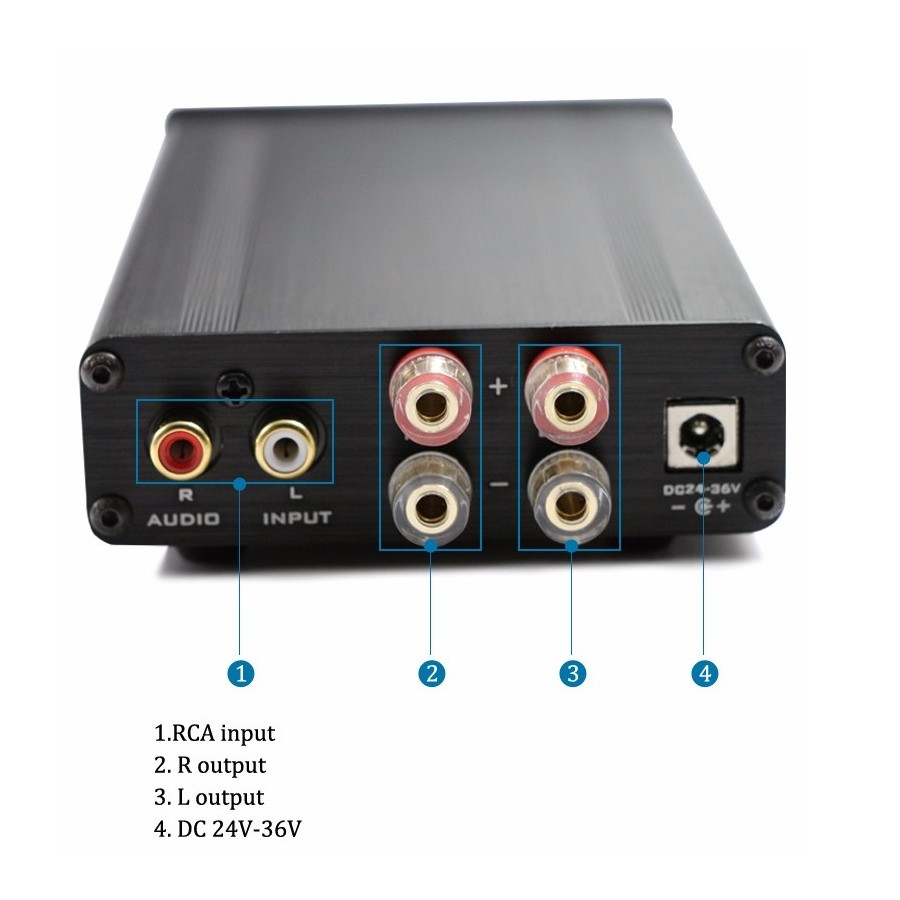

Rear facade: inputs and output
| 1 | RCA input |
| 2 | Right speaker output |
| 3 | Left speaker output |
| 4 | Power supply input DC 24-36V |

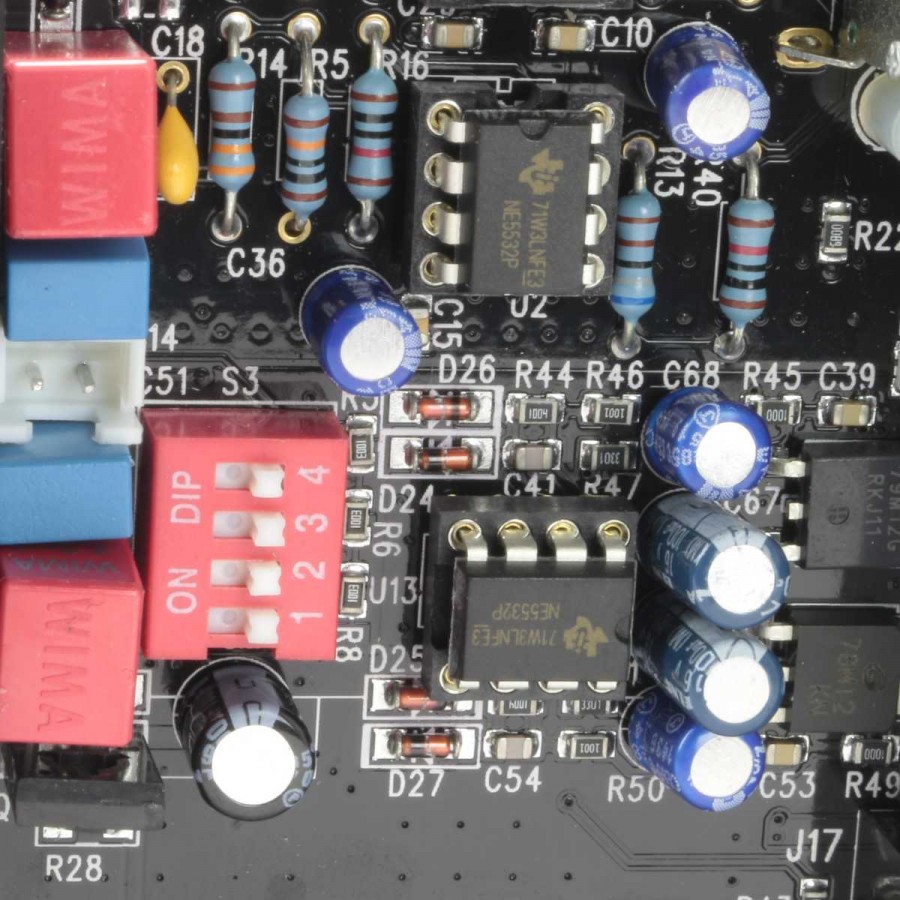

Setting the gain by DIP selector
The gain of the FX-Audio FX1002A can be adjusted via a DIP switch located in its housing. The diagram opposite shows the different possible settings: 35.6dB, 33.1dB, 29.6dB, 23.6dB.

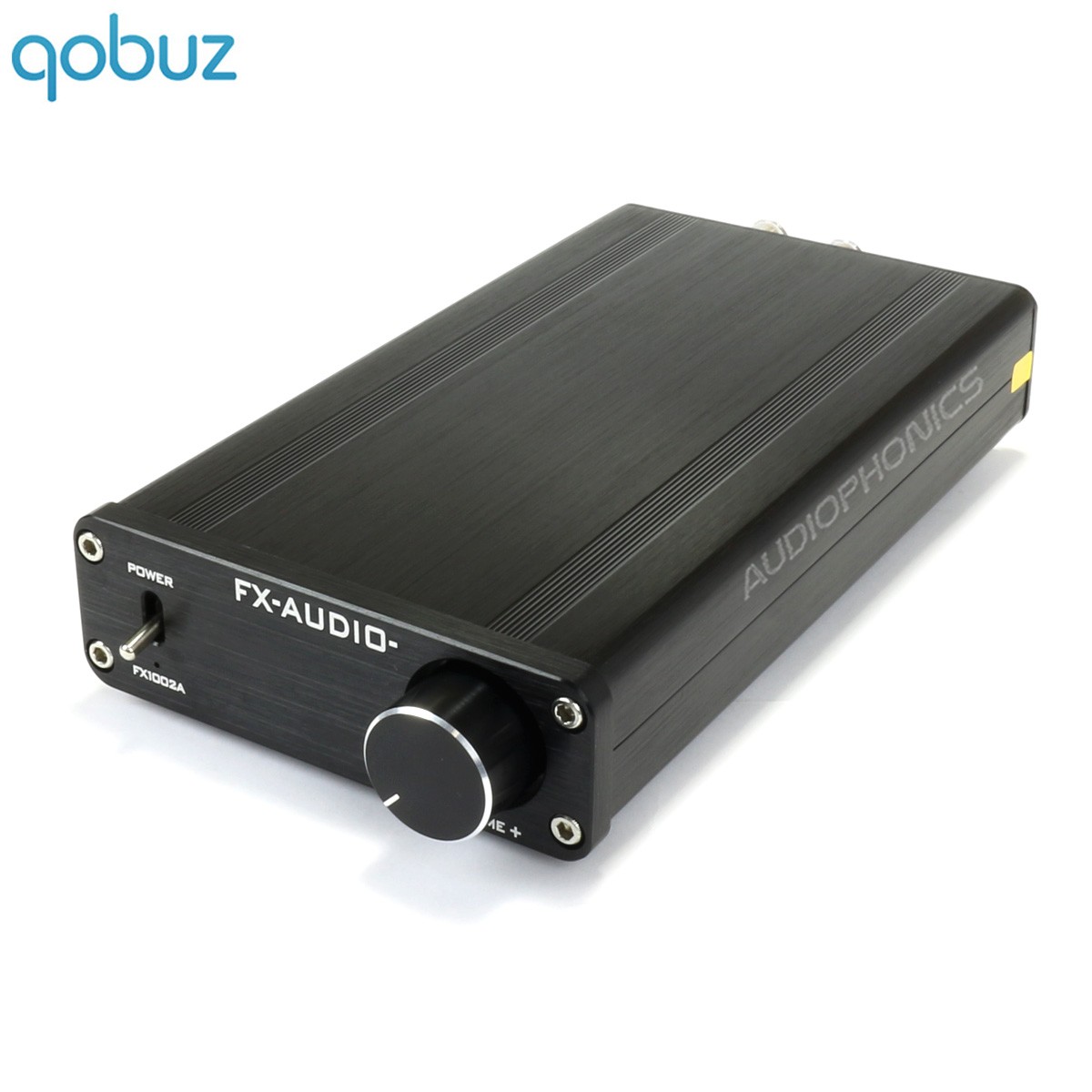

Test bench by Qobuz
The FX1002A has been fully tested by Qobuz. You can find detailed review by following this link.
Technical characteristics
| Specifications | |
|---|---|
| SNR | 99dB |
| Max power | 4 Ohm @ THD 10% @ 32V : 2x125W 4 Ohm @ THD 0.1% @ 32V : 2x100W 8 Ohm @ THD 10% @ 32V : 2x60W |
| Power supply | DC 24-36V |
| Frequency response | 20Hz - 20kHz (-0.2dB) |
| Distortion | 0.10% |
| Inputs | 2x RCA |
| Outputs | Gold plated speaker terminals |
| Weight | 1.2kg |
| Dimensions | 165 x 95 x 30mm |
| Accessoris | 1x power cable 1x AC/DC switching adaptor 32V DC 5.9A |
| Input | RCA |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TDA7498E |
| Power (W) | 125.0 |
| Refurbished Grade | Grade A |
