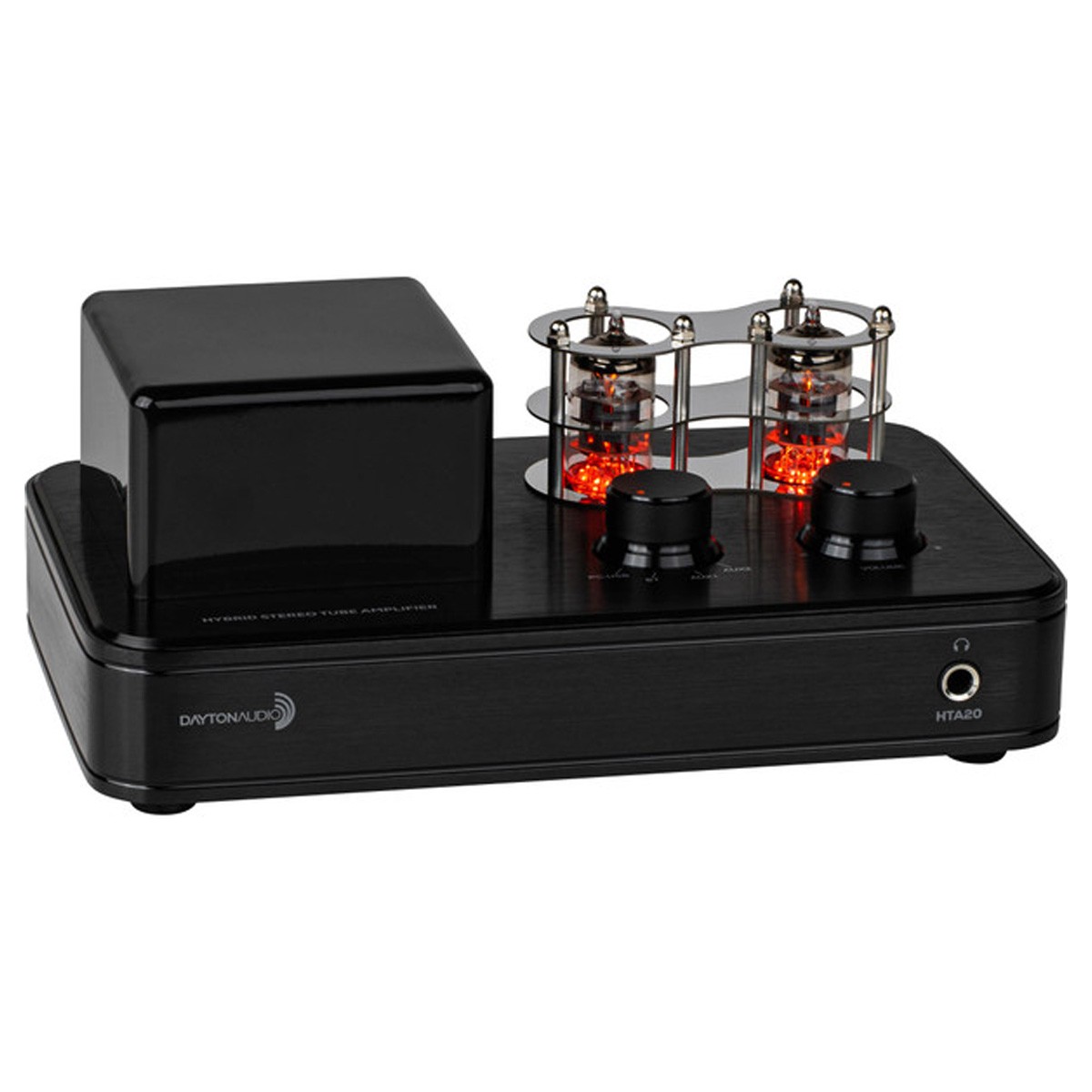

[GRADE A] DAYTON AUDIO HTA20 Hybrid Tube Class AB Amplifier Bluetooth 2x15W 4 Ohm
The Dayton Audio HTA20 is the perfect solution for enjoying the warm sound of a tube amplifier. With its hybrid design, it combines the vintage sound of tube amplifiers with the modern convenience of semiconductor amplifiers. This allows for a unique blend of both vintage and modern technologies.
![[GRADE B] EVERSOLO DMP-A6 GEN 2 Streamer 2x ES9038Q2M WiFi DLNA Roon Bluetooth 32bit 768kHz DSD512](https://www.audiophonics.fr/69961-thumb_default/eversolo-dmp-a6-gen2.jpg)
![[GRADE S] EVERSOLO DMP-A8 Streamer AK4191EQ AK4499EX XMOS XU316 WiFi DLNA AirPlay Bluetooth aptX HD LDAC](https://www.audiophonics.fr/69953-thumb_default/eversolo-dmp-a8.jpg)
![[GRADE A] MINIDSP FLEX EIGHT Digital Audio Processor DSP 2x8 Channels SHARC ADSP21489 XMOS Bluetooth 5.0 aptX HD LDAC](https://www.audiophonics.fr/69968-thumb_default/minidsp-flex-eight-digital-audio-processor-dsp-2x8-channels-sharc-adsp21489-xmos-bluetooth-50-aptx-hd-ldac.jpg)
![[GRADE B] AUNE SC1 EVO Clock OXCO 10MHz Sine / Square wave signal Black](https://www.audiophonics.fr/69979-thumb_default/aune-sc1-evo-black.jpg)
![[GRADE A] AUDIOPHONICS HPA-S500ET Power Amplifier Class D Stereo Purifi 1ET7040SA 2x500W 4 Ohm](https://www.audiophonics.fr/69986-thumb_default/audiophonics-hpa-s500et-power-amplifier-class-d-stereo-purifi-1et7040sa-2x500w-4-ohm.jpg)
![[GRADE A] ASCILAB F6BS Bookshelf Speakers 125W 4 Ohm 83dB White (Pair)](https://www.audiophonics.fr/69996-thumb_default/ascilab-f6bs-white.jpg)
![[GRADE A] IEAST AUDIOCAST PRO M20 Streamer WiFi AirPlay DLNA Bluetooth 5.0 24bit 192kHz](https://www.audiophonics.fr/70008-thumb_default/ieast-audiocast-pro-m20.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Refurbished product - Grade A
Torn packaging box

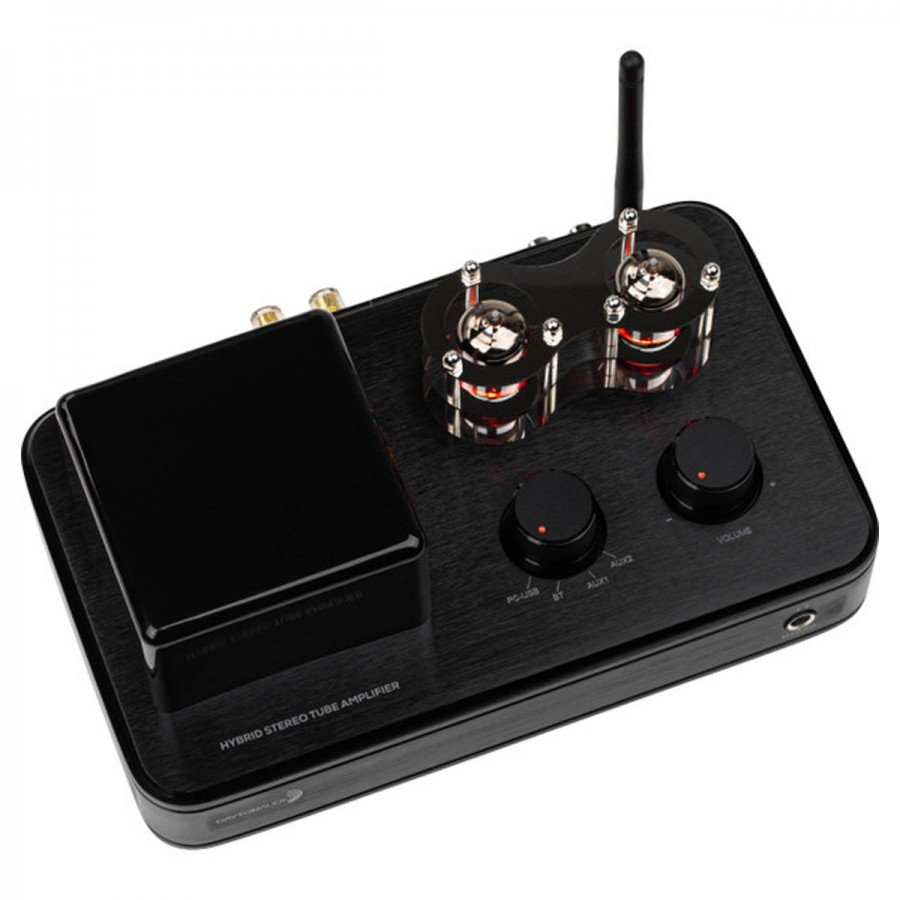

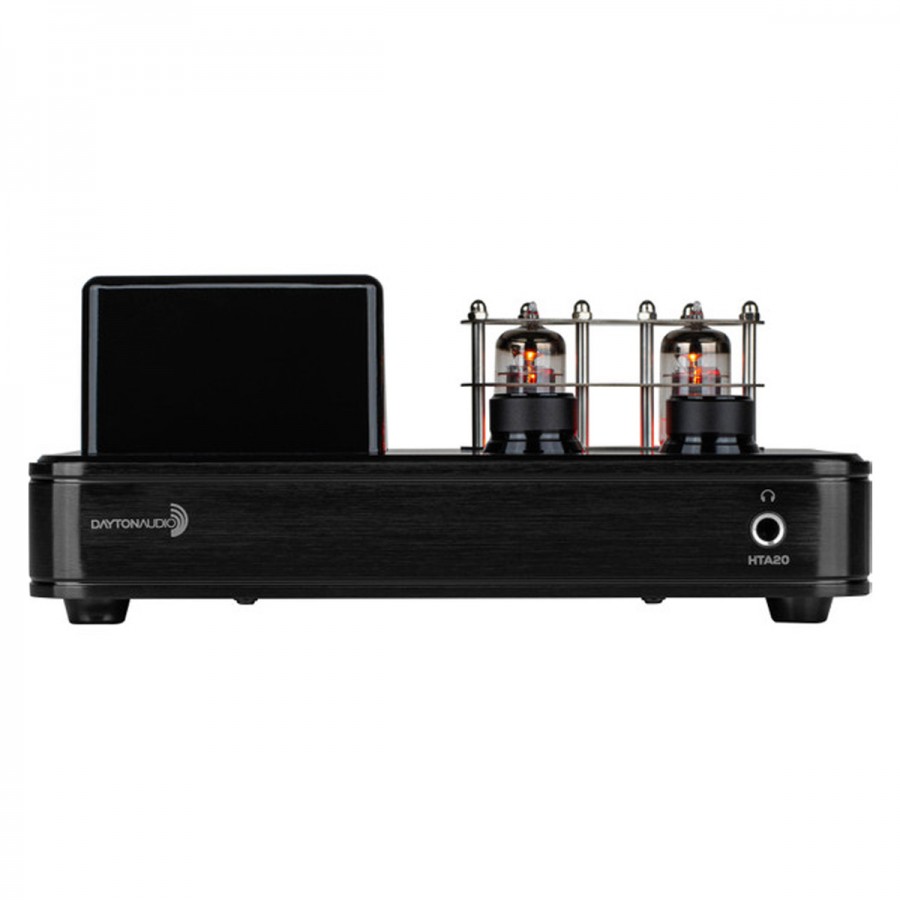

Dayton Audio HTA20
Hybrid Tube Class AB Amplifier Bluetooth 2x15W 4 Ohm
The Dayton Audio HTA20 is the perfect solution for enjoying the warm sound of a tube amplifier. With its hybrid design, it combines the vintage sound of tube amplifiers with the modern convenience of semiconductor amplifiers. This allows for a unique blend of both vintage and modern technologies.
The best of both worlds
Debate often rages over which of the tube amplifiers or the transistor models produces a better listening experience. The HTA20's hybrid design puts an end to this debate by utilizing the best of both worlds.. The amplifier thus uses both the classic design of a class AB architecture while employing tubes in the preamplification circuit.
Flexibility & Performance
With a power of 2x15W RMS under 4Ω, the HTA20 is ideal for the integration of a small or medium HiFi system. It also benefits from the convenience of Bluetooth 5.0 connectivity, allowing you to stream and control your music remotely, from a smartphone or tablet for example.

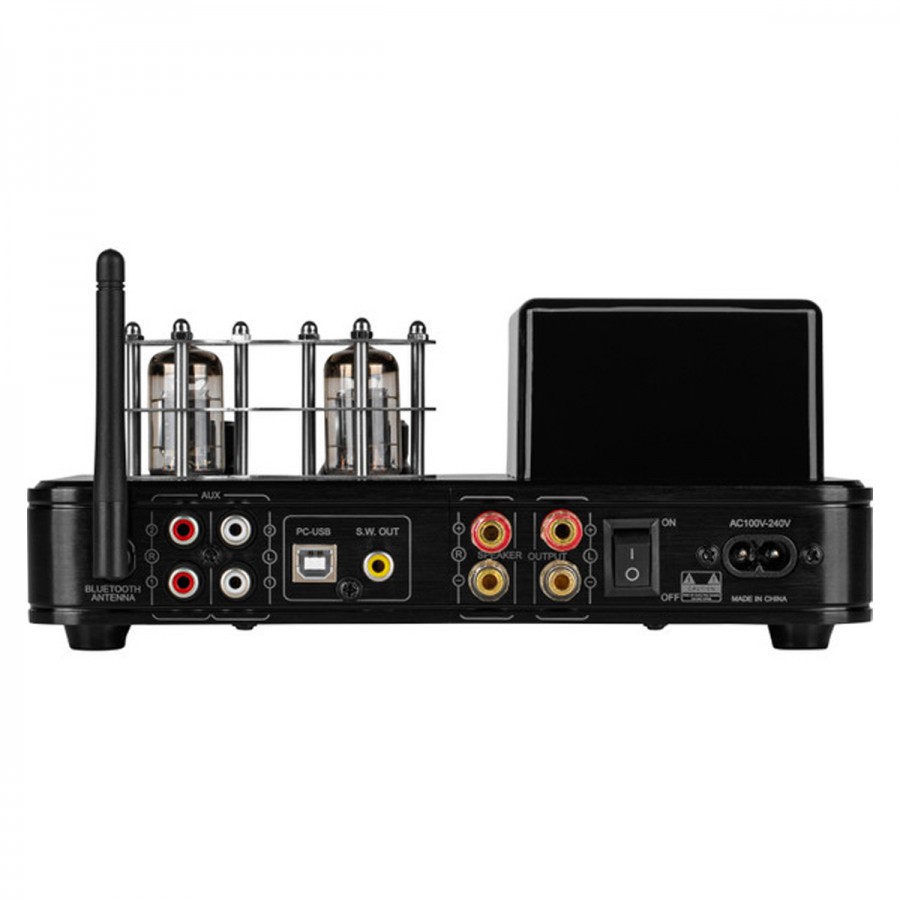

Versatile connectivity
With its two stereo RCA inputs and USB-B port, the Dayton Audio HTA20 is versatile, allowing it to connect to a wide range of source devices. In addition to its speaker terminals, the Dayton Audio HTA20 also features an RCA subwoofer output and a 6.35mm headphone output.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier |
| Inputs | Bluetooth 5.0 1* USB-B 2* Stereo RCA |
| Outputs | Speaker terminals 1* RCA subwoofer output 1* Jack 6.35mm headphone output |
| Amplification type | Class AB |
| Preamplification | Tubes |
| Tubes | 2* 6F1 |
| Output power | 2x15W RMS @ 4Ω |
| THD | < 0.5% @ 15W RMS |
| Minimum speaker impedance | 4Ω |
| Total gain | 28dB |
| SNR | 75dB |
| Frequency response | 20Hz-20kHz (1dB) |
| Input sensitivity | 315mV |
| Channel separation | 53dB |
| Supported sampling rates (USB) | PCM up to 32bit 192kHz |
| Supported Bluetooth codecs | SBC, AAC |
| General | |
|---|---|
| Tension d'alimentation | 110-220VAC 50/60Hz |
| Consommation en veille | 8W |
| Dimensions | 279*165*216mm |
| Poids | 1.15kg |
| Couleur | Noir |
| Package | 1* Dayton Audio HTA20 1* Câble d'alimentation |
| Input | USB |
| Input | Bluetooth |
| Input | RCA |
| Output | Speaker terminal |
| Output | Subwoofer |
| Output | Jack 6.35mm |
| Color | Black |
| Channel | 2 (Stereo) |
| Channel | 2.1 |
| Class | Class A / AB |
| Amplifier chip | N/A |
| Power (W) | 15.0 |
| Remote Control | No |
| Refurbished Grade | Grade A |
