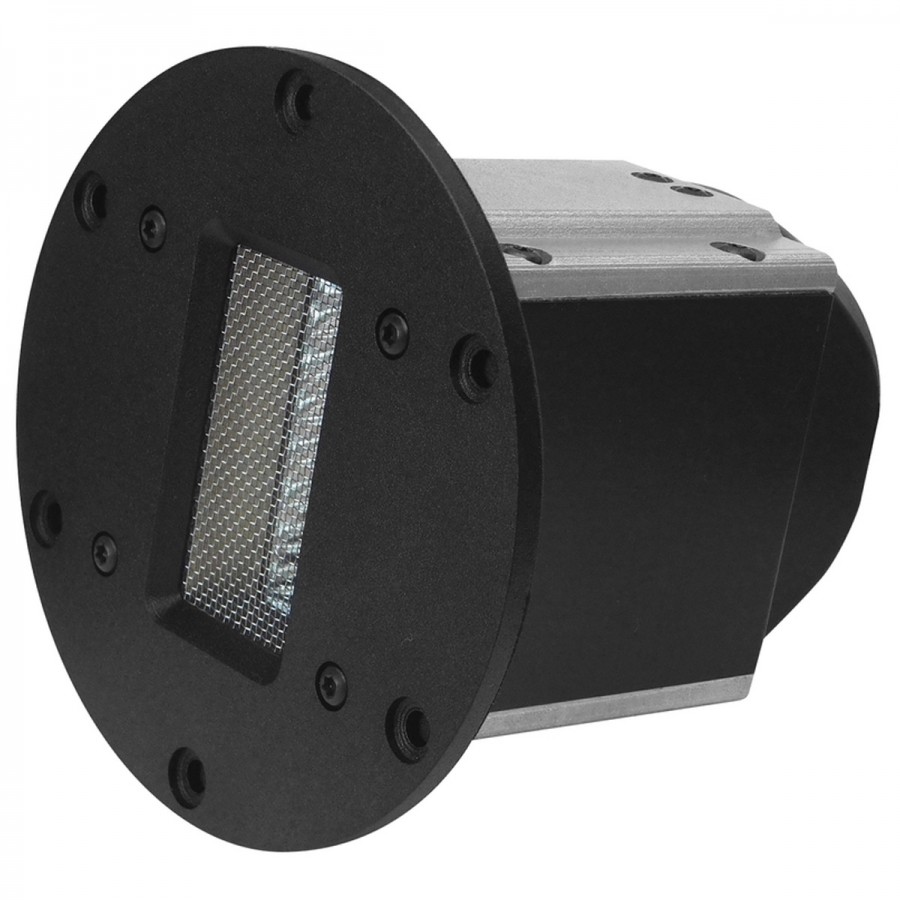

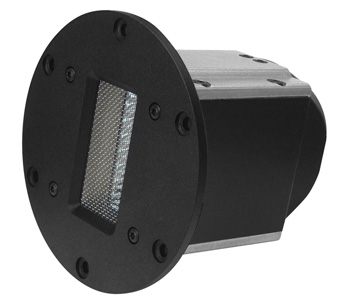

VIAWAVE GRT-145-8 Speaker Driver Ribbon Tweeter 17W 8 Ohm 95dB (Pair)

VIAWAVE GRT-145 Ribbon tweeter 4 Ohm Ø104mm
A pair of ribbon tweeters with excellent frequency response and very good sensitivity while maintaining the distortion under a very low threshold. These parts are designed and hand-assembled with great attention to detail.

Sold by pair

No customer reviews yet, login to write a review.

By buying this product you get 51 loyalty points


Reference : 16342
New product

519,00 €tax incl.

432,50 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Viawave Audio GRT-145-8

Speaker Driver Ribbon Tweeter 17W 8 Ohm 95dB (Pair)

Tweeter ribbon GRT145-8 Viawave

A pair of ribbon tweeters with excellent frequency response and very good sensitivity while maintaining the distortion under a very low threshold. These parts are designed and hand-assembled with great attention to detail.

SRT

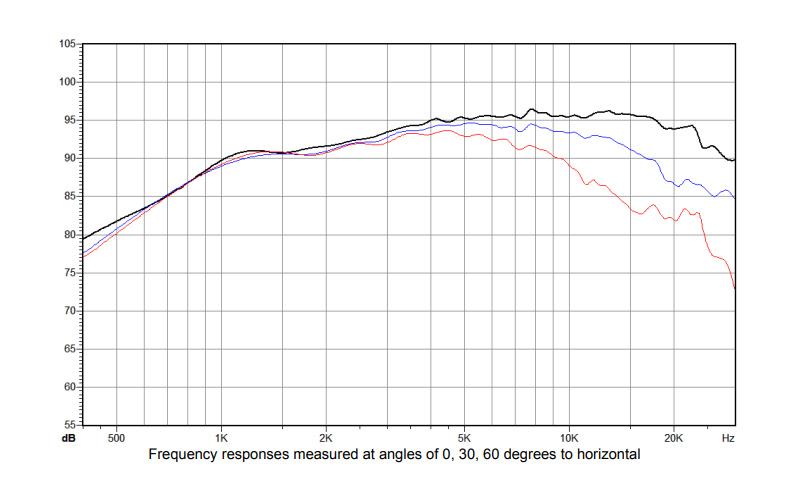

Tweeter Frequency Response GRT-145-8

Senior GRT-145-8 speakers exploit the SRT technology (sealed ribbon tweeter). This technology developed by Audio Viawave consists of placing a polymer film between the tape and the poles of the magnet. This type of construction greatly limits the harmonic distortion, especially in the lower frequencies that cover this type of tweeter.

One feature that refines the sound precision while specifying sensitivity. Indeed, it is considered that the SRT technology increases the final sensitivity of 2 to 3dB.

Excellent management magnetic stresses

With a magnetic system built with precision, the speakers feature tweeters TSO 145-8 remarkable sensitivity to this class of equipment. On a range of 1800Hz to 30kHz, it manages to achieve a sensitivity of 95dB/m @ 2.83V, a tour de force for a 7cm² ribbon tweeter. It may therefore put some its great sound precision midrange service to enjoy a brilliant and clear.

Similarly, its top desgin allows it to provide a clean, clear sound over the entire response range. These speakers show indeed a cumulative spectral period such as can be found in the professional equipment.

Type of mounting

The tweeter format allows him to enjoy all the depth of a speaker enclosure to avoid sacrificing floor space while providing an aesthetically uniform result - even with massive loudspeakers serious.

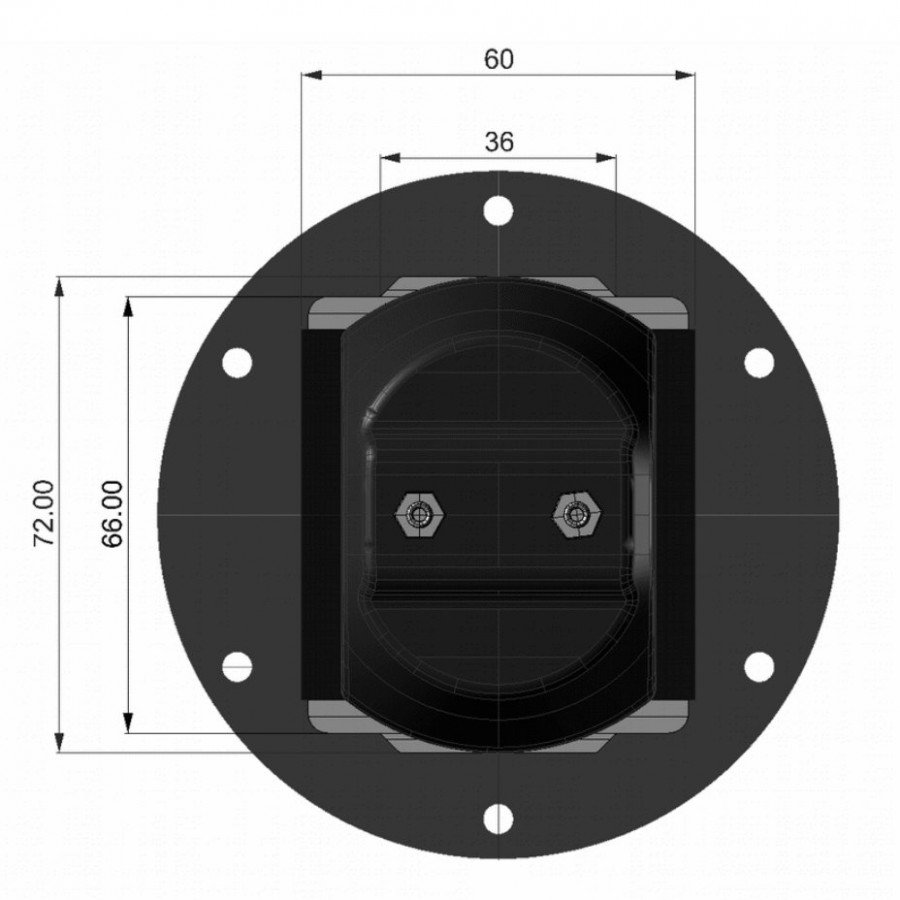

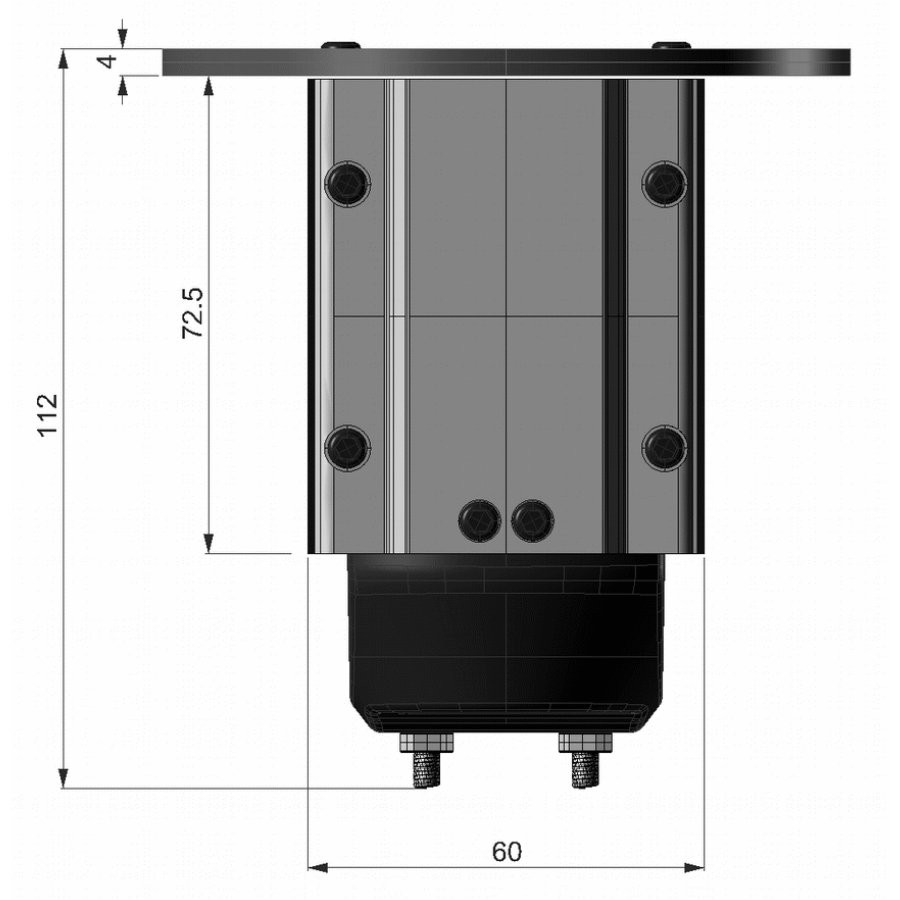

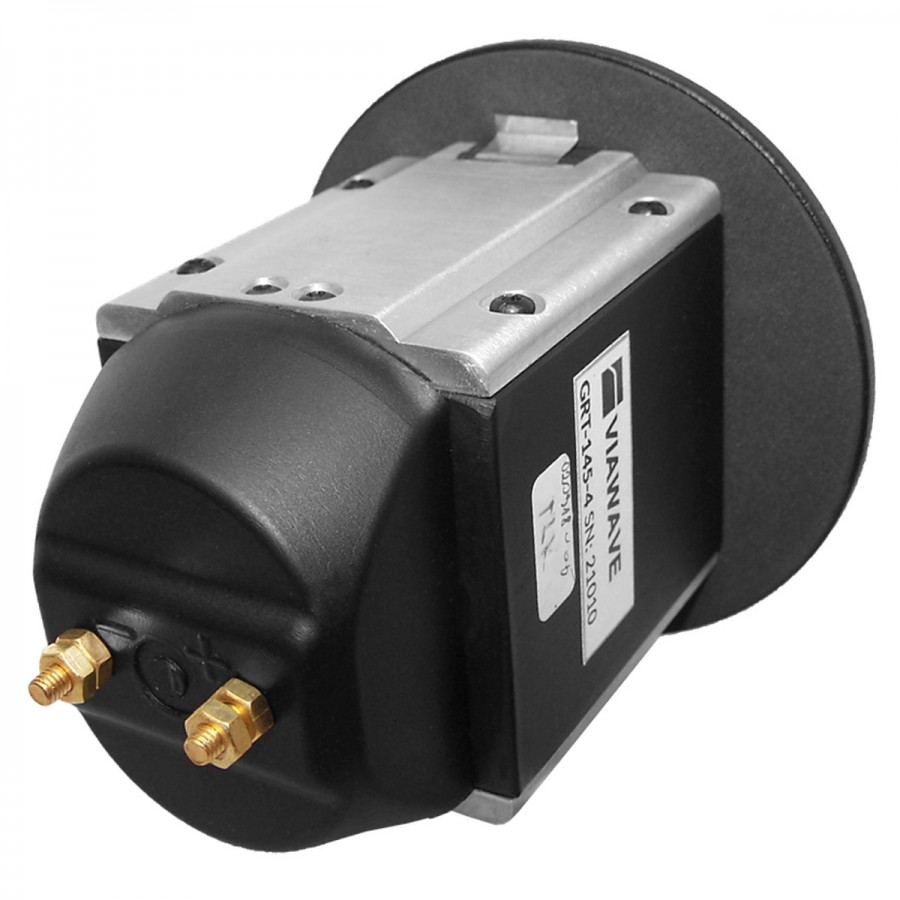

rear dimensions and connectors 145 GRT

The rear connections are thought to increase the mechanical stability while remaining easy to install and connect to other elements. In addition, this construction allows to easily configure filters and crossover essential to make the most of this tweeter.

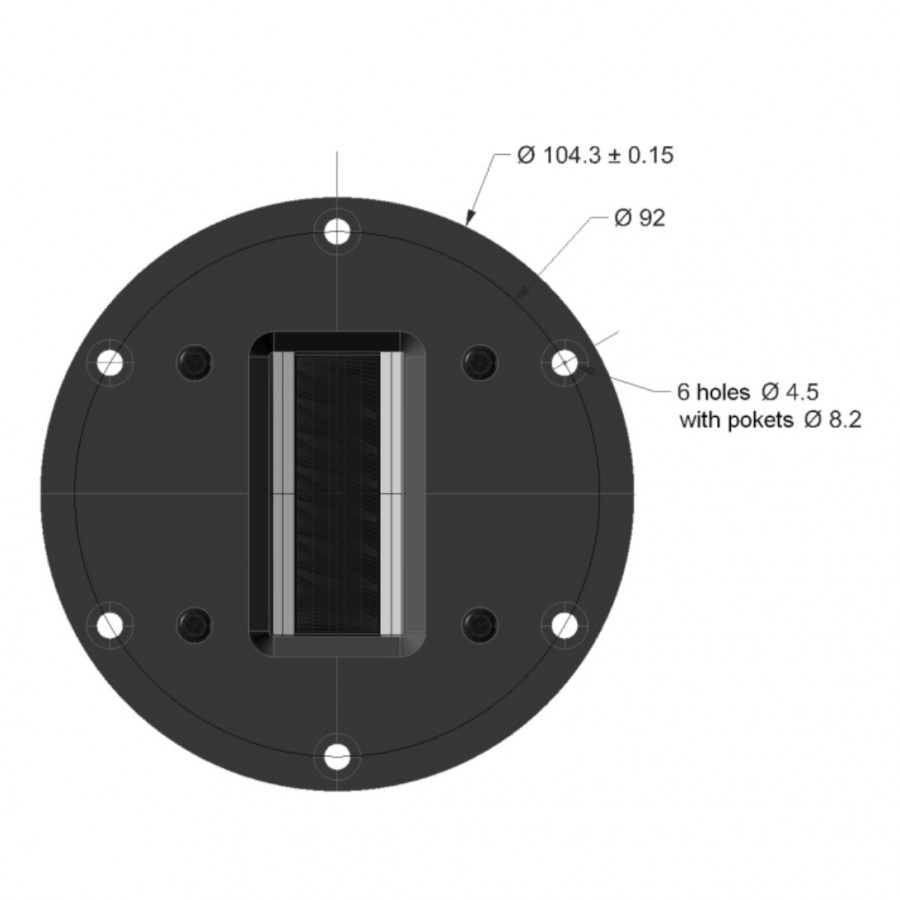

Many fasteners and easy installation

The front has multiple bindings that will facilitate the integration of complex speaker systems, leaving no room for error.

Specifications
Nominal impedance8 Ohm
Power handlingRMS: 17W
Peak: 40W
Program power via HF filter 3000Hz 12dB/oct150W
Sensitivity @ 2.83V, 1m, 4-18 kHz95dB
Rear chamber resonance900 Hz
Ribbon dimensions14 x 50 x 0.009 mm
Ribbon area7 cm²
Ribbon mass0.018 g
Input high frequency inductance0.034mH
Input DC resistance0.06 Ohm
Input low frequency inductance7mH
Magnetic gap flux density0.65T
Net weight1.32kg
Ribbon materialAluminum
Front plateAluminum
MagnetsNdFeB
Magnetic circuitLow Carbon Steel
Rear chamberNatural wool

Data sheet
Speaker Power (W RMS)17.0
Speaker TypeRibbon tweeter
Impedance (Ω)8
Loudspeaker diameter (mm)100.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)98.0
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
