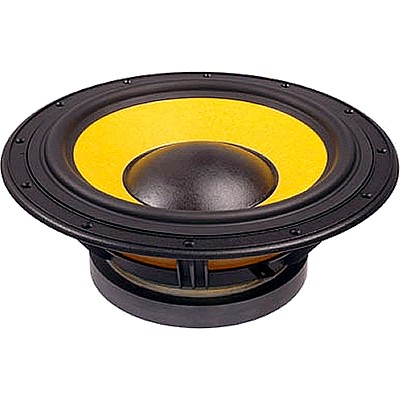

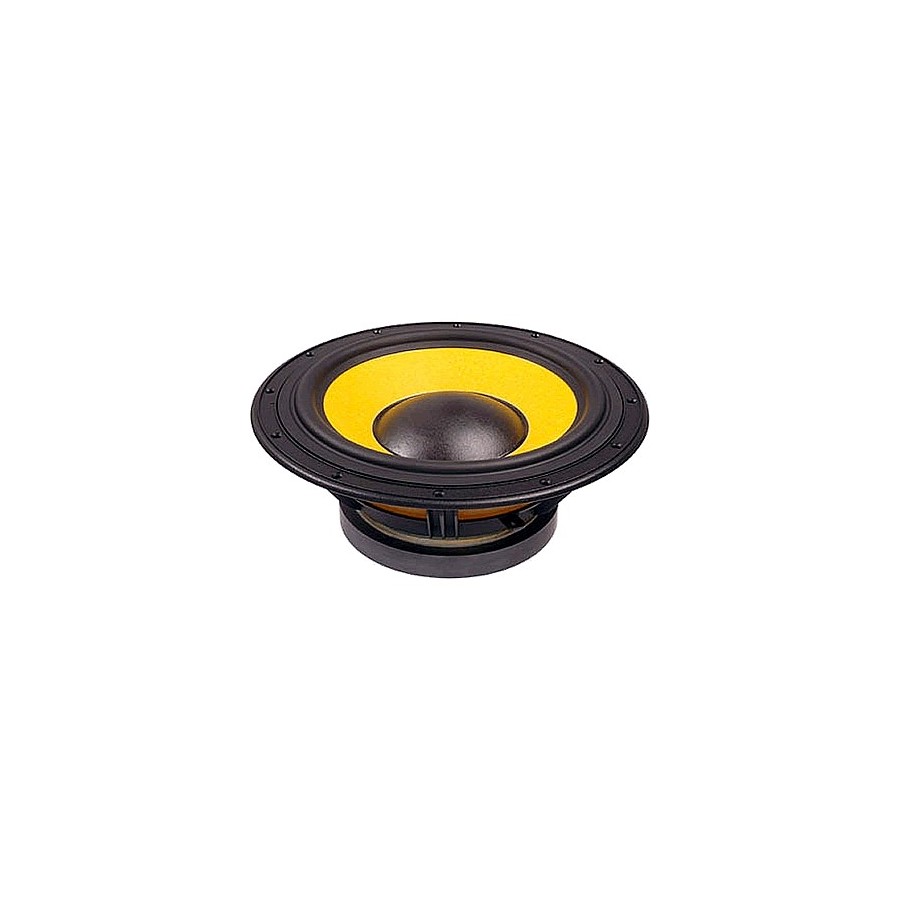

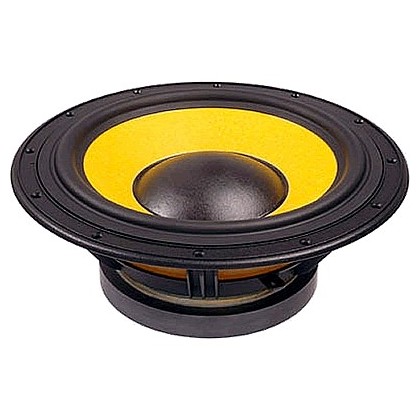

HiVi SWANS F10 Speaker Driver Woofer Kevlar 100W 8 Ohm 89dB Ø25.4cm

HiVi's "F" loudspeaker range is a synthesis of all the technological advances made in the last few years in the field of electroacoustics.

It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.


Ultra rigid cone from a learned combination of Kevlar and paper

Peripheral suspension in natural rubberGerman-made loudspeaker system that provides long-lasting loudspeaker performance and absorbing parasitic vibrationsoriginating at the surface of the cone

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor consisting of 2 magnets mounted in symmetrical and ventilated

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 28Hz
• Rated Power:100W
• Maximum Power Output:200W
• Sensitivity (2.83v / 1m): 89dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 50mm
• Length Coil:22mm
• Mounting Type:Kapton
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ Strong>Yes
• BL:16.2
• Hey :10mm
• XmaX:6.0mm
• Cms:420.2
• Qms:5.12
• Qes:0.33
• Qts:0.31
• Mms:72.16g
• Sd:0.0363m2
• Vas:78.6L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 60L
• Recommended Cut-Off Frequency -3dB: 33Hz
• Weight:4.5Kg

HiVi F10:Dimensions

HiVi F10:Frequency Response

HiVi F10:Impedance Curve
