Boîtier DIY

Pour amplificateur intégré, 100% Aluminium, 361 x 274 x 85mm

Boîtier DIY amplificateur intégré 100% Aluminium 361 x 274 x 85mm

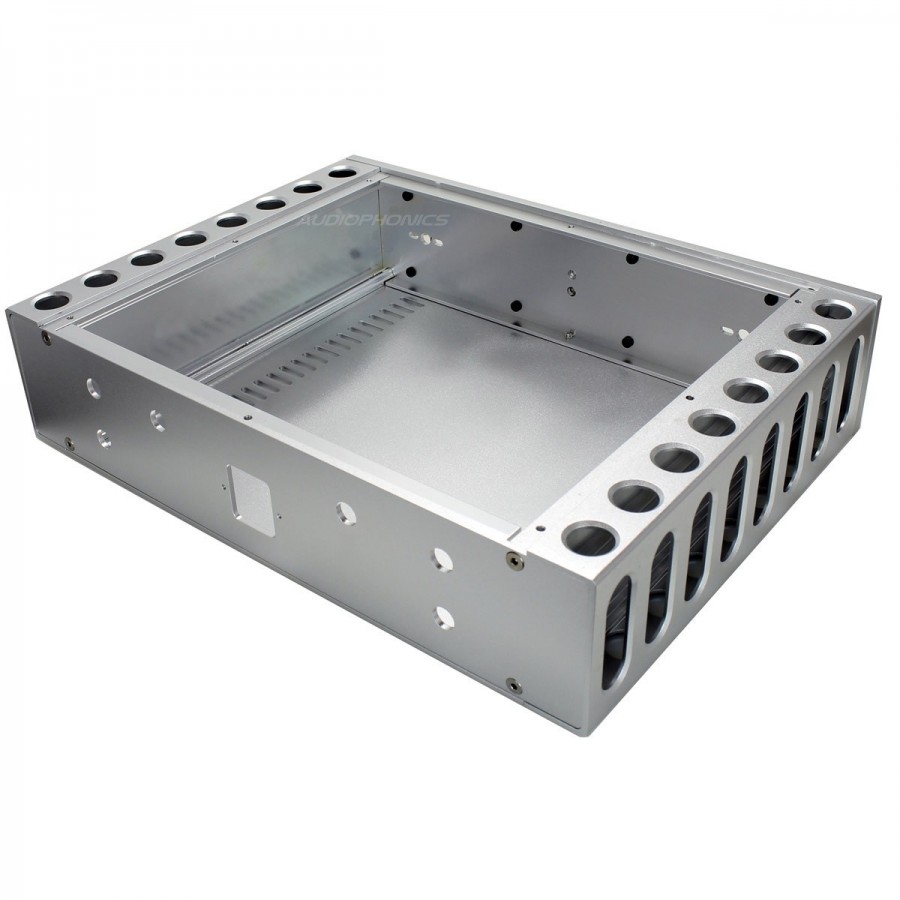

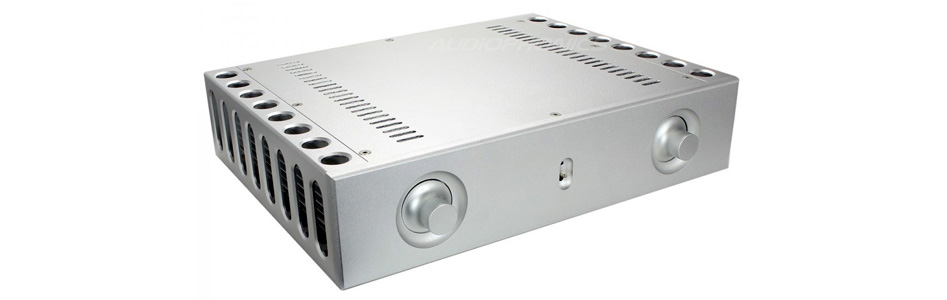

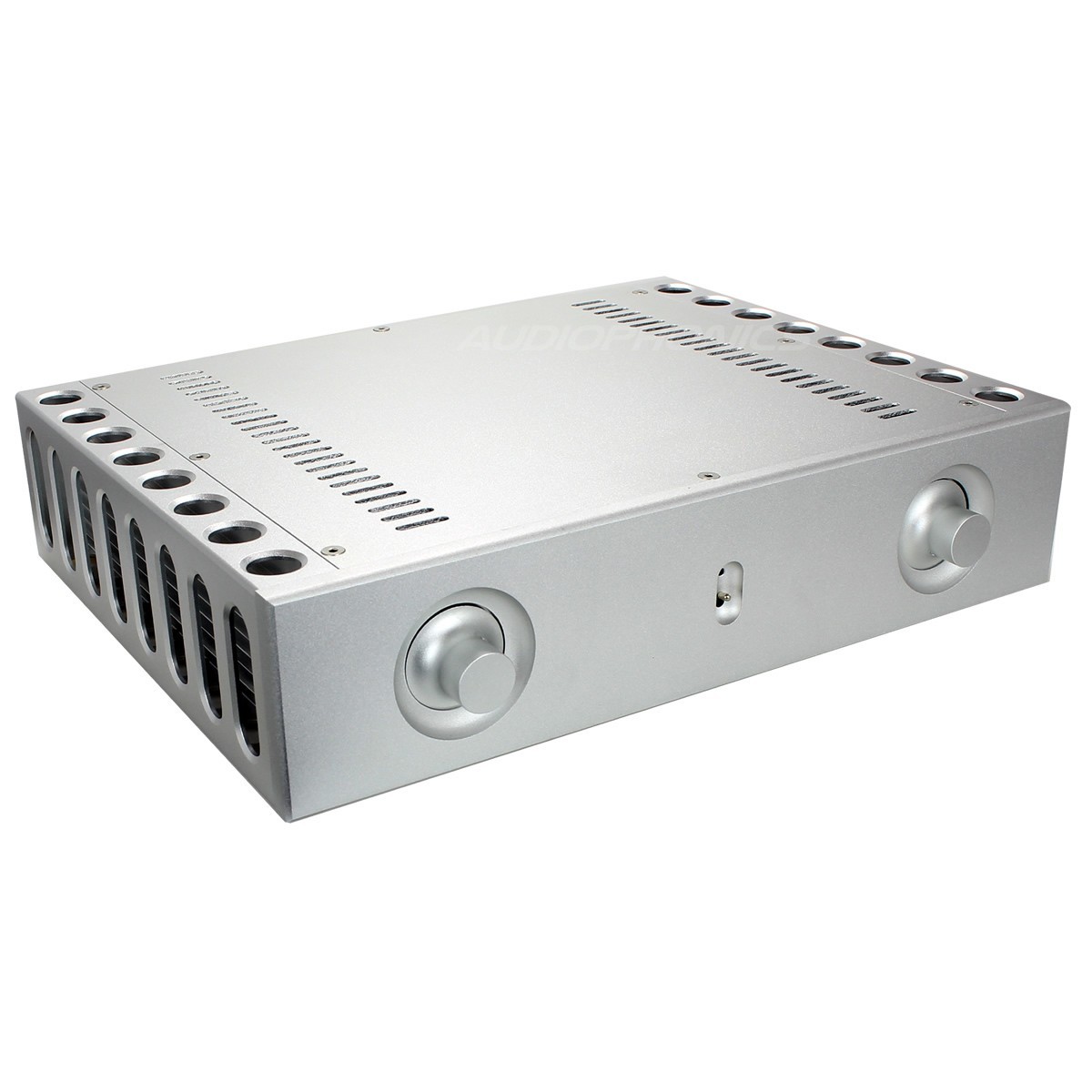

This 100% Aluminium DIY case in a Solid State HiFi design is equipped with the most beautiful radiators. In addition, there are pre-drilled holes for the transistors on the heat sinks as well as holes for stereo speakers and 2 RCA cinch (not included).

A slot for a source selector and another for the volume (holes compatible with ALPS RK27 potentiometers) are also pre-drilled in the front panel.

So here is a ready-to-use aluminium chassis allowing to integrate a controller, a preamplifier or an amplifier for example. Its original design assures you a professional assembly and finish at a low price.

The housing is delivered to be assembled. It may require adjustments depending on the integration.

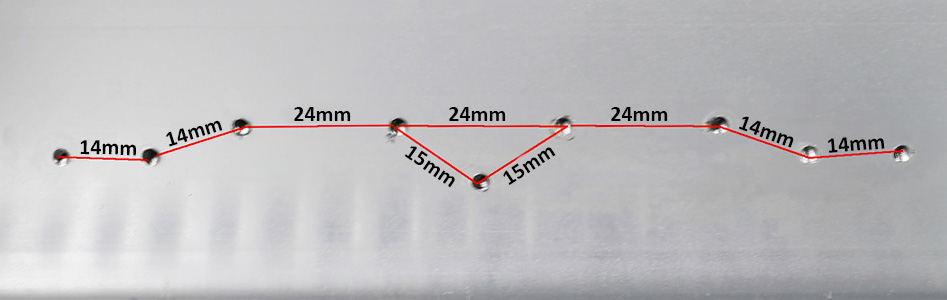

Transistor spacing

Boîtier DIY amplificateur intégré 100% Aluminium 361 x 274 x 85mm

Technical characteristics

Specifications
Product typeCase
Internal dimensionsWidth : 300mm
Depth : 256mm
Height : 74mm
External dimensionsWidth : 361mm
Depth : 274mm
Height : 85mm
MaterialSandblasted aluminium
Weight3.6kg
ColorSilver
Front panel holesVolume and selector: Ø7.96mm x2
Switch : 4 x 5.92mm
Rear panel holesRCA : Ø11mm x6
IEC : 27.84 x 30.85mm (IEC holes spacing: 37mm)
PackageCase
1x ON/OFF switch
4x Anti-slip feet 21 x 10.38mm
2x Buttons 23.15 x 38mm
4x Cruciform PH1 3.88 x 17.85mm
4x BTR type H3
15x BTR H2.5 3.69 x 7.86mm
7x Cruciform 10.27 x 3.84mm
4x Cruciform 8.2 x 2.82mm
4x Nuts 6.85 x 2.9mm

Data sheet
ColorSilver
MaterialAluminium
Internal width300
Internal depth256
Internal height74

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Execellent product, absolutely satisfied!
Always a guess when you order a casing. This one is very satisfactory! All components fit perfectly. The case was assembled without any effort.

One tip: Add exact drawings, having all dimensions makes it easier to add or adapt stuff. The end result will be even more perfect ;) I , for example, need to modify the top 'lid' to fit 3 transformers and two large KT120 tubes. Replacing the top lid with another plate is easiest but I need accurate dimension to get a good result without the inaccuracy of measuring it myself.
