IEAST AMP80 V2 Connected Amplifier

New
The iEast AMP80 V2 is a versatile, high-performance Class D connected amplifier. It's based on a TDA7498E amplifier chip and an ESS ES9023 DAC chip, enabling it to support up to 24bit 192kHz and deliver up to 2x80W of power under a 4 ohm load. This compact little gem of technology supports WiFi, Ethernet and Bluetooth 5.0 (SBC) connections, so you can enjoy a wireless connection to a wide range of streaming platforms.

No customer reviews yet, login to write a review.

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 20695
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

iEast AMP80 V2 Connected Amplifier Class D TDA7498E WiFi Airplay DLNA Bluetooth 5.0 2x80W 4Ω 24bit 192kHz

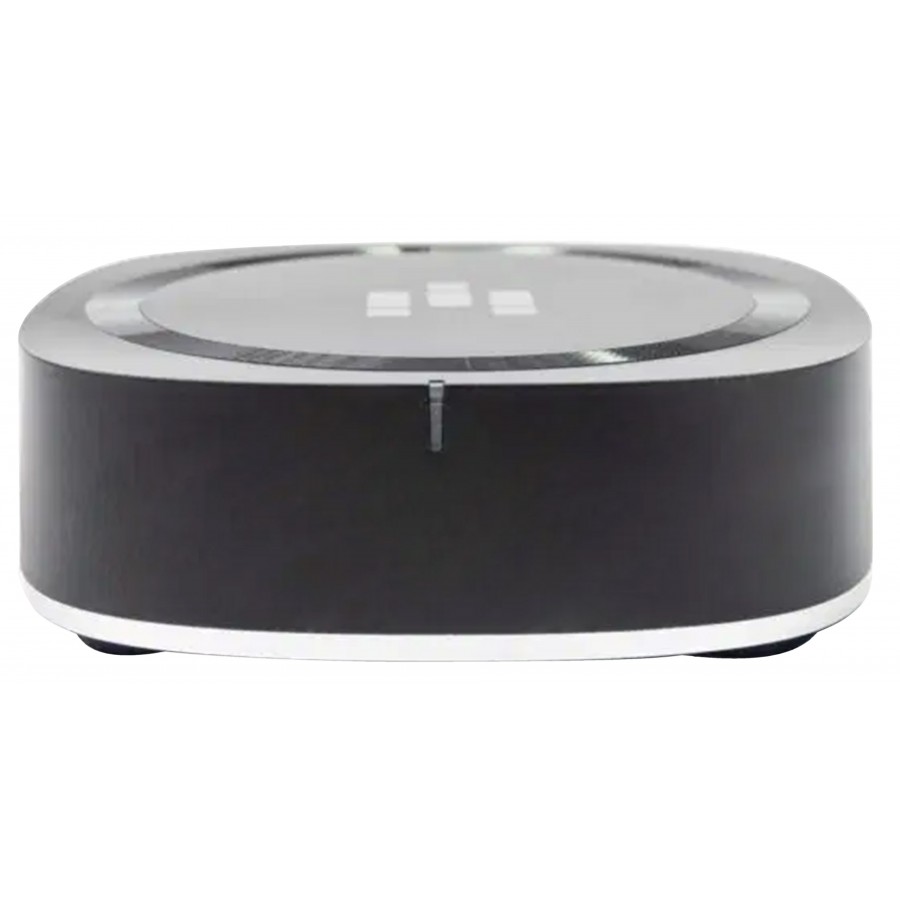

IEAST AMP80 V2 picture

The iEast AMP80 V2 is a versatile, high-performance Class D connected amplifier. It's based on a TDA7498E amplifier chip and an ESS ES9023 DAC chip, enabling it to support up to 24bit 192kHz and deliver up to 2x80W of power under a 4 ohm load. This compact little gem of technology supports WiFi, Ethernet and Bluetooth 5.0 (SBC) connections, so you can enjoy a wireless connection to a wide range of streaming platforms: Tidal, Deezer, Spotify, Youtube Music, Qobuz, Soundcloud and more. Some platforms can be accessed directly via the dedicated iEast Controller application. In addition, you can easily set up a multi-room system for a shared music experience. As for connectivity, there's a USB-A 2.0 input, a 3.5mm AUX input, a Toslink optical input, as well as a speaker terminal output and a 3.5mm jack output for subwoofer connection.

iEast AMP80 V2: a high-performance chipset

The iEast AMP80 V2 features a high-performance ESS Technologie ES9023 DAC chip and a TDA7498E amplifier chip. The AMP80 V2 supports sampling rates up to 24bit 192kHz and delivers up to 2x80W under a 4 ohm load. This small connected amplifier is therefore capable of providing sound for a fairly large space, while allowing its user to enjoy high-definition source files.

The IEAST AMP80 V2 chipset

iEast AMP80 V2: an ultra-connected amplifier

The IEST AMP80 V2 supports multiple connection methods such as WiFi, Ethernet and Bluetooth via SBC codec. Whatever the connection method, the IEST AMP80 V2 offers a reliable and stable wireless experience. Numerous streaming services are supported, whether via Airplay, Bluetooth or directly via the IEST CONTROL application.

IEAST AMP80 V2 connection method

iEast AMP80 V2 : Dedicated control application

The IEST CONTROLLER control application provides access to a wide range of functions, including multi-room synchronization, EQ adjustment, association of various iEast products and much more.

IEAST AMP80 V2 control application
Multi-room use of the IEAST AMP80 V2

iEast AMP80 V2 : Multiroom

Thanks to the Multiroom function, you can stream different music in each room or a single source in sync.

iEast AMP80 V2 overview

Overview of IEAST AMP80 V2
1Speaker terminals
2Jack DC power supply
3USB-A input
4Subwoofer output
5AUX input 3.5mm jack
6Toslink optical input
7Ethernet RJ45 input

Technical characteristics

Specifications
Product typeConnected amplifier
DAC chipES9023
Amplification chipTDA7498E
Inputs1x USB-A
1x AUX input jack 3.5mm
1x Toslink optical input

Bluetooth
WiFi
Ethernet
OutputsSpeaker terminals
1x Subwoofer Jack 3.5mm output
Output power2x80W @ 4 ohm (1% THD+N)
2x60W @ 8 ohm (1% THD+N)
Input sensitivity~700 mV (full power)
Max. input current (RMS)1V
SNR90dB @ THD+N < 1%, f=1kHz, Gain=26dB
THD+N< 0.1% (@ 1kHz)
WiFiIEEE802.11 b/g/n 2.4GHz
Supported audio formatsAPE, FLAC, MP3, WAV, AAC, AAC+, WMA, ALAC, AIFF
Compatible streaming protocolsDLNA, Airplay, Spotify Connect, Qplay
Supported sampling ratesPCM 24bit 192kHz
Resolution24bit 44.1kHz
Ethernet10/100M
Control smart-homeTCP/IP, IR
BluetoothBluetooth 5.0
Codec : SBC
General
Alimentation32V/4.75A via jack DC (AC adapter included)
Weight0.5kg
Dimensions136 × 134.8 x 45mm (connected amplifier)
160 x 65 x 33mm (AC adapter)
Package1x iEast AMP80 V2 connected amplifier
1x 32V/4.75A mains adapter
1x Remote control
1x 3.5mm jack cable
1x 3.5mm jack to RCA stereo cable
4x Banana plug

Data sheet
InputBluetooth
InputWiFi
InputUSB
InputOptical
InputRJ45
InputJack 3.5mm
OutputJack 3.5mm
OutputSpeaker terminal
ColorGray
Channel2.1
ClassClass D / T
Amplifier chipTDA7498E
Power (W)80.0
Remote ControlControl app
Remote ControlYes
