FX-AUDIO M-DIY TDA8950 Class D Amplifier Board 2x170W 300W BTL 4 Ohm

TDA8950 class D Amplifier Module 2x150W 4 Ohm
The DIY TDA8950 amplifier module from FX-Audio allows the design of a high-performance amplification system capable of delivering a power of 2x170W at 4 Ohm or 300W in BTL.

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 12143
New product

22,42 €tax excl.

Including 0,01 € for green tax
Available

- +

Shipping date: 23-08-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

FX-AUDIO M-DIY TDA8950

Amplifier board Class D 2x170W 300W BTL

FX-Audio M-DIY TDA8950 Module amplificateur Class D 2x150W 2x170W 4 Ohm

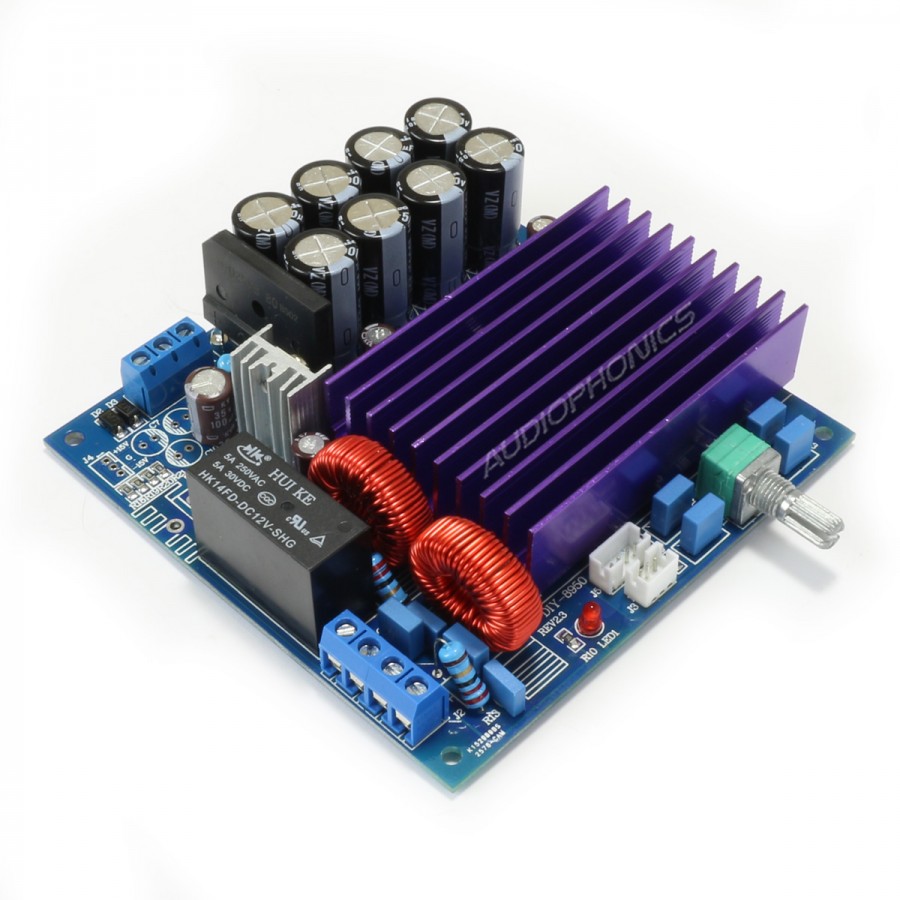

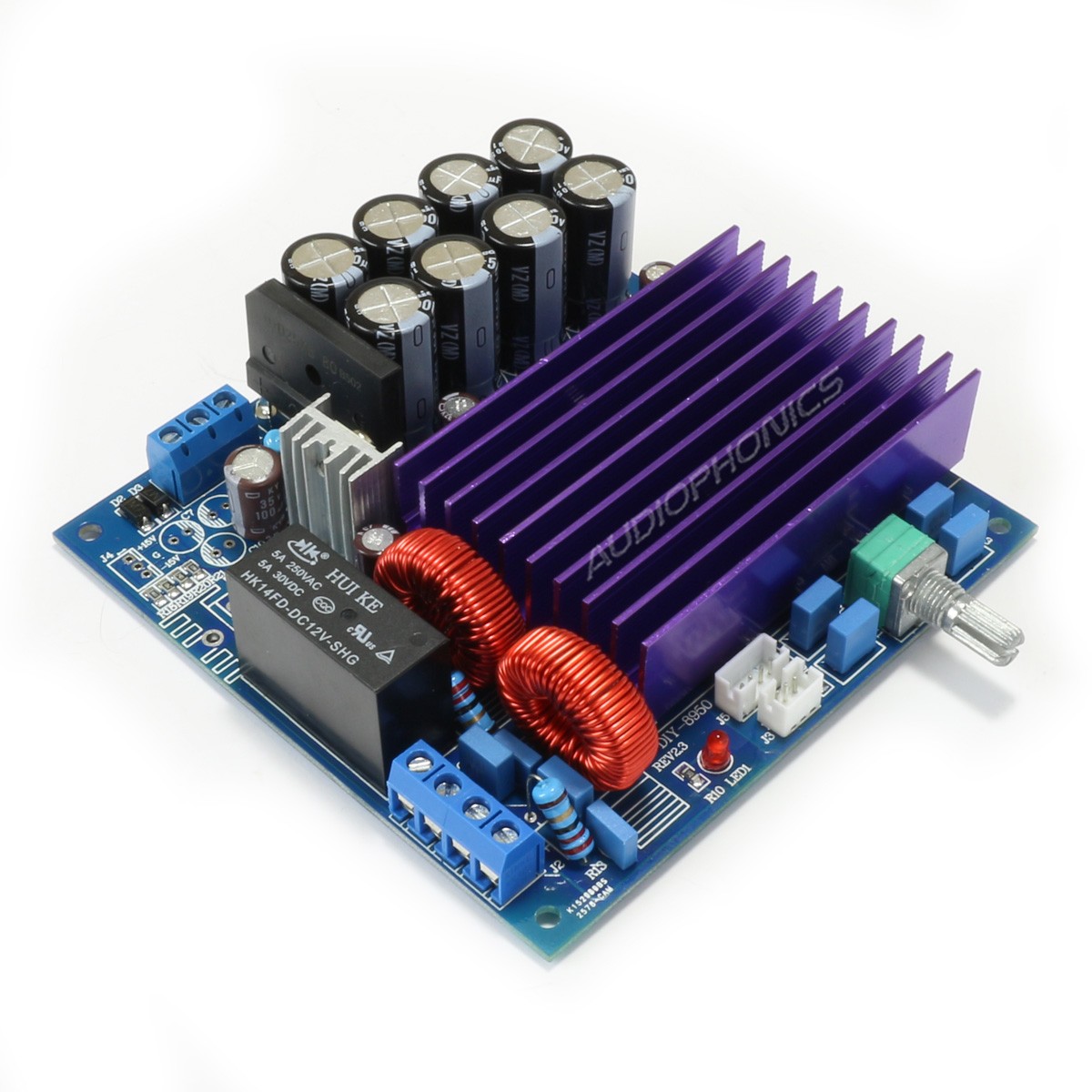

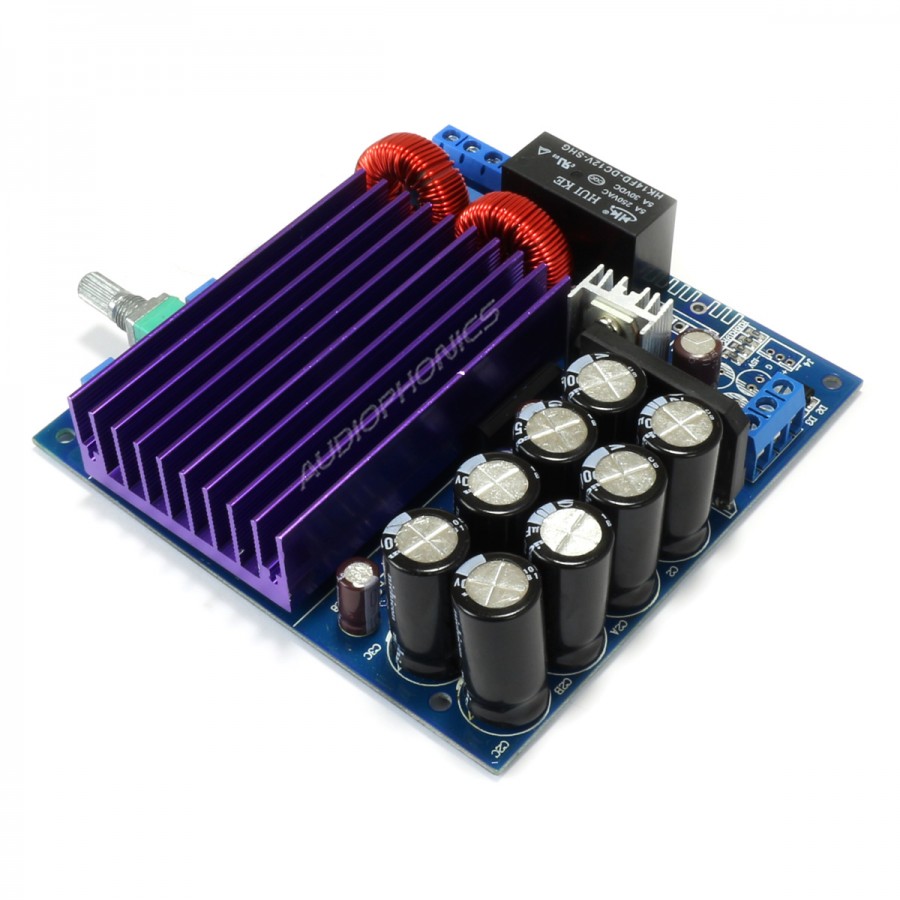

The DIY TDA8950 amplifier module from FX-Audio allows the design of a high-performance amplification system capable of delivering a power of 2x170W at 4 Ohm or 300W in BTL. The card benefits from a compact volume thanks to the latest generation of Philips NXP Class D chip. Equipped with a large heatsink, it can be easily integrated into all quality amplifier projects such as home theater and hifi power amplifiers. It is also ideal for designing multi-amplified active or passive systems. The module offers 2 single-ended inputs.

Surprisingly musical and dynamic, this module is a relevant choice for the enlightened amateur at a controlled cost.

Technical characteristics

Specifications
Product typeAmplifier type
Amplication chipTDA8950E
Power2x170W 4 Ohm, 300W BTL
Power supplyAC +/-24V (Min 16V / Max 28V) (transformer sold separately)
Integrated potentiometerVolume control
Dimensions100 x 100mm
Weight200g

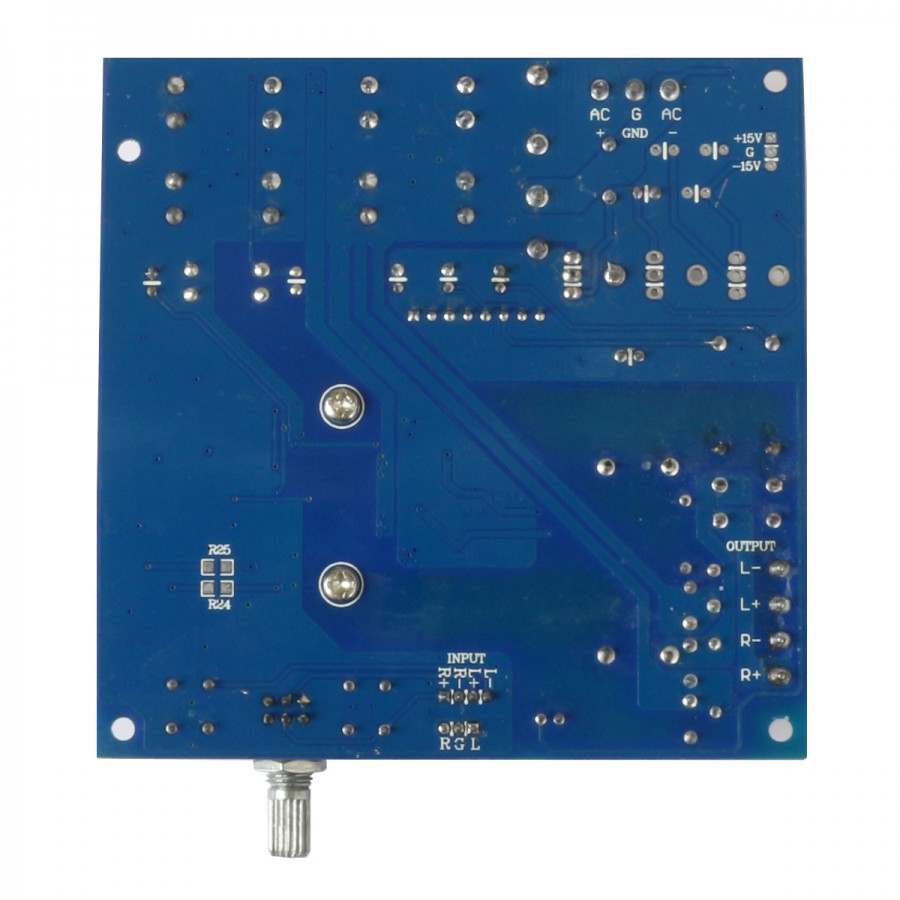

Wiring diagram

FX-Audio M-DIY TDA8950 Schéma de câblage
1AC +/-24V Power Supply Input
2Speakers Output
3Single-Ended Input
4Single-Ended Input

BTL Wiring Diagram

Schéma câblage BTL FX-Audio M-DIY TDA8950

Data sheet
Components / ChipTDA8950
Channel2 channels (Stereo)
Total Power (W)100-150
