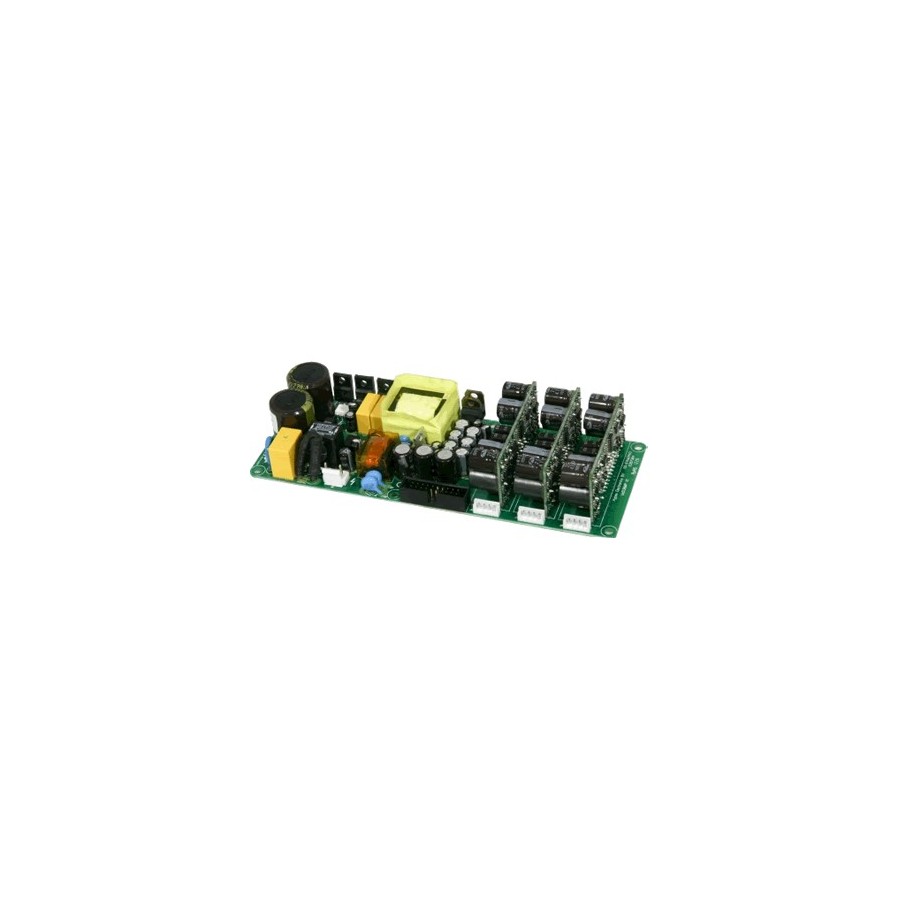

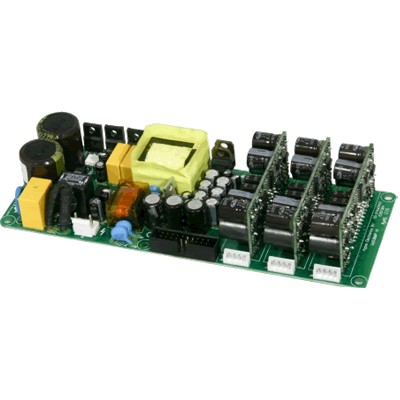

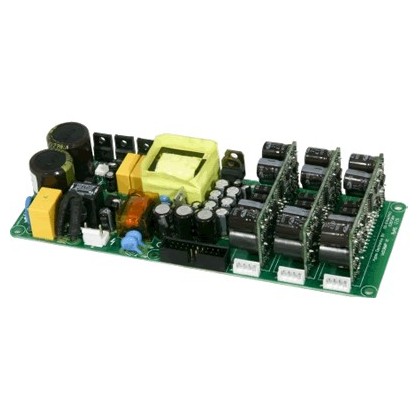

HYPEX UcD36MP Amplifier module with power supply 6x30W 4 ohms

Hypex Module amplificateur avec alimentation UcD36MP 6x30W 4 ohm
No customer reviews yet, login to write a review.

By buying this product you get 13 loyalty points


Reference : 6936
New product

135,00 €tax incl.

112,50 € tax excl.
Available

- +

Shipping date: 13-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

This all-in-one (power supply plus amplifier) ​​module from the Hypex range allows you to simplify implementation for any amplification project.

Applications:

  • Stereo or multichannel audio systems
  • Active loudspeakers

Main Features :

  • Advanced overcurrent protection
  • Possibility of remote control
  • High efficiency
  • Universal Input Voltage Range
  • Extremely small form factor
  • Low EMI emissions
  • Power Consumption 10W SMPS (Standby)

Electrical Specifications :

  • Line Input Voltage: High (180 - 264 Vac) Low (90 to 132 Vac)
  • Power: 30Wrms @ 4 ohms per channel
  • Total power: 100Wrms
  • Total nominal power: 70Wrms @ 20Hz

Mechanical characteristics :

  • Weight: 200g
  • Dimensions: 185 x 70 x 31.6 mm

To operate the module: J2: 1 connected to J2: 4, and J2: 7 connected to J2: 8.

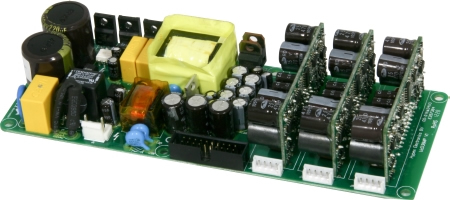

https://www.audiophonics.fr/images2/6936/6936_HYPEXUCD36MP_1.jpg

Example of implementation:

https://www.audiophonics.fr/images2/7348/7348_HIFI2000_HYPEX_UCD36_5.jpg

Case sold here(click here)

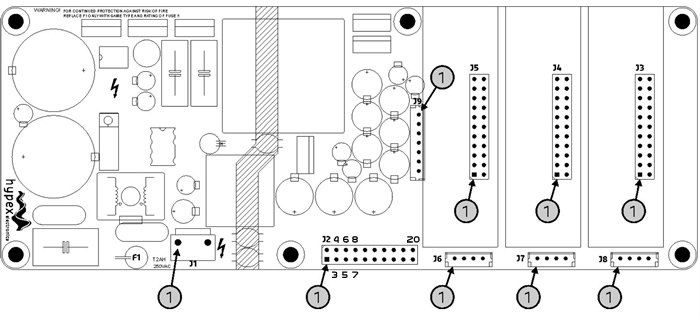

https://www.audiophonics.fr/images2/6935/6935_UCD34MP_2.jpg

Datasheet Manufacturer (PDF)

PIN 1+ 5V standby
PIN 2GND Standby
PIN 3NTC connection
PIN 4Enabling Entries
PIN 5- Vamp
PIN 6+ Vamp
PIN 7Amp_EN
PIN 8GND Amplifiers
PIN 9Cold spot CH1
PIN 10Hot spot CH1
PIN 11Cold spot CH2
PIN 12Hot spot CH2
PIN 13Cold spot CH3
PIN 14Hot spot CH3
PIN 15CH4 cold spot
PIN 16Hot spot CH4
PIN 17CH5 cold spot
PIN 18Hot spot CH5
PIN 19CH6 cold spot
PIN 20Hot spot CH6

Data sheet
Channel6 channels
