LM3886 Stereo Amplifier Board no capacitor 2x68W / 4 Ohm

LM3886 Stereo Amplifier Board 2x68W 4 Ohm audiophile

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Yes, notify me when available !
Reference : 11584
New product

44,90 €tax incl.

37,42 € tax excl.
Available on order

- +

Produit garantie 2 ans

Accessories for this product


More info

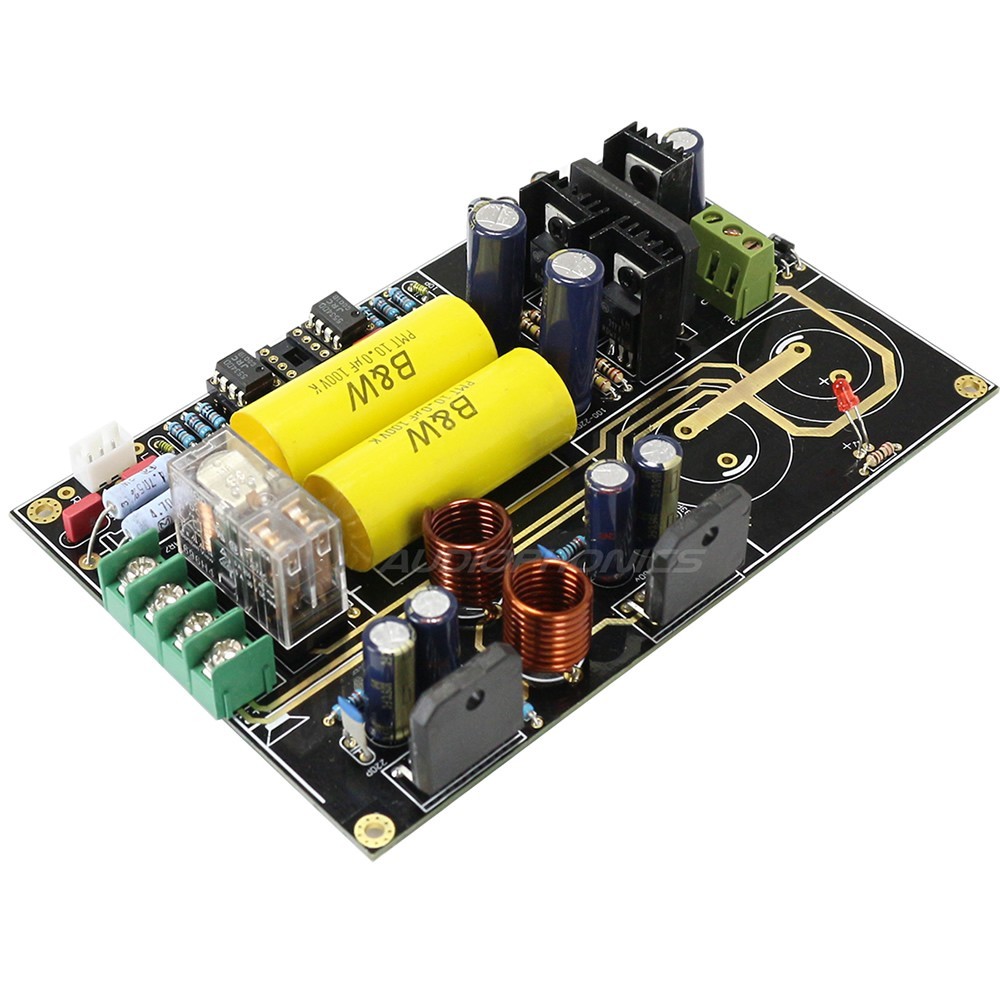

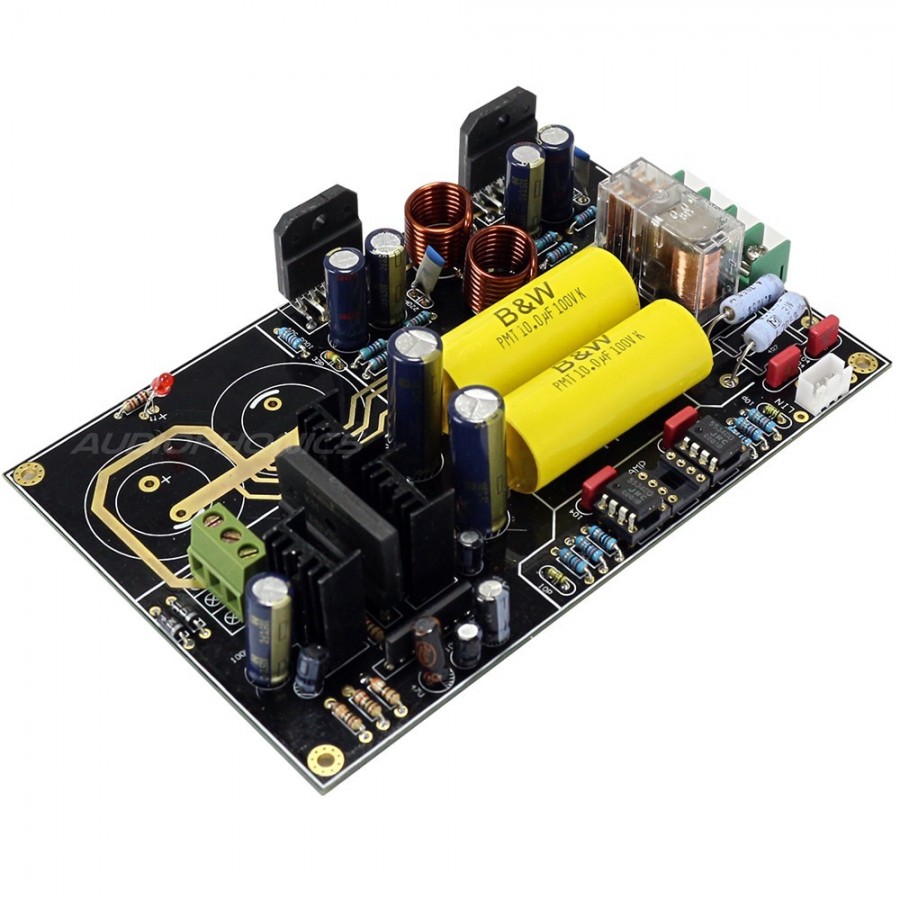

This amplifier module is based on the high performance bipolar LM3886TF circuit developed by National Semiconductor. This audiophile version has revised and corrected components of very high quality like metal resistors and film capacitors. It has LM317 controllers, oversized output filter coils.

This LM 3886 stereo is capable of delivering a continuous power of 2 x 68W (up to 135W peak) under a load of 4Ω with a distortion rate not exceeding 0.1% over the audible range of 20Hz and 20KHz.
This amplifier module is equipped with a sophisticated dual system of protection against overvoltages (proprietary technology SPiKe™), and undervoltages.

The latter occurs when the power supply drops below 12V. The integrated relays provide protection for the speakers and have a delay time to avoid "Plocs" when switching on.

This product offers a dynamic, musical sound and a good bass performance typical of Class A/B.

Provide optionally two capacitors with a voltage of 35V and filtering capacity of 10000mf : Capacitor Nover 10000µF 35v

An excellent LM3886 module that will find its place in any DIY project, from a simple stereo amplifier to high quality active multi-amplification for a reasonable price.

Example of transistor radiators : LM3875/3886.

This LM3886TF version does not require a Mica or plastic insulator for heatsinks.

The driver part is on support DIP 8 allowing the two mono OPA to be changed at will. The free DIP 8 slot allows the use of a stereo OP amp instead of the other two mono amps on the sides.

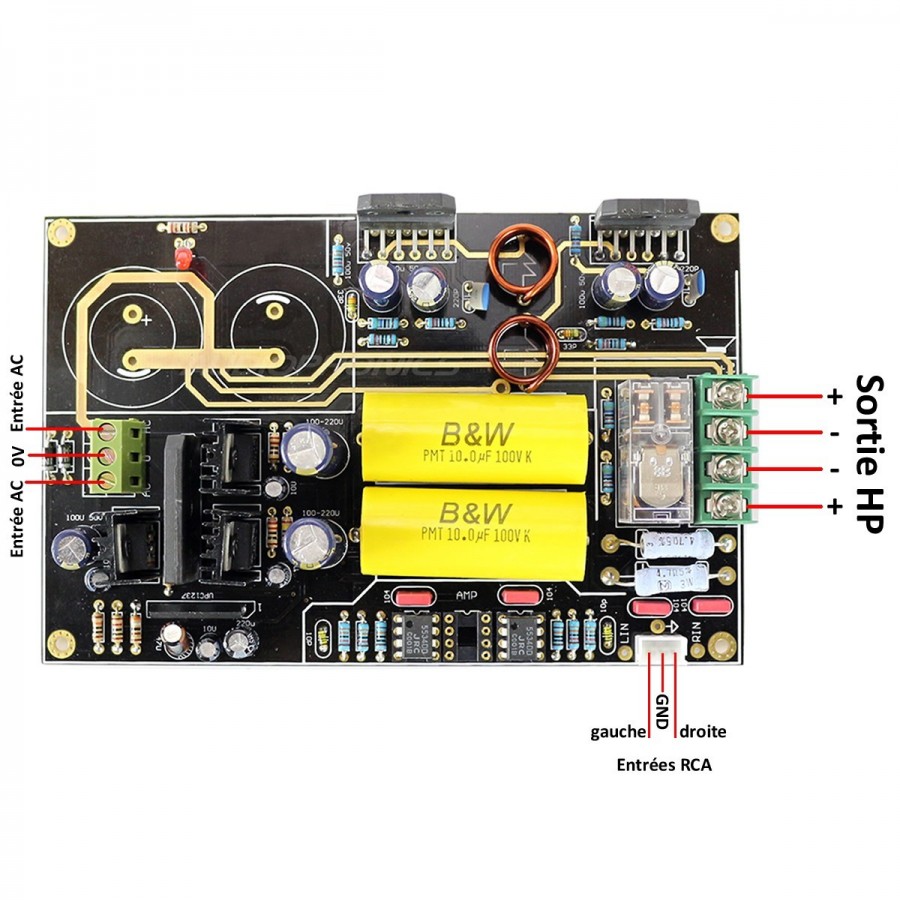

CAUTION ! Do not connect 3 OPA at the same time (see diagram below).


Specifications:

  • Continuous Power: 50W / 8Ω (THD 0.1% - 20Hz->20KHz) +/- 35V
  • 68W / 4Ω (THD 0.1% - 20Hz->20KHz) +/- 28V
  • Signal/Noise ratio : ≥ 92dB
  • Input sensitivity: 1V RMS
  • Under 4Ω : (Transformer between 16V AC)
  • Under 8Ω : (Transformer 30V AC)


Total Dimensions:

  • 149 x 96x34mm
  • CI mounting distance: 140x89mm
  • Weight : 170g

Space for single mono OPA type NE5534

LM3886 amplificateur stéréo NE5534

Connection compatible OPA stereo NE5532

LM3886 amplificateur stéréo NE5532


Data sheet
Components / Chiplm3886TF
Channel2 channels (Stereo)
ClassClass A / AB
