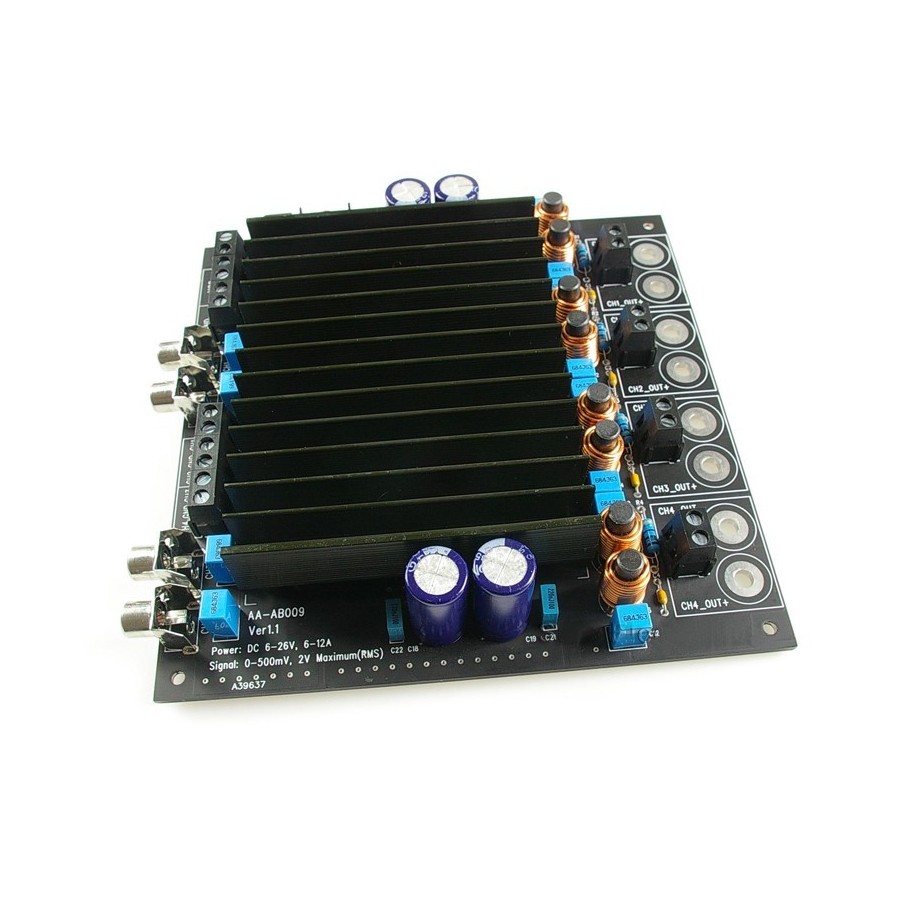

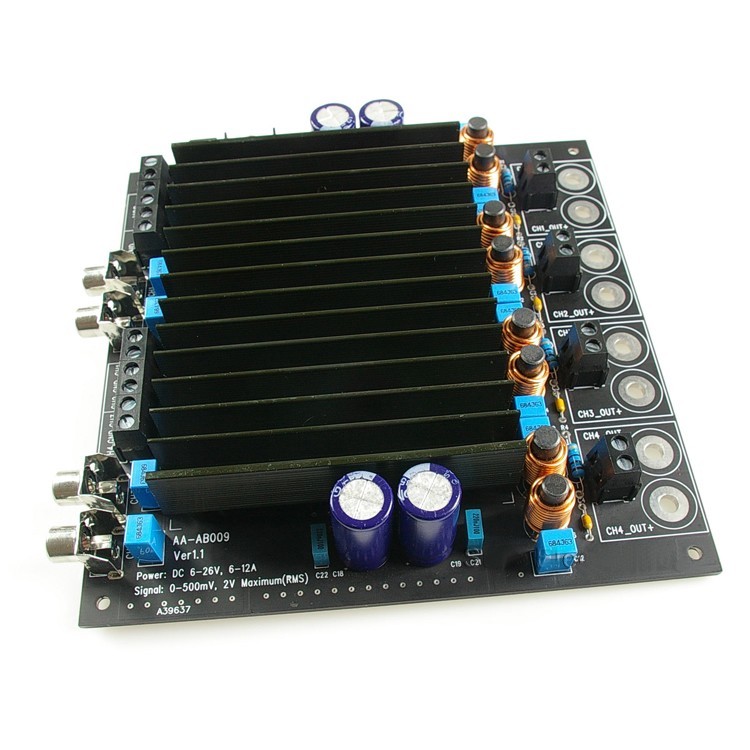

WONDOM AA-AB009 Audio Amplifier Board Class D STA508 / TC2000 4x 100 Watts 4 Ohms

SURE has created a 4x100 on the basis of 4 STA508 and 2 TC2000 ideal for Home Cinema or Car Audio solutions.

Always in the spirit of the brand, the implementation is simplified to the extreme.

Its dual and simplified connectors (RCA or pads, DC jack or screw terminal) allow novices as well as seasoned to realize by themselves a complete amplifier.

This qualitative and very affordable achievement makes this technology available to everyone.

Features:/ Strong>

• Line level input (2VRMS)
• Passive heatsink
• Architecture: Class D 2x Tripath TC 2000 4x STA508
• Power (with 30V DC power supply): 50W x 4 @ 4Ω (1% THD + N), 100W x 4 @ 4Ω (10% THD + N)
• Noise Ratio: 100 dB (A-weighted)
• Input Sensitivity: 771 mV @ 100W
• Frequency response: 20 - 20,000 Hz (± 3 dB)
• Input Impedance: 22K Ω
• Recommended power: 10 to 30 V DC, 7 to 16A
• Jack DC: 2.5 / 5.5 mm (more center)
• Protections: overheating, short circuit, under and supercharging
• Dimensions: 144.8 x 134.6 x 31mm
• Weight: 800g

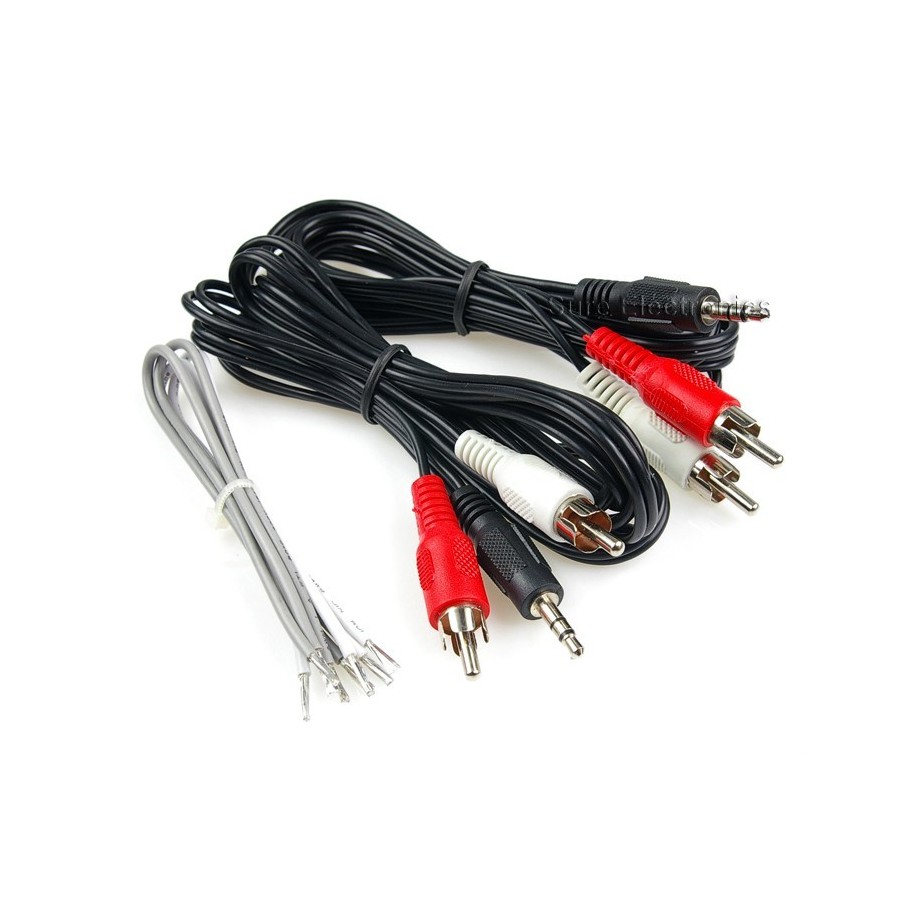

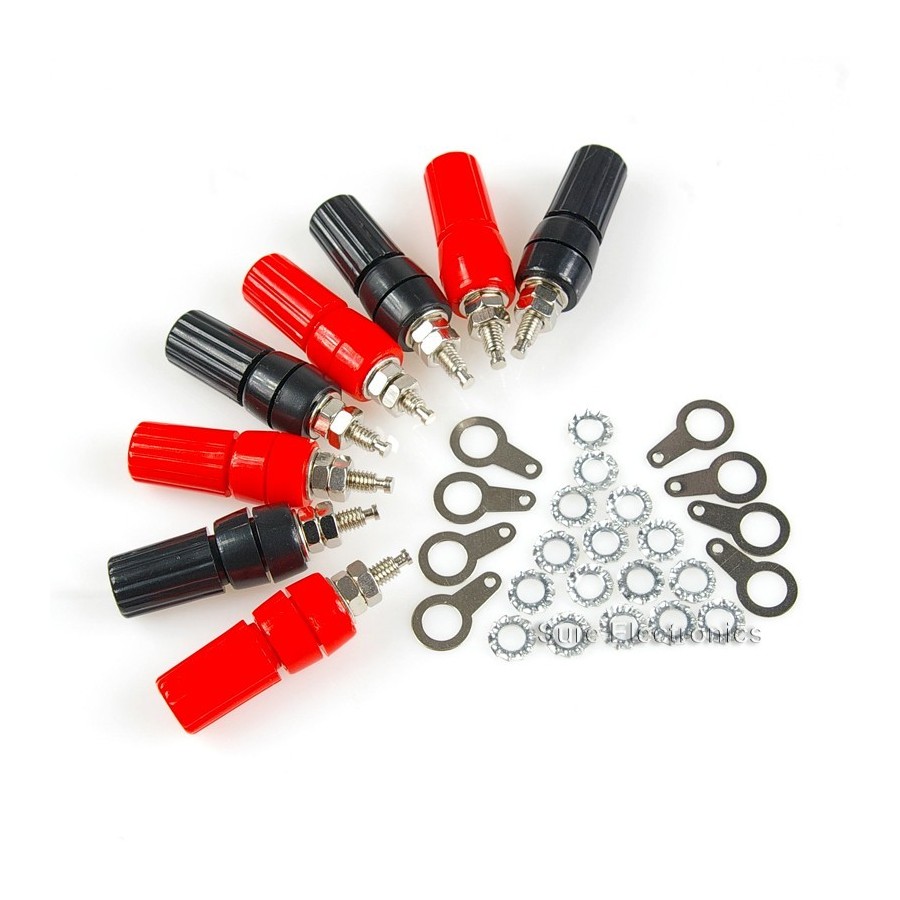

• 3.5mm to RCA x2 cable, x4 tin-plated cables, terminals and x8 adapters
