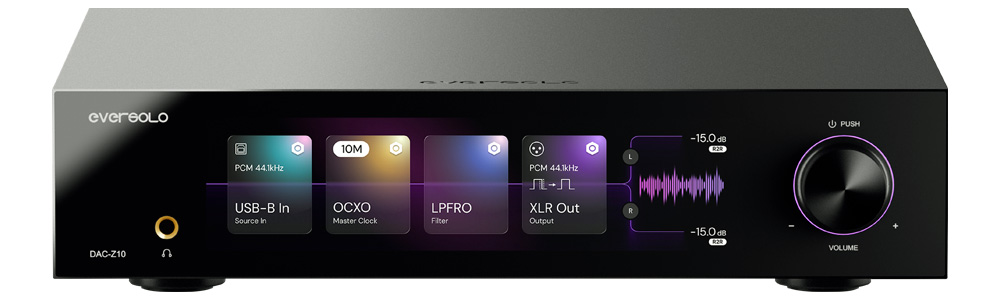

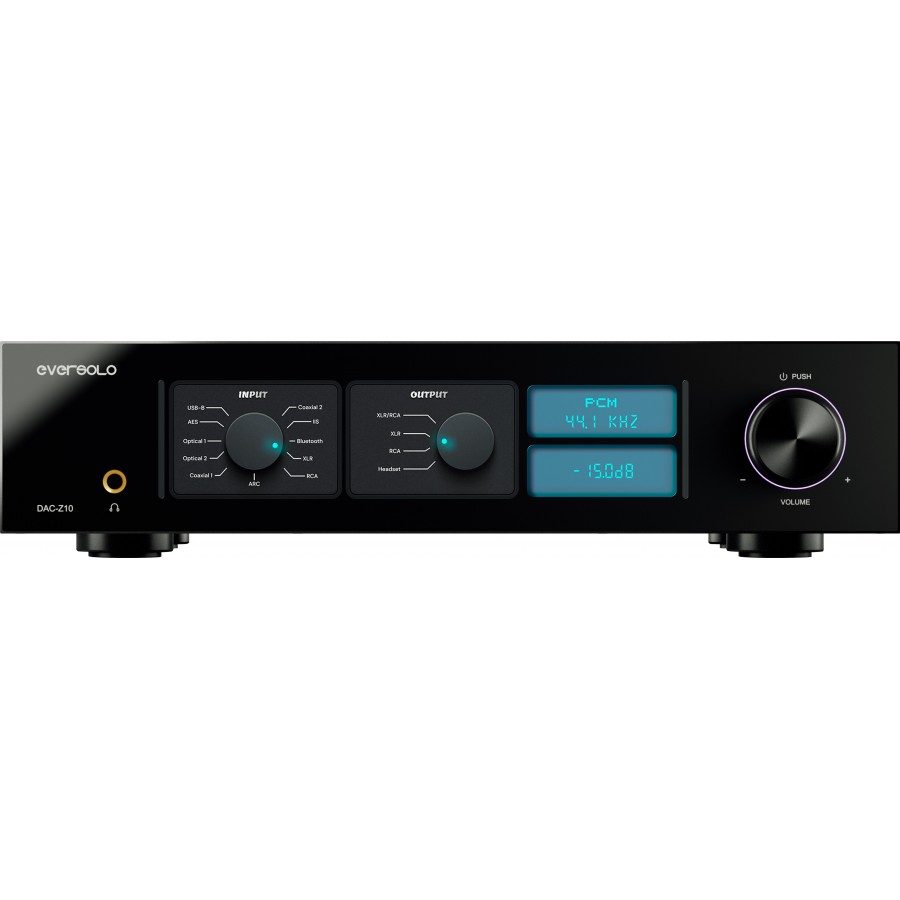

EVERSOLO DAC-Z10 DAC 2x AK4499+AK4191

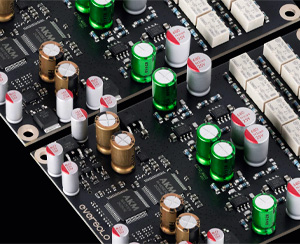

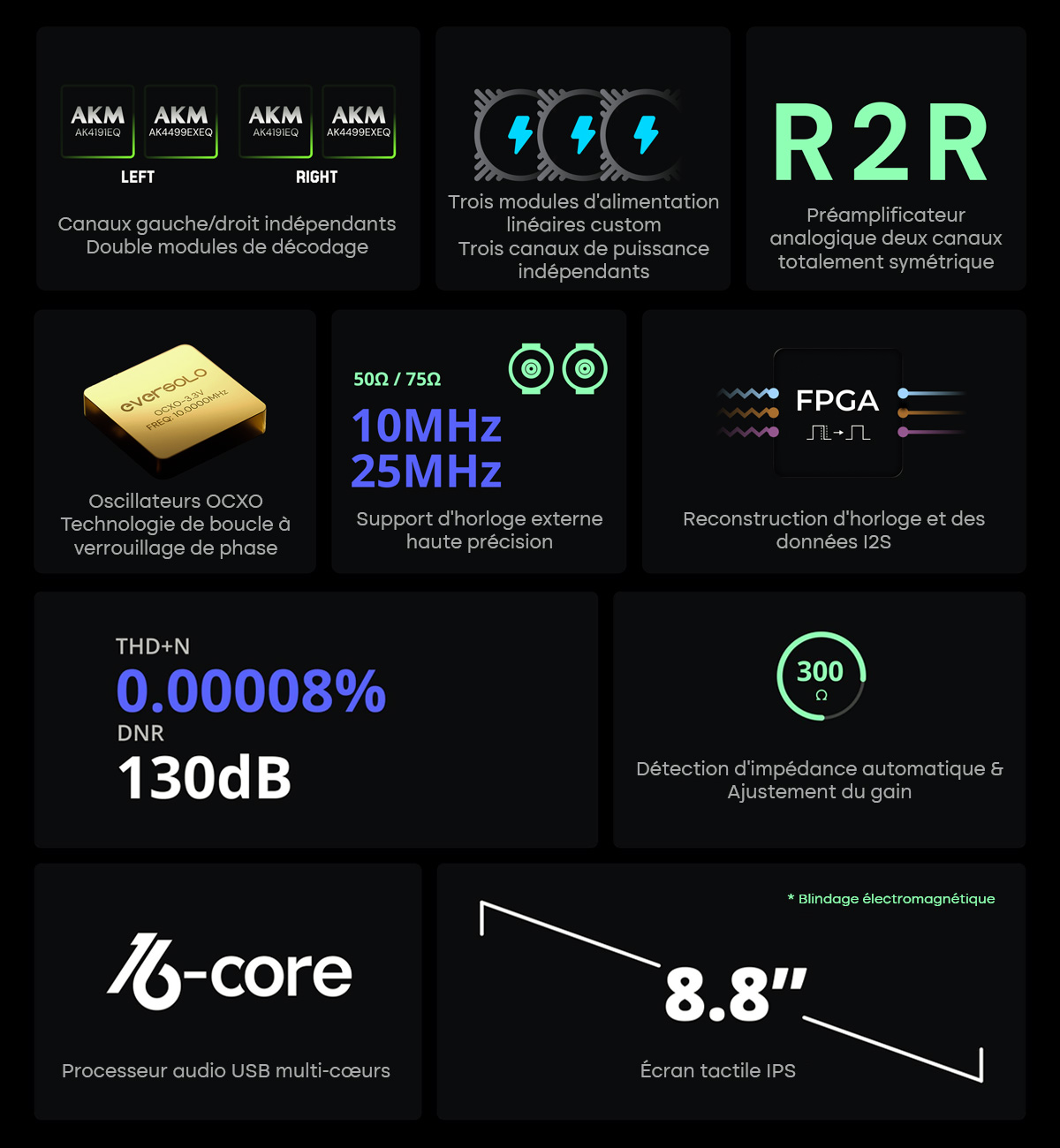

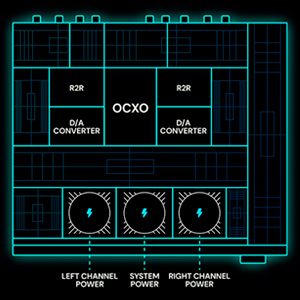

The Eversolo DAC-Z10 is a high-end digital-to-analog converter (DAC) designed for demanding audiophiles, combining technical precision and musicality. It features a fully isolated architecture (FIA), which physically and electrically separates the digital and analog circuits to minimize interference and preserve signal purity. Equipped with two AKM decoding chips (AK4191 + AK4499EX) per channel, it offers high-resolution conversion up to 32-bit 768kHz PCM and DSD512, ensuring highly refined sound reproduction with low distortion.

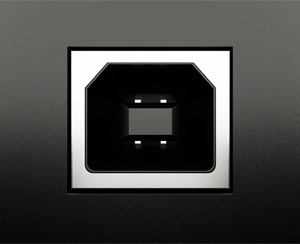

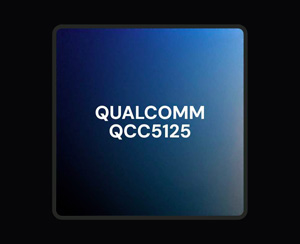

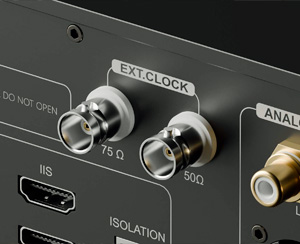

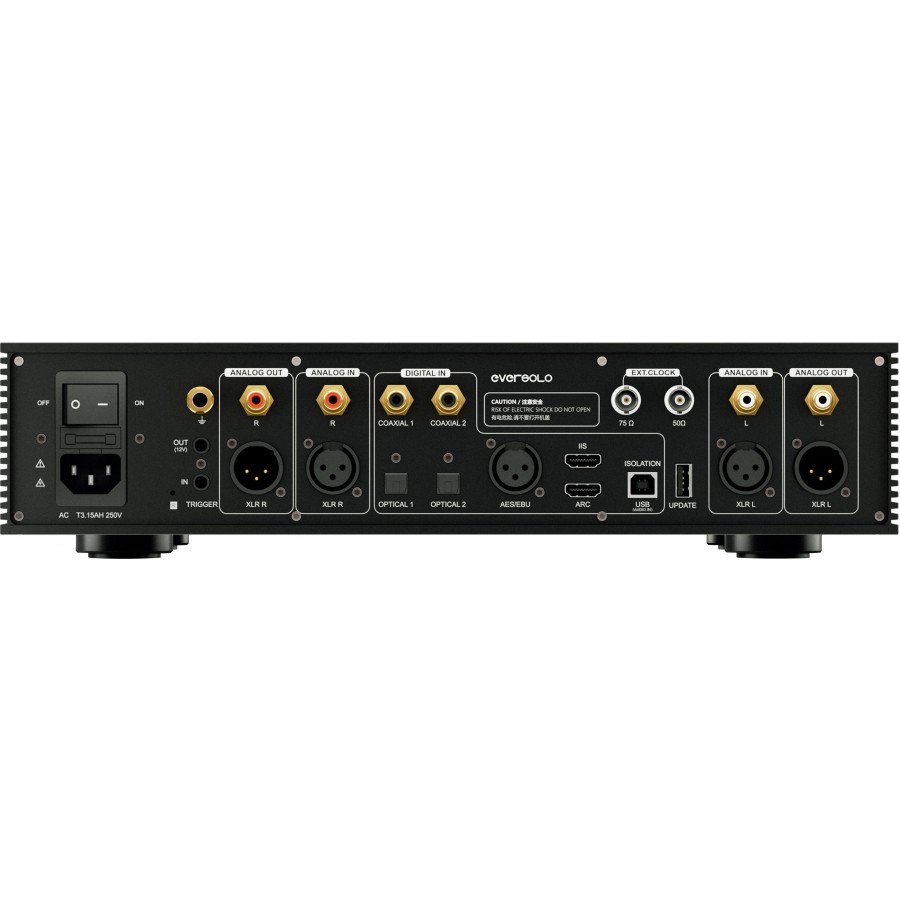

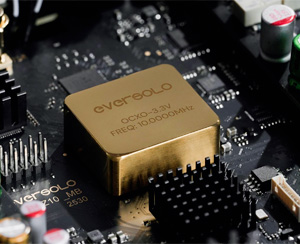

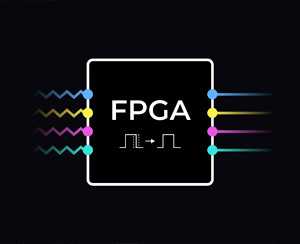

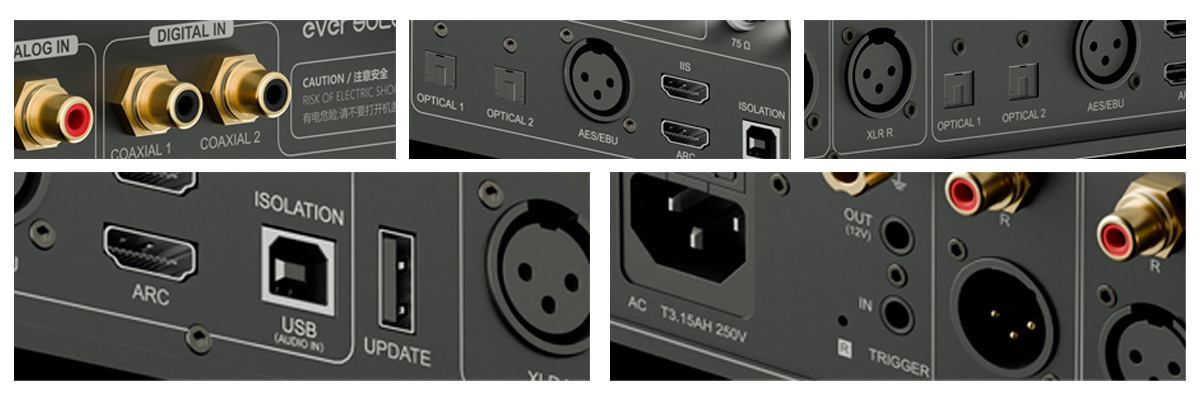

The DAC-Z10 also incorporates a high-precision clock system, the Eversolo Precision Core™, combining a temperature-controlled crystal oscillator (OCXO), PLL (phase-locked loop) technology, and FPGA clock reconstruction, ensuring optimal time consistency and reduced jitter. Its R2R volume control and integrated preamplifier enable analog signal management, while its comprehensive connectivity (USB, XLR, RCA, HDMI ARC/eARC, Bluetooth 5.0) makes it a versatile device, suitable for HiFi systems as well as home theater or headphone setups. With a total harmonic distortion plus noise of only 0.00008% and a dynamic range of 130dB, this DAC is the complete solution for high-fidelity audio enthusiasts.

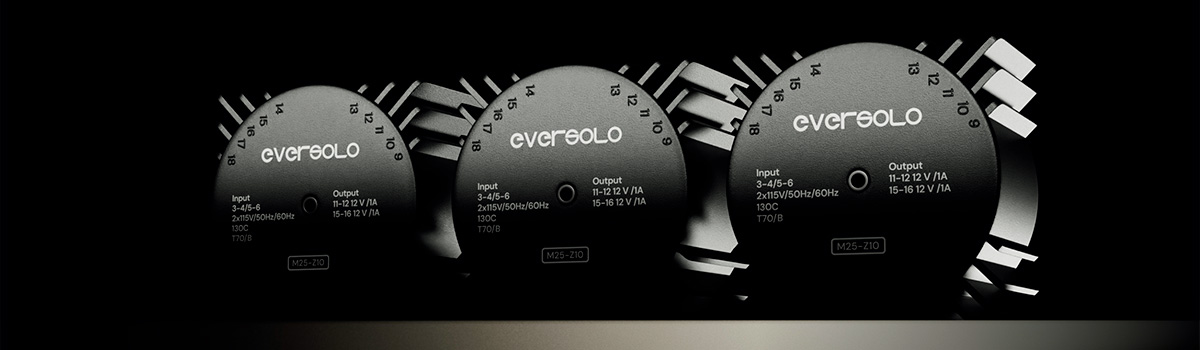

Eversolo DAC-Z10: Three independent power supplies

With three independent toroidal transformers for the left channel, right channel, and system power supply, the DAC-Z10 maintains ultra-low noise down to 42µV. This design minimizes interference, giving each channel its own clean, isolated voltage supply for stable, detailed sound.

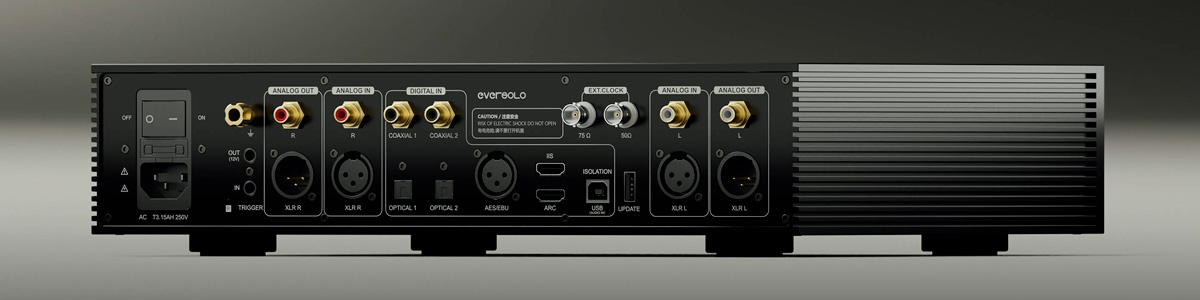

Eversolo DAC-Z10: Fully balanced preamplifier

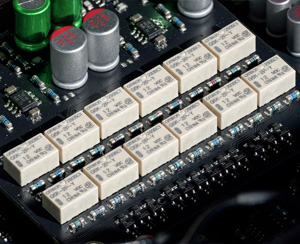

The Eversolo DAC-Z10 features a high-performance, fully balanced preamplifier with XLR and RCA analog inputs offering up to +10dB of gain. Combined with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly improving dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Eversolo DAC-Z10: Captures every nuance of the music

The DAC-Z10 delivers exceptional sound quality that is both rich and detailed. With an ultra-low THD+N of 0.00008% and a wide dynamic range of 130dB, every note sounds with unparalleled clarity.

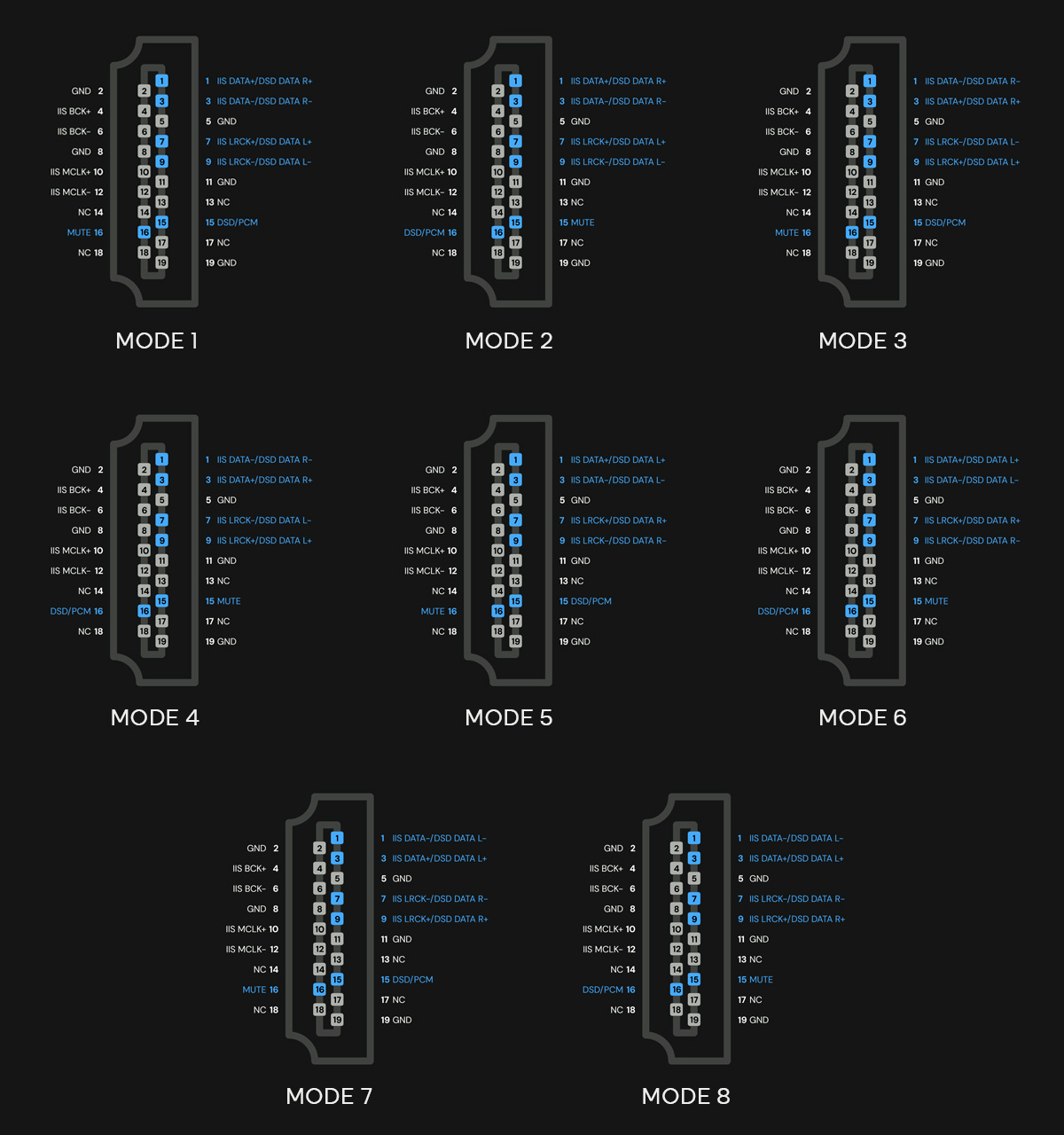

Eversolo DAC-Z10: I2S audio input with 8 modes

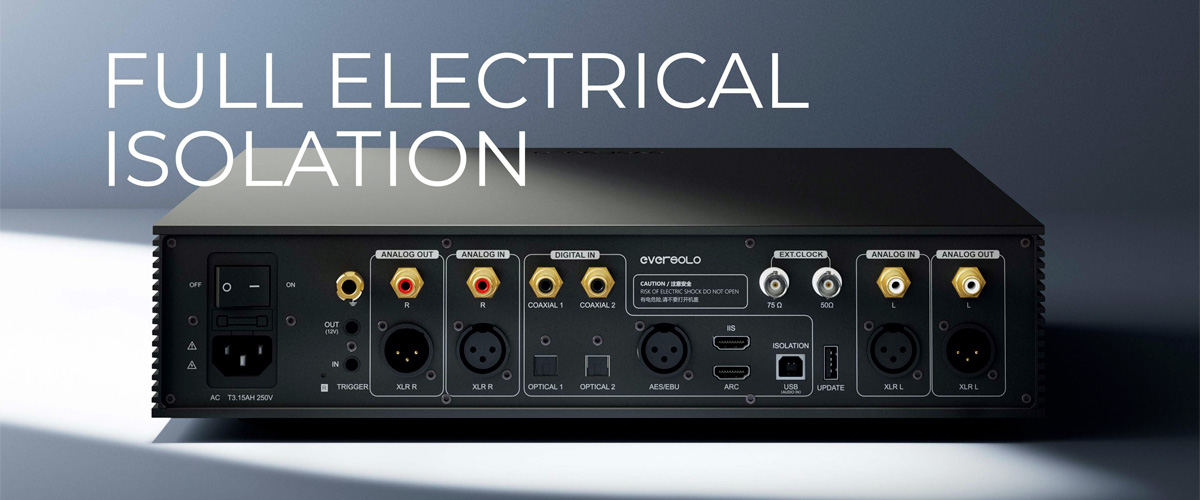

Via its I2S digital audio input, the Eversolo DAC-Z10 offers 8 switchable modes and supports resolutions up to PCM 32-bit 768kHz and native DSD512. Its fully isolated hardware design separates the signal and ground between devices, ensuring clean signals and improved audio clarity.

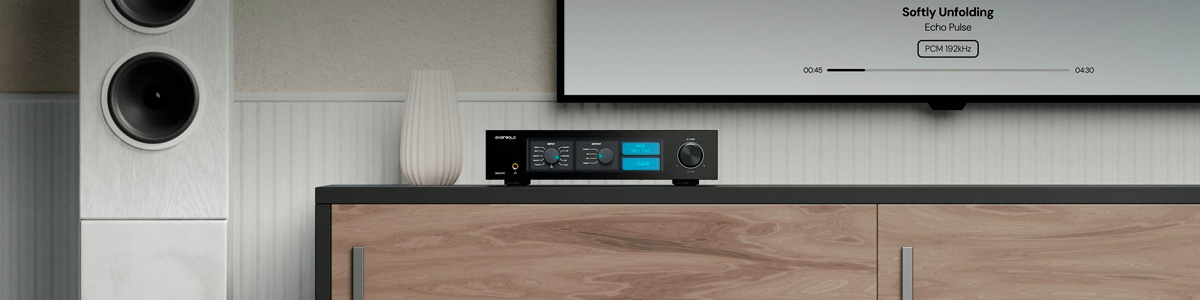

Eversolo DAC-Z10: HDMI ARC integration

The Eversolo DAC-Z10 is equipped with HDMI ARC connectivity, supporting ARC and eARC modes for easy integration into your home theater system. It not only decodes high-fidelity music, but also delivers cinematic sound with breathtaking clarity and realism.

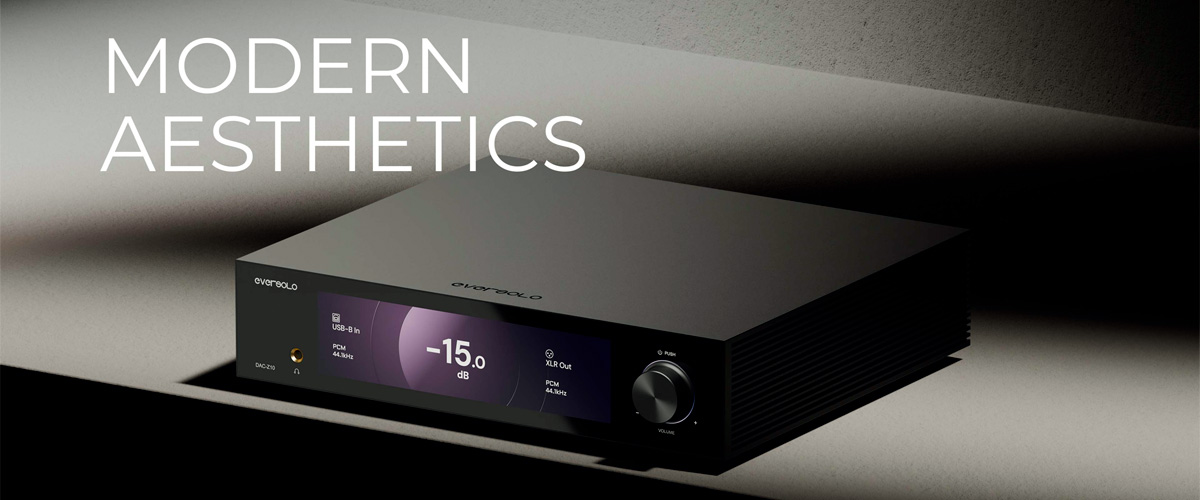

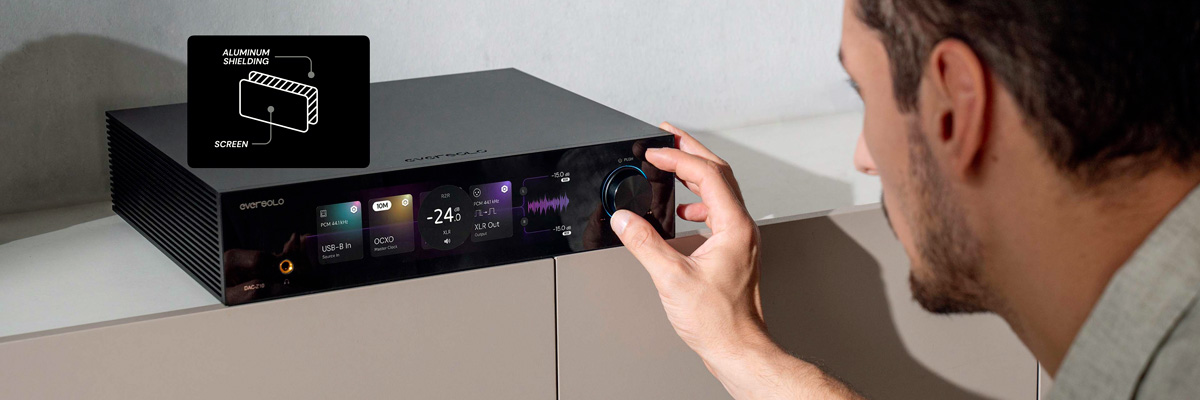

Eversolo DAC-Z10: A resolutely modern design

The Eversolo DAC-Z10 boasts a sleek and modern aesthetic. Its chassis is made from aerospace-grade aluminum. Both rigid and lightweight, it combines precision engineering with refined design.

Eversolo DAC-Z10: A seamless user experience

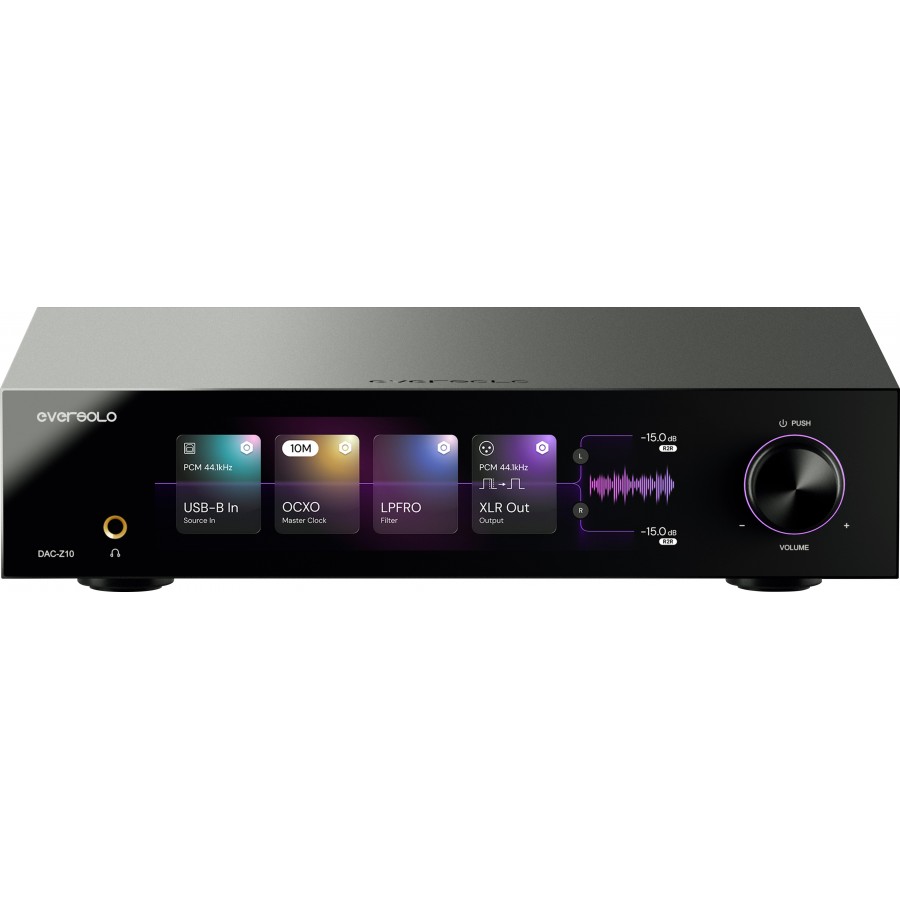

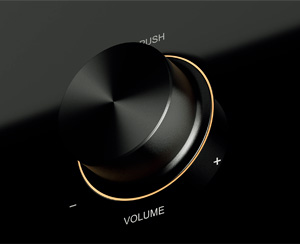

The DAC-Z10 features a large 8.8-inch IPS touchscreen with a clear and intuitive interface. Changing inputs, adjusting volume, and checking format information are all operations that can be performed at your fingertips.

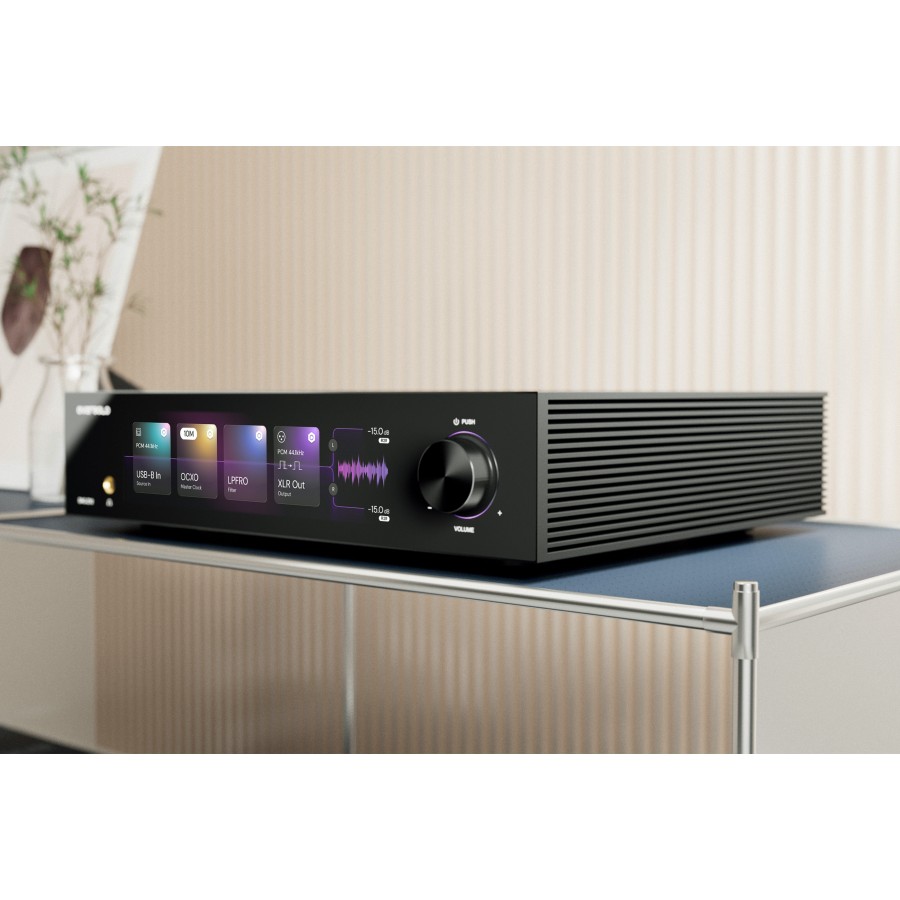

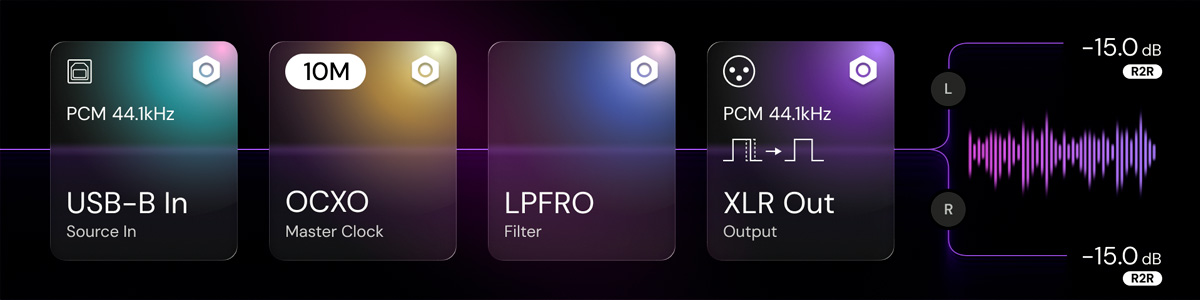

Eversolo DAC-Z10: Intuitive signal path display

On this DAC-Z10 interface, the signal path is highlighted. Sources, master clock, filter characteristics, XLR/RCA outputs, and R2R volume control balance: everything is clearly presented for immediate understanding.

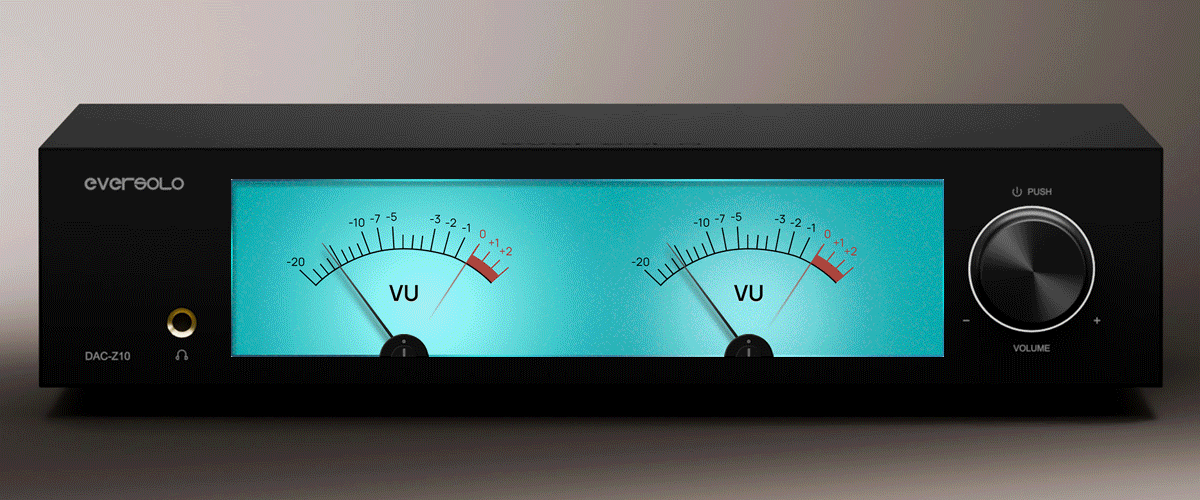

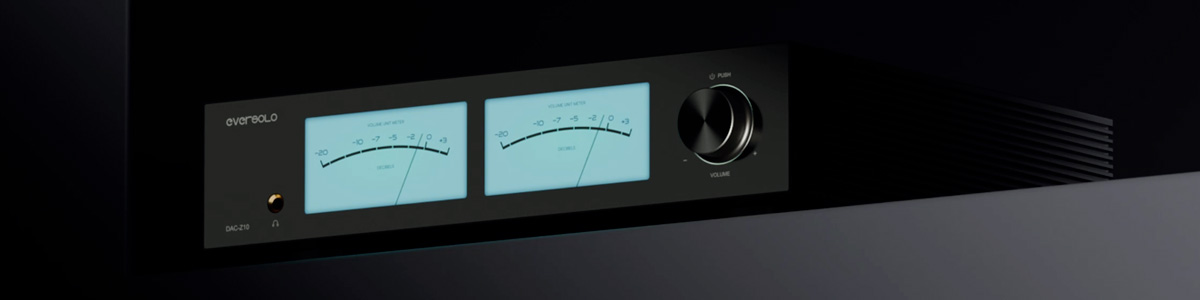

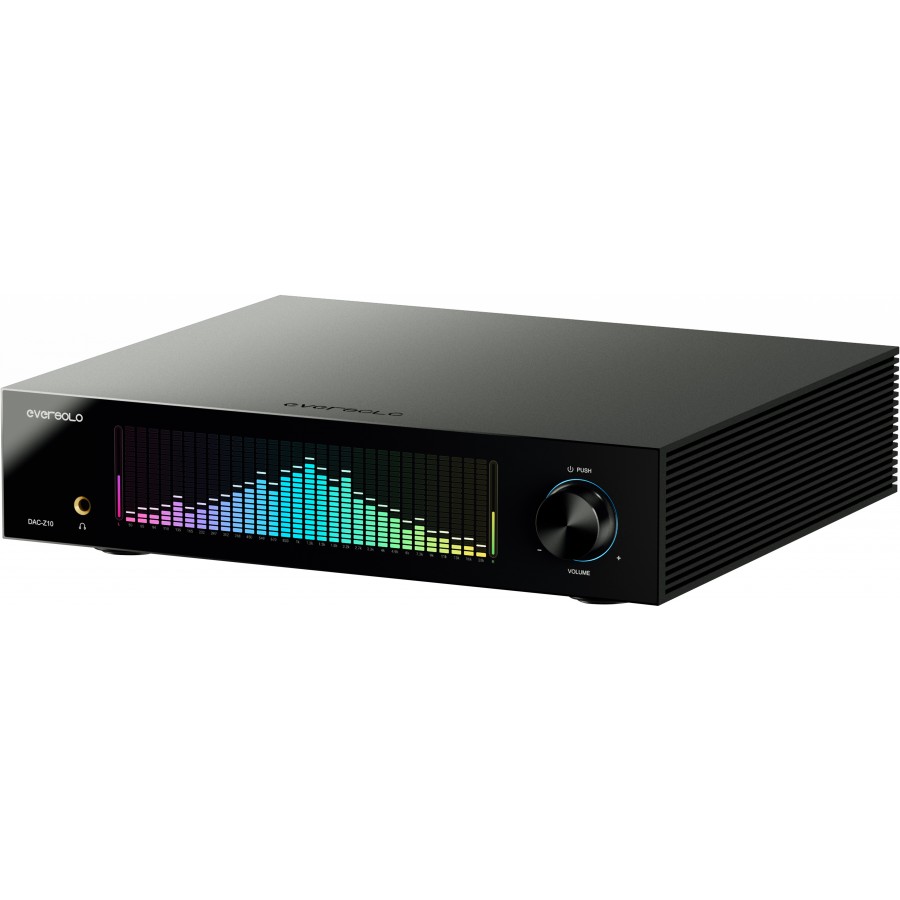

Eversolo DAC-Z10: Your music, your style

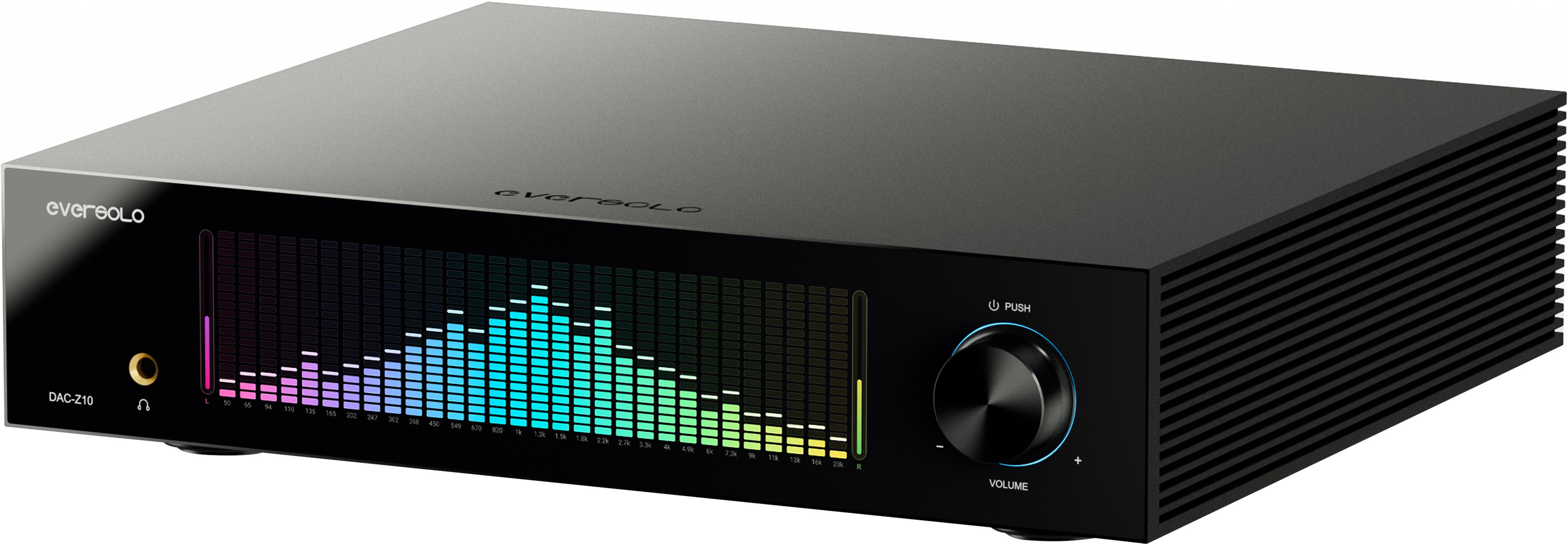

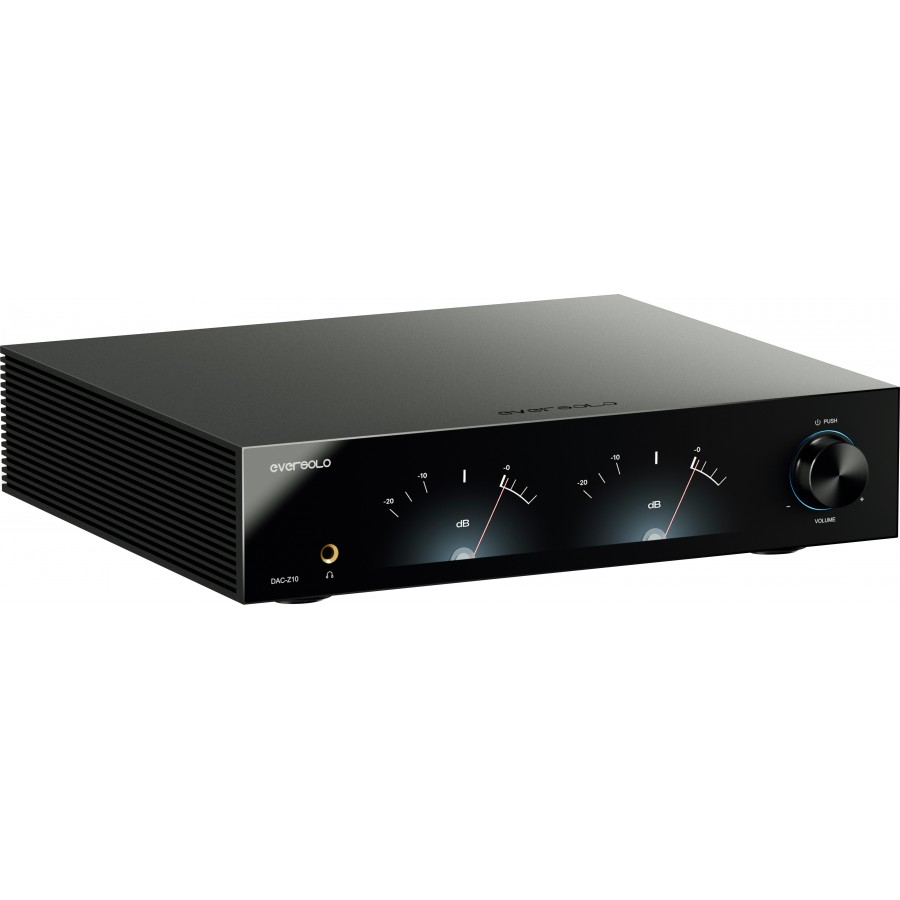

The Eversolo DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to visualize your music during your listening sessions.

Eversolo DAC-Z10: Adjustable channel balance

The DAC-Z10 offers left/right channel balance gain adjustment of up to 15dB, allowing you to fine-tune each channel to suit your listening preferences.

Eversolo DAC-Z10: Tailored listening

The Eversolo DAC-Z10 offers 6 filters, allowing you to switch freely between them depending on the type of music you are listening to. With its versatile filter curves, the DAC-Z10 shapes the sound to suit your preferences.
