USB XMOS Interface

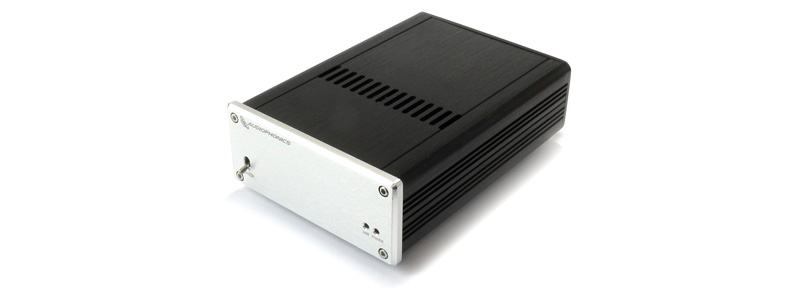

This interface based on the now famous XMOS provides high level digital outputs in S/PDIF coaxial, optical, AES/EBU and I2S. USB has Asynchronous USB management.
This version offers an XMOS interface combined with an integrated regulated linear power supply. Recognized without drivers under MacOS and linux this one requires a Windows driver (Click here).
This model has a regulated linear power supply as standard and can be directly connected to the 220V. This digital interface is compatible with Audio-GD devices with RJ45 I2S or AES / EBU input.
|Low noise regulated power supply||(power cable not supplied)|
|Compatibility||Raspyfi, Volumio, piCorePlayer|
|Digital outputs||1x Coaxial 75Ω : 24bit 192kHz|
1x AES/EBU 110Ω : 24bit 192kHz
Optical Toslink : 24bit 192kHz
I2S via RJ45 : 32bit 384kHz
|Housing material||100% Aluminium|
|Color||Black / Silver|
|Dimensions||162 x 114 x 47mm|
Wiring diagram of I2S output on RJ45 connector
|Pin 1 :||DATA DSD A|
|Pin 3 :||I2S LRCK DSD CLK|
|Pin 5 :||I2S SCLK DSD B|
|Pin 7 :||I2S MCLK|
|Pin 6 & 8 :||GND MCLK|
|Pin 2 & 4 :||GND|
This interface based on the now famous XMOS makes it possible to have digital outputs of high level in S / PDIFcoaxial, optical,AES / EBU and I2S. The USB has an Asynchronous management of the USB.
This version offers an interfaceXMOScombined with an integrated regulated linear power supply. Recognized without drivers under MacOS and linux this requires a Windows Driverhttp://www.audiophonics.com/images2/8658/XMOS-Stereo-USB-Audio-Class2-Driver-2013(v2.19.0).zip "target =" _ blank ">(Click here)
This model has a regulated linear supply as standard and can be directly connected to the 220V.
This digital interface is compatible with devicesAudio-GDwith an RJ45 I2S or AES / EBU input.
- Case 100% Brushed Aluminum
- Black facade
- Compatible with Raspyfi, Volumio, Picoreplayer
- Clock: 24.57MHz, 22.57MHz TCXO
- 1 Clock 12Mhz
- Jitter: 4.6 ps
- Regulated power supply low noise
- Coaxial 75 ohm: 24 bit 44.1Khz ~ 192khz
- AES / EBU 110 Ohm: 24 bit 44.1KHz ~ 192kHz
- Optical toslink: 24 bit 44.1khz ~ 192Khz
- I2S RJ45:32 bit 384Khzon RJ45 connector
Dimensions and poids:
- Dimensions: 162x114x47mm
- Weight: 0.9kg
- USB and mains cables not included
Wiring diagram of output I2SconnectorRJ 45:
- Pin 1 DATA DSD A.
- Pin 3 I2S LRCK dsd CLK.
- Pin 5 I2S SCLK DSD B.
- Pin 7 I2S MCLK.
- Pin 6 and 8 GND MCLK.
- Pin 2 and 4 GND.
