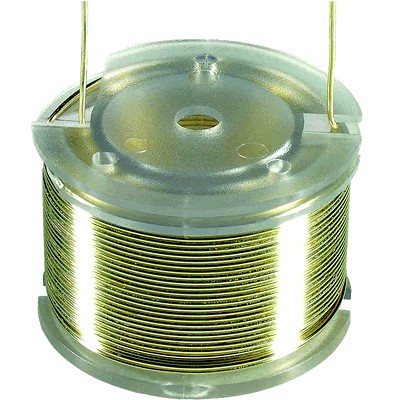

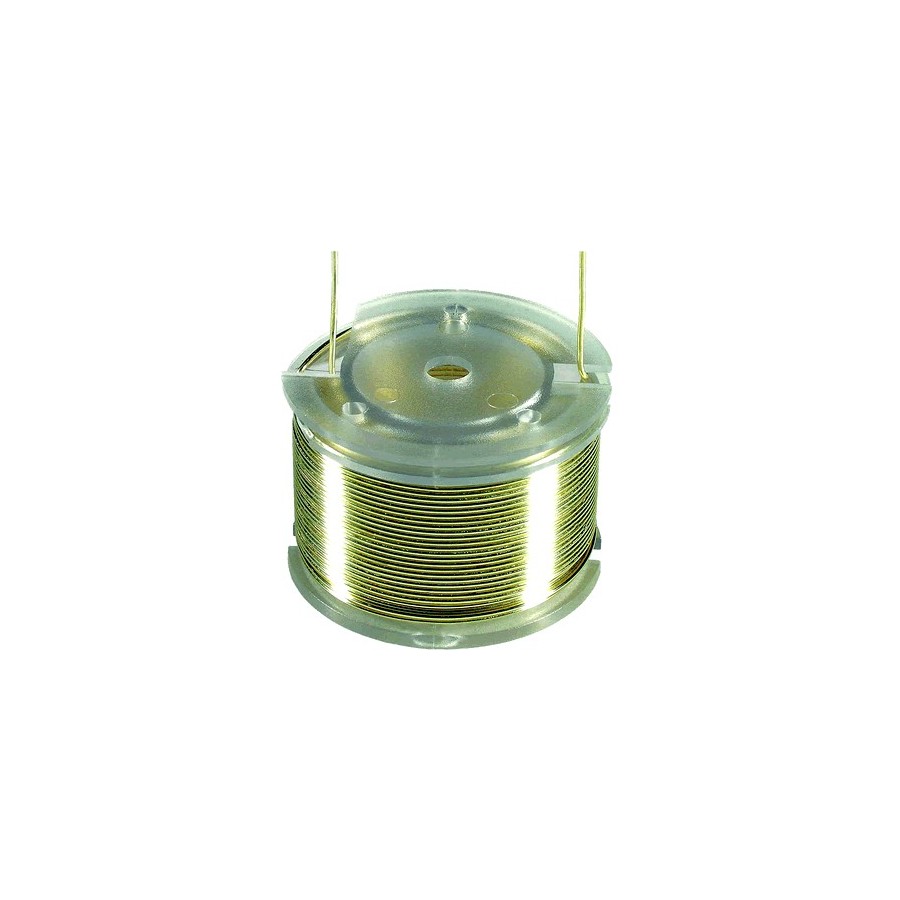

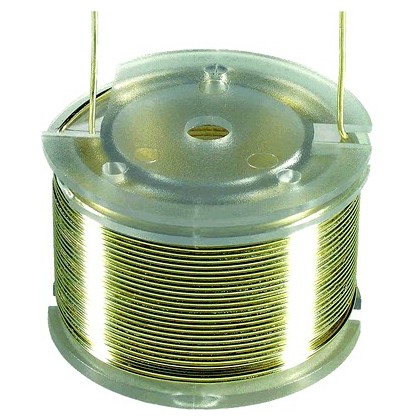

Copper / Silver Air Self 0.8mm 0.12mH

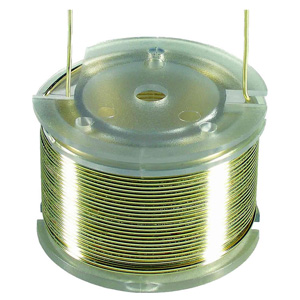

Air coil wound with 0.8mm diameter copper wire, silver plated and covered with a thermoplastic anti-vibration film. Transparent polycarbonate support. The air coils are, for physical reasons, totally unbeatable in terms of accuracy of pulse restitution. Their design exempts them from any form of distortion, unlike ferrite coils.
Specifications | |
---|---|
Product type | Air self |
Wire material | Silver plated Copper 0.8mm |
Insulation | Anti-vibration thermoplastic |
Support | Transparent polycarbonate |
Operating temperature | 25°C @ 1kHz |
Contacts length | 10mm |
L | 0.12mH |
R | 0.23Ω |
Tolerance | 3% |
Diameter D | 32mm |
Diameter d1 | 12mm |
Diameter d2 | 5.3mm |
Diameter d3 | 15mm |
H | 26mm |
h1 | 20mm |
