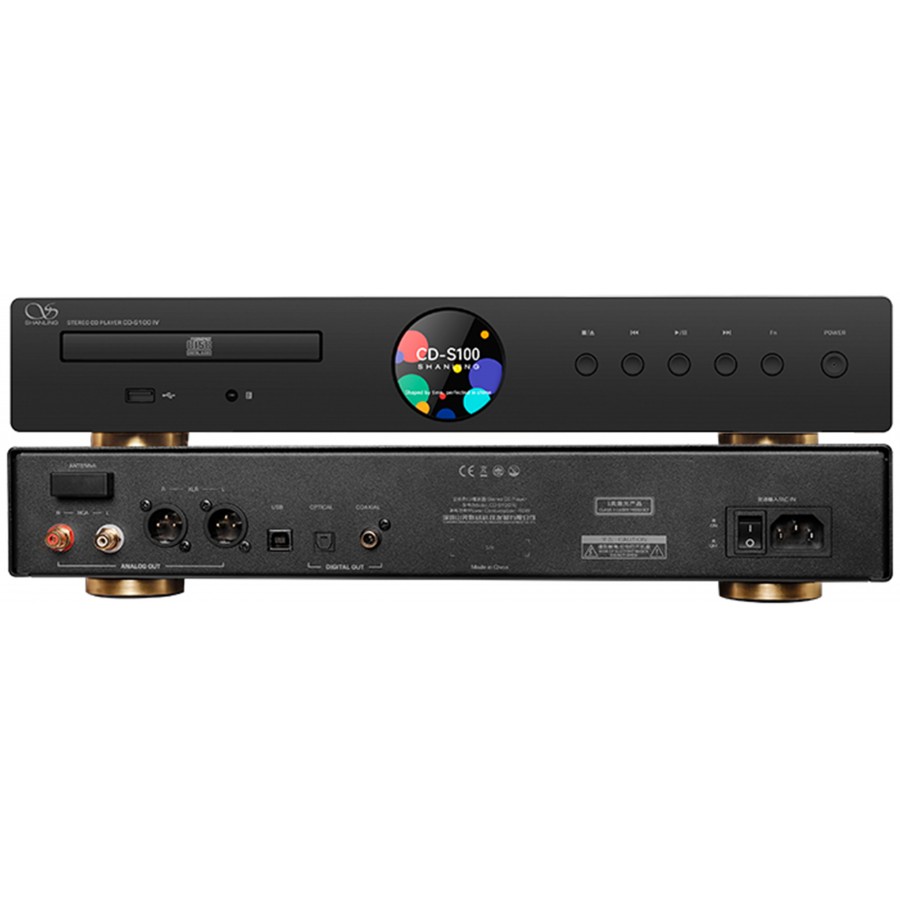

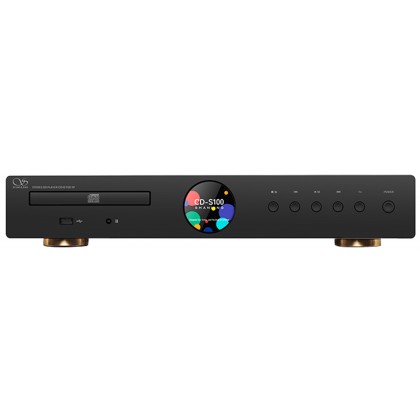

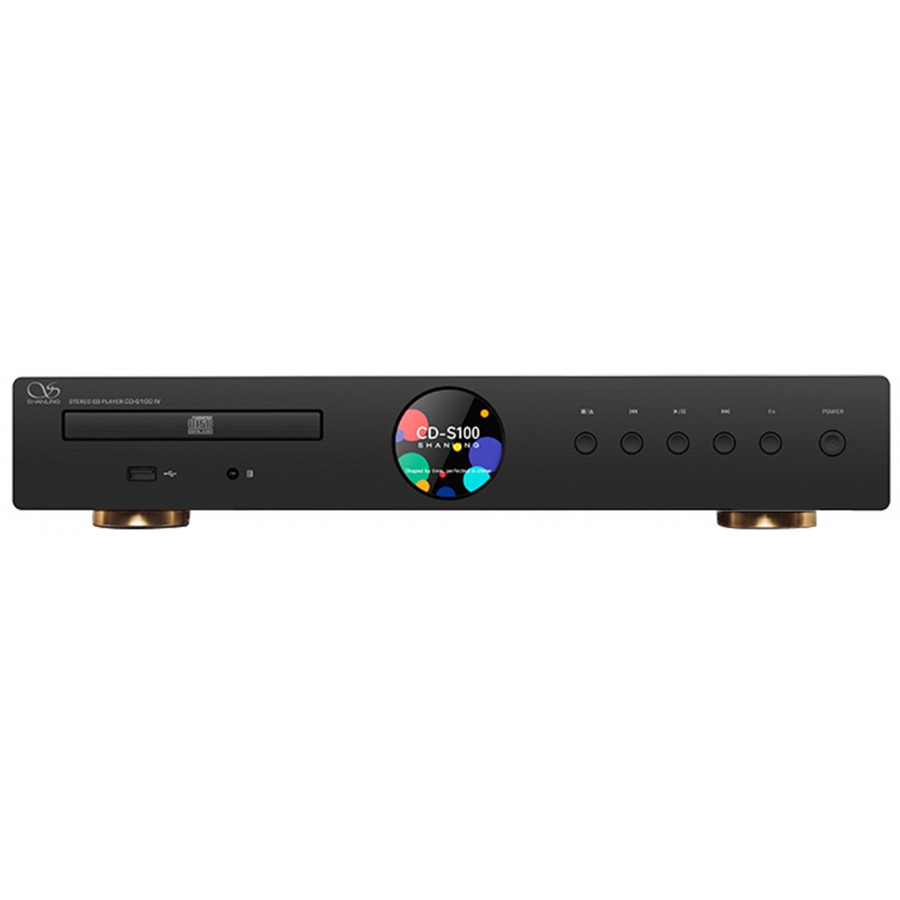

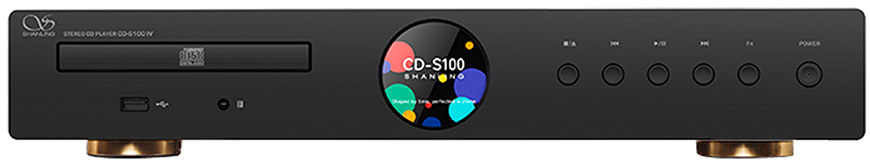

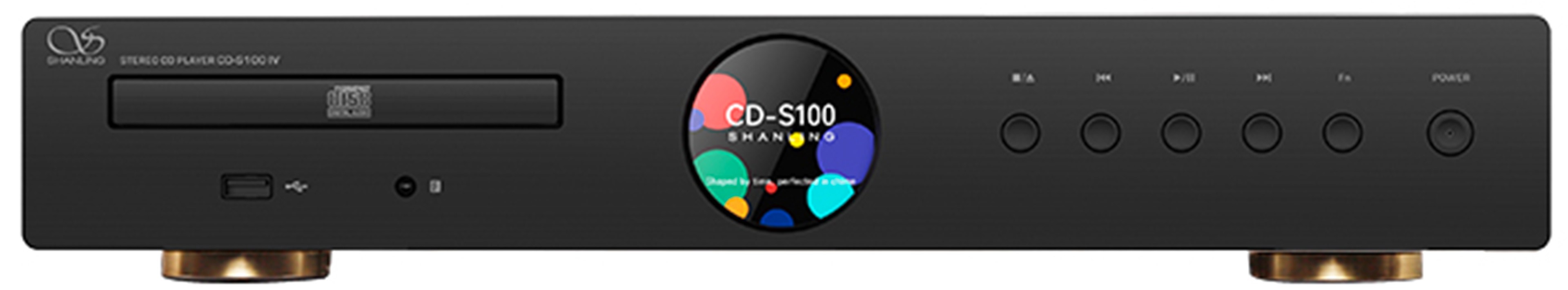

With the CD-S100v25, Shanling is offering an updated version of its successful CD player. This new version is based on the architecture of the brand's ET3 CD player, adding additional functions to classic CD playback, such as USB drive playback, Bluetooth connectivity and compatibility with DLNA and Airplay network protocols.
This updated version incorporates a DS11 laser sensor coupled to a BD34352 DAC chip, capable of processing a signal well in excess of the sampling rate of the CD format, allowing full use to be made of the USB input with compatibility up to PCM 32bit 768kHz and DSD512. This solid technological backbone is powered by a 43VA R30 transformer.
Its numerous digital and analogue outputs and connectivity make it a flexible device with a much wider range of uses than a simple CD player, which can be used as a DAC thanks to its USB input or as a steamer thanks to its network and Bluetooth connectivity.
Technical characteristics
Specifications | |
---|---|
Product type | CD Player DAC |
Inputs | CD 1x USB-B 1x USB-A Bluetooth WiFi |
Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR 1x Optical Toslink 1x Coaxial |
Network protocols | DLNA Airplay |
DAC Chip | ROHM BD34352 |
AOP | OPA1612 MUSES8920 |
Supported sampling rates | USB-A: PCM up to 32bit 768kHz / DSD up to DSD512 USB-B: PCM up to 32bit 384kHz / DSD up to DSD256 |
Total harmonic distortion more noise(THD+N) | Single-ended: 0.0007% Balanced: 0.0005% |
Signal-to-noise ratio (SNR) | Single-ended: 118dB Balanced: 120dB |
Dynamic Range | Single-ended: 118dB Balanced: 120dB |
Lineout output level | Single-ended: 2.1Vrms/10kΩ Balanced: 4.2Vrms/10kΩ |
Channel separation | Single-ended: 117dB Balanced: 119dB |
Frequency Response | 20Hz - 20kHz (±0.2dB) |
Processor | Ingenic X2000 |
Supported file formats | DSD, DXD APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, CUE |
Bluetooth version | 5.0 |
General | |
---|---|
Dimensions | 429 x 300 x 83.5mm |
Weight | 6.1kg |
Color | Black |
Package | 1x Shanling CD-S100 v25 1x Remote control 1x Power cable |
