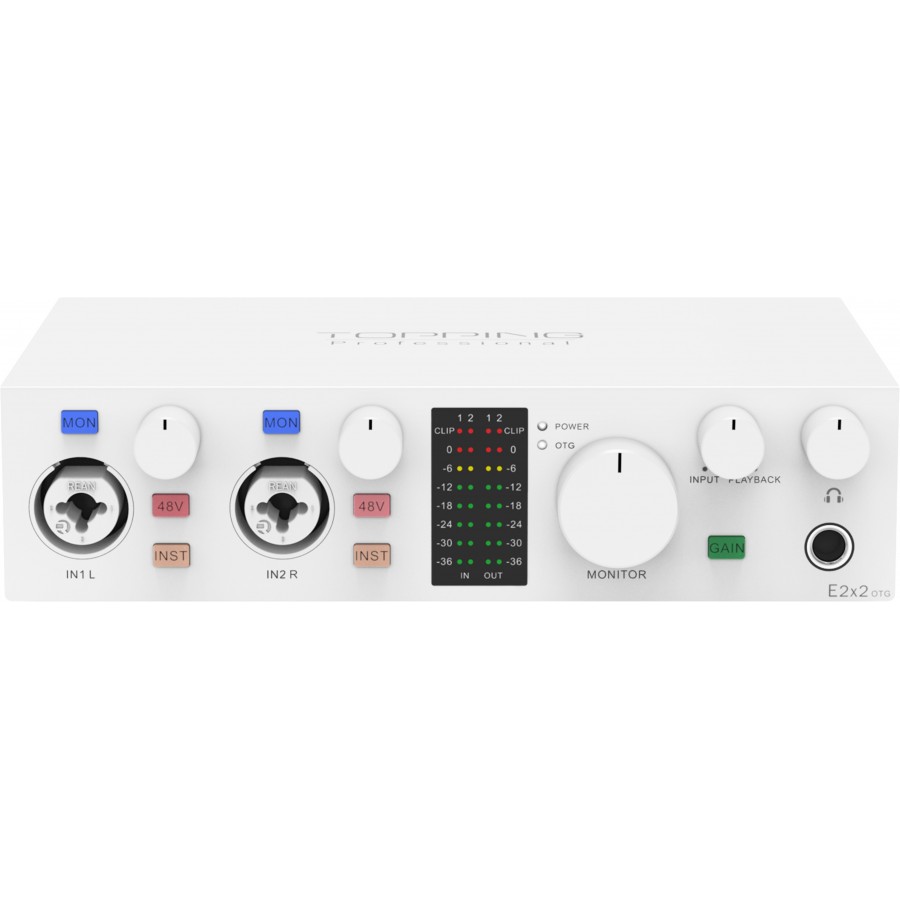

TOPPING PROFESSIONAL E2X2 OTG USB Audio Interface White

TOPPING PROFESSIONAL E2X2 OTG USB Audio Interface 2 Inputs 2 Outputs 24bit 192kHz White New
Topping's E2x2 OTG is an excellent audio interface designed for musicians and audio professionals. This excellent interface offers a very high level of performance for perfectly transparent recording and playback.

No customer reviews yet, login to write a review.

By buying this product you get 19 loyalty points


Reference : 19306
New product

199,00 €tax incl.

165,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

TOPPING PROFESSIONAL E2X2 OTG USB Audio Interface 2 Inputs 2 Outputs 24bit 192kHz White

TOPPING PROFESSIONAL E2X2 OTG : 3/4 view

Topping's E2x2 OTG is an excellent audio interface designed for musicians and audio professionals. This excellent interface offers a very high level of performance for perfectly transparent recording and playback.

TOPPING PROFESSIONAL E2X2 OTG: Key features
TOPPING PROFESSIONAL E2X2 OTG : Pre-amplifier module

Topping E2x2 OTG : Ultra-linear microphone preamplifier module

The Topping E2x2 OTG is equipped with an ultra-linear microphone preamplifier module developed by the brand, with an input noise of just -130.5dBu. Even at its maximum volume level, the E2x2 OTG can maintain a very low noise floor, ensuring that every detail of your recording is perfectly captured. This ultra-linear architecture ensures that the audio signal is transmitted with sufficient precision for a perfectly clear and transparent recording.

Topping E2x2 OTG : Phantom power supply

Equipped with 48V phantom power and a switch for activating or deactivating phantom power, the Topping E2x2 OTG is perfectly compatible with condenser and dynamic microphones.

TOPPING PROFESSIONAL E2X2 OTG: example of use
TOPPING PROFESSIONAL E2X2 OTG: power supply unit

Topping E2x2 OTG : Low-noise voltage module

Topping's unique LNRD module provides a stable reference power level for the AD/DA converter chip, unlocking the chip's full potential for high-purity audio transmission.

Topping E2x2 OTG : High-performance headphone amplifier

With a noise floor of just 0.9uVrms and an output impedance of 1Ω, the Topping E2x2 OTG's NFCA-LE headphone amplifier module allows high-sensitivity headphones to be used without distortion and noise. The Topping E2x2 OTG offers two gain settings, a high gain of up to +17dBu and an output power of 2x580mW into 32Ω. The combination of this high gain and significant output power means that the Topping E2x2 OTG can easily accompany professional headphones with a high impedance, up to 600Ω.

TOPPING PROFESSIONAL E2X2 OTG: headphone output
TOPPING PROFESSIONAL E2X2 OTG: example of use

Topping E2x2 OTG : Zero-latency monitoring

The zero-latency design allows audio effects to be monitored in real time during recording or mixing, for improved productivity.

Topping E2x2 OTG : Analogue volume control and wide dynamic range

The volume knobs for the line output and headphone output use an analogue potentiometer, offering excellent precision for easy control of sound level.

TOPPING PROFESSIONAL E2X2 OTG: volume control

Topping E2x2 OTG : Independent mixers

Equipped with four 12-channel input mixers, the E2x2 OTG allows easy adjustment and control of audio effects. Furthermore, its 8 DAW channels and 6 LoopBack channels are designed to adapt to different recording, mixing and playback needs.

DOWNLOAD TOPPING PROFESSIONNAL CONTROL CENTER SOFTWARE

TOPPING PROFESSIONAL E2X2 OTG: control software
TOPPING PROFESSIONAL E2X2 OTG: Xmos chip

Topping E2x2 OTG : High audio resolution

The Topping E2x2 OTG adopts an excellent USB XMOS interface, compatible with Windows, Mac, iOS and Android operating systems in particular. This supports high-resolution audio streams for recording and playback, up to PCM 24bit 192kHz.

Topping E2x2 OTG : Triple USB-C ports

The Topping E2x2 OTG uses two USB-C connectors for data transmission, including an OTG port, and one connector for power. All you need is a USB OTG cable to connect directly to your mobile phone for live streaming, providing lossless sound transmission quality. It is recommended that the auxiliary power connector is connected if the E2x2 OTG is used in conjunction with a desktop computer or if 48V phantom power is required, to avoid interference. An external power supply is also recommended when the sound card is used with a smartphone.

Topping E2x2 OTG : Connectors

TOPPING PROFESSIONAL E2X2 OTG : Numbered diagram
1Mic/Instr/Line input
2Mic/Instr/Line input
3Headphone output 6.35mm Jack
4Anti-theft lock
5Power supply
6USB-C input
7USB-C OTG input
8Optical Jack output
9Auxiliary output 3.5 mm Jack
106.35 mm Jack line outputs



Topping Professional audio interface comparison

E1x2 OTGE2x2 OTGE2x2E4x4 Pre
OTG interfaceYesYesNoNo
Power supplyUSB-CUSB-CUSB-CUSB-C
Interface typeUSB 2.0USB 2.0USB 2.0USB 2.0
MonitoringYes (adjustable mix ratio)Yes (adjustable mix ratio)Yes (adjustable mix ratio)Yes (adjustable mix ratio)
Input level indicator1 set of LED2 set of LED2 set of LED4 set of LED
Output level indicator2 set of LED2 set of LED2 set of LED4 set of LED
Module preamp microUltra-linearUltra-linearUltra-linearUltra-linear
Headphone ampNFCA-LENFCA-LENFCA-LENFCA-LE
Supported sampling ratesUSB-C : PCM up to 24bit 192kHz
OTG : PCM up to 24bit 48kHz
USB-C : PCM up to 24bit 192kHz
OTG : PCM up to 24bit 48kHz
SPDIF : PCM up to 24bit 192kHz
PCM up to 24bit 192kHzPCM up to 24bit 192kHz
Software controlYesYesYesYes
Supported OSMac, Windows, iOS, AndroidMac, Windows, iOS, AndroidMac, Windows, iOS, AndroidMac, Windows, iOS, Android
Power buttonYesYesYesYes
Weight415g530g530g830g
Mix channels4434
DAW channels8868
Loopback channels6646

Technical characteristics

Specifications
Product typeAudio interface
USB protocolUSB 2.0
Microphone input2x XLR / 6.35mm jack combo connectors
Entrées instruments2x XLR / 6.35mm jack combo connectors
Line outputs2x Jack 6.35mm
Headphone output1x Jack 6.35mm
Auxiliary output1x Jack 3.5mm
OTG output1x USB-C
SPDIF output1x Optical Jack
Direct zero-latency monitoringYes (with mix button)
Input VumeterYes (2x8 LED indicators)
Output VumeterYes (2x8 LED indicators)
Microphone preamp modulesUltra-linear
Headphone amplifier modulesNFCA-LE
Supported sampling ratesPCM up to 24bit 192kHz
Software controlYes (Topping Professional Control)
DAW channels8x
Supported OSMac, Windows, iOS, Android
MICROPHONE INPUT MEASUREMENTS (@ 24BIT 96KHZ)
Equivalent input noise-130.5dBu @ A-wt, 150Ω
THD+N-110dB (0.0003%) @ A-wt
Dynamic range115dB @ A-wt
SNR115dB
Crosstalk-140dB @ 1kHz
Frequency response20Hz - 40kHz (±0.2dB)
Max input level8.6dBu
Input impedance1.5kΩ
Available gain58dB + 20dB (20db digital gain)
Phantom power48V
XLR connector
LINE INPUT MEASUREMENTS (@ 24bit 96kHz)
THD+N-107dB (0.00045%) @ A-wt
Dynamic range115dB @ A-wt
SNR115dB
Crosstalk-140dB @ 1kHz
Frequency response20Hz - 40kHz (±0.1dB)
Max input level23.9dBu
Input impedance9kΩ
Available gain58dB + 20dB (20db digital gain)
ConnectorsJack 6.35mm TRS
INSTRUMENT INPUTS MEASUREMENTS (@ 24bit 96kHz)
THD+N-108dB (0.0004%) @ A-wt
Dynamic range115dB @ A-wt
SNR115dB
Crosstalk-140dB @ 1kHz
Frequency response20Hz - 40kHz (±0.3dB)
Max input level14.8dBu
Input impedance1MΩ
Available gain58dB + 20dB (20db digital gain)
ConnectorsConnecteur Jack 6.35mm TS
LINE OUTPUTS MEASUREMENTS (@ 24bit 96kHz)
THD+N-100dB (0.001%) @ A-wt
Dynamic range115dB @ A-wt
Analog dynamic range127dB @ A-wt, -40dB attenuation
SNR115dB @ A-wt
Crosstalk-128dB @ 1kHz
Frequency response20Hz - 40kHz (±0.3dB)
Max input level14dBu
Noise1.8uVrms @ A-wt
Output impedance100Ω
ConnectorsBalanced Jack 6.35mm TRS
Auxiliary output measurements
THD+N-100dB (0.001%) @ A-wt
Dynamic range115dB @ A-wt
Analog dynamic range122dB @ A-wt, -40dB atténuation
SNR115dB @ A-wt
Crosstalk-108dB @ 1kHz
Frequency response20Hz - 40kHz (±0.3dB)
Maximum output level8dBu
Noise1.5uVrms @ A-wt
Output impedance50Ω
ConnectorBalanced Jack 3.5mm TRS
HEADPHONE OUTPUT MEASUREMENTS (@ 24bit 96kHz)
THD+N-100dB (0.001%) @ A-wt
Dynamic range115dB @ A-wt
Analog dynamic range132dB @ A-wt, -40dB atténuation
SNR115dB @ A-wt
Crosstalk-120dB @ 1kHz
Frequency response20Hz - 40kHz (±0.3dB)
Max input level0dBu @ Gain = L
17dBu @ Gain = H
Noise1uVrms @ A-wt
Output impedance1Ω
ConnectorJack 6.35mm TRS stereo
Headphone output power2x580W @ 32Ω, THD+N < 1%
2x380W @ 64Ω, THD+N < 1%
2x198W @ 150Ω, THD+N < 1%
2x105W @ 300Ω, THD+N < 1%
2x55W @ 600Ω, THD+N < 1%
OTG output measurements (@ 24bit 192kHz)
THD+N-130dB (0.00003%) @ A-wt
Dynamic range138dB @ A-wt
SNR138dB @ A-wt
Crosstalk-154dB @ 1kHz
Frequency response20Hz - 20kHz (±0.1dB)
Max output level-0.5dBFS
ConnectorUSB-C OTG
SPDIF output measurements (@ 24bit 192kHz)
THD+N-144dB (0.000006%) @ A-wt
Dynamic range144dB @ A-wt
SNR144dB @ A-wt
Crosstalk-160dB @ 1kHz
Frequency response20Hz - 20kHz (±0.1dB)
Max output level0dBFS
ConnectorOptical Jack
General
Power supply5VDC 0.8A via USB-C
Dimensions18.7 x 12.9 x 5cm
Weight530g
ColorWhite
Package1x E2X2 OTG Silver
1x USB-A to USB-C Cable
1x USB-C to USB-C Cable
1x 6.35mm to 3.5mm Jack Adapter

Data sheet
InputUSB
InputXLR
InputJack 6.35mm
OutputJack 4.4mm
OutputJack 6.35mm
Max sampling rate192kHz
ColorSilver
Interface chipXMOS XU308
