ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black

ELECAUDIO PS-24GB Prise Secteur Schuko Noir Or 24K 3µ Ø16.5mm

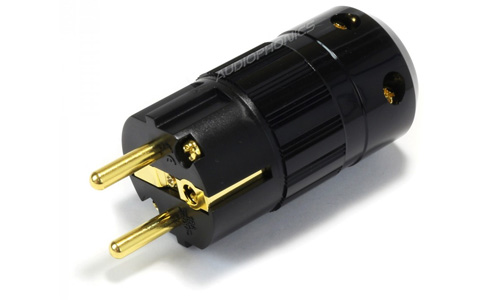

The Schuko PS-24GB reference plug is distinguished at first glance by its anthracite-black nylon body with an impeccable finish and ideal proportions. This chassis can accommodate the most sophisticated cables, the diameter of which is often incompatible with conventional mains sockets.

Average votes for this product
4.6 / 5

By buying this product you get 1 loyalty point


Reference : 6582
New product

19,90 €tax incl.

16,58 € tax excl.

- +


Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Elecaudio PS-24GB

Socket Schuko Black Gold 24K 3μ Ø16.5mm

ELECAUDIO PS-34GB Connecteur Secteur Schuko Noir Or 24K 5µ Ø16.5mm

The Schuko PS-24GB reference plug is distinguished at first glance by its anthracite-black nylon body with an impeccable finish and ideal proportions. This chassis can accommodate the most sophisticated cables, the diameter of which is often incompatible with conventional mains sockets. With its insertion ring limiting the diameter to 16.5mm, supported by a flexible rubber cable clamp to complete the integration, the PS-24GB easily accommodates cables with a large cross-section.

All metal parts, including the contact and earth poles, were plated 3µ gold. This plating on the entire surface of the contacts provides better conductivity than a standard plating.

The internal connection terminals also deserve attention: Equipped with large fixing screws, and therefore requiring no soldering, they are capable of receiving large diameter conductors and ensuring a firm hold over a particularly large contact surface. Finally, we will appreciate the small diagram directly engraved into the socket, which provides information on the optimal length of cable to strip.


Technical characteristics

Specifications
Product tyipeSchuko connector
Connection typeTo screw (BTR screw)
PlatingGold 24k 3µ
Max conductors section16mm² (4.5mm diameter)
Max cable diameter16.5mm
Voltage / Current250V / 16A
Total length89mm
Diameter38mm
Weight75g

Schéma de câblage


Data sheet
Max cable diameter (mm)16.5
Mounting typeTo screw
ConnecticMale
ConnectorPLug CEE 7/7
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold
Rated current (A)16.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.6 / 5
18 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Good plug
Look solid with good gold plate

Best plug for price
 (0)
 (0)
This review has been posted for ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black
Note :
 4/5
Date :
attention au branchement
Très bonne prise achetée pour montage cordon secteur en DIY. Par contre suite à connexion sur barrette secteur dynavox X4100, allumage de la led Inversion de phase. Après recherche du défaut , le cordon est en cause : inversion phase et neutre au niveau de l'inscription N et L inscrit au niveau insertion des fils: Donc à ne suivre pour le branchement.
Par contre le schéma de branchement donné par le site est correct
 (1)
 (0)
This review has been posted for ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black
Note :
 5/5
Date :
Perfect connector
Nicely finished, excellent quality for your high-end cable.
 (0)
 (0)
This review has been posted for ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black
Note :
 5/5
Date :
Françis S
On peu trouver des prises de bon maintient dans le commerce de bricolage , mais pas avec des fiches qui ne s'oxydent pas dans le temp . Donc, si l'on veux une installation propre , c'est une bonne solution ,qui permet d'être sur de ses contactes .
 (1)
 (0)
This review has been posted for ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black
Note :
 5/5
Date :
Excellent schuko plugs
Lots of space to connect the wires with no problems, superb screws that allow for the correct pressure over the wires, and the cable rests correctly attached to the plug. Shinning golden contacts and screws.
 (1)
 (0)
This review has been posted for ELECAUDIO PS-24GB Schuko Type E/F Power Connector 24K Gold 3μ Ø16.5mm Black
