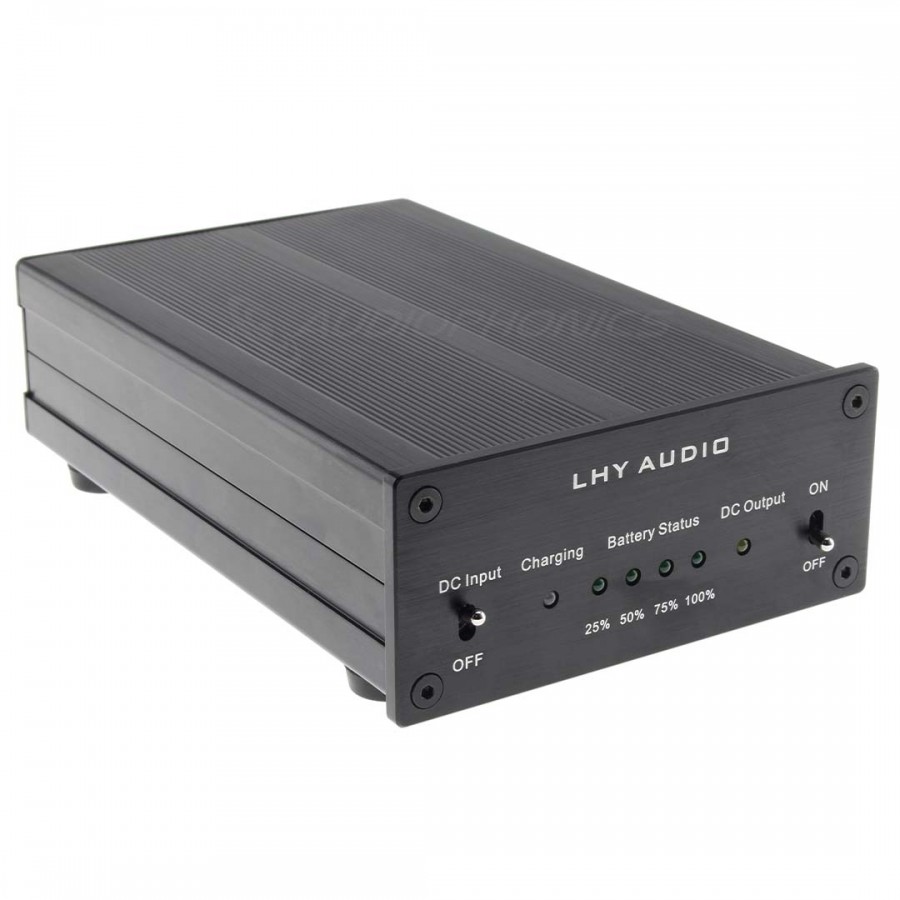

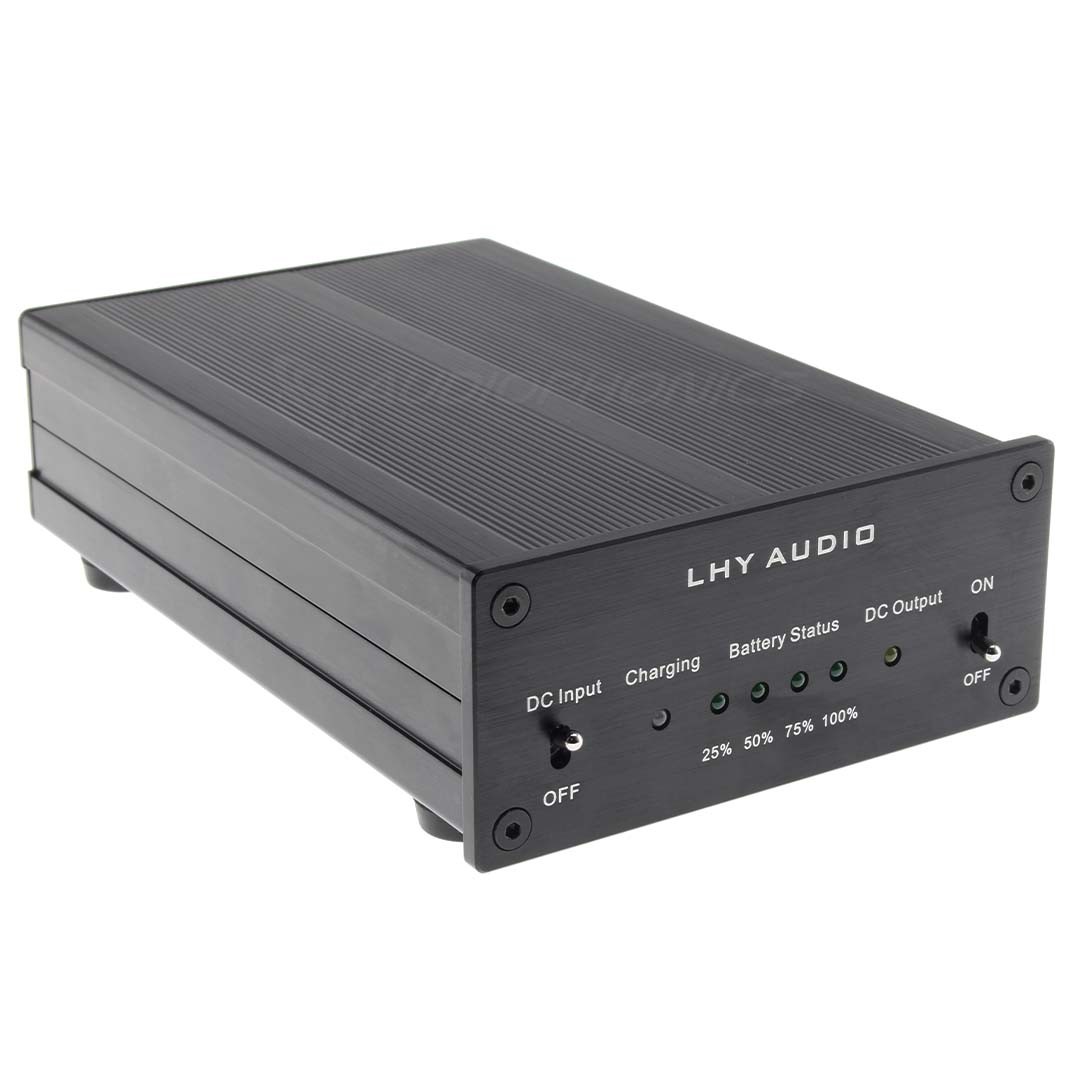

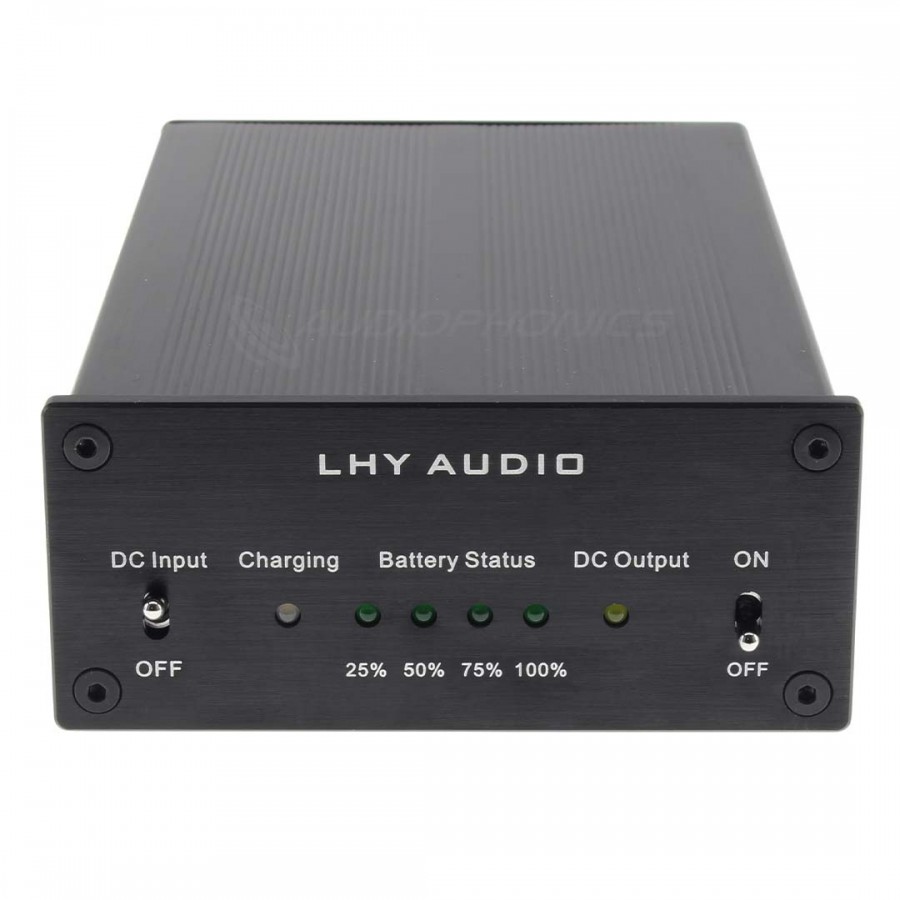

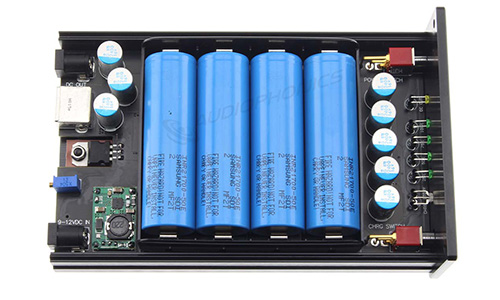

This LHY Audio BATT-USB regulated linear power supply module uses four 21700 batteries with a capacity of 2000mAh (a total of 8Ah) and an ultra-low-noise LDO LT3042 linear voltage regulation chip with D45H11 PNP transistor. This linear power supply has two outputs: one on a USB-A connector and one on a DC 5.5/2.1mm jack connector. Their output power is shared and can reach up to 2x 5V 2A (total amperage of 4A if only one output is used). This means you can power your Hi-Fi equipment with an ultra-low-noise signal. The module itself is powered by 9V DC, also via a DC 5.5/2.1mm jack connector. A charge protection module completes this input.
A US to FR power adapter is required. You can get one as an accessory or directly from here.

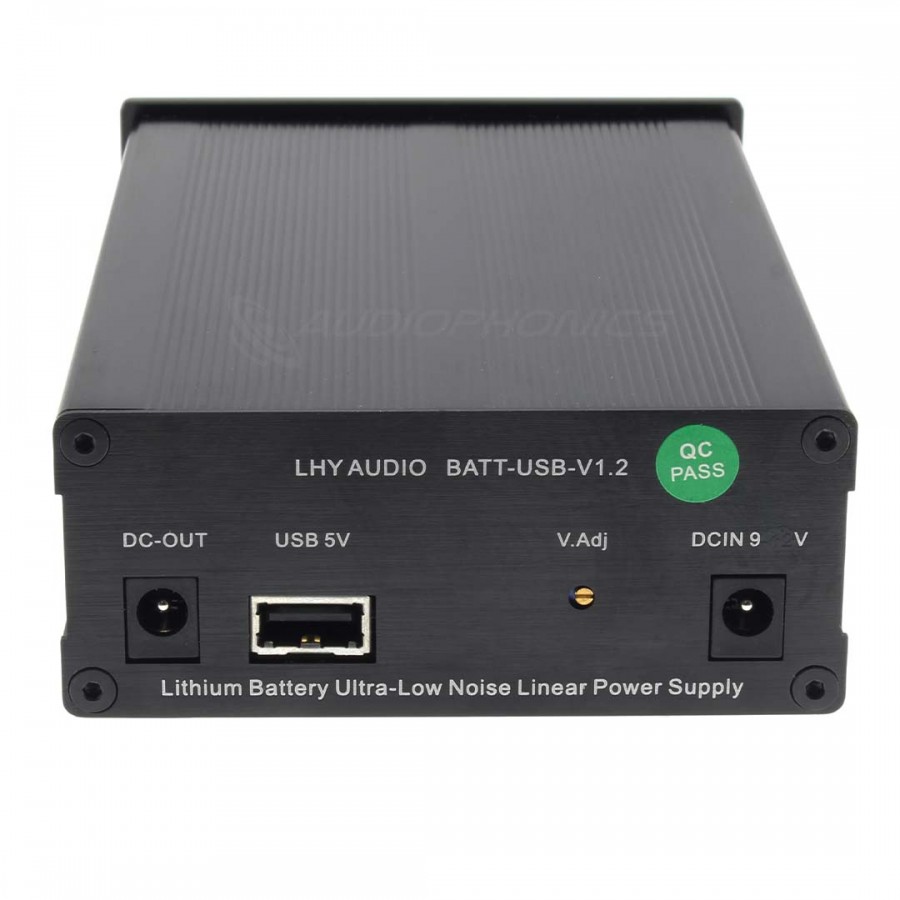

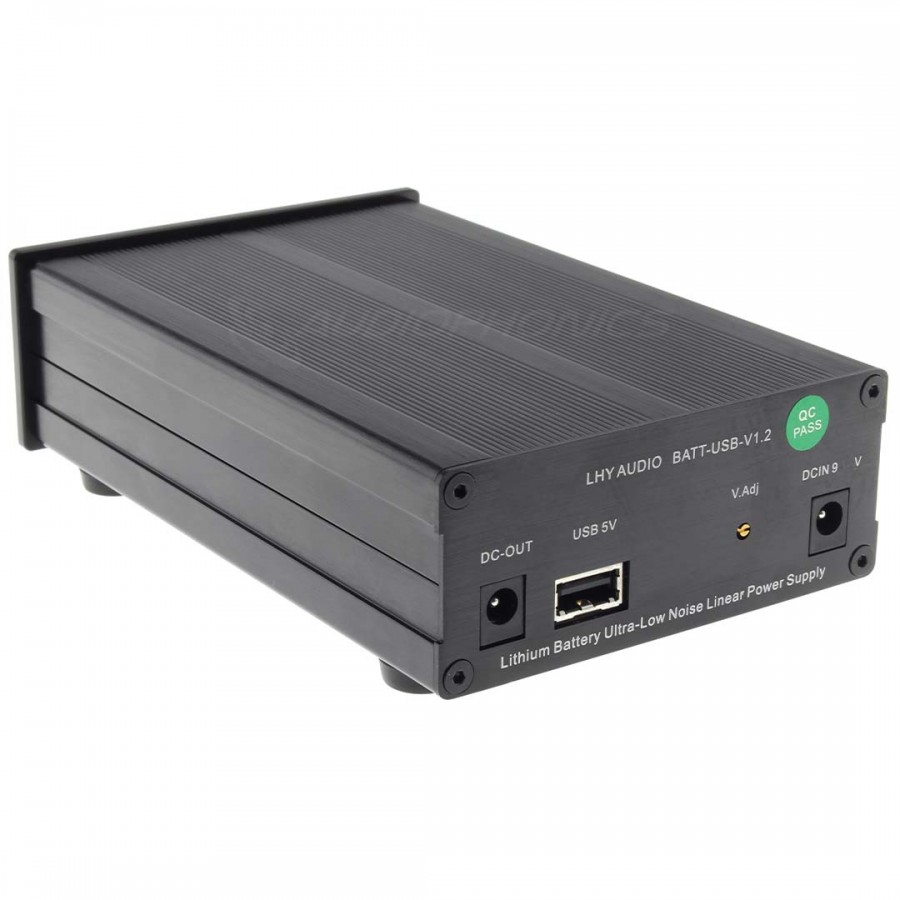

1 | DC 5.5/2.1mm 5VDC jack output |
2 | USB-A 5VDC output |
3 | Voltage adjustment +/5%. |
4 | DC 9V power supply input on 5.5/2.1mm jack connector |
Technical characteristics
Specifications | |
---|---|
Product type | Battery-regulated linear power supply |
Input voltage | 9V DC |
Voltage and output connectors | USB-A : 5VDC Jack DC DC 5.5/2.1mm : 5VDC |
Total output current | 4A |
Batteries | 4x 21700 (2000mAh) |
General | |
---|---|
Dimensions | 155 x 100 x 47mm |
Weight | 0.72kg |
Color | Black |

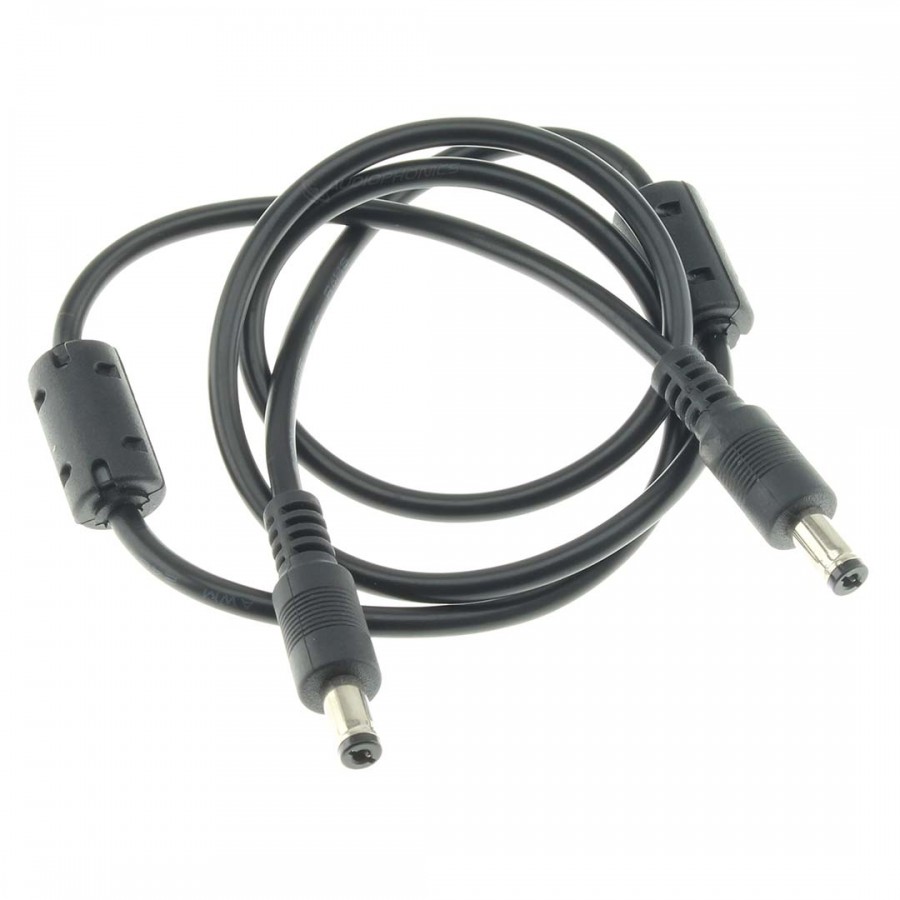

Package | 1x LHY AUDIO BATT-USB regulated linear battery power supply 1x Jack DC 5.5/2.1mm to Jack DC 5.5/2.1mm cable 1x US power adapter 100-240V to 9V 2A |
Input | Jack DC 5.5/2.1mm |
Output | Jack DC 5.5/2.1mm |
Output | USB |
Color | Black |
Output voltage (V) | 5.0 |
Output current (A) | 4.0 |
Input voltage (V) | 9.0 |
Power Supply | Regulated Linear Power Supply |
