TONEWINNER AD-66D PRO Integrated Amplifier

The Tonewinner AD-66D PRO is an efficient and versatile Class A amplifier with a proven technical foundation for musical and detailed sound. Its circuitry uses audiophile-grade components to ensure excellent performance, including low noise and distortion. It also provides a complete set of connectors to meet the vast majority of needs for home audio integration.

No customer reviews yet, login to write a review.

By buying this product you get 65 loyalty points


Reference : 18762
New product

659,00 €tax incl.

549,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 12-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Tonewinner AD-66D PRO Amplificateur 2.1 Class A Toshiba TTC5200/TTA1943 2x135W 4Ω

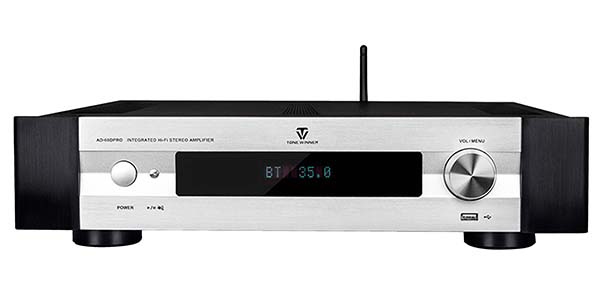

Tonewinner AD-66D PRO picture

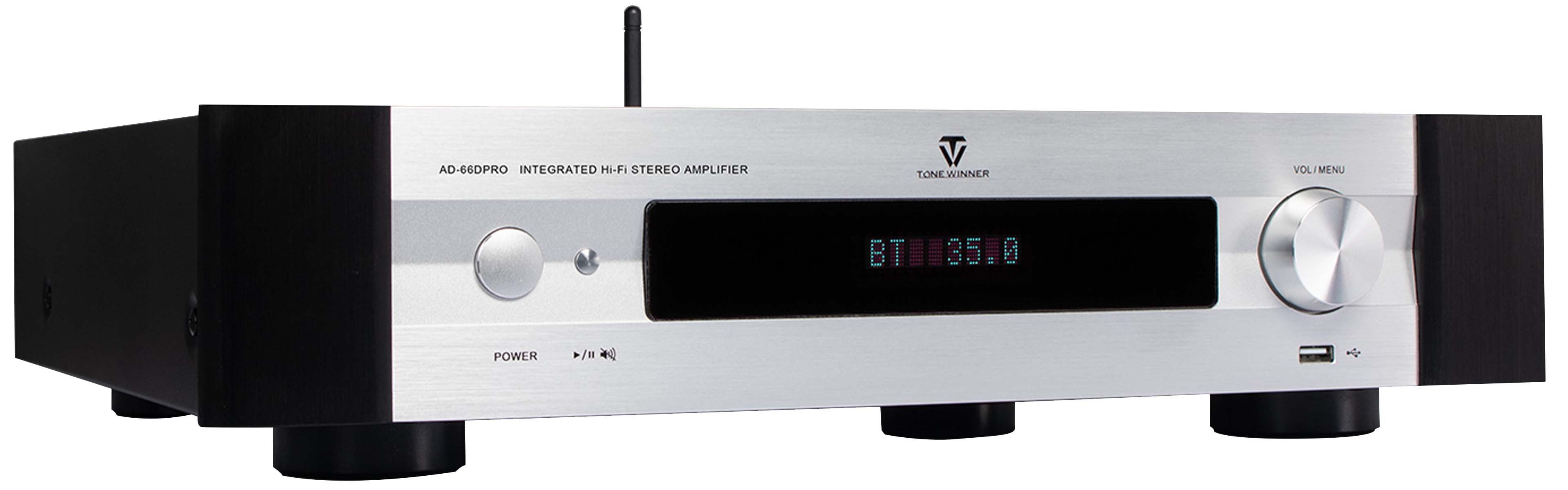

The Tonewinner AD-66D PRO is an efficient and versatile Class A amplifier with a proven technical foundation for musical and detailed sound. Its circuitry uses audiophile-grade components to ensure excellent performance, including low noise and distortion. It also provides a complete set of connectors to meet the vast majority of needs for home audio integration.

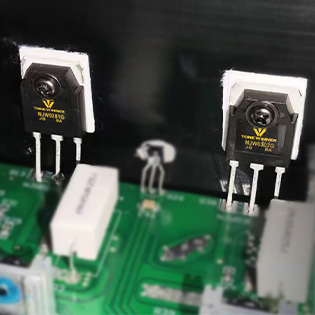

Tonewinner AD-66D PRO amplification stage picture

Tonewinner AD-66D PRO: A large reserve of energy

The AD-66D PRO's Class A amplifier stage is based on the use of two pairs of high power Toshiba TTA1943/TTC5200 transistors, allowing to develop 2x80W under 8Ω or 2x135W under 4Ω. The amplifier also benefits from a particularly careful architecture, ensuring a low level of distortion, thus revealing a musical and rich sound. Moreover, the AD-66D PRO provides a subwoofer output allowing the addition of a subwoofer within a 2.1 system. The speaker output is equipped with a protection circuit, effectively securing your equipment.

Tonewinner AD-66D PRO structure


Tonewinner AD-66D PRO: Integrated 24bit 192kHz DAC

With its numerous digital inputs, the Tonewinner AD-66D PRO is of course equipped with a digital / analog conversion section. This one embeds an Analog Devices AD1955 DAC chip, decoding PCM audio streams up to 24bit 192kHz and ensuring an SNR as well as a dynamic range of 120dB.

Tonewinner AD-66D PRO DAC chip picture

Tonewinner AD-66D PRO: A complete connectivity

In order to meet the vast majority of needs, the AD-66D PRO offers a full range of connectivity, including input with USB, optical, coaxial, HDMI ARC, a Micro SD port, stereo RCA but also thanks to a Bluetooth 4.2 receiver using an ATS2825 chip. It is thus possible to broadcast and control your music remotely, from a smartphone for example, directly to the amplifier.

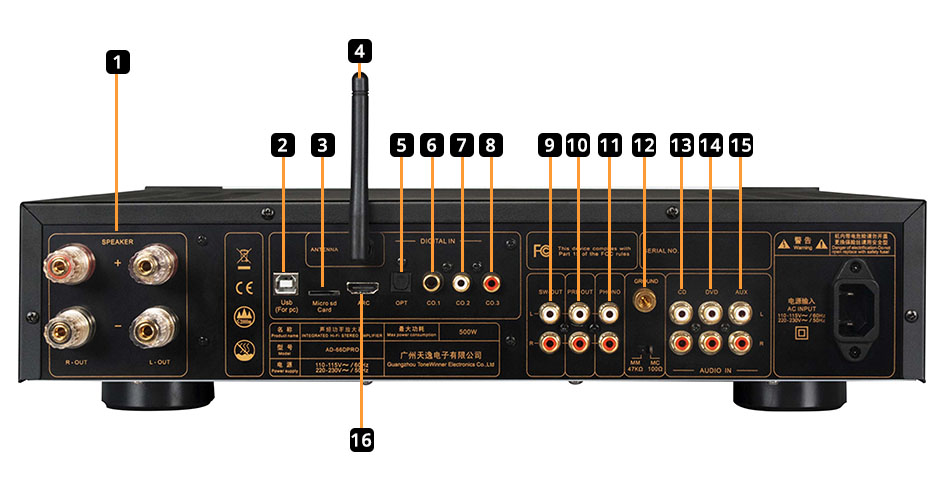

Tonewinner AD-66D PRO connection diagram
1Speaker output
2Mini USB input
3Micro SD slot
4Bluetooth antenna
5Optical Toslink input
6/7/8Coaxial inputs
9Subwoofer output
10 RCA pre-out
11Amp input
12/13/14Stereo RCA inputs
15HDMI ARC input
Tonewinner AD-66D PRO volume control chip picture

Tonewinner AD-66D PRO: Precise volume control

The Tonewinner AD-66D PRO is equipped with a highly accurate JRC NJW1194 stereo volume controller. It allows an efficient adjustment of the sound level, ensuring a low level of noise and distortion. The sound level adjustment is done in 0.5dB steps.

Tonewinner AD-66D PRO: A power supply made to measure

The power supply stage of the Tonewinner AD-66D PRO benefits from the same care given to the audio circuits of the unit. It is equipped with a large custom toroidal transformer and capacitors with a capacity of 15000µF to provide a clean electrical signal at all times.

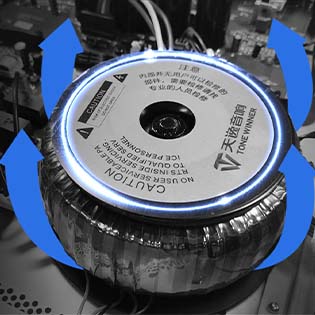

Tonewinner AD-66D PRO Toroidal transformer picture

Caractéristiques techniques

Specifications
Product typeAmplifier
Amplification typeClass A
InputsBluetooth
1* Mini USB (USB Audio)
1* USB-A (USB Host)
1* Micro SD slot
1* HDMI (ARC)
1* Optical Toslink
3* Coaxial
3* Stereo RCA
OutputsSpeaker terminals
1* Subwoofer output (stereo RCA)
Output power2*135W 4Ω
2*85W RMS 8Ω (THD 1%, 1kHz)
TransistorsTTC5200 / TTA1943
DACAD-1955
Volume controllerNJW1194
SNR≥ 95dB (A-Weighted)
Frequency response20Hz-80kHz (+1/-3dB)
THD≤ 0.025% (1kHz)
Output impedance8Ω
Gain38dB ±1dB
Crosstalk≥ 75dB
Max voltage gain> 40dB
General
Supply voltage~220V AC
Dimensions (L*P*H)444*436*107mm
Weight10.6kg
ColorBlack and silver
Package1* Tonewinner AD-66D PRO
1* IR Remote control

Data sheet
InputSPDIF
InputBluetooth
InputHDMI
InputRCA
InputOptical
InputMicro SD
InputUSB
OutputSubwoofer
OutputSpeaker terminal
ColorSilver
ColorBlack
Channel2.1
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipTransistors
Power (W)135.0
Remote ControlYes
