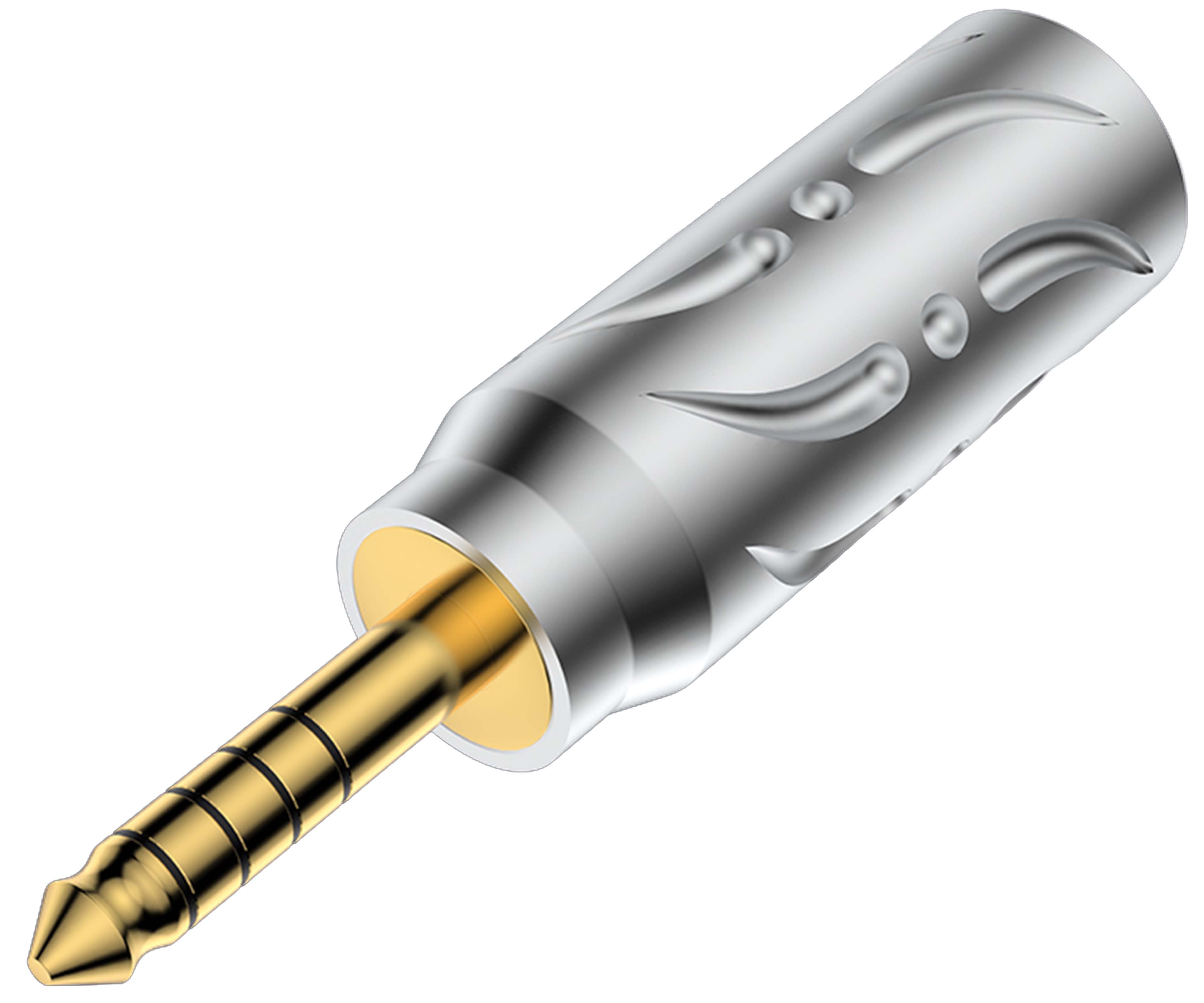

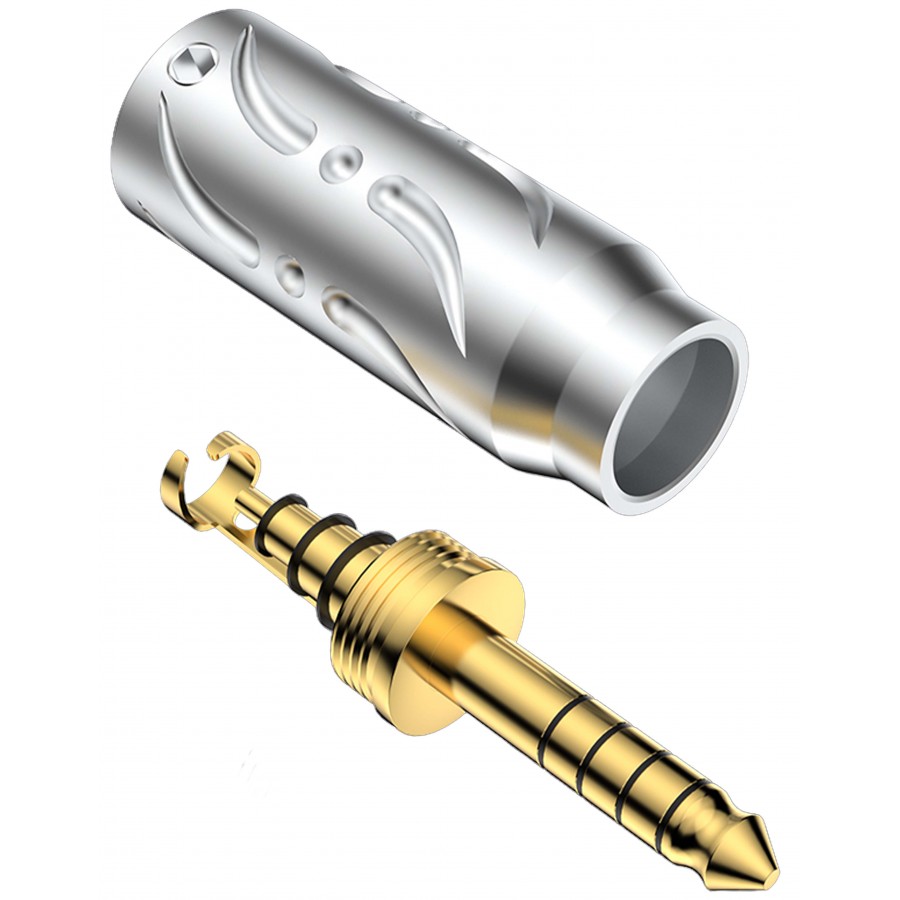

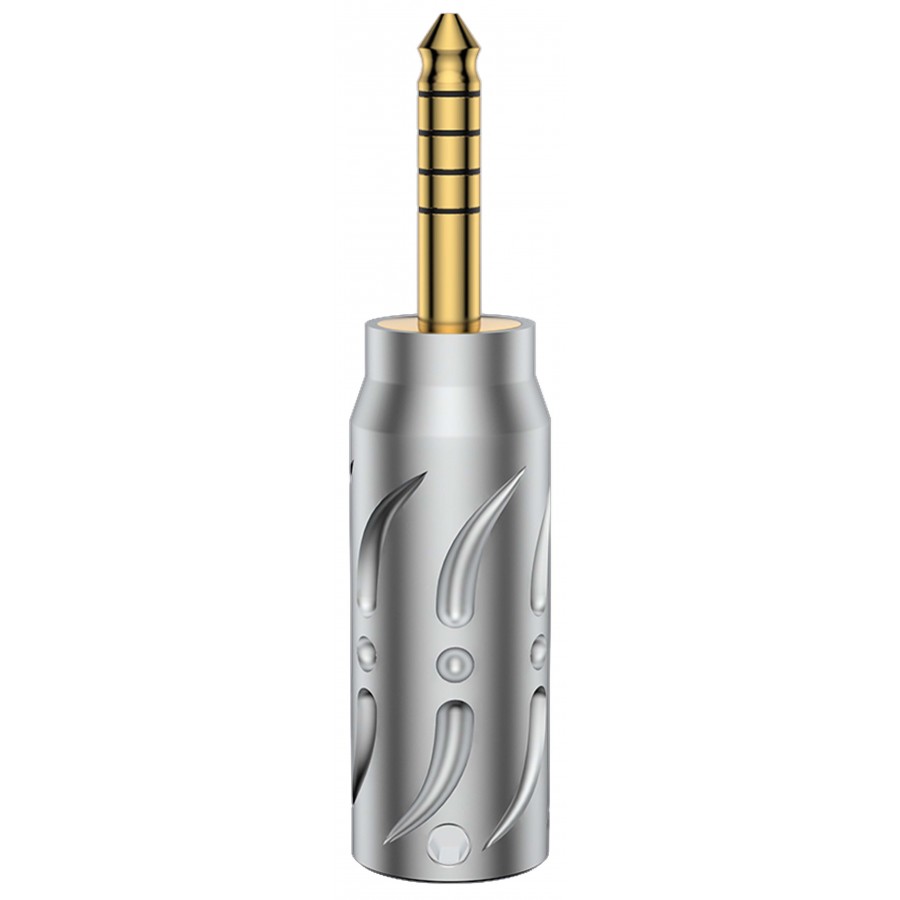

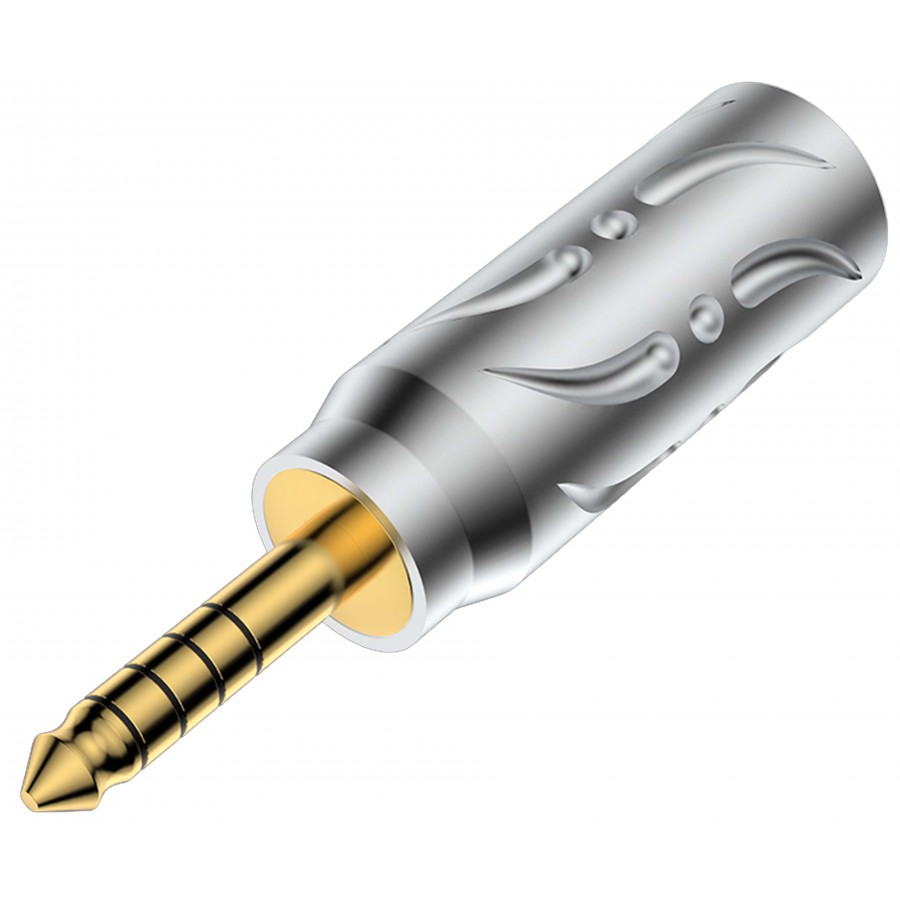

VIBORG VH303G 4.4mm Jack Connector
By buying this product you get 1 loyalty point
Viborg VH303G Balanced 4.4mm Jack Connector Pure Copper OFC Copper / Silver / 24k Gold Plated Ø6.5mm
The Viborg VH303G is a well-designed balanced stereo 4.4mm jack connector. It uses pure copper contacts featuring triple OFC copper, silver and 24k gold plating to ensure excellent conductivity and resistance to corrosion and oxidation. It can accept conductors with a diameter up to Ø6.5mm. Assembly is done by soldering and a hex socket screw ensures perfect conductor retention inside the connector.
Technical specifications
| Specifications | |
|---|---|
| Product type | Balanced 4.4mm jack connector |
| Conductor material | Pure copper |
| Plating | OFC Copper / Silver / 24k Gold |
| Insulation | PE |
| Body material | Brass |
| Max. cable diameter | Ø6.5mm |
| Dimensions | Ø9.5 x 47mm |
| Assembly | Soldered |
| General | |
|---|---|
| Packaging | 1x VIBORG VH303G |
| Max cable diameter (mm) | 6.5 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 5 |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Gold |
| Contacts Plating (Connector) | Copper |
| Contacts Plating (Connector) | Silver |
