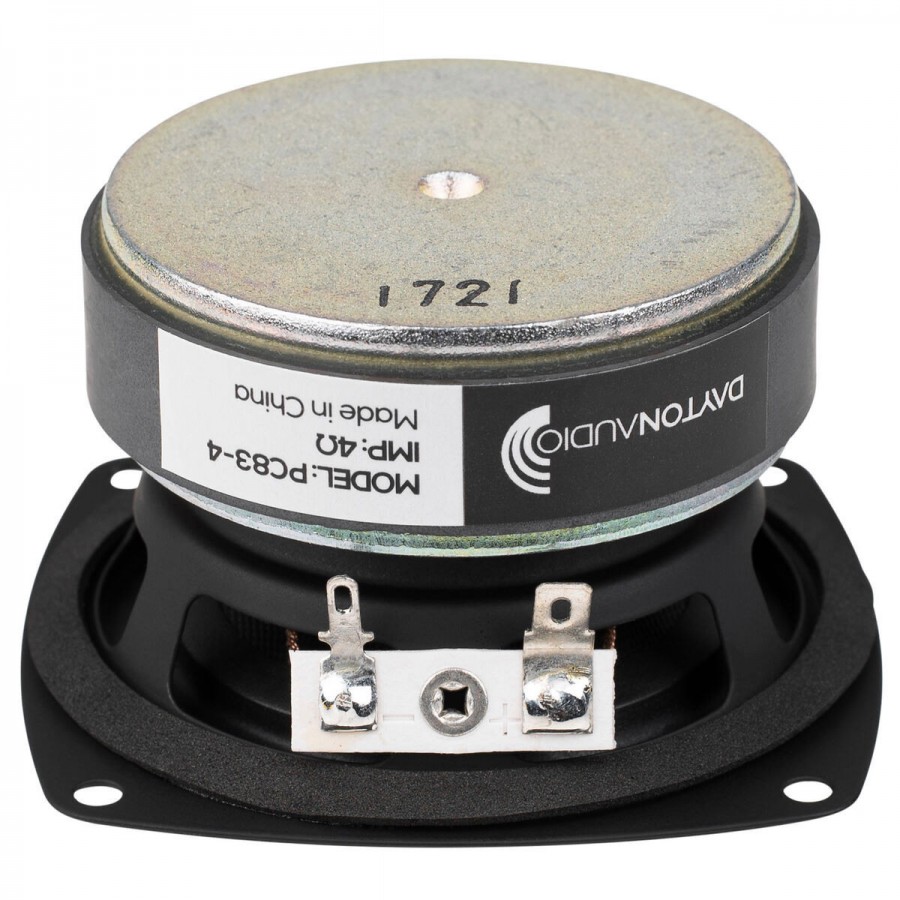

DAYTON AUDIO PC83-4 Speaker Driver Full Range 30W 4Ω 86.8dB 80Hz-20kHz Ø7.6cm

DAYTON AUDIO PC83-4 Speaker Driver Full Range 30W 4Ω 86.8dB 80Hz-20kHz Ø7.6cm
The Dayton Audio PC83-4 full-range driver features a woven fiberglass composite diaphragm, rubber surround and a powerful motor. The design allows for very good diaphragm control, low inductance and a significant reduction in distortion, improving the high frequency response. The performance of this model is very good over the entire frequency range, with a controlled off-axis response and high efficiency. It is especially ideal for the design of small format loudspeakers.

Average votes for this product
4.0 / 5

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 15922
New product

14,90 €tax incl.

12,42 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Dayton Audio PC83-4

Speaker Driver Full Range 30W 4Ω 86.8dB 80Hz-20kHz Ø7.6cm

Dayton Audio PC83-4 Haut-Parleur Large Bande 30W 4Ω 86.8dB 80Hz-20kHz Ø7.6cm

The Dayton Audio PC83-4 full-range driver features a woven fiberglass composite diaphragm, rubber surround and a powerful motor. The design allows for very good diaphragm control, low inductance and a significant reduction in distortion, improving the high frequency response. The performance of this model is very good over the entire frequency range, with a controlled off-axis response and high efficiency. It is especially ideal for the design of small format loudspeakers.

Dayton Audio PC83-4 Haut-Parleur Large Bande 30W 4Ω 86.8dB 80Hz-20kHz Ø7.6cm

Technical characteristics

Specifications
Speaker driver typeFull range
DiameterØ7.62cm (3")
Power handlingRMS : 30W
Max : 60W
Impedance4Ω
Frequency response80Hz - 20kHz
Sensitivity86.8dB 2.83V/1m
Voice coil diameterØ2.54cm
Thiele-Small Parameters
Moving mass of diaphragm (Mmd)2.7g
Resonant frequency (Fs)80.1Hz
DC Resistance (Re)3.9Ω
Voice coil inductance (Le)0.38mH
Mechanical quality coefficient (Qms)3.41
Electromagnetic quality coefficient (Qes)0.64
Total quality coefficient (Qts)0.54
Compliance equivalent volume (Vas)0.54
Mechanical compliance of suspension (Cms)1.47mm/N
Force factor (BL)2.9T.m
Max linear excursion (Xmax)2mm
Surface area of cone (Sd)30.2cm²
Materials
ConePoly composite
SurroundRubber
Voice coil wireCCA
Voice coil formerKapton / Polyimide
Basket / FrameSteel
MagnetFerrite
Mounting informations
Overall outside diameter83mm (3.27")
Cutout diameter77.5mm (3.05")
Depth50mm (1.97")
Mounting holes4
Optimum cabinet size
Sealed volume1.42L
Sealed F3123Hz
Vented volume3.4L
Vented F360Hz

Data sheet
Speaker Power (W RMS)30
Speaker TypeFull range
Impedance (Ω)4
Loudspeaker diameter (mm)76.0
Diaphragm typeComposite alloy
Efficiency / Sensitivity (dB)87.0
Max Linear Excursion (Xmax) (mm)2.0
Lowest frequency (Hz)80
Highest frequency (Hz)20000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Utilisation Arcade-Jeux ok
Monté aisément dans caisson d'origine d'une borne Sega New Astro.
C'est mieux que les anciens HP, surtout dans medium/aigüe, mais pas énorme sur les basses.
Personnellement, je préfère les Visaton FRS 8 test sur Astro, mais pas compatible New Astro.
