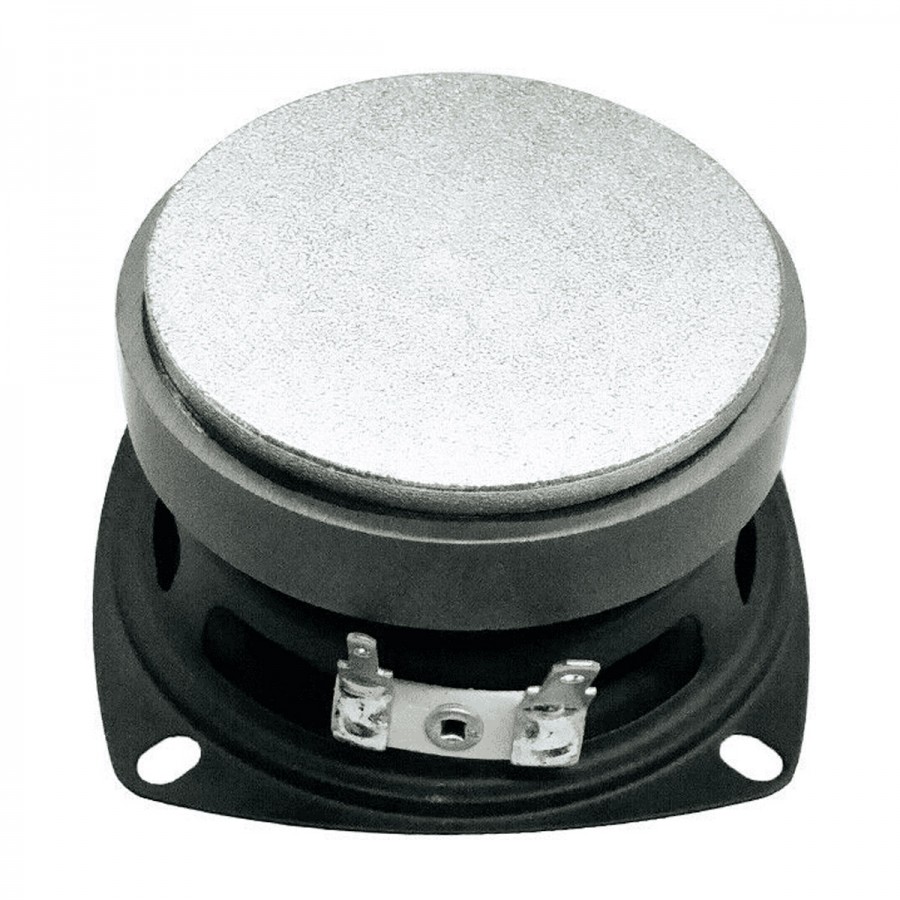

FOUNTEK FE86 Speaker Driver Full Range 15W 8 Ohm 83dB 95Hz - 20kHz Ø8cm (Unité)
The Fountek FE86 is a small, wideband speaker with a generous ferrite magnet system covering a frequency range of 95Hz to 20kHz. An ideal model for small speaker design.
No customer reviews yet, login to write a review.
By buying this product you get 1 loyalty point
Reference : 14851
New product
![[GRADE B] FIIO K9 PRO ESS DAC 2x ES9038PRO Headphone Amplifier 2x THX-AAA 788+ Bluetooth aptX-HD LDAC 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60594-thumb_default/fiio-k9-pro-ess-dac-2x-es9038pro-headphone-amplifier-2x-thx-aaa-788-bluetooth-aptx-hd-ldac-32bit-384khz-dsd256-mqa.jpg)
Fountek FE86
Speaker Driver Full Range 15W 8 Ohm 83dB 95Hz - 20kHz Ø8cm (Unité)
The Fountek FE86 is a small, wideband speaker with a generous ferrite magnet system covering a frequency range of 95Hz to 20kHz. An ideal model for small speaker design.
Technical characteristics
| Specifications | |
|---|---|
| Speaker type | Full range speaker driver |
| Nominal diameter | Ø8cm |
| Power | RMS : 15W Max : 30W |
| Impedance | 8Ω |
| Frequency response | 95Hz - 20kHz |
| Sensitivity | 83.4dB |
| Voice coil diameter | Ø20.3mm (0.8") |
| Thiele-Small Parameters | |
|---|---|
| Resonant frequency (Fs) | 86.4Hz |
| DC Resistance (Re) | 6.3Ω |
| Mechanical quality factor (Qms) | 2.4 |
| Electromagnetic quality factor (Qes) | 0.688 |
| Total quality factor (Qts) | 0.535 |
| Compliance equivalent volume (Vas) | 1.53L |
| Force factor (BL) | 3.656 Tm |
| Diaphragm mass inc. airload (Mms) | 2.689g |
| Max linear excursion (Xmax) | 2.25mm |
| Surface area of cone (Sd) | 29.2cm² |
| SPL | 95.6dB |
| EBP | 126 |
| Materials | |
|---|---|
| Cone | Aluminum |
| Voice coil wire | Copper |
| Magnet | Ferrite |
| Mounting informations | |
|---|---|
| Total external dimensions | 80 x 80mm |
| Cutout diameter | Ø72mm |
| Depth | 41mm |
| Bolt circle diameter | Ø86mm |
| Number of mounting holes | 4 |
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Full range |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 80.0 |
| Diaphragm type | Aluminium |
| Efficiency / Sensitivity (dB) | 83.0 |
| Max Linear Excursion (Xmax) (mm) | 2.5 |
| Lowest frequency (Hz) | 95 |
| Highest frequency (Hz) | 20000 |
