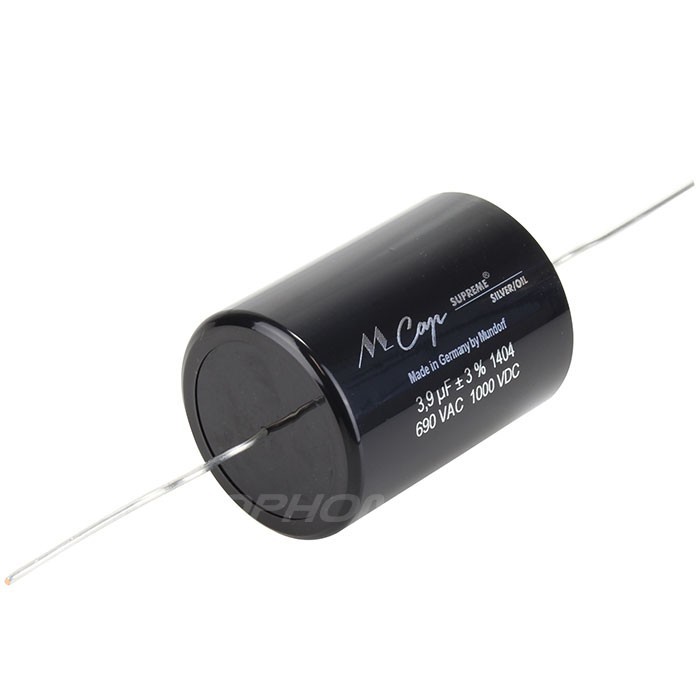

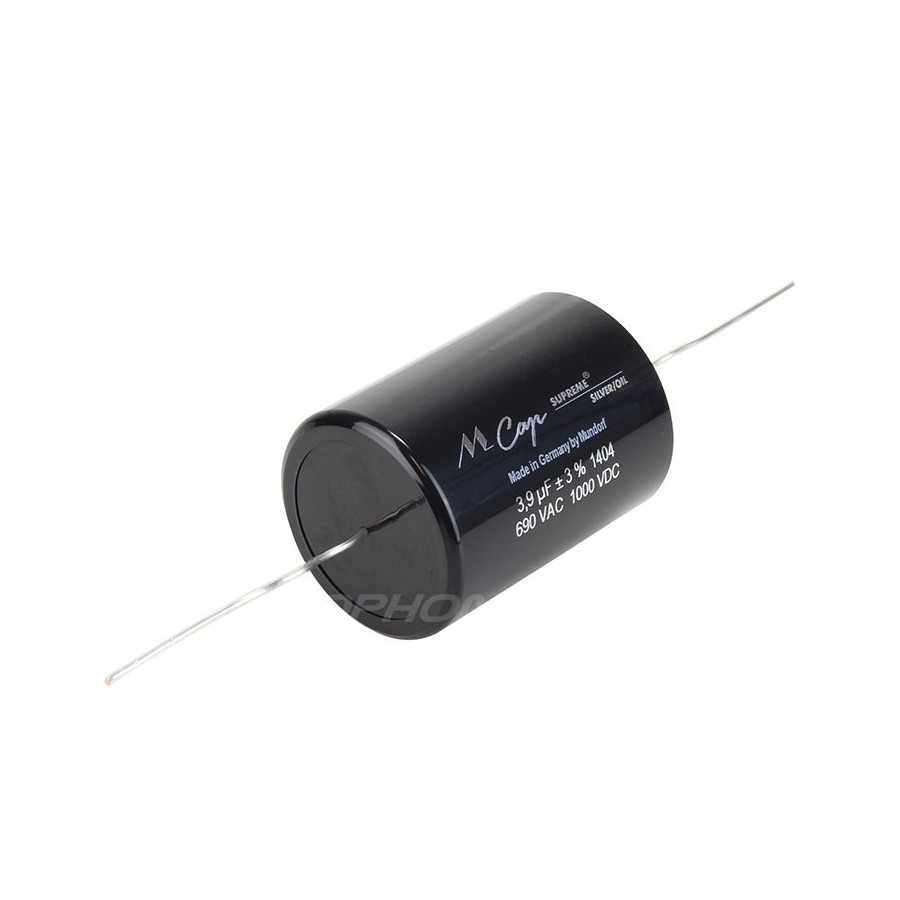

Capacitor 1000V 3.9µF
Mundorf MCap Supreme Silver Oil are capacitors with an oil-impregnated metallized polypropylene dielectric. As the name suggests, high purity Silver is used for the capacitor coating and the winding is impregnated with a special oil that has been developed through extensive testing and listening. These characteristics contribute to a more complete and softer tonal richness and diversity. The metallized Polypropylene foils allow to maintain extremely low tolerances that cannot be reached with traditional oil/paper capacitors.
It is also the first time that the advantages of oil-impregnated capacitors are successfully combined with the long-term stability of metallized paper and internal wiring in series for induction-free performance.
These capacitors allow a lively sound reproduction, thanks to subtle dynamics, high precision and fine details.
Specifications | |
---|---|
Product type | Capacitor |
Capacity | 3.9µF |
Voltage | 1000VDC |
Tolerance | ±3% |
Dielectric | Polypropylene (PP) |
Metallization | Silver |
Loss factor | 0.0002 @ 1kHz 0.0001 @ 10kHz |
Max ambient temperature | 60°C (140°F) |
General | |
---|---|
Dimensions | Ø41 x 57mm |
Wires diameter | Ø1.4mm |
Wires length | 60mm |
Tolerance (%) | 3 |
Capacitor capacitance (µF) | 3.9 |
Rated voltage (V) | 1000.0 |
Capacitor type | Film capacitor |
Capacitor format | Axial |
