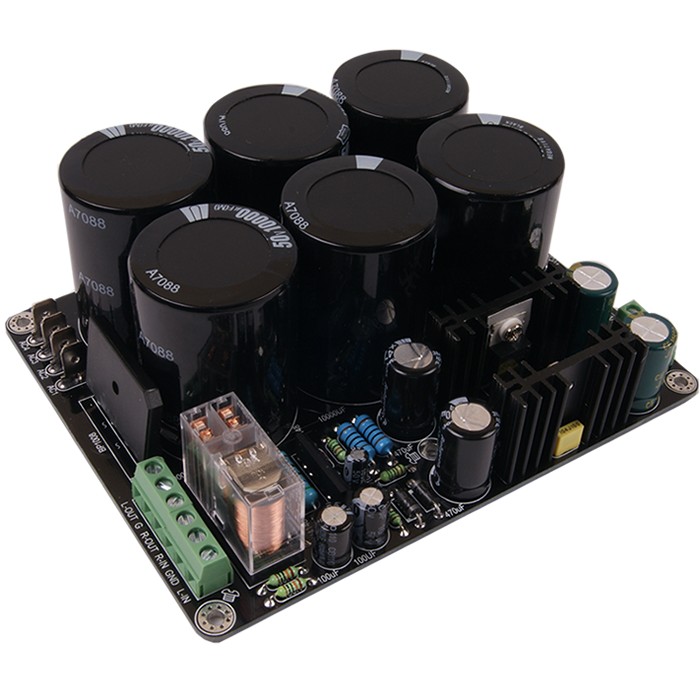

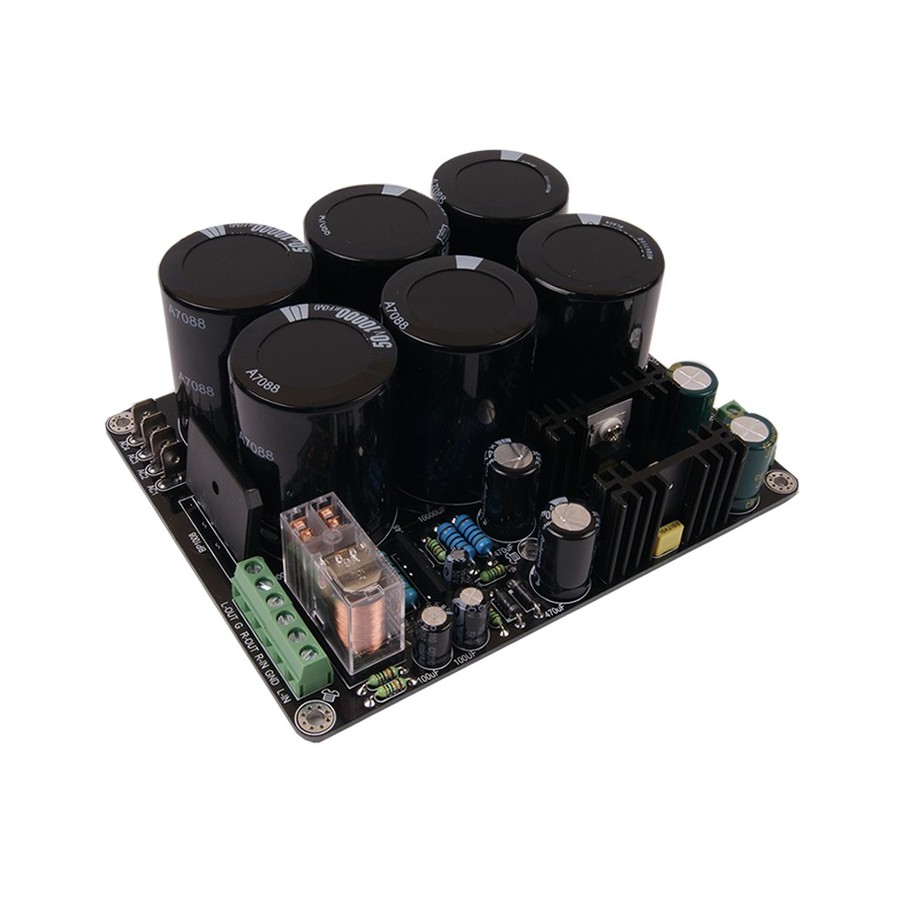

AUDIOPHONICS XDP001 Power Supply Module 6x10000μF / 50V + 12V

Thanks to its high output voltage and its many functionalities, the module AUDIOPHONICS XDP001is proving to be formidable to power a DIY amplifier that is both powerful and reliable.

Thanks to the use of a FAIRCHILD 8A 800V diode bridge of origin, this food can indeed reacha rectified voltage of 50V, supplemented by outputs +/- 12Vgenerated by 2 separate regulators.

As far as filtering is concerned, it is no less 6 capacitorsElectrolytic Nippon Chemi-Con with automatic discharge of each 10000uF / 50Vwhich are used.

The output stage also benefits from a complementary filtering made from 4 capacitorsTAIWAN POLYPROPYLENE of each470uF.

Finally, a relay signed OMRON CORPORATIONensuresEffective Loudspeaker Protectionby turning off the power supply in less than 2s when a DC component is detected in the high-level signal at the output of the amplifier.

Requires the addition of a toric 2 X 35V ACmaximum to operate.

Specifications :

• surfactantn Output: 50V + 12V Max
• Maximum Current per Diode:8.0 Amp
• Maximum Supply Voltages:2 x 35V AC
• Dimensions: 138 x 110mm (L x W)
• Weight:500g
