1.3m long pre-cut cable
Refurbished product - Grade S
This product is sold in the form of 1.3m offcut pieces of cable.
Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m
This Furutech DAS-4.1 balanced interconnect cable offers an absolutely outstanding design quality that will allow you to design your own high-end audio cables. It features two conductors made of three layers braided in opposite directions. The inner layer is made of α-OCC copper and the other two are made of α-DUCC copper, materials that ensure perfect electrical conductivity. The Alpha (α) cryogenic treatment of the conductors allows the material to be optimized to increase its performance.
Each conductor is insulated with a polypropylene (PP) sheath and held in place by a polyester filling. A triple shielding is then used to repel interference that could alter the integrity of the signal. The whole thing is protected by a double PVC sheath, one of which is NCF, and dressed in a beautiful blue and black braided polypropylene sheath.

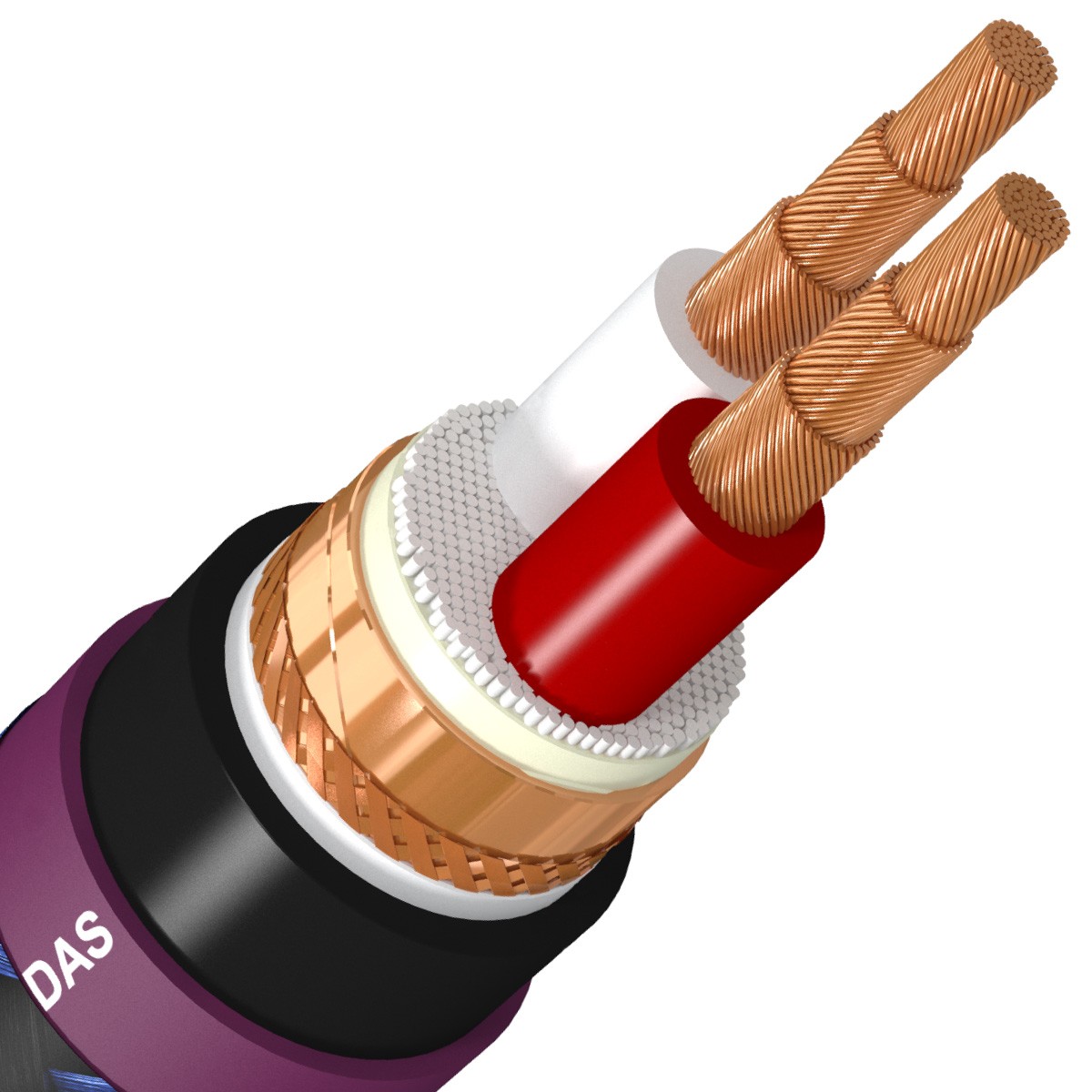

1 | Braide polypropylene (PP) covering sleeve |
2 | PVC external sheath |
3 | PVC and NCF internal sheath |
4 | Papre foil shielding |
5 | Braided α-OCC copper shielding |
6 | Copper foil shielding |
7 | Non-woven fabric wrap |
8 | Polyester filling |
9 | Polypropylene insulation sheaths |
10 | α-DUCC copper outer conductor (right rotate) |
11 | α-DUCC copper middle conductor (left rotate) |
12 | α-OCC copper inner conductor (right rotation) |
Specifications | |
---|---|
Product type | Interconnect cable |
Conductors | α-OCC copper α-DUCC copper |
Conductors section | 1.65mm² (15AWG) |
Insulation | Polypropylene |
Internal sheath | PVC + NCF |
External sheath | PVC |
Covering sleeve | Braided polypropylene |
External diameter | Ø10mm |
General | |
---|---|
Color | Blue and black |
Length | 1.3m |
Diameter (mm) | 10.0 |
Length (m) | 1.3 |
Number of conductors | 2 |
Insulation material | Polypropylene (PP) |
Shielding | Yes |
Section (mm²) | 1.65 |
Conductors material (Cable) | Copper |
Conductors Plating (Cable) | None |
Refurbished Grade | Grade S |
Ground / Shielding | Yes |
