[GRADE S] NEOTECH NEVD-1001 Coaxial Cable 0.8m
0.8m long pre-cut cable
The Neotech cable from the NEVD series has been carefully designed specifically for the transmission of digital audio signals. The main characteristic of digital audio signals is the transmission of very high frequencies. Neotech has therefore focused on minimizing signal loss.
![[GRADE S] NEOTECH NEMOI-1220 Dual Shielded UP-OCC Silver Interconnected Cable Ø10mm 1.5m](https://www.audiophonics.fr/68200-thumb_default/neotech-nemoi-1220-dual-shielded-up-occ-silver-interconnected-cable-o10mm.jpg)
![[GRADE S] 1877PHONO OCC Silver Dart Shielded Power Cable Schuko IEC C15 3x5.26mm² 2m](https://www.audiophonics.fr/68190-thumb_default/1877phono-occ-silver-dart-shielded-power-cable-schuko-iec-c15-3x526mm-2m-stockb.jpg)
![[GRADE S] NEOTECH NEI-1001 II Interconnect Cable Balanced UP-OCC Silver 2x1.17mm² Triple Shielding 0.9m](https://www.audiophonics.fr/68195-thumb_default/neotech-nei-1001-interconnect-cable-balanced-up-occ-silver-3x117mm-triple-shielding-stockb.jpg)
![[GRADE S] OYAIDE VONDITA Power Cable 102SSC Copper Shielded 3x4mm² Ø13mm 0.5m](https://www.audiophonics.fr/68199-thumb_default/oyaide-vondita-power-cable-102ssc-copper-shielded-3x4mm-o13mm.jpg)
![[GRADE S] 1877PHONO OCC Silver Dart Modulation Cable XLR-XLR (Pair) 1.5m](https://www.audiophonics.fr/68189-thumb_default/1877phono-occ-silver-dart-modulation-cable-xlr-xlr-pair-15m-stockb.jpg)
![[GRADE S] 1877PHONO OCC SILVER DART Speaker Cables Spades OCC Copper / Silver 2.5m (Pair)](https://www.audiophonics.fr/68178-thumb_default/1877phono-occ-silver-dart-speaker-cables-spades-occ-copper-silver-25m-pair-stockb.jpg)
![[GRADE A] LAIV HARMONY DAC Balanced Discrete R2R OS/NOS 768kHz DSD256 Silver](https://www.audiophonics.fr/68173-thumb_default/laiv-harmony-silver-stockb.jpg)
Refurbished product - Grade S

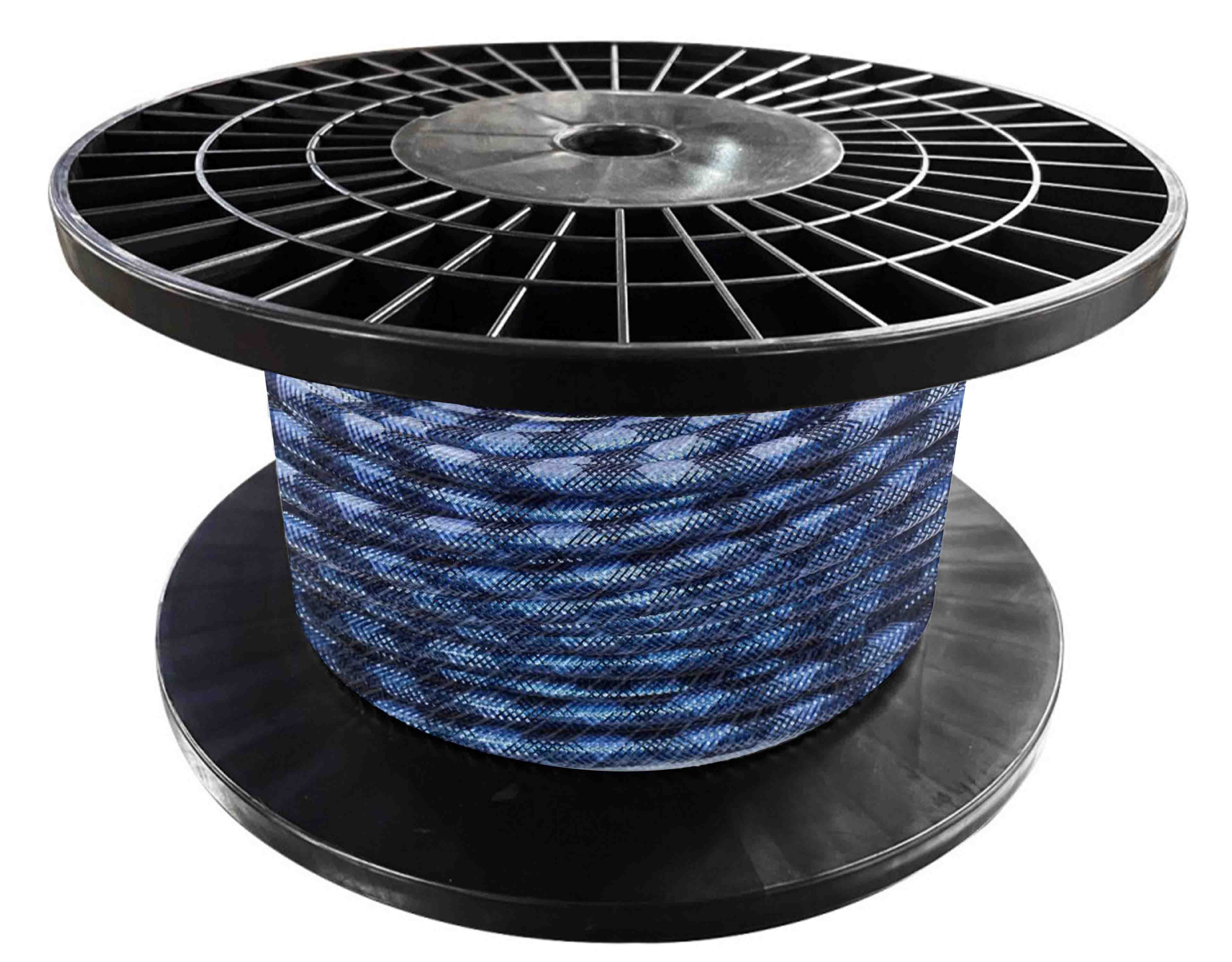

This product is sold in the form of 0.8m offcut pieces of cable.
NEOTECH NEVD-1001Coaxial Cable 75 Ohm Pure Silver OCC Quad Shield Ø7.6mm 0.8m
The Neotech cable from the NEVD series has been carefully designed specifically for the transmission of digital audio signals. The main characteristic of digital audio signals is the transmission of very high frequencies. Neotech has therefore focused on minimizing signal loss.

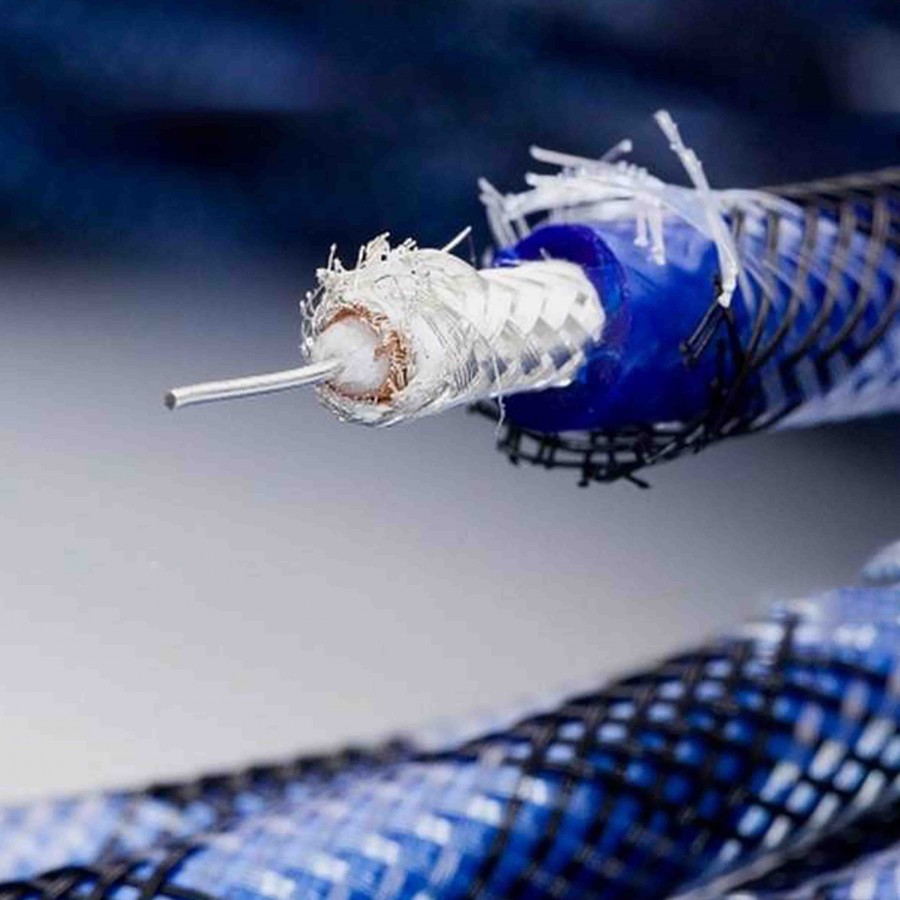

The NEVD-1001 is an excellent coaxial digital cable with 75Ω impedance, offering wide bandwidth to reduce jitter and ensure maximum resolution. The cable benefits from an exceptional design, with a pure OCC Silver conductor and a particularly effective quadruple shield consisting of Polyethylene foam, Copper-Mylar foil, microporous PTFE and SP-OFC braid.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Coaxial cable |
| Impedance | 75Ω |
| Conductor | OCC pure Silver |
| Quad shielding | Polyethylene foam Cu-Mylar foil Microporous PTFE Braided SP-OFC |
| Diameter | Ø7.6mm |
| Length | 0.8m |
| Diameter (mm) | 7.6 |
| Length (m) | 0.8 |
| Number of conductors | 1 |
| Insulation material | PE |
| Insulation material | PTFE |
| Shielding | Yes |
| Section (mm²) | N/A |
| Conductors material (Cable) | Silver |
| Conductors Plating (Cable) | None |
| Ground / Shielding | Yes |
