Ramm Audio Elite 8 Interconnect cable

RAMM AUDIO ELITE8 Interconnect Cable OCC Copper Triple Shielding Ø9,2mm
-15%
Refurbished product - Grade S

2.9m long pre-cut cable


The Ramm Audio Elite8 is designed to provide the best possible analog connection to preserve the integrity of the transmitted signal. The result is a very low level of distortion and noise for a very transparent reproduction.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 18549
Refurbished
Limited special offer

57,71 €tax incl.

-15%

49,00 €tax incl.

40,83 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade S

This product is sold in the form of 2.9m offcut pieces of cable.


Ramm Audio Elite8

Interconnect Cable OCC Copper Triple Shielding Ø9,2mm 2.9m

Ramm Audio Elite8 Câble de modulation Cuivre OCC Triple Blindage Ø9.2mm

The Ramm Audio Elite8 is designed to provide the best possible analog connection to preserve the integrity of the transmitted signal. The result is a very low level of distortion and noise for a very transparent reproduction.

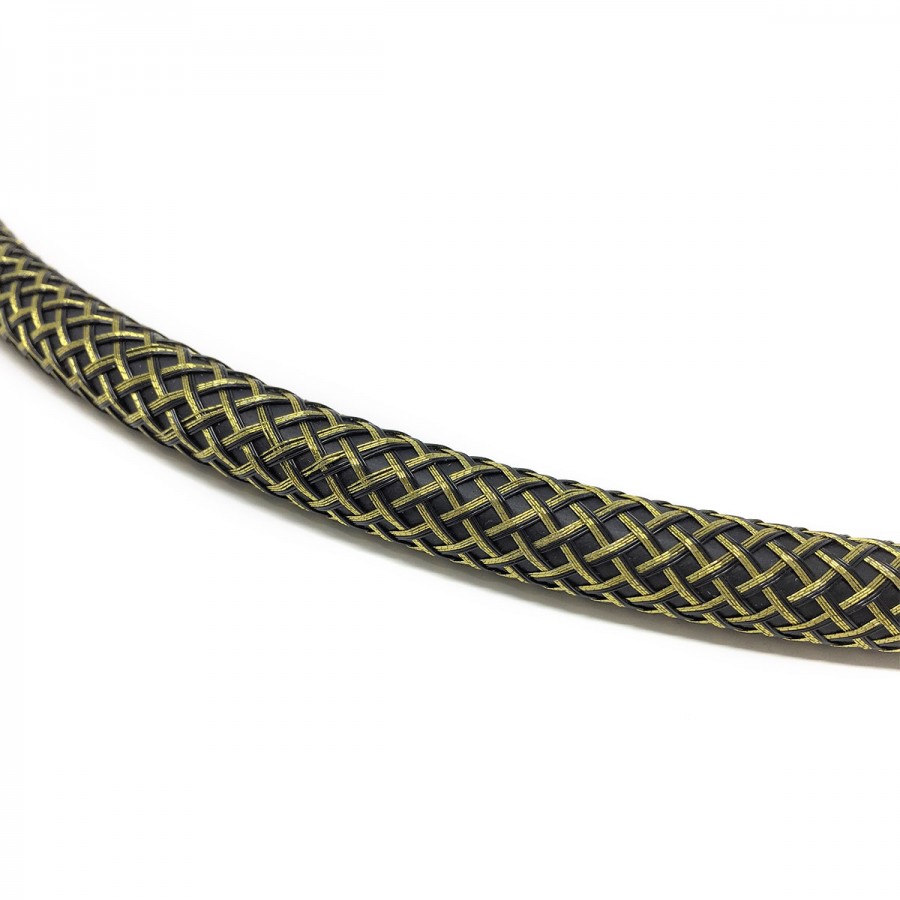

To achieve this result, the Elite8 incorporates geometrically organized OCC copper conductors with triple shielding and cotton filling. Each conductor is cryogenically treated to further improve transmission quality. It also uses the NBU (Noise Bypass Unit) technology with the use of a floating ground, which consists in separating the shield ground from the signal ground. The shield ground, connected only on one side, works like a Faraday cage, protecting the conductors from interference. A beautiful gold and black Nylon sheath finally dresses the cable, giving it excellent mechanical resistance and a beautiful design. This model is ideal for symmetrical connections.

Ramm Audio Elite8 Câble de modulation Cuivre OCC Triple Blindage Ø9.2mm

Manufacturer's assembly instructions for wiring XLR connectors:
- The connection is made directly Pin to Pin for each of the 3 cores. The earth wire is optional, but can be connected to the body of the source connector.

Manufacturer's assembly instructions for wiring RCA connectors:
- Combine 2 cores for the (-) signal, and 1 core for the (+) signal. The earth wire is connected to the source connector.

Technical characteristics

Specifications
Product typeInterconnect cable
ConductorsOCC Copper
Cable diameterØ9.2mm
Triple shieldingAluminum-Mylar + PP
External sheathPVC
Cover sleeveBraided Nylon
ColorBlanc and gold
Length2.9m

Data sheet
Diameter (mm)9.2
Length (m)2.9
Number of conductors3
Insulation materialPolypropylene (PP)
ShieldingYes
Section (mm²)N/A
Conductors material (Cable)Copper
Conductors Plating (Cable)None
Refurbished GradeGrade S
Ground / ShieldingYes
