Refurbished product - Grade S
Brand new product.
for Raspberry Pi 32bit 768kHz DSD512

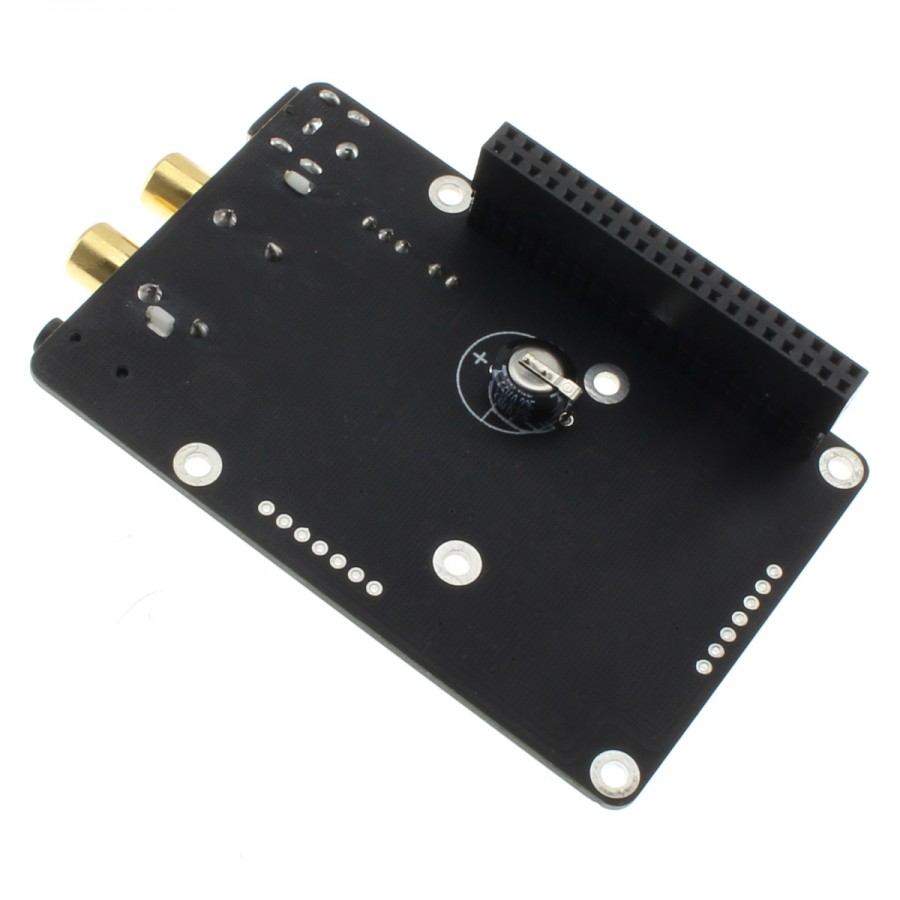

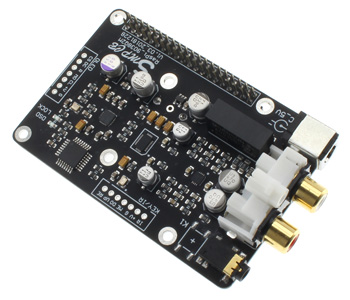

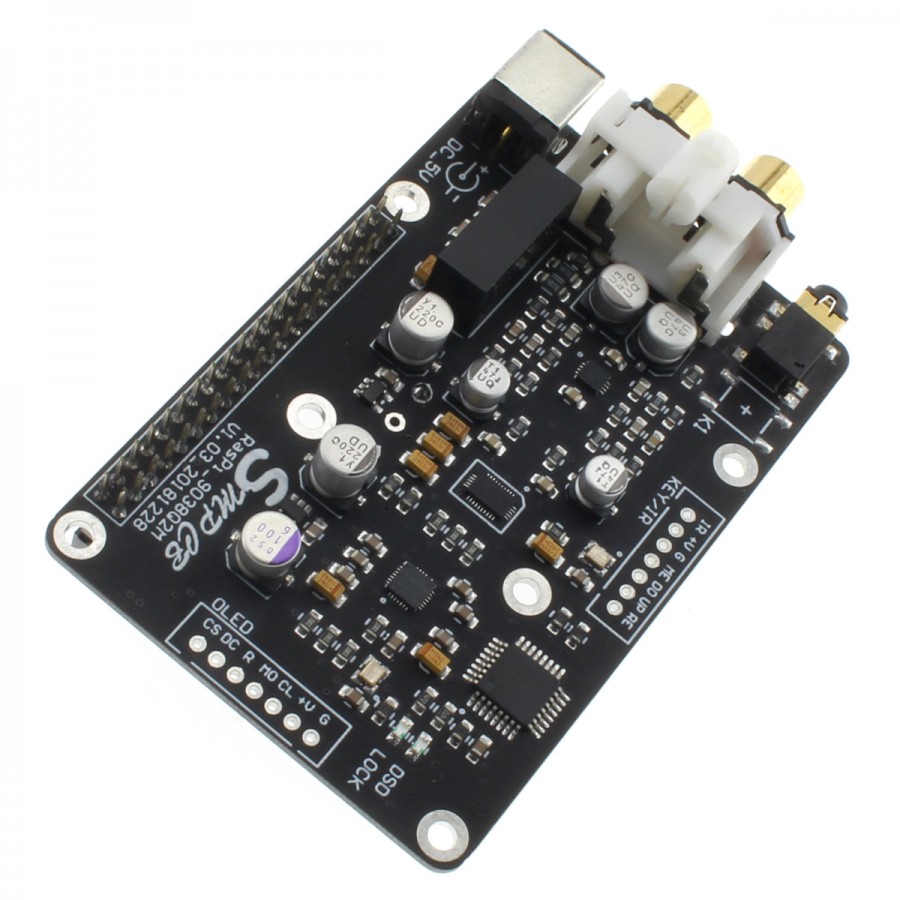

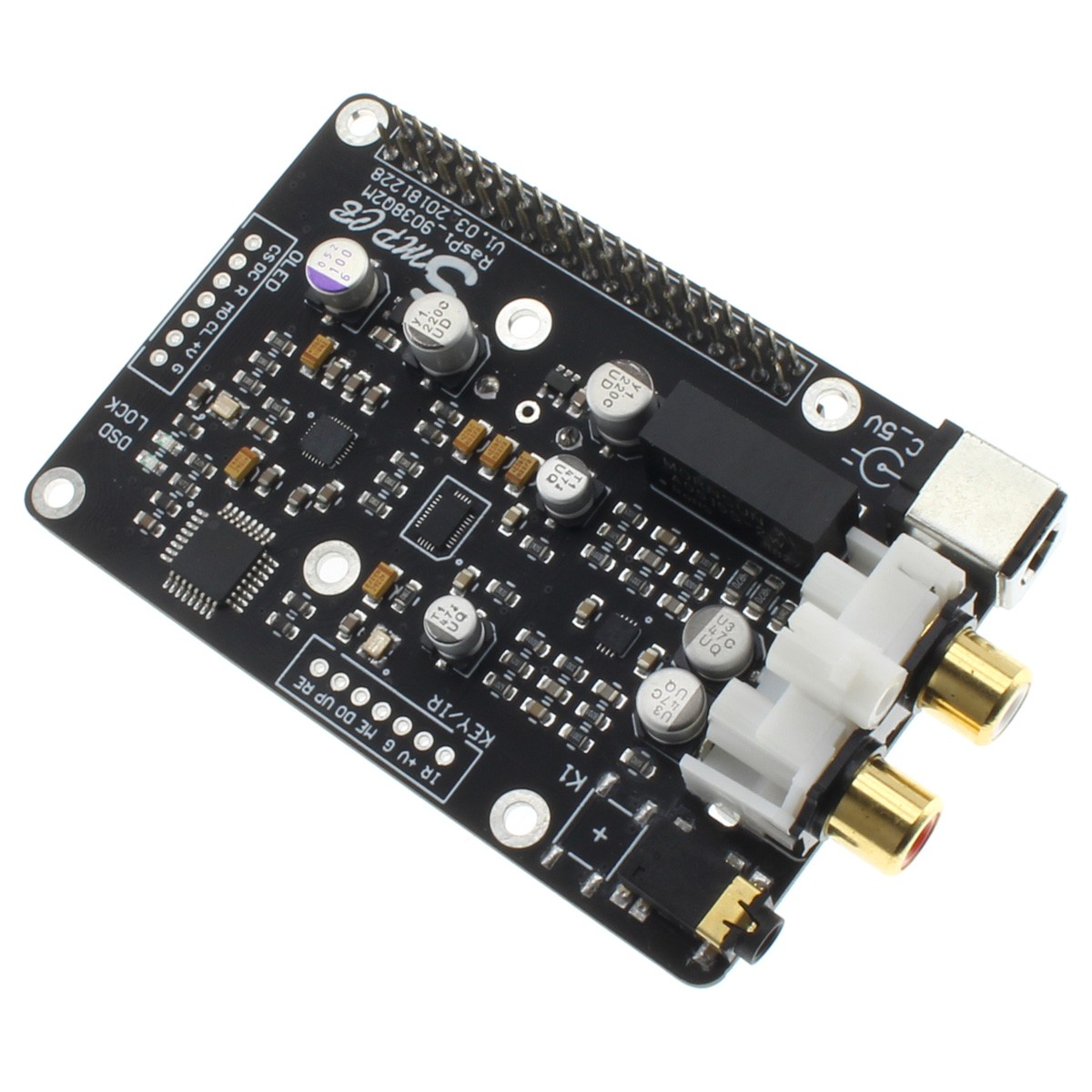

This digital to analog converter module for Raspberry Pi uses an ES9038Q2M DAC chip capable of supporting high sampling rates up to PCM 32bit 768kHz and DSD512. The input is done on a 40 pins GPIO port, the module is mounted directly on a Raspberry Pi. The output can be either stereo RCA or 3.5mm jack. The module also allows to add an OLED screen and a control panel and IR receiver (sold separately). The power supply is done either directly on the module via its Jack DC connector or from the Raspberry Pi, which is shared via the GPIO port.
You only need to power either the DAC module or the Raspberry Pi. Powering both at the same time could damage the hardware.
Specifications | |
---|---|
Product type | DAC Board |
DAC Chip | ES9038Q2M |
Input | GPIO 40 pins |
Outputs | 1x Stereo RCA 1x Jack 3.5mm |
Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD512 |
General | |
---|---|
Supply voltage | 5VDC |
Dimensions | 85 x 56mm |
Mounting holes spacing | 58 x 49mm |
Package | 1x Module DAC ES9038Q2M Screws and spacers |
