[GRADE B] LOXJIE A30 Class D Amplifier Infineon MA12070 Bluetooth 5.0 2x50W 4 Ohm
With the A30, Loxjie offers an excellent Class D amplifier that is powerful, compact and affordable. It features excellent components for great sound reproduction and full connectivity for easy integration into the vast majority of audio systems.
By buying this product you get 17 loyalty points
![[GRADE B] LOXJIE A30 Amplificateur Class D Infineon MA12070 Bluetooth 5.0 2x50W 4 Ohm](https://www.audiophonics.fr/44930-thumb_default/-grade-b-loxjie-a30-class-d-amplifier-infineon-ma12070-bluetooth-50-2x50w-4-ohm.jpg)
![[GRADE B] AUDIOPHONICS HPA-S500ET Power Amplifier Class D Stereo Purifi 1ET7040SA 2x500W 4 Ohm](https://www.audiophonics.fr/68112-thumb_default/audiophonics-hpa-s500et-stockb.jpg)
Refurbished product - Grade B
The product has two small impacts on the paint of the case, at the level of the upper left edge. Some scratches almost invisible under the device.

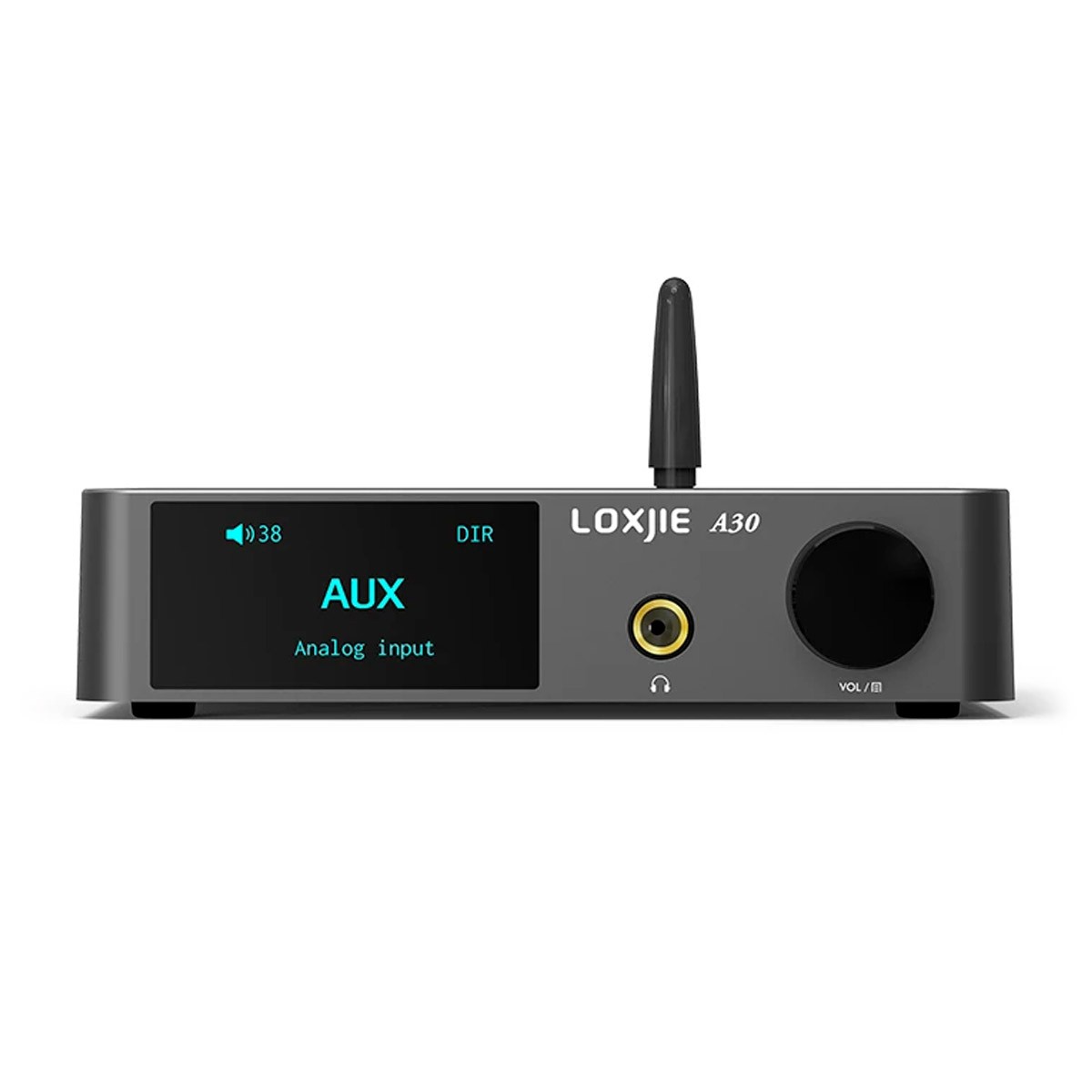

Loxjie A30
Class D Amplifier Infineon MA12070 Bluetooth 5.0 2x50W 4 Ohm
With the A30, Loxjie offers an excellent Class D amplifier that is powerful, compact and affordable. It features excellent components for great sound reproduction and full connectivity for easy integration into the vast majority of audio systems.
Infineon Merus MA12070 amplifier

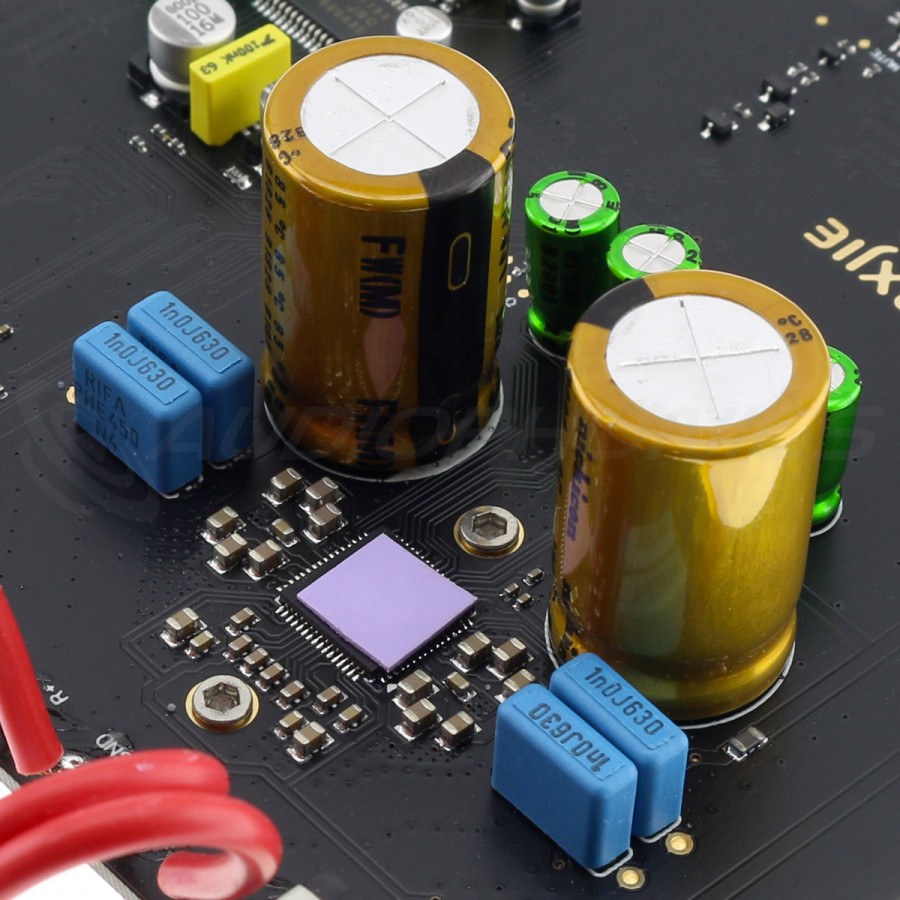

The amplification circuit is based on an Infineon Merus MA12070 chip. This allows to develop a consequent power of 2x50W under 4Ω, while ensuring a very low distortion, an excellent efficiency and a complete protection system.
The chip's power management algorithm automatically adjusts switching frequency and modulation to limit power loss and EMI interference.
Subwoofer output
The A30 has a suwboofer output on RCA connector. It is thus possible to use the amplifier to power a 2.1 system and enjoy a rich reproduction with deep bass.
Bluetooth

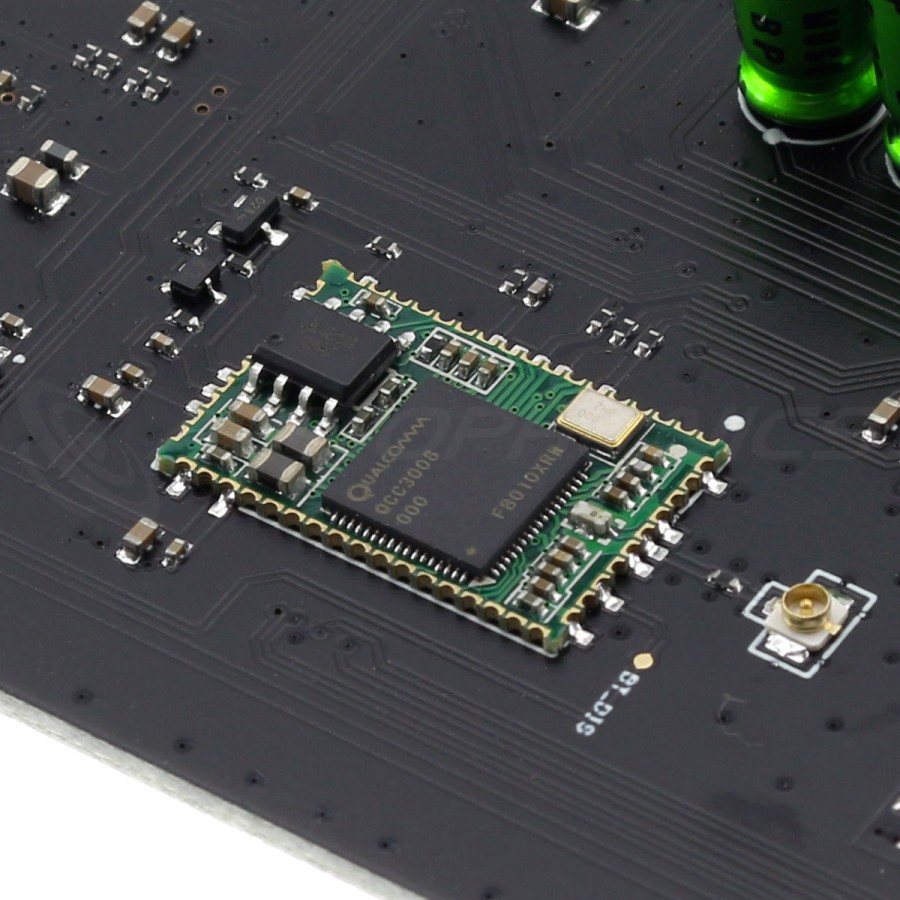

Convenient, the Loxjie A30 allows you to receive your audio files remotely, in Bluetooth, directly from your smartphone. The Bluetooth 5.0 standard combined with the aptX protocol allows for a stable and high quality transmission.
EQ Mode
To suit your listening style and your audio system, the A30 offers no less than 7 preset equalizers as well as a customizable equalizer. The bass and treble levels can be adjusted in 1dB steps from -10dB to +10dB.
Complete connection system

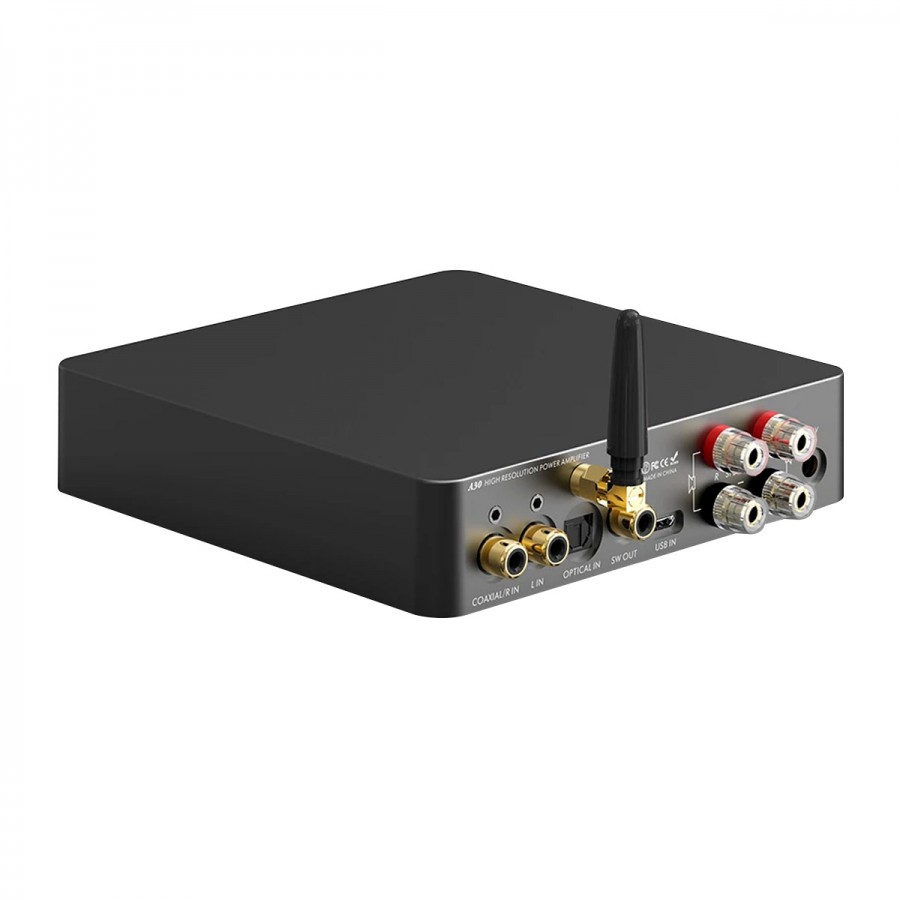

The A30 has full connectivity to integrate with the vast majority of audio systems. The A30 has stereo RCA, Coaxial, Optical and Micro USB inputs. This last input supports sample rates up to PCM 32bit 384kHz. On the output side, there are speaker terminals on the back and a 6.35mm headphone output on the front.
Coaxial input and RCA input share the same interface and therefore cannot be used at the same time.
Quality components

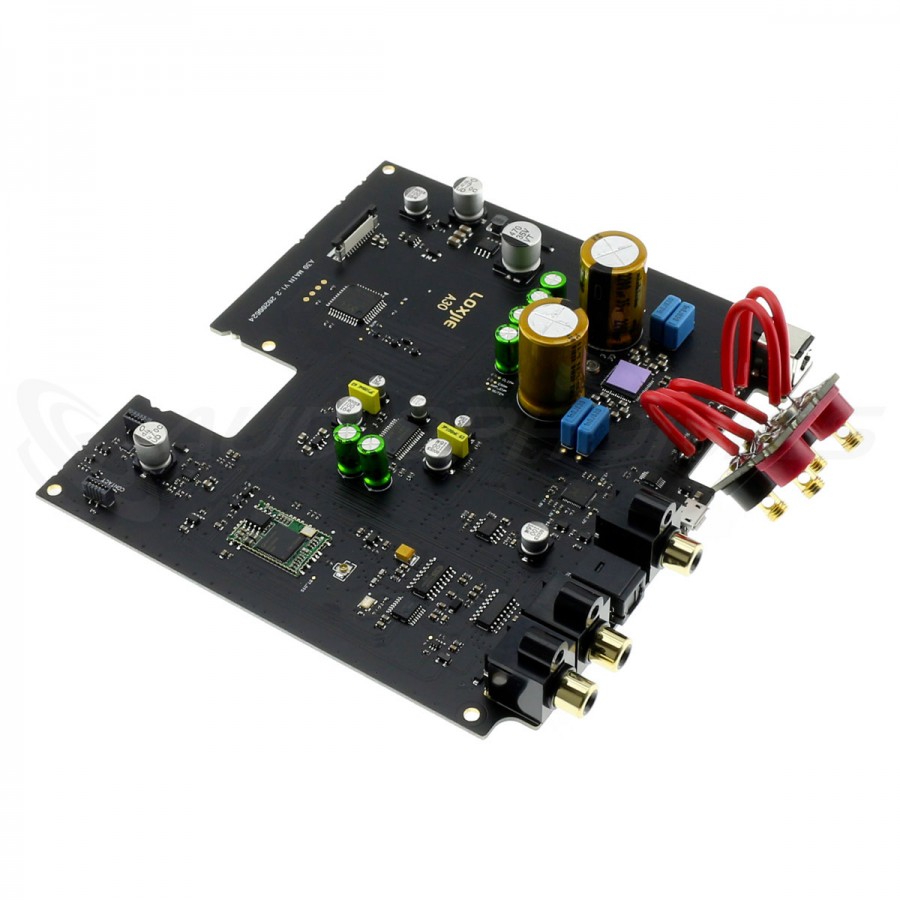

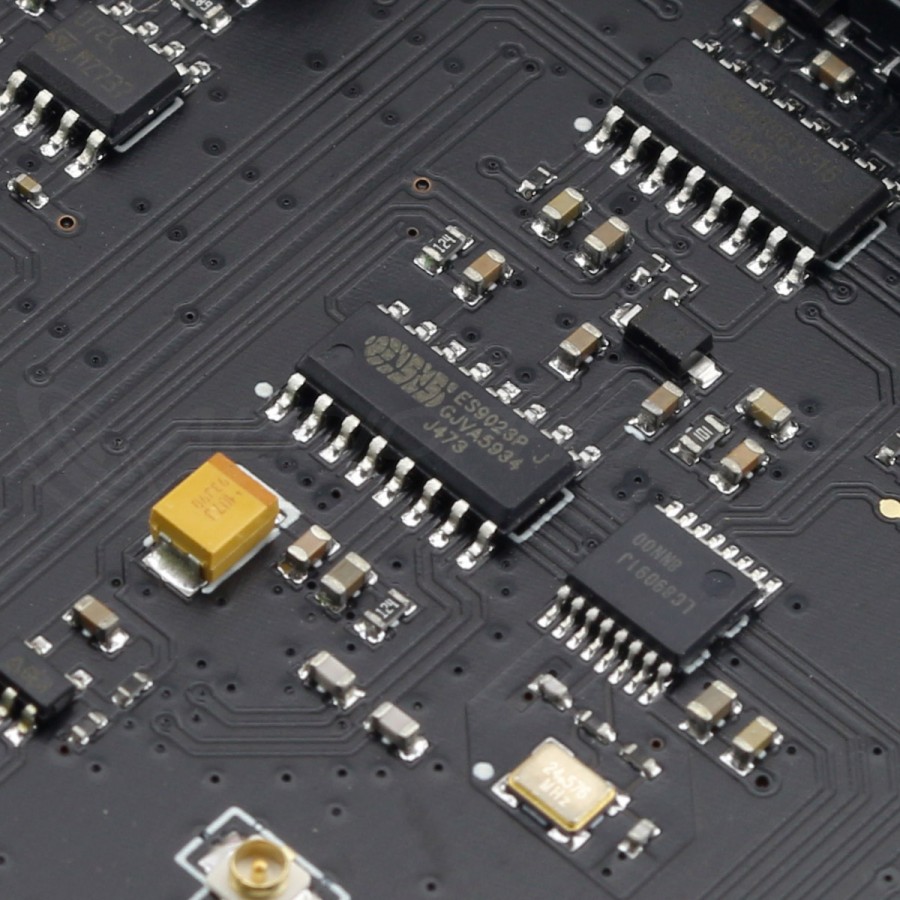

The entire Loxjie A30 benefits from a careful design, based on components known for their audio quality. While the A30 features the very good Infineon MA12070 amplifier chip, the A30 also includes a 24-bit ESS ES9023 DAC with an integrated 2Vrms AOP. The latter uses HyperStream architecture and Time Domain Jitter Eliminator technology to significantly reduce jitter and provide a dynamic range of 112dB.
Volume and tone control is entrusted to an NJW1194 chip, ensuring low distortion and low noise with a ladder resistor system.
Robust and elegant
The components of the A30 are housed in an elegant and robust aluminum case, offering excellent rigidity that also eliminates case vibration, while limiting the impact of electromagnetic interference on the circuits. The screen is protected by a highly transparent tempered glass pane.
Diagram
| 1 | Screen |
| 2 | Jack 6.35mm Headphone output |
| 3 | Volume / Power button |
| 4 | Coaxial / RCA right channel input |
| 5 | RCA left channel input |
| 6 | Bluetooth antenna |
| 7 | Optical input |
| 8 | Subwoofer output |
| 9 | Micro USB input |
| 10 | Speaker terminals |
| 11 | Power connector 24VDC |
Test du Loxjie A30 par Audio Science Review
" The Loxjie A30 is an attractive, solid performance with excellent measured and subjective sound quality. Inclusion of a USB DAC and Coax/Toslink input eliminates the need for a DAC for less clutter "
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier |
| Amplifier type | Class D |
| Inputs | 1x Micro USB 1x Coaxial 1x Stereo RCA 1x Optical Bluetooth 5.0 |
| Outputs | Speaker terminals 1x Subwoofer output 1x Jack 6.35mm headphone output |
| Amplification chip | Infineon Merus MA12070 |
| DAC chip | ESS ES9023 |
| Volume control chip | NJW1194 |
| THD+N (A-Weighted) | 0.003% |
| SNR (A-Weighted) | 108dB |
| Power | 2x 50W @ 4Ω |
| Headphone output power | 100mW @ 32Ω |
| General | |
|---|---|
| Housing material | Aluminum |
| Consumption | 35W |
| Dimensions | 151 x 170 x 38mm |
| Weight | 520g |
| Color | Grey |
| Package | 1x Loxjie A30 1x Remote control 1x Bluetooth antenna 1x USB cable 1x Power supply |
THD+N / Output power (4Ω)
THD+N / Output power (8Ω)
Frequency response
| Input | RCA |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | Subwoofer |
| Output | Jack 6.35mm |
| Output | Screw terminals |
| Color | Gray |
| Channel | 2.1 |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | Infineon MA12070 |
| Power (W) | 50.0 |
| Remote Control | Yes |
| Refurbished Grade | Grade B |
