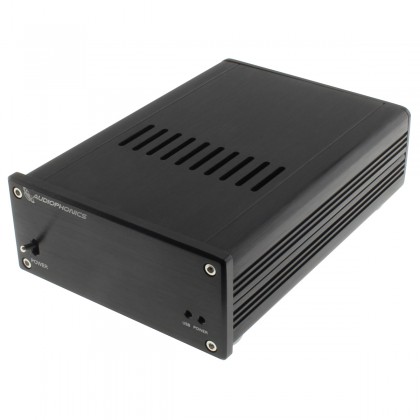

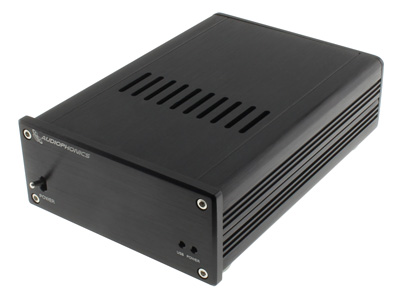

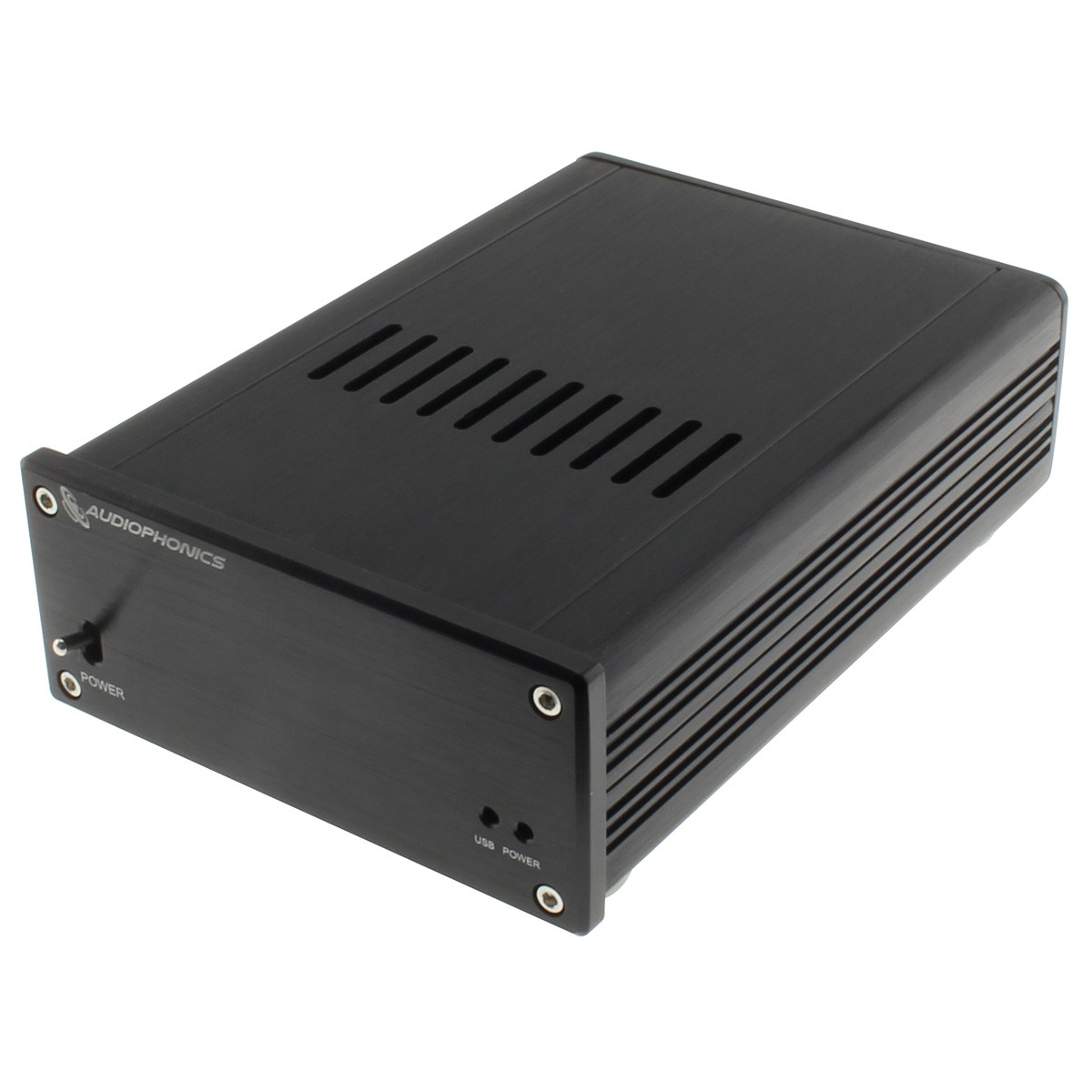

[GRADE S] AUDIOPHONICS XMOS U208 Digital interface USB I2S AES 2x TCXO OTG 24bit 192kHz
This interface based on the now famous XMOS U208 provides high level digital outputs in S/PDIF coaxial, optical, AES/EBU and I2S. USB has Asynchronous USB management.
By buying this product you get 15 loyalty points
![[GRADE B] AUDIOPHONICS HPA-S500ET Power Amplifier Class D Stereo Purifi 1ET7040SA 2x500W 4 Ohm](https://www.audiophonics.fr/68112-thumb_default/audiophonics-hpa-s500et-stockb.jpg)
Refurbished product - Grade S
Brand new product.
USB XMOS U208 Interface
24bit 192kHz

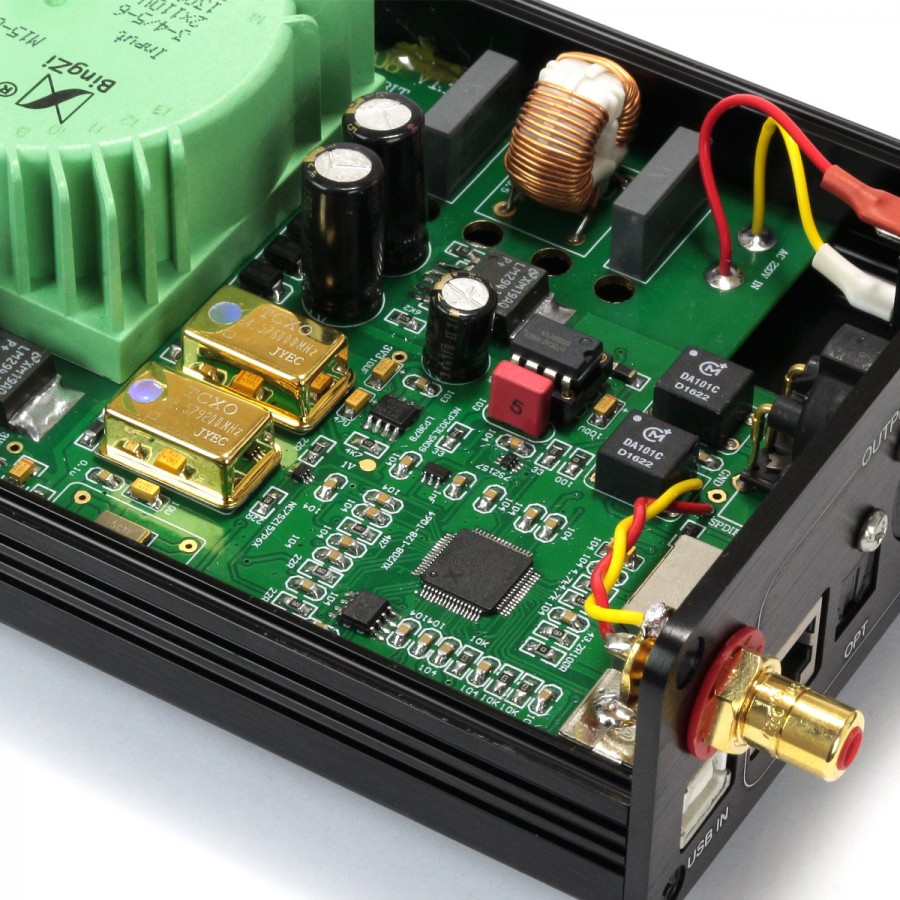

This interface based on the now famous XMOS provides high level digital outputs in S/PDIF coaxial, optical, AES/EBU and I2S. USB has Asynchronous USB management. This version offers an XMOS U208 interface combined with an integrated regulated linear power supply. Recognized without drivers under MacOS and linux this one requires a Windows driver (Click here). This model has a regulated linear power supply as standard and can be directly connected to the 220V. This digital interface is compatible with Audio-GD devices with RJ45 I2S or AES / EBU input.
Technical characteristics
| Specifications | |
|---|---|
| USB interface | XMOS U208 OTG Compatible |
| Clock | TCXO 24.57Mhz TCXO 22.57Mhz 12Mhz |
| Jitter | 4.6ps (2x TCXO) |
| Low noise regulated power supply | (power cable not supplied) |
| Compatibility | Raspyfi, Volumio, piCorePlayer |
| Digital outputs | 1x Coaxial 75Ω : 24bit 192kHz 1x AES/EBU 110Ω : 24bit 192kHz Optical Toslink : 24bit 192kHz I2S via RJ45 : 24bit 192kHz |
| General | |
|---|---|
| Housing material | 100% Aluminium |
| Color | Black / Silver |
| Dimensions | 162 x 114 x 47mm |
| Weight | 0.9kg |
| Power cable | Not included |

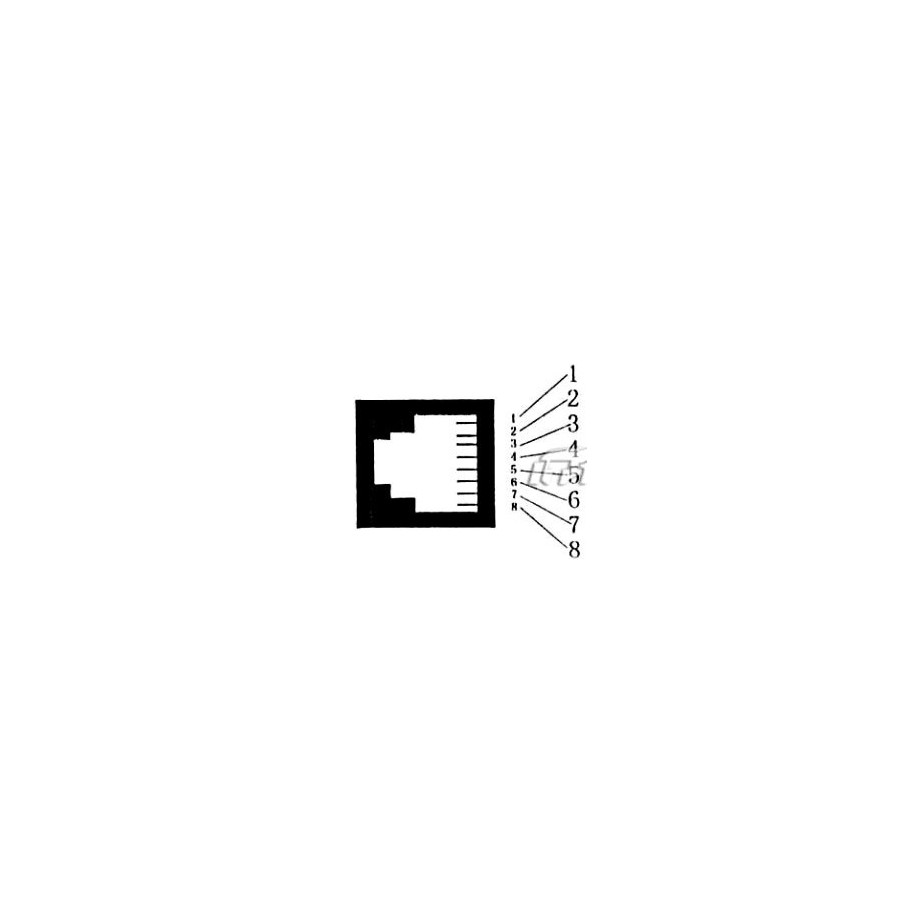

Wiring diagram of I2S output on RJ45 connector
| Pin 1 : | DATA DSD A |
| Pin 3 : | I2S LRCK DSD CLK |
| Pin 5 : | I2S SCLK DSD B |
| Pin 7 : | I2S MCLK |
| Pin 6 & 8 : | GND MCLK |
| Pin 2 & 4 : | GND |
| Input | USB |
| Output | I2S via RJ45 |
| Output | Optical Toslink |
| Output | AES/EBU |
| Output | Coaxial SPDIF |
| Max sampling rate | 384kHz |
| Color | Black |
| Interface chip | XMOS XCore U208 |
| Refurbished Grade | Grade S |
