Audio Input Selector Module 4 Buttons

Audio Input Selector Module 4 Buttons
This simple circuit to associate with a programmable module such as an Arduino or Raspberry Pi will allow you to create a source selector. The card includes 4 buttons, each corresponding to a resistance value.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 13417
New product

1,90 €tax incl.

1,58 € tax excl.

- +

Shipping date: 27-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Sélecteur de source

Module Sélecteur de Source 4 Boutons

Module Sélecteur de Source 4 Boutons

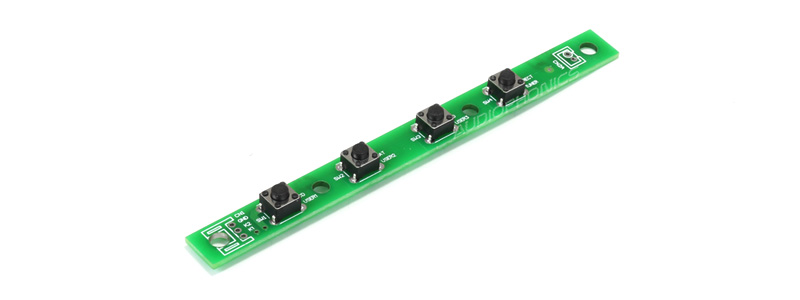

This simple circuit to associate with a programmable module such as an Arduino or Raspberry Pi will allow you to create a source selector. The card includes 4 buttons, each corresponding to a resistance value (see diagram below) and therefore to a possible source.

Note: This circuit cannot work alone. It is necessary to associate it with a programmable element such as an Arduino.


Technical characteristics

Specifications
Product typeAudio input selector circuit
Buttons number4
Dimensions110 x 10mm

Data sheet
InputSolder pad
OutputSolder pad
