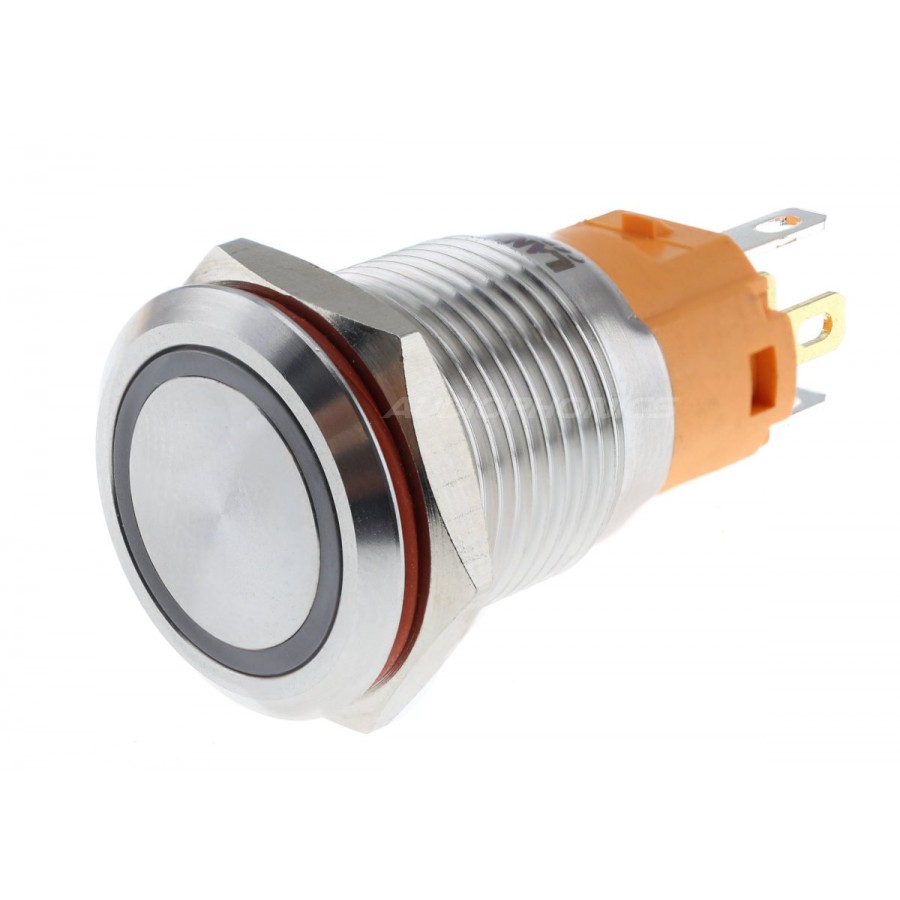

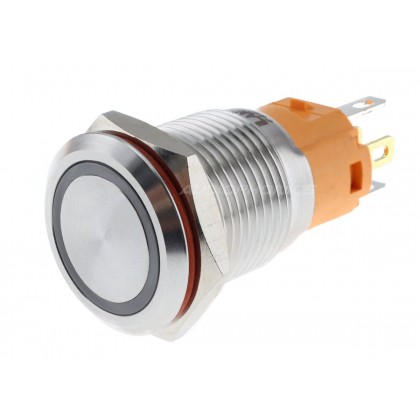

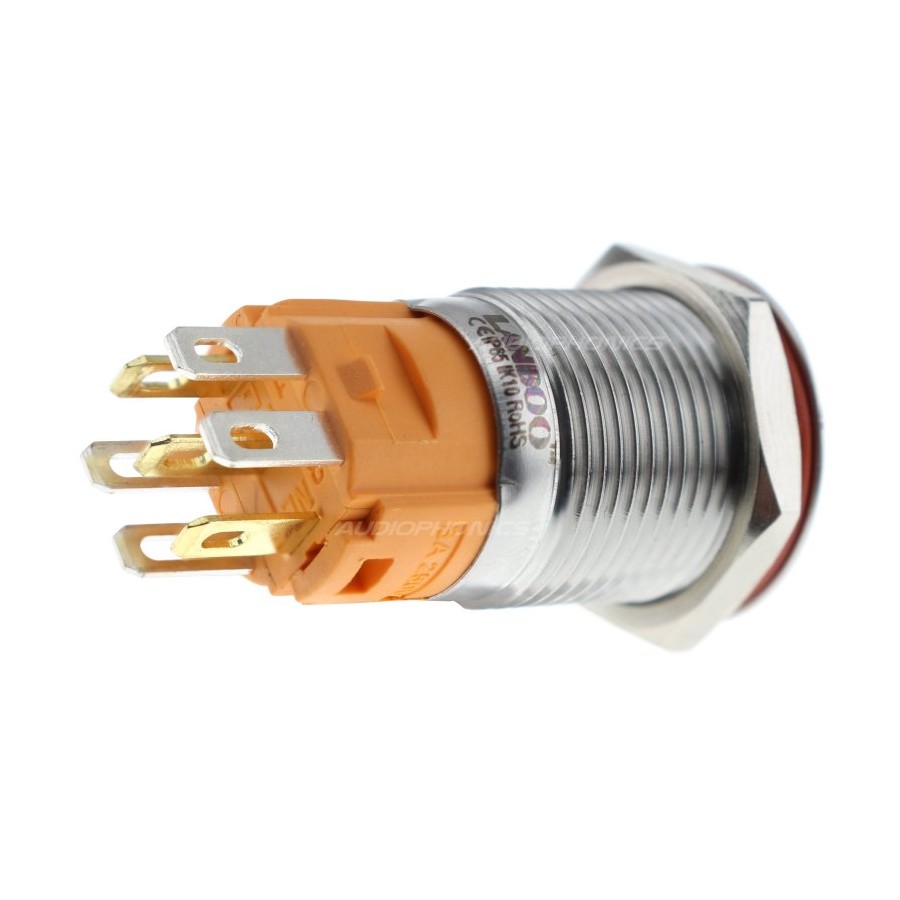

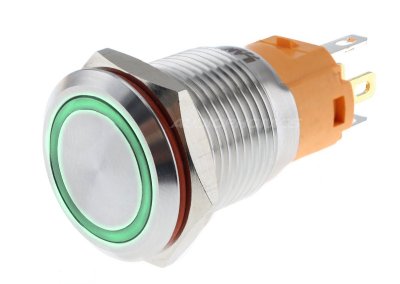

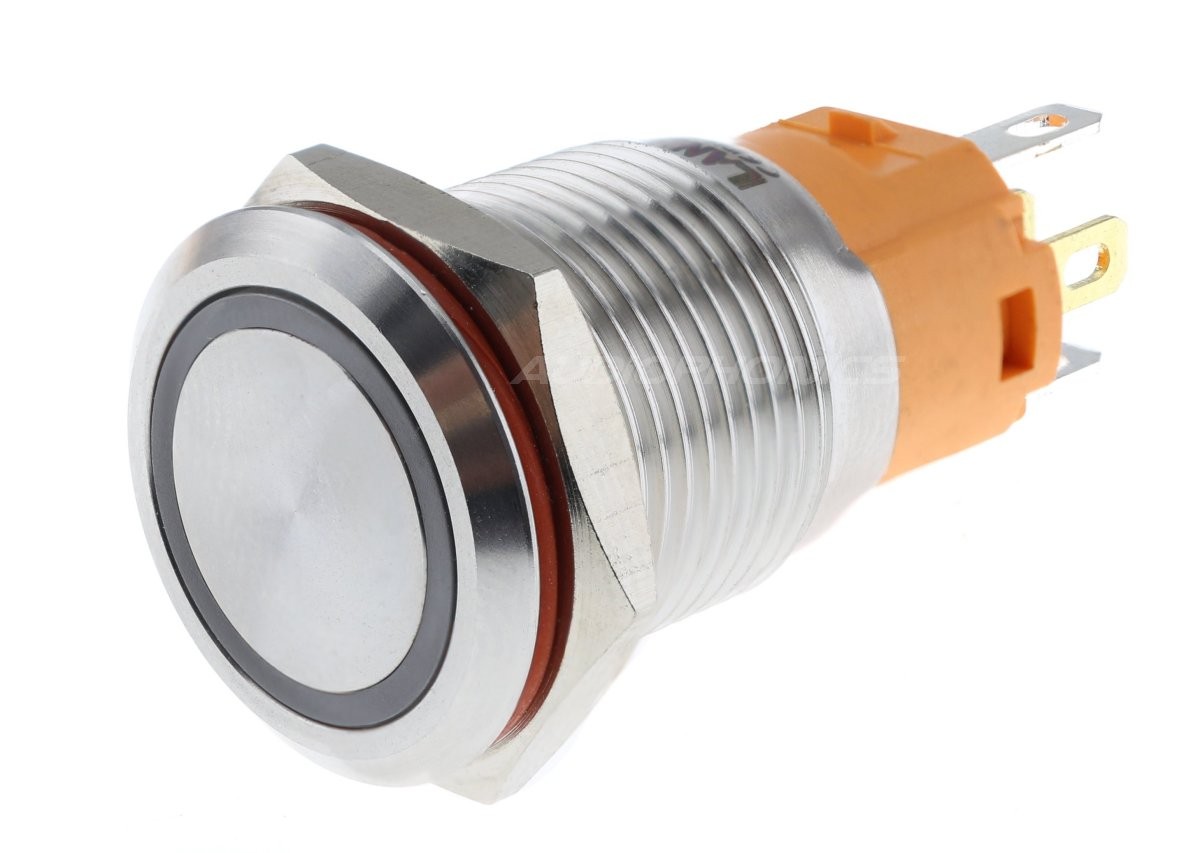

LB Bistable Aluminium switch with RGB light 250V Ø16mm Silver

LB Interrupteur Aluminium Anodisé avec Cercle Lumineux Blanc 24V Ø16mm Argent

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 14283
New product

5,90 €tax incl.

4,92 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Push button with LED (RGB)

2 positions NONC 250V 15A


NONC type button with configurable light indicator. Operates with stable mechanism (two positions).

The connectors dedicated to the signal / power are gold plated and can withstand a voltage of 250V / 15A . Those dedicated to power / control the light indicator (LED) will in turn accept voltages between 9 and 24V.

A perfect piece for your projects, DIY assembly to repair / upgrade an existing device or build a control panel from scratch.

The housing and the surface of the button are chromed to protect the mechanism against the corosion, sudden changes in temperature and oxidation. The mechanical parts and have a longer life.

Adjustable RGB LEDs


The button has 3 LEDs (Red, Green, Blue) that can be controled individually in order to create custom color or gradiants.

.

Compatible with 16mm quick connector


This button is compatible with quick connectors designed for 16 mm diameter button.

Please note that the quick connector is not provided with the button.

Dimensions

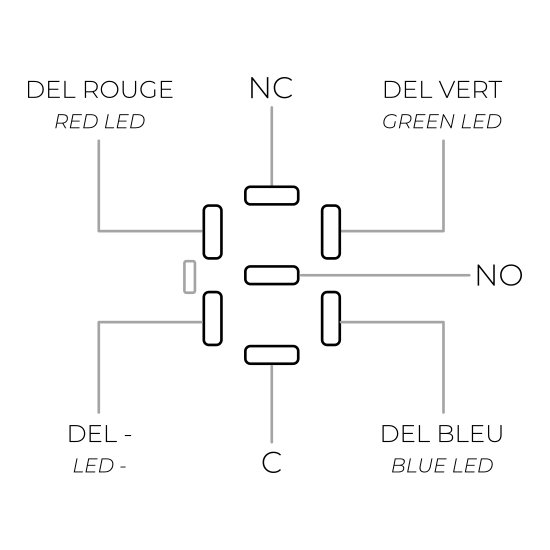

Connection schematics

Specifications
Type of productPush button 2 positions NONC
Thread diamter16 mm
Max panel thickness11 mm
Overall Dimensions28 mm x ⌀22 mm
LEDRGB LED
Voltage up to 24V
Consumption: <20mA.
Pins numberx7
Voltage / Current250VAC
15A (resistive load)
Mechanical resistance> = 50000 cycles
LED lifespan40,000 hours
Operating temperature-30 ° C, + 80 ° C
Button stroke lengthContact: 1.8mm
Stop: 3.1 mm
Insulating<1000mΩ
Dieletric strength1000VAC

Data sheet
LED ColorWhite
Number of positions2
Button typeN/A
