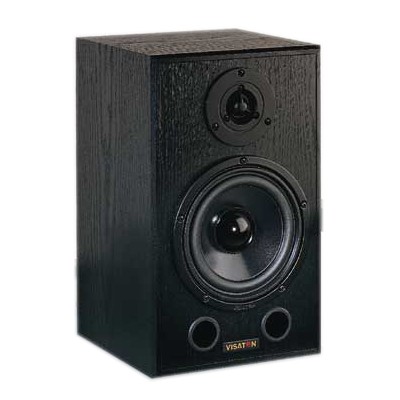

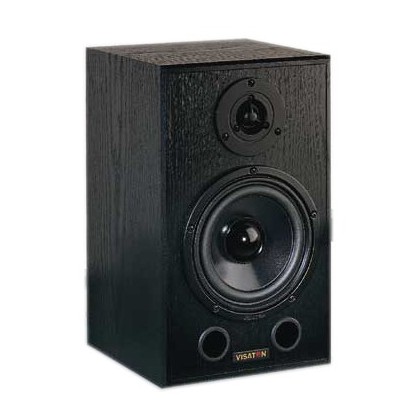

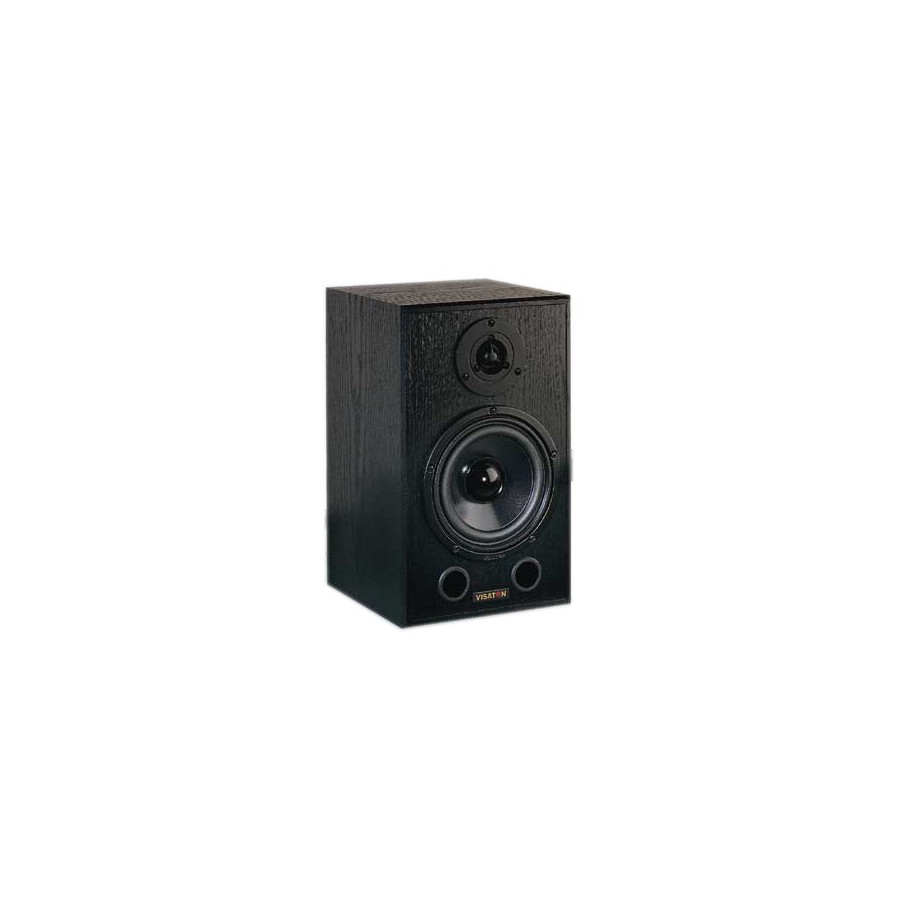

Visaton ALTO 1 Kit for speakers library (pair)

This kit includes everything you need (besides carpentry) to produce high-quality library loudspeakers, so you can easily learn the pleasures of making your own loudspeakers.

Delivering a warm and detailed sound reproduction, these speakers also allow to deliver good bass even "enclosed" in a shelf thanks to these front vents.

Features:/ Strong>

• Rated Power: 60W
• Max Power: 100 W
• Impedance: 4 Ohm
• Frequency response: 50-22000 Hz
• Average sound pressure level: 83 dB (1 W / 1 m)
• Switching frequency: 3500 Hz
• Principle of formwork: Bassreflex
• Net Volume: 13 L
• Dimensions: 380 x 230 x 230 mm

Contents of the kit:

• Tweeter: DT 94 - 8 Ohm x 2
• Medium / Bass: W 170 S - 4 Ohm x2
• Filters mounted and welded: dedicated to the Alto I (x2)
• Events: Bassreflex x4
• Wood screws: 3.5 x 19 mm x 6
• Milled screws: 3.5 x 25 mm x 18
• Cushioning: Polyester wool

Filtered

Response curve
