TONEWINNER AD-1PRE+ Preamplifier Silver

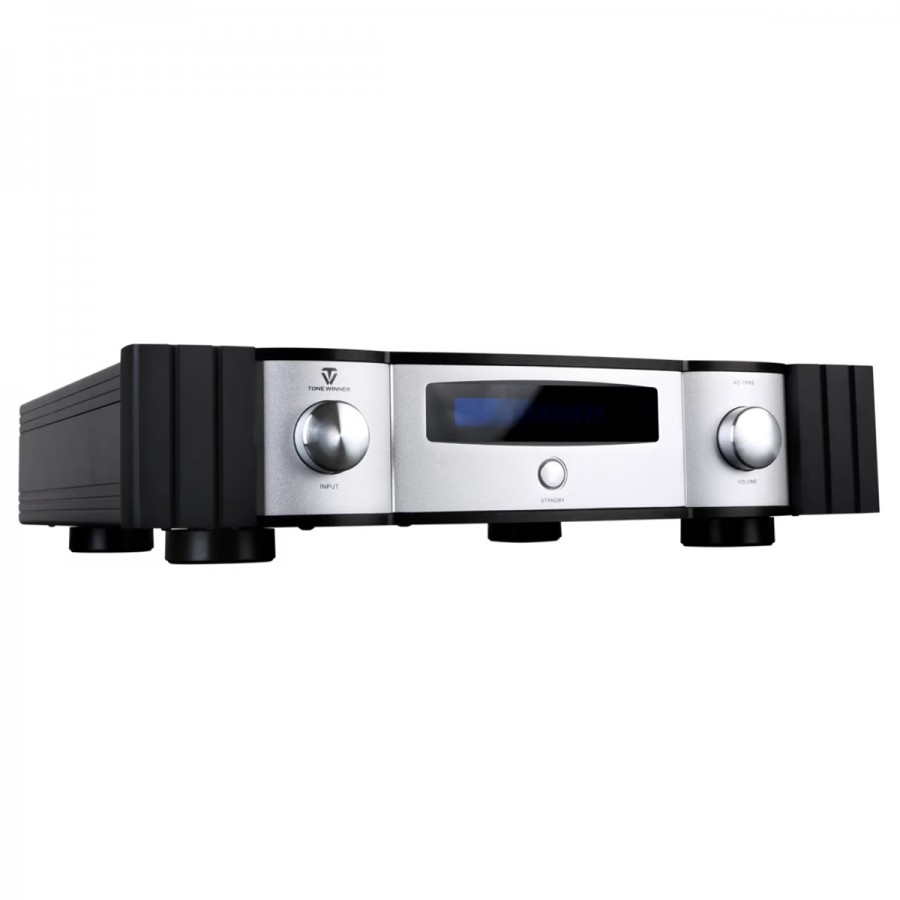

Main picture of Tonewinner AD-1PRE+
The Tonewinner AD-1PRE+ is a versatile preamplifier that offers a number of interesting features. In fact, it incorporates quality components such as an ES9038 DAC chip combined with two optical inputs, a CT7601PR USB interface, as well as a combination of no less than 9 AOPs (5x OPA1612, 4x OPA1632, 1x OPA1642) and a MUSES72323 volume controller. These components enable it to decode high-resolution streams up to PCM 32bit 768kHz and DSD up to DSD512, delivering a warm final sound with low noise and distortion over a wide dynamic range

No customer reviews yet, login to write a review.

By buying this product you get 169 loyalty points


Reference : 18763
New product

1 690,00 €tax incl.

1 408,33 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 28-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Tonewinner AD-1PRE+ Preamplifier Class A/B DAC ES9038 32bits 768kHz DSD512 Silver

Photo of Tonewinner AD-1PRE+ preamplifier

The Tonewinner AD-1PRE+ is a versatile preamplifier that offers a number of interesting features. In fact, it incorporates quality components such as an ES9038 DAC chip combined with two optical inputs, a CT7601PR USB interface, as well as a combination of no less than 9 AOPs (5x OPA1612, 4x OPA1632, 1x OPA1642) and a MUSES72323 volume controller. These components enable it to decode high-resolution streams up to PCM 32bit 768kHz and DSD up to DSD512, delivering a warm final sound with low noise and distortion over a wide dynamic range. When it comes to connectivity, the Tonewinner AD-1PRE+ preamplifier is also extremely complete. Inputs include 4 unbalanced RCA inputs, including two phono inputs (for MM and MC cells), one balanced XLR input, two coaxial SPDIF inputs, two Toslink optical inputs and one USB-B input. Outputs include 2 RCA line outputs and 1 XLR balanced line output. Finally, a trigger connector and remote control enhance the user experience.

Tonewinner AD-1PRE+ highlights

Tonewinner AD-1PRE+: an audiophile amplification stage

As the ToneWinner AD-1PRE+ is above all a Class A/B preamplifier, the brand has chosen audiophile components for its amplification stage. There are 5 AOP OPA1612, 4 AOP OPA1632 and 1 AOP OPA1642. These components deliver low-noise, low-distortion sound, for a pure, transparent signal at the AD-1PRE+'s outputs.

Photo des AOP du préamplificateur casque AD-1PRE+
Photo de la puce DAC ES9038 PRO et de l'interface USB CT7601PR du préamplificateur Tonewinner AD-1PRE+

Tonewinner AD-1PRE+: ES9038 DAC and CT7601PR USB interface

The AD-1PRE+'s optical and digital input interface incorporates an ESS Technology ES9038 32-bit DAC chip and USB interface. This enables this preamplifier to support high-resolution PCM 32bit 768kHz, DSD DoP256 and native DSD streams up to DSD512. In addition, it supports numerous formats such as SACD, ISO, DST and DFF. These features allow you to make the most of your music library, and to link a wide range of devices to the AD-1PRE+, from CD/SACD players to network players.

Tonewinner AD-1PRE+: Phono-compatible inputs

This preamplifier features two Phono-compatible RCA inputs, one MM-cell-compatible input and one MC-cell-compatible input. A very useful feature for fans of 33 rpm and 45 rpm records, who will be able to use the AD-1PRE+ directly with their turntable and enjoy their vinyl collection with a high-end Hi-Fi system.

Photo des entrées phono du préamplificateur Tonewinner AD-1PRE+

Tonewinner AD-1PRE+ preamplifier overview

Connection diagram of the Tonewinner AD-1PRE+ preamplifier
12x RCA stereo line outputs
2XLR balanced line output
32x RCA stereo inputs: MC phono compatible / MM phono compatible
42x stereo RCA inputs (CD, AUX)
5Balanced XLR input
62x SPDIF Coaxial inputs / 2x Toslink optical inputs
7Trigger
8USB-B input
9GND
10IEC power supply

Technical characteristics

Specifications
Product typePreamplificateur / DAC
Amplification classA/B
DAC chipES9038
OPA5x OPA1612
4x OPA1632
1x OPA1642
Volume controlMUSES72323
Inputs4x RCA stereo input (Phono MM, Phono MC, CD, AUX)
1x Balanced XLR input
2x SPDIF coaxial input
2x Toslink optical input
1x USB-B input
Outputs2x RCA stereo output
1x XLR stereo output
Supported sample ratesUSB: PCM 32bit 768kHz, DSD DoP256, native DSD512
Optical: 24bit 192kHz, DSD DoP64
Supported audio formatsSACD, ALAC, APE, DIFF, DSF, FLAC, OGG, WAV, AAC, MP3, WMA
Nominal input impedance20 kΩ (analog inputs)
THD≤ 0.0035% (1kHz)
SNR≥ 110dB (A-weighted, direct analog)
Frequency response10Hz-180kHz (+1/-3dB, direct analog)
Crosstalk≥ 102dB (1kHz, analog)
General
Alimentation110V-115V AC 60Hz, 220V-230V AC 50Hz
Dimensions444 × 106 × 424mm
Net weight9.7kg
ColorSilver
Package1x Tonewinner AD-1PRE+ preamplifier
1x Remote control
1x Power cable

Data sheet
InputRCA
InputSPDIF
InputUSB
InputXLR
InputOptical
OutputRCA
OutputXLR
ColorSilver
ColorBlack
ClassClass A / AB
Remote ControlYes
