WIMA MKP-2 Polypropylene Capacitor 5mm 630V 22nF
These WIMA MKP-2 capacitors are made of a Polypropylene dielectric. They benefit from a tolerance of 10%, a very low dissipation factor and a low level of dielectric absorption. Their filtering capacity allows them to be used in a wide range of applications.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 17745
New product
![[GRADE B] AUDIOPHONICS LPA-M750ET Power Amplifier Mono Class D Purifi 1ET9040BA 1x750W 4 Ohm](https://www.audiophonics.fr/69998-thumb_default/audiophonics-lpa-m750et-1et9040ba.jpg)
![[GRADE A] IEAST AUDIOCAST PRO M20 Streamer WiFi AirPlay DLNA Bluetooth 5.0 24bit 192kHz](https://www.audiophonics.fr/70008-thumb_default/ieast-audiocast-pro-m20.jpg)
![[GRADE A] DAYTON AUDIO HTA20 Hybrid Tube Class AB Amplifier Bluetooth 2x15W 4 Ohm](https://www.audiophonics.fr/70004-thumb_default/dayton-audio-hta20-hybrid-tube-class-ab-amplifier-bluetooth-2x15w-4-ohm.jpg)
![[GRADE S] EVERSOLO DMP-A8 Streamer AK4191EQ AK4499EX XMOS XU316 WiFi DLNA AirPlay Bluetooth aptX HD LDAC](https://www.audiophonics.fr/69953-thumb_default/eversolo-dmp-a8.jpg)
![[GRADE A] MINIDSP FLEX EIGHT Digital Audio Processor DSP 2x8 Channels SHARC ADSP21489 XMOS Bluetooth 5.0 aptX HD LDAC](https://www.audiophonics.fr/69968-thumb_default/minidsp-flex-eight-digital-audio-processor-dsp-2x8-channels-sharc-adsp21489-xmos-bluetooth-50-aptx-hd-ldac.jpg)

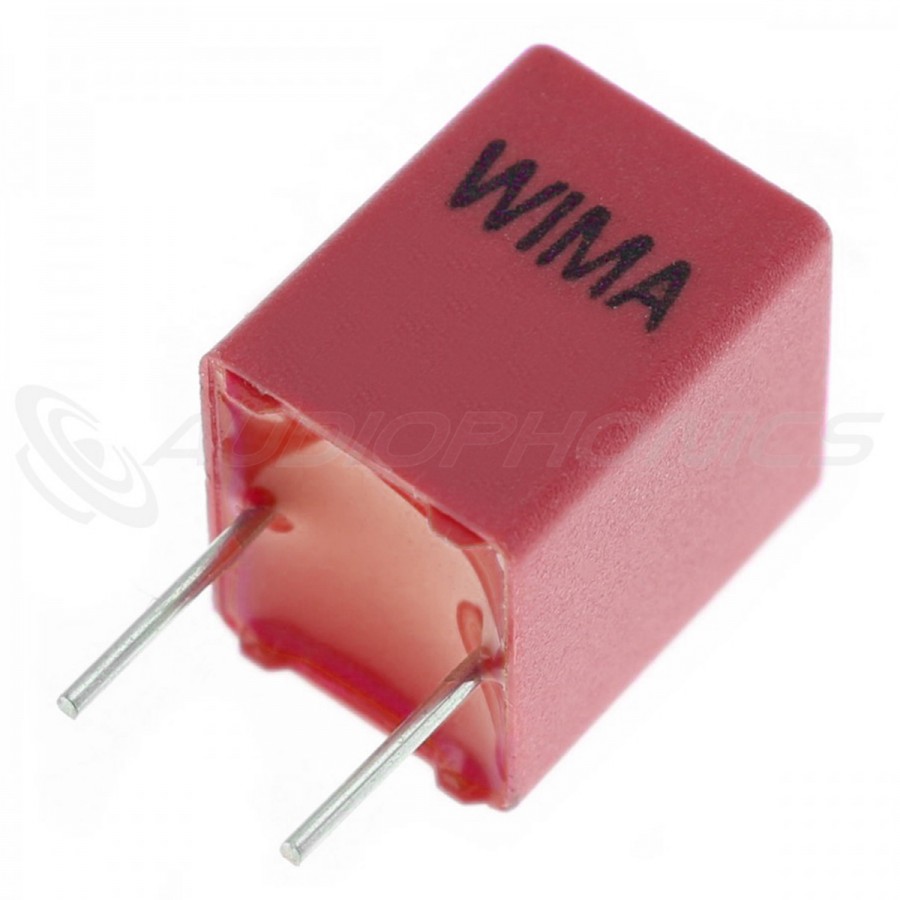

WIMA MKP-2
Polypropylene Capacitor 5mm 630V 22nF
These WIMA MKP-2 capacitors are made of a polypropylene dielectric. They benefit from a tolerance of 10%, a very low dissipation factor and a low level of dielectric absorption. Their filtering capacity allows them to be used in a wide range of applications. Moreover, they have an extended service life, even at high temperatures.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Capacitor |
| Capacity | 22nF |
| Voltage | 630V 250VAC |
| Tolerance | 10% |
| Dielectric | Polypropylene foil (PP) |
| Electrodes | Metal foil |
| Temperature range | -55°C to +100°C |
| Insulation resistance (@+20°C) | ≥ 3x104MΩ @ +20°C |
| Dielectric absorption | 0.05% |
| Operational life | > 300000h |
| Dissipation factor (@ +20°C) | ≤ 0.5x10-3 @ 1kHz ≤ 0.8x10-3 @ 10kHz ≤ 3.0x10-3 @ 100kHz |
| RoHS | |
| General | |
|---|---|
| Dimensions | 7.2*5.5*11.5mm |
| Contacts spacing | 5mm |
| Tolerance (%) | 10 |
| Capacitor capacitance (µF) | 0.022 |
| Rated voltage (V) | 630.0 |
| Capacitor type | Film capacitor |
| Capacitor format | Radial |
