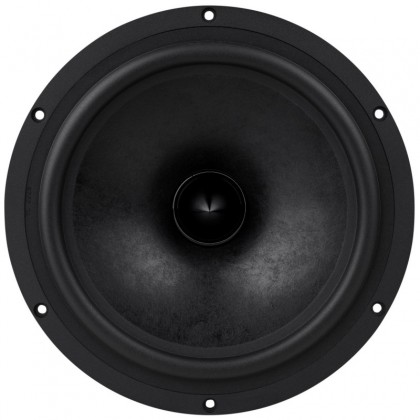

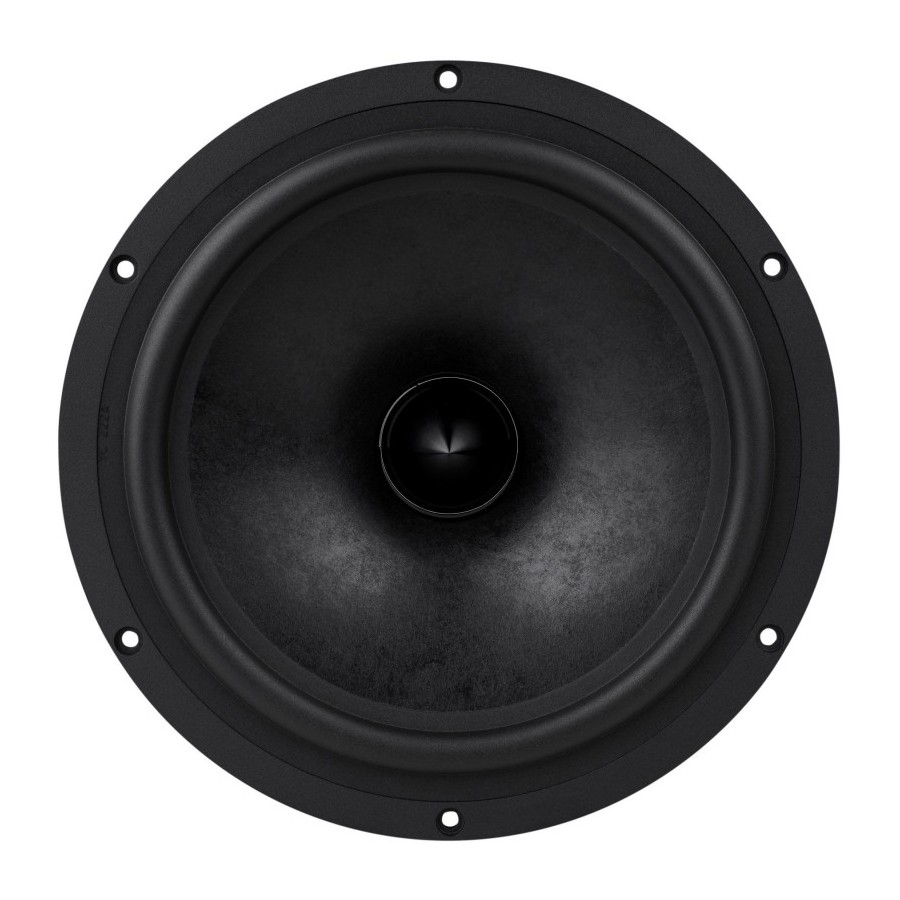

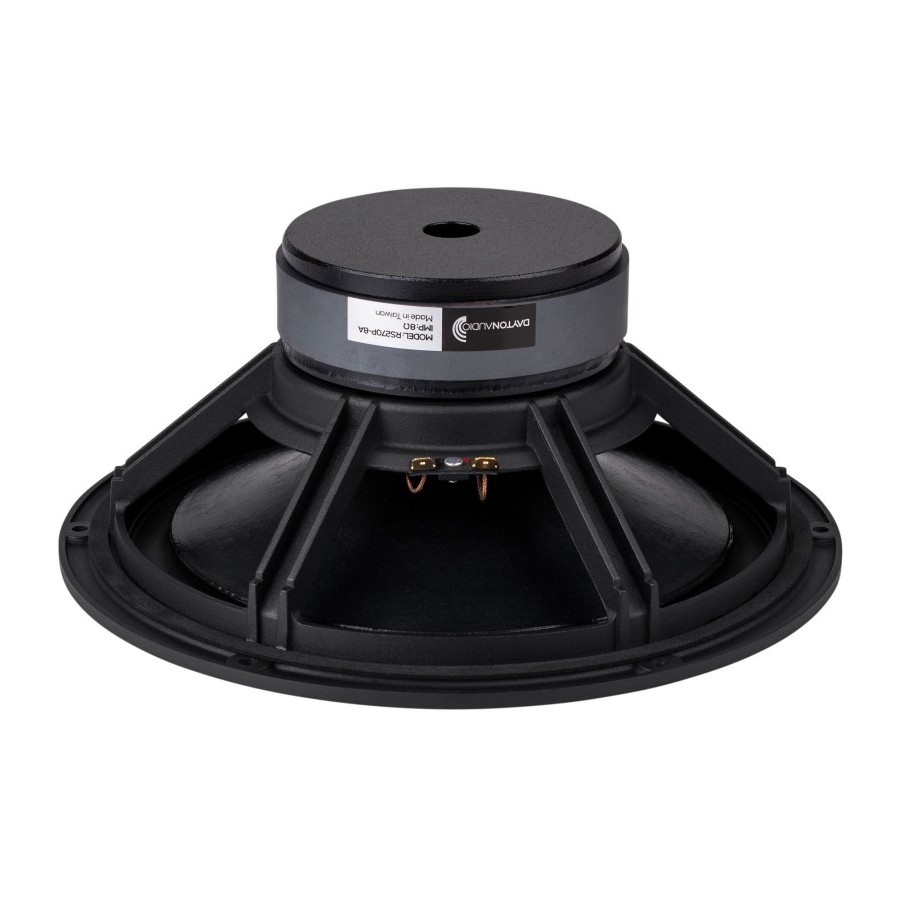

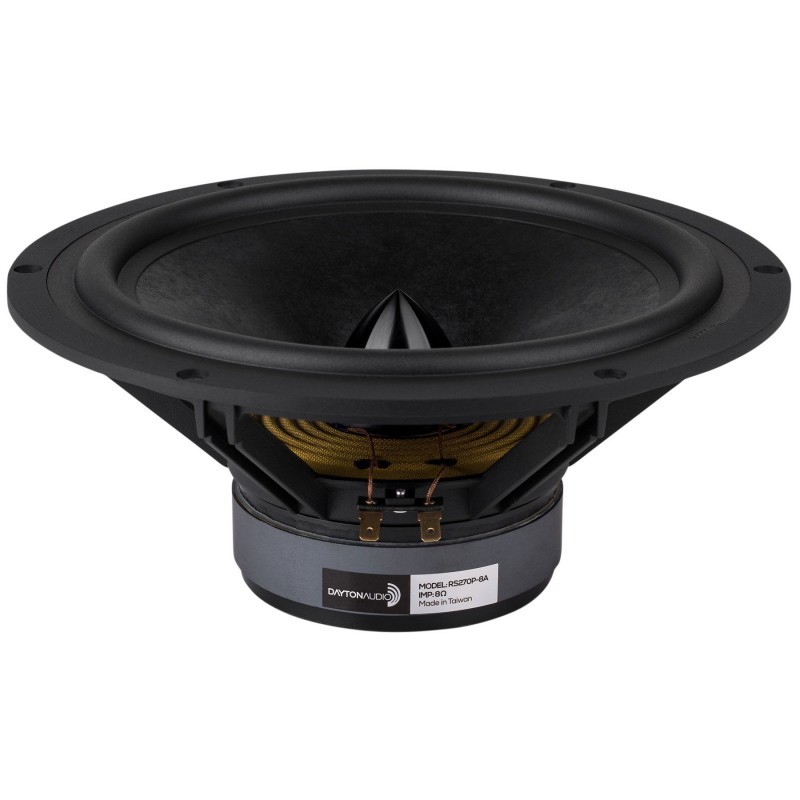

RS270P-8A bass speaker belongs to the Reference Serie from Dayton Audio. It offers a great value for money while respecting the excellent specifications of Reference serie for a high performance speaker.
This model inherits all the technical know-how and qualities that made the success of the Reference series, this time with a composite cone constructed from natural paper pulp, PPD-T (Kevlar) fiber glass. The set is designed to highlight details while providing a neutral and natural reproduction.
The RS270P-8A has great precision on its frequency band (23-6000Hz) with an extremely low amount of distortion in the lowest part of the spectrum.
Specifications | |
---|---|
Speaker Type | Woofer |
Nominal Diameter | 10" |
Power Handling (RMS) | 100 watts |
Power Handling (max) | 200 watts |
Impedance | 8 ohms |
Sensitivity | 87.5 dB @ 2.83V/1m |
Frequency Response | 23 - 6,000 Hz |
Voice Coil Diameter | 2" |
DC Resistance (Re) | 6.8 ohms |
Voice Coil Inductance (Le) | 0.88 mH |
Resonant Frequency (Fs) | 22.9 Hz |
Mechanical Q (Qms) | 1.33 |
Electromagnetic Q (Qes) | 0.42 |
Diaphragm Mass Inc. Airload (Mms) | 73.2g |
Mechanical Compliance of Suspension (Cms) | 0.66 mm/N |
Surface Area Of Cone (Sd) | 346.4 cm² |
Volume of Displacement (Vd) | 207.8 cm³ |
Compliance Equivalent Volume (Vas) | 110.5 liters |
Maximum Linear Excursion (Xmax) | 6.0 mm |
Cone / Diaphragm Material | Paper / Kevlar Cone |
Surround Material | Rubber |
Voice Coil Wire Material | Copper |
Voice Coil Former | Aluminum |
Basket/Frame Material | Cast Aluminum |
Magnet Material | Ferrite |
Overall Outside Diameter | 272 mm |
Overall Depth | 113 mm |
Baffle Cutout Diameter | 236 mm |
# Mounting Holes | 6 |
Bolt Circle Diameter | 258 mm |
Speaker Power (W RMS) | 100.0 |
Speaker Type | Woofer |
Impedance (Ω) | 8 |
Loudspeaker diameter (mm) | 254.0 |
Diaphragm type | Paper |
Diaphragm type | Cellulose |
Diaphragm type | Kevlar |
Efficiency / Sensitivity (dB) | 87.0 |
Max Linear Excursion (Xmax) (mm) | 6.0 |
Lowest frequency (Hz) | 23 |
Highest frequency (Hz) | 6000 |
