MA-LM02 Stereo Amplifier board LM3886T Class AB 2x 68W

Stereo Amplifier board LM3886T Class AB 2x 68W
This Class AB Stereo Amplifier is renowned for its clarity, dynamics and excellent low frequency handling.

Average votes for this product
4.0 / 5

By buying this product you get 5 loyalty points


Reference : 10219
New product

54,90 €tax incl.

45,75 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

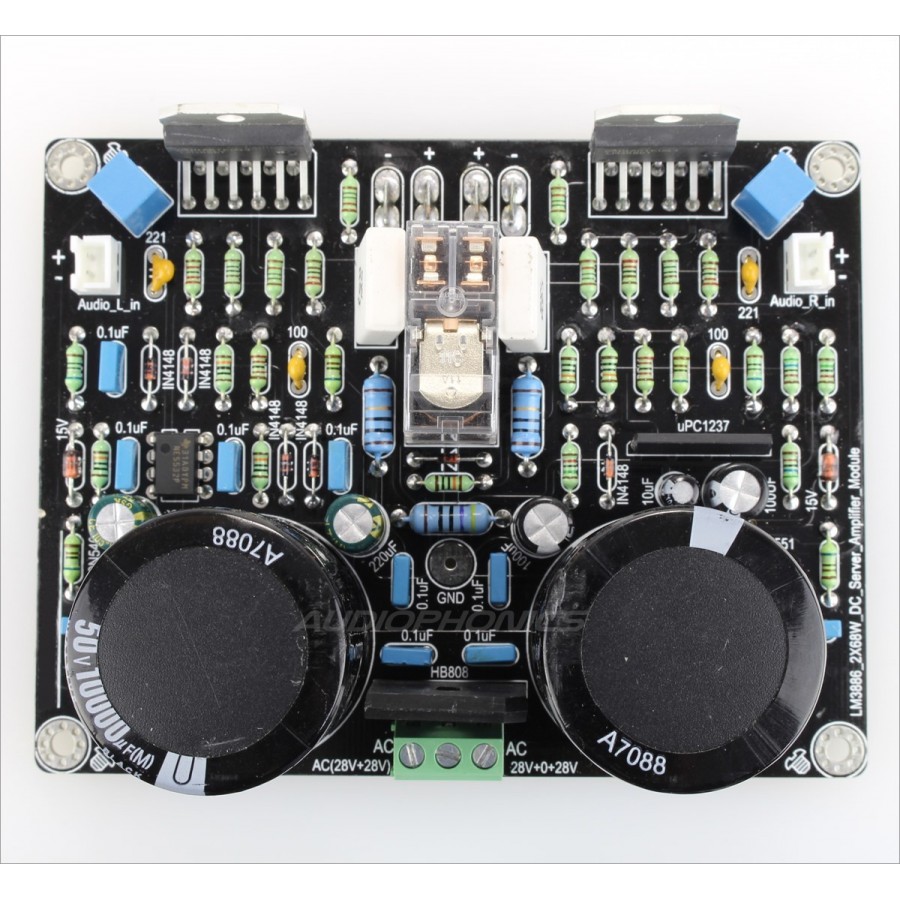

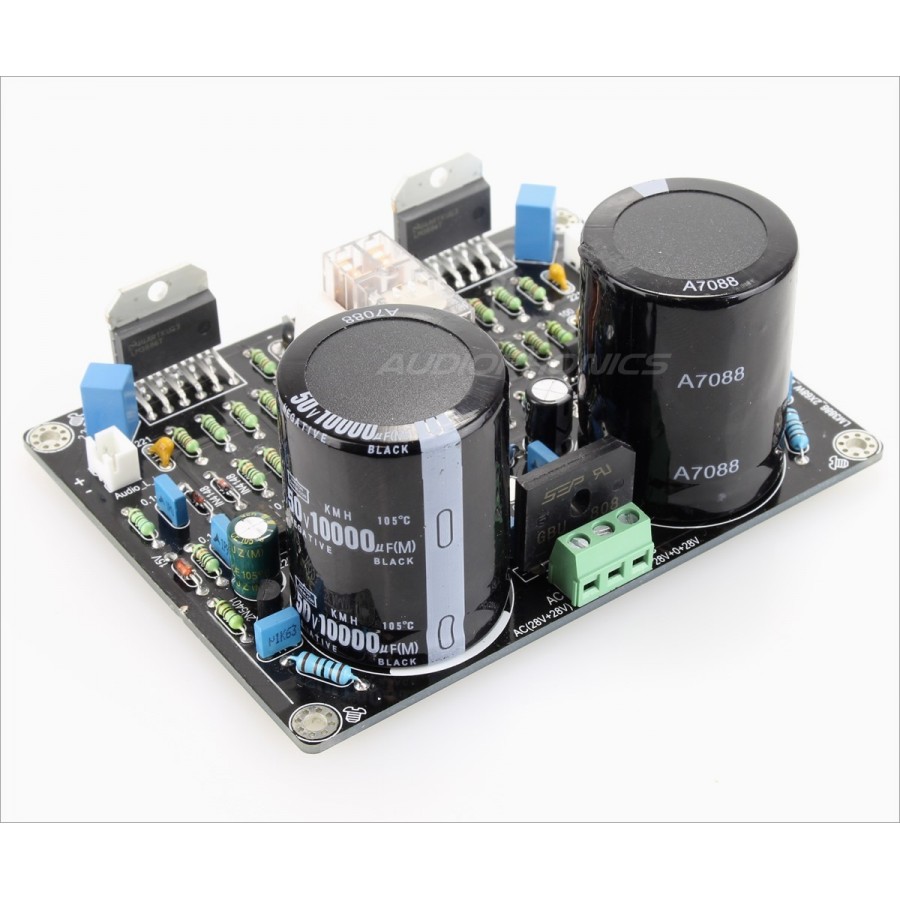

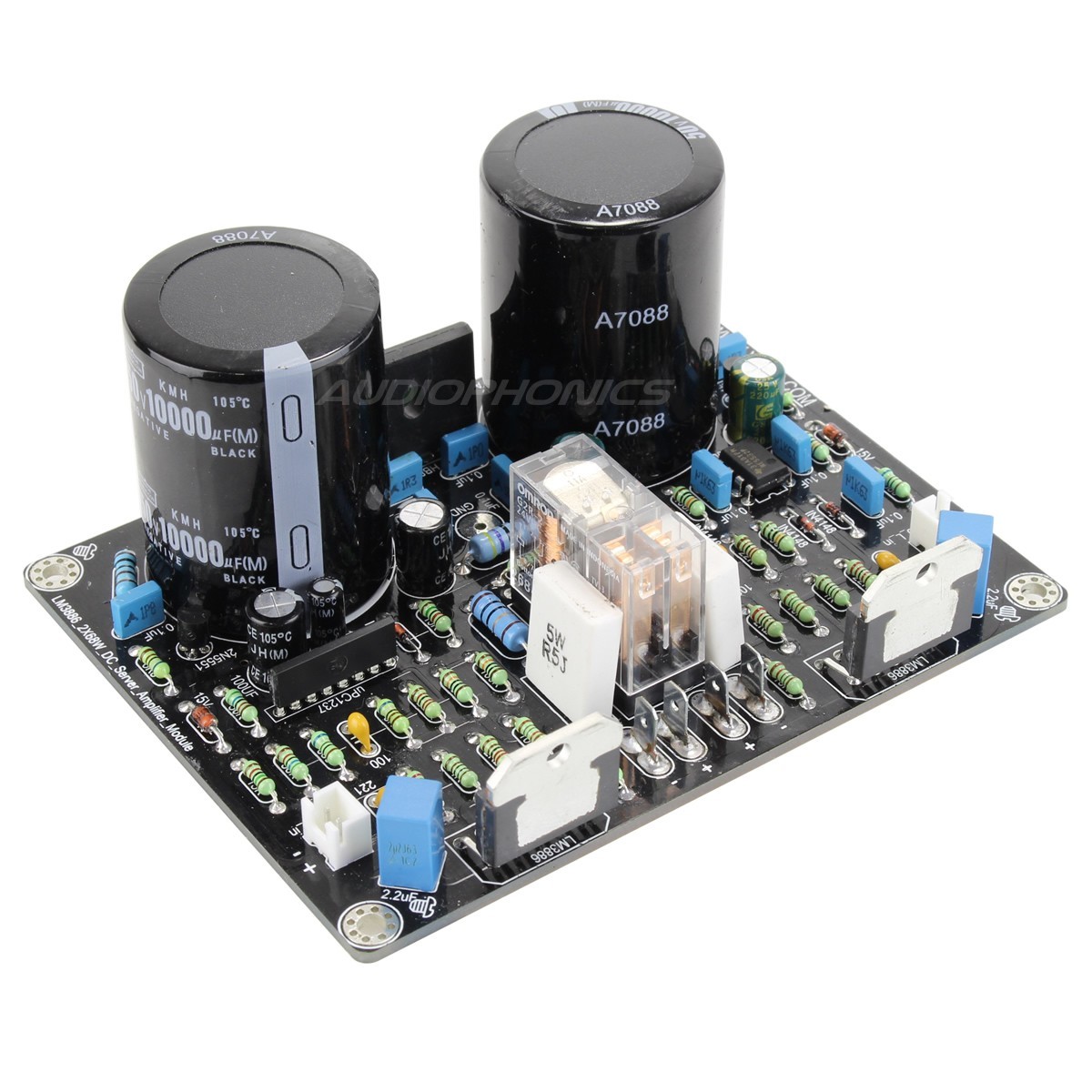

This Class AB Stereo Amplifier is renowned for its clarity, dynamics and excellent low frequency handling. It has two 10000µF 50V rectifier filter capacitors and a C1237 speaker protection circuit with Omron relay. It includes a start delay circuit and overload and overheat protection. Easy to implement and small size, it will prove to be an excellent choice for any DIY Amplifier project.

It is highly recommended to associate this amplifier module with a heat sink to avoid any overheating problem.

Technical characteristics

Specifications
AmplifierLM3886T
Output power2x68W @ 8Ω

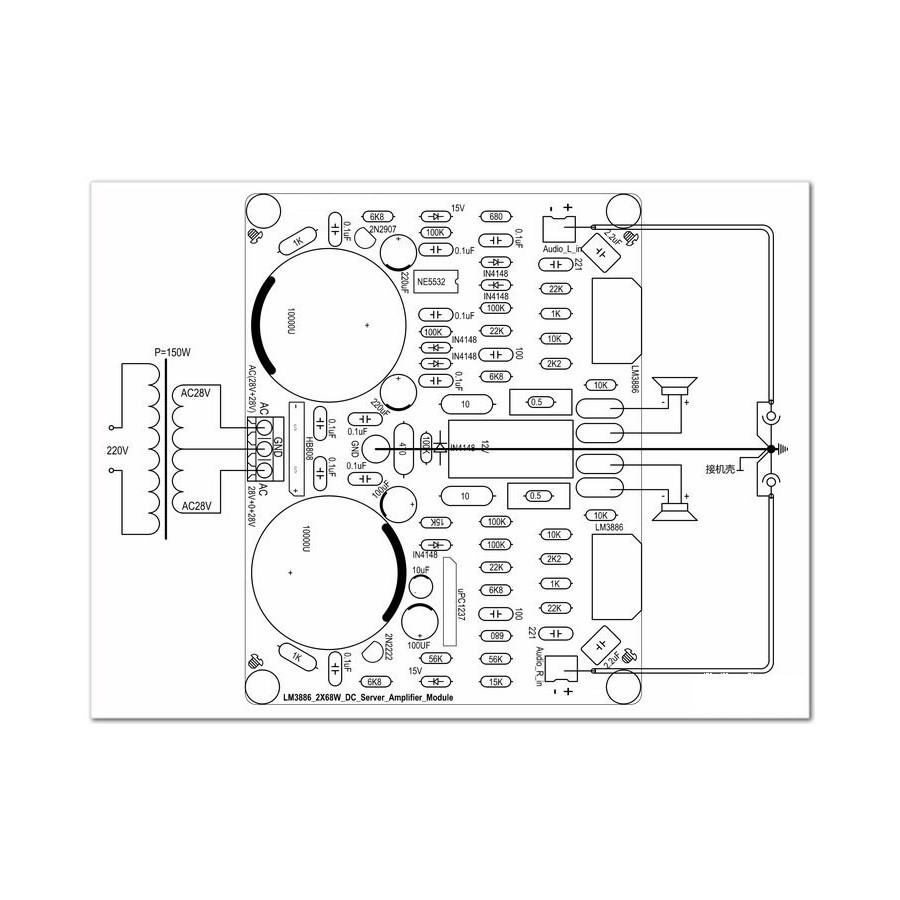

Recommanded power supply150W / 26V to 28V AC (ex: 28x28 or 28-0-28)
Dimensions120 x 92.5 x 49mm
Fixation holes spaces112mm / 84mm
Package1x Amplifier module
Spacers
Screws
Mica insulation and cable lugs for the outputs






Data sheet
InputNC
OutputSolder pad
Channel2 (Stereo)
ClassClass A / AB
Amplifier chipLM3886
Power (W)68.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
bon ampli, mauvaise presta de vente.
Ampli très correct pour le prix.
MAIS Audiophonics n'en a rien à faire de l'état de réception de nos commandes:
Emballages pitoyables, les circuits roulés dans un bout de carton avec systématiquement les CI écrabouillés sur leurs pattes. Condos bosselés, pattes rompues...
Beaucoup de clients ont déjà fait la remarque et rien ne change,
Conclusion : l'intérêt d'Audiophonics est ailleurs!
 (0)
 (0)
This review has been posted for MA-LM02 Stereo Amplifier board LM3886T Class AB 2x 68W
Note :
 4/5
Date :
Efficace
J'ai monté ce module dans un boitier pour alimenter deux enceintes prévues pour le monitoring. Seul, ce petit ampli délivre un son plutôt neutre ou trop neutre sans chaleur, cependant si vous remplacez le DIP8, et le placez après un préampli comme le Module Préamplificateur / Atténuateur avec contrôle de tonalité DIP8 par exemple, le son prendra une dimension complètement différente avec des basses arrondies et ds aigus précis non agressifs. J'arrive aujourd'hui à un niveau de son à des enceintes de monitoring d'un prix d'environ 800,00 EUR pièces donc très content de mon investissement.
 (0)
 (0)
This review has been posted for MA-LM02 Stereo Amplifier board LM3886T Class AB 2x 68W
