ASCILAB C8C Bookshelf Speakers White (Pair)

The AsciLab C8C speakers are active 3-way cardioid speakers with a power rating of 1x100W + 2x250W. They feature a central tweeter and two 6" ceramic woofers supported by two side subwoofers for powerful, immersive sound. Thanks to their unique design, they cover a very wide frequency.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 579 loyalty points


Yes, notify me when available !
Reference : 21394
New product

5 799,00 €tax incl.

4 832,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

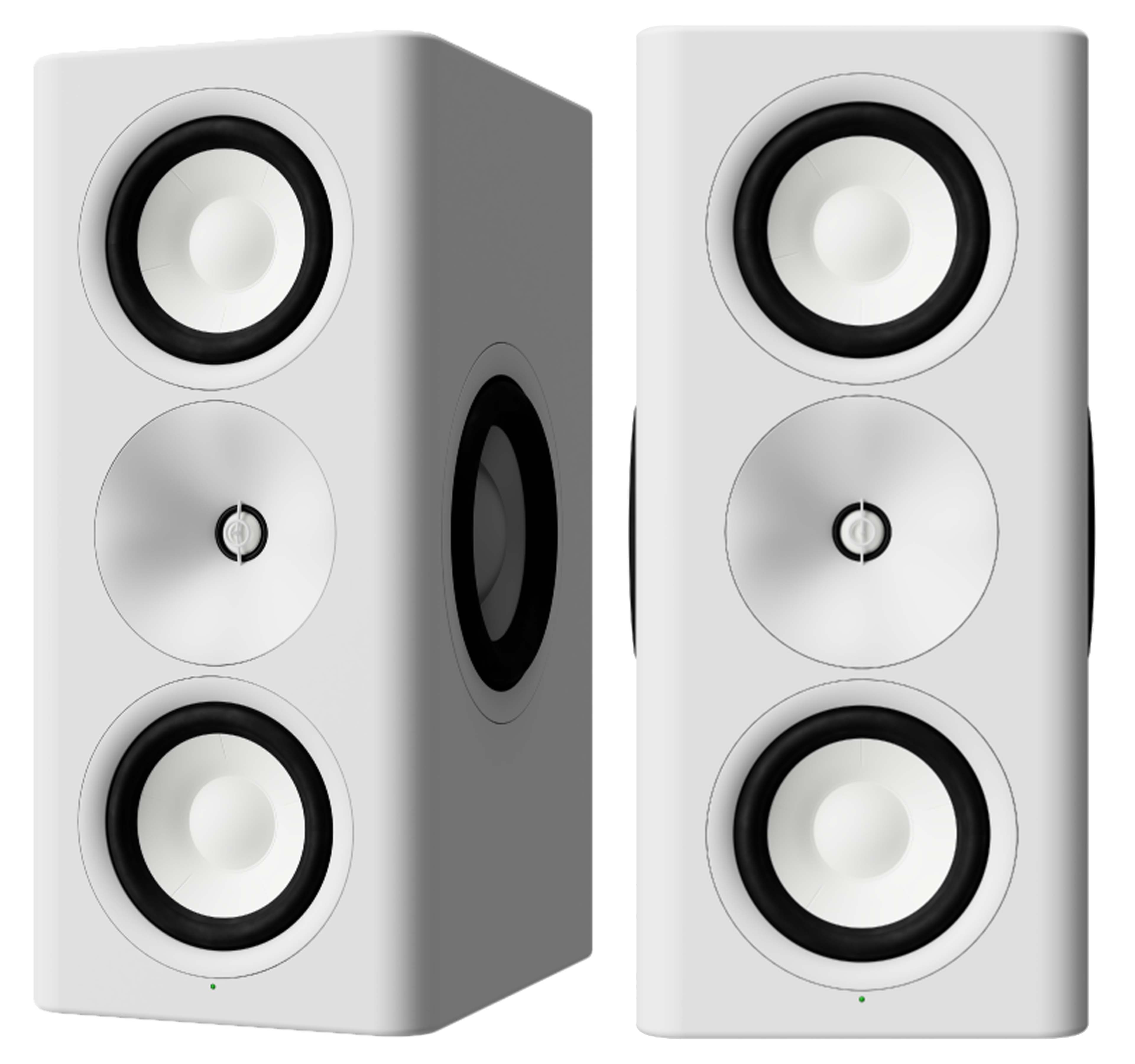

AsciLab C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W White (Pair)

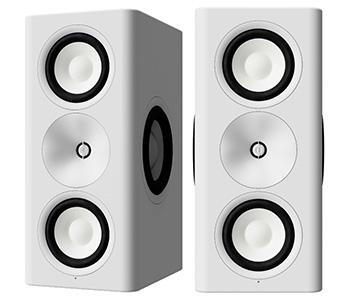

Photo of the AsciLab C8C


The AsciLab C8C speakers are 3-way cardioid active speakers with a power rating of 1x100W + 2x250W. They feature a central tweeter and two 6" ceramic woofers supported by two side subwoofers for powerful, immersive sound. Thanks to their unique design, they cover a very wide frequency range of 30Hz-20kHz while maintaining exemplary directivity and low distortion. In addition, their connectivity offers numerous configurations: a micro USB-B port provides access to a 9-band equalizer to fine-tune the settings of your C8C speakers according to their position in the room, the style of music being played, or simply your preferences.

AsciLab C8C: a combination of 3 types of speakers

Alumina ceramic tweeter with waveguide

Alumina ceramic tweeter with waveguide

The tweeters in the AsciLab C8C feature a waveguide and an internal phase plug, designed to precisely manage sound dispersion. These elements help prevent phase interference, reduce internal resonance, and improve off-axis dispersion. The advantages of this type of configuration include a more linear frequency response, reduced distortion, and better sound spatialization, resulting in a more coherent soundstage.

Two 6

Two 6" alumina ceramic woofers

Despite their compact size, the 6" woofers in the AsciLab C8C speakers are capable of filling large spaces with powerful, well-defined bass. Alumina ceramic provides exceptional rigidity for faithful, distortion-free reproduction even at high volumes, thanks to significant limitation of cone deformation at high sound pressure levels.

Two 8-inch active subwoofers

Two 8" active subwoofers

The C8C speakers feature two subwoofers in a dual-opposite-phase (DOP) configuration to minimize resonance effects while producing powerful, immersive sound. This means they are mounted facing each other on opposite sides of the same enclosure and operate in phase. The result is tighter, more precise bass.

AsciLab C8C: horizontal and vertical cardioid directivity

By reducing lateral and rear radiation, AsciLab C8C speakers avoid sound reflections for clearer sound reproduction. At the same time, the symmetrical vertical layout prevents reflection from the floor or speaker stand for overall consistency in the sound experience.

Cardioid directivity of the AsciLab C8C
AsciLab C8C operating modes

AsciLab C8C: 2 operating modes and 9-band EQ

The C8C has 2 distinct operating modes: minimum phase mode and linear phase mode. Minimum phase operation is ideal when the user is looking for low latency for real-time rendering and is therefore suitable for professional or home studio use, while linear phase operation provides stricter alignment and increased transient fidelity, but with a latency of approximately 30 ms. In addition, you can use the built-in 9-band DSP equalizer for precise adjustment to suit your environment. These DSP settings are accessible via the micro USB-B port using a Windows interface.

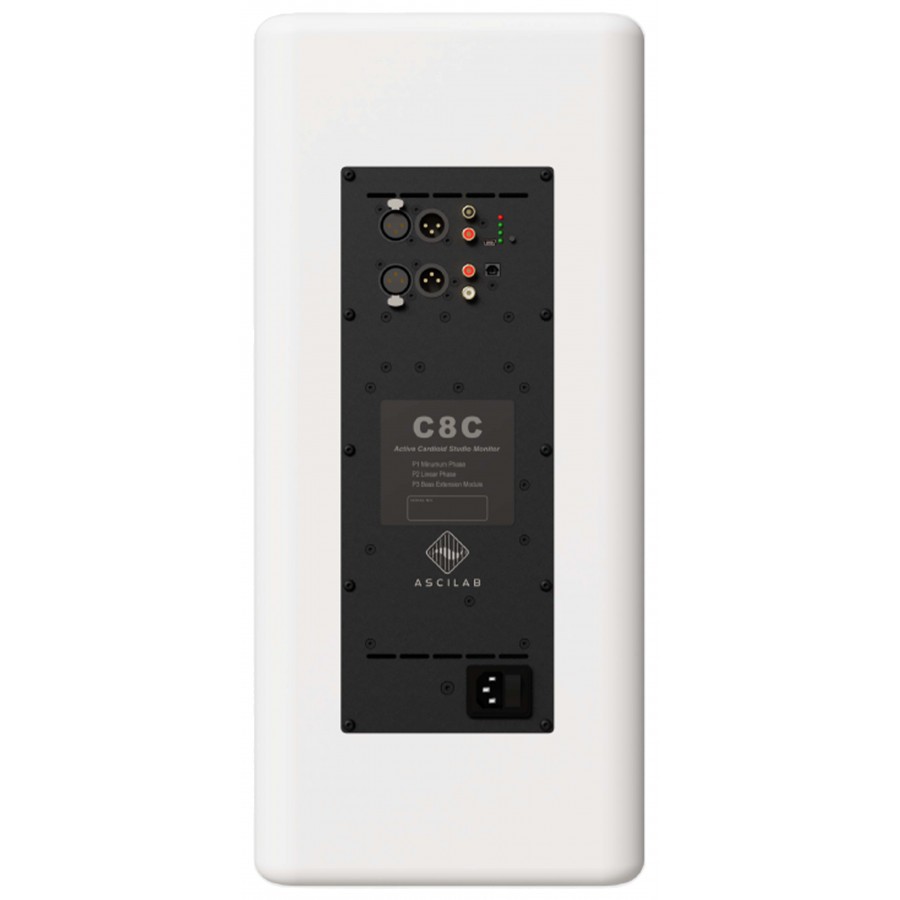

Overview of the AsciLab C8C connectivity

Overview of the AsciLab C8C connectivity
1IN/OUT XLR
2IN/OUT RCA
3Micro USB-B port (DSP)
4IN/OUT AES/EBU
5IN/OUT SPDIF Coaxial
6IN/OUT Toslink Optical
7Mode selection button: minimum phase/linear phase

The outputs are pass-through outputs and allow you to daisy chain the various C8C/BX8C speakers. Please use AES/EBU or coaxial SPDIF digital rather than Toslink optical for true pass-through.

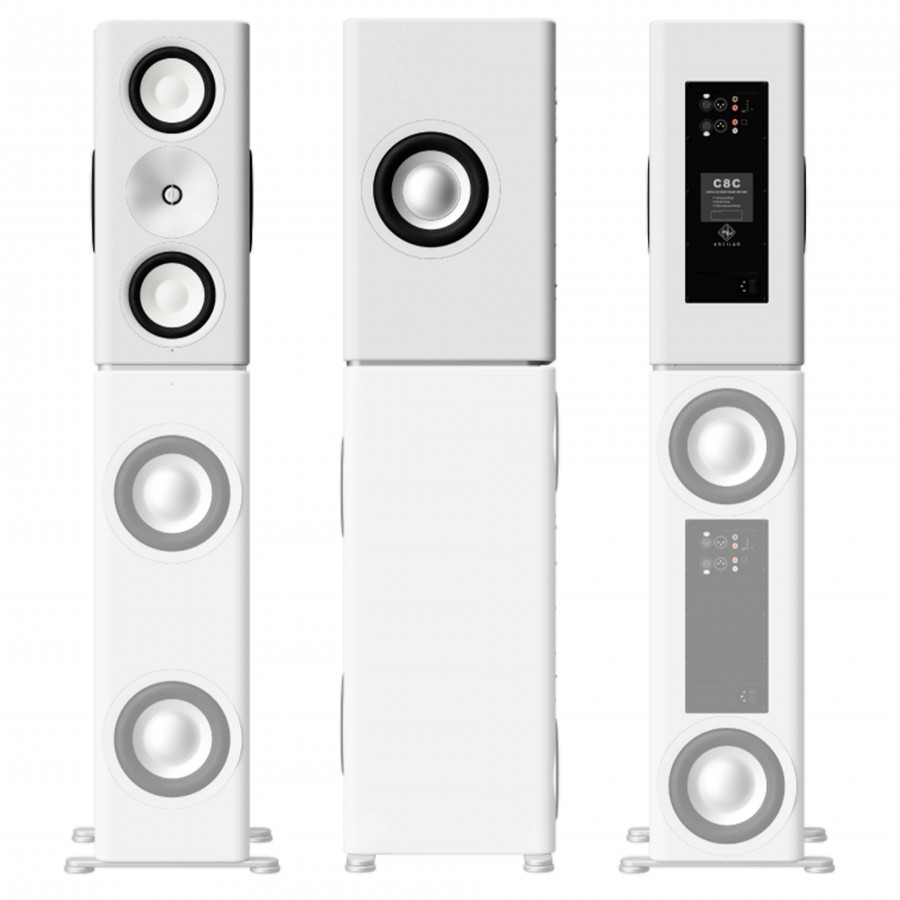

AsciLab C8C: Option to extend bass frequencies with the BX8C module

Alongside its C8C model, Ascilab has developed a BX8C (sold separately) bass extension module, specially designed to work in conjunction with it. The BX8 modules connect in series with the C8C modules to provide more powerful sound if you have a large space. The BX8C modules are also active and feature four 8" subwoofers arranged in a dual-opposite-phase (DOP) configuration.

Extension des basses avec le module BX8C

Ascilab C8C review by AudioScienceReview (Amir)

" Trust the science that creating a very accurate speaker with extreme deep bass response will put a smile on your face. That is what the C8C does. It delivers in every aspect, other than blowing your hair back at 20 Hz. With so many smaller speakers dying off at 40+ Hz, this is revelation. Yes, the cost is high but consider that you have just about everything you need. I just connected my Eversolo streamer to it and was good to go. A minimalistic system with superb performance. The combination with BX8C should be insane as it fills the only hole we have here with highest levels of playback. It is my pleasure to recommend Ascilab C8C Active DSP speaker."
Test par AudioScienceReview

Technical characteristics

Specifications
Product typeActive speakers
Number of channels3-way
DirectivityCardioid
Tweeter1x 1" alumina ceramic dome tweeter and waveguide
Woofer2x 6" alumina ceramic woofers
Subwoofer2x 8" active subwoofers
Crossover frequencies1.2kHz, 150Hz, 4th order
Amplification100W for high frequencies
250W for midrange frequencies
250W for low frequencies
Integrated DSP9 bands via Hypex controller software
General
Net weightApproximately 27.5 kg/speaker
Dimensions560 x 254 x 350mm
ColorWhite
Package1x Pair of AsciLab C8C speakers
1x AC power cable
AsciLab C8C measurements
