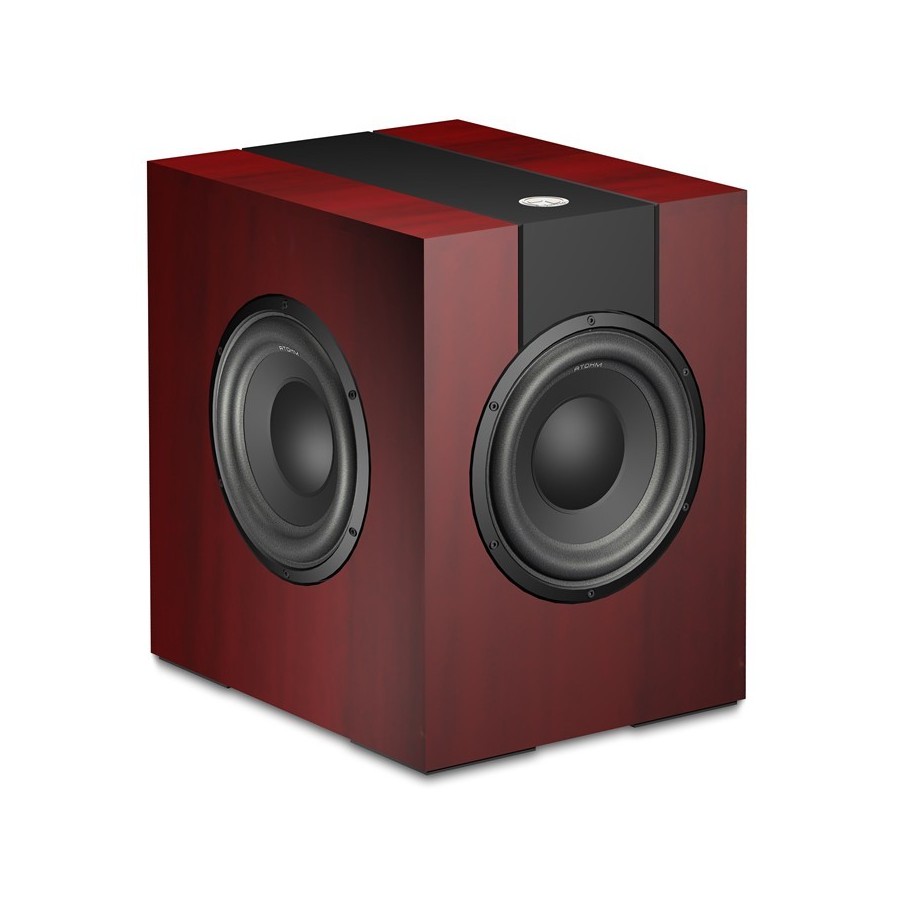

The Rafale SL3M-X kit is compact considering its possibilities.
It integrates effectively with the Speakers of the brand to offer you a system with the exemplary restitution.

The closed 35-liter load includes a dedicated 500W amplification via an S500 module with SL3M card coupled with 3 new 23cm specific units (LD230CR08M).

The trio has an emissive surface equivalent to that of a 38cm and when necessary, the associated electronics propels them up to ± 15mm of excursion! color: # 000000; font-family: Arial; font-size: 12px; font-style: normal; ">The powerful motorization of the loudspeakers, the "ideal" parameters of the coupling with the load (QT approx 0.7) and the unconditional control of the applied signal (500 W power stage in Class D / X-guard technology) the most extreme (23Hz @ -3dB) with an unprecedented level and speed.

The Rafale SL3M kit includes an S500 module with SL3M card, three LD230CR08M speakers, necessary hardware and a technical sheet with detailed plans for manufacturing.


  • Subwoofer active: Active channel for Rafale SL3M (not supplied) / Load close 35L
  • Amplification power: 500 Weff (S500 with SL3M card) / X-GUARD technology
  • Frequency response: 23Hz to 200Hz (-3dB)
  • Maximum pressure: 118 dB spl at 30Hz (PI / 2 st) / 1m
  • Cut-off frequency: Adjustable from 38Hz to 200Hz in 12 or 24 dB / oct
  • Dimensions: 820 × 315 × 215 mm
  • Weight: 35kg
Supplied in the kit:
  • 3x HP LD230CR08M
  • 1 amplifier module S500
  • Screws
  • Sigle
  • Wiring diagram and layout
Cabinet is not included in the kit.
